Compatible with 12V/24V systems, it delivers stable power and flicker-free dimming for vibrant visual effects. The decoder features auto-addressing or manual DIP-switch configuration, simplifying large-scale setups. With robust signal amplification and daisy-chain capability, you can connect up to 32 units per DMX universe without signal degradation. Built-in short-circuit and overheat protection ensures long-term reliability in commercial environments. Whether you’re retrofitting existing signage or designing a new dynamic display, this decoder offers seamless integration, precise brightness control, and effortless programming via any DMX console. Unlock unlimited creative possibilities with dependable performance.
Versatile Lighting Control: Supports both RGB LED strips and single-color modules; each channel can independently drive red, green, blue, or individual white/monochrome signs for flexible zone management.
Professional DMX512 Protocol: Fully compatible with DMX512 consoles, supporting RDM and daisy-chain networking; occupies just 3 DMX addresses per unit for efficient universe allocation.
Wide Voltage & High Power: Operates on 12V/24V DC systems with up to 5A/8A per channel (depending on model), handling high-power advertising modules with ease.
Flicker-Free PWM Dimming: Advanced PWM technology ensures smooth, high-frequency dimming without flicker, perfect for camera-ready displays and broadcast environments.
Industrial-Grade Reliability: Features automatic signal amplification, polarity protection, and thermal overload safeguards; supports 32+ units per chain with optional terminal resistor for stable long-distance transmission.
|
Parameter |
Specification |
|---|---|
|
Product Type |
3-Channel Constant Voltage DMX512 Decoder |
|
Input Signal |

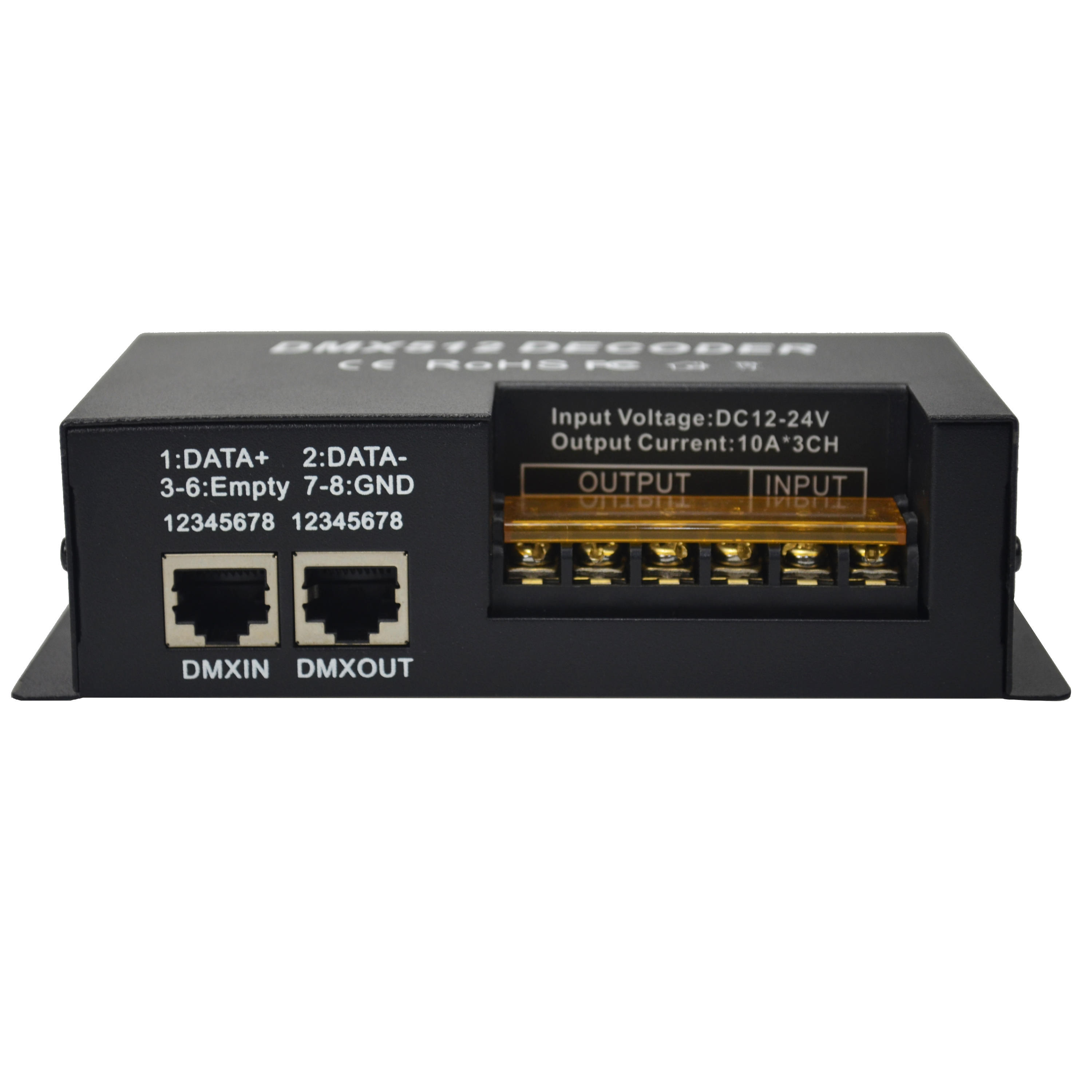

DMX512 (standard XLR-3 / RJ45) |
|
Output Type |
3 × PWM Constant Voltage (R, G, B) |
|
Input Voltage |
DC 12V / 24V (auto-sensing or fixed, model dependent) |
|
Max Output Current |
3A / 4A / 5A / 8A per channel (select by model) |
|
Max Output Power |
12V: 108W~288W (3×3A~3×8A) |
|
DMX Channels Occupied |
3 channels (consecutive) |
|
DMX Address Setting |

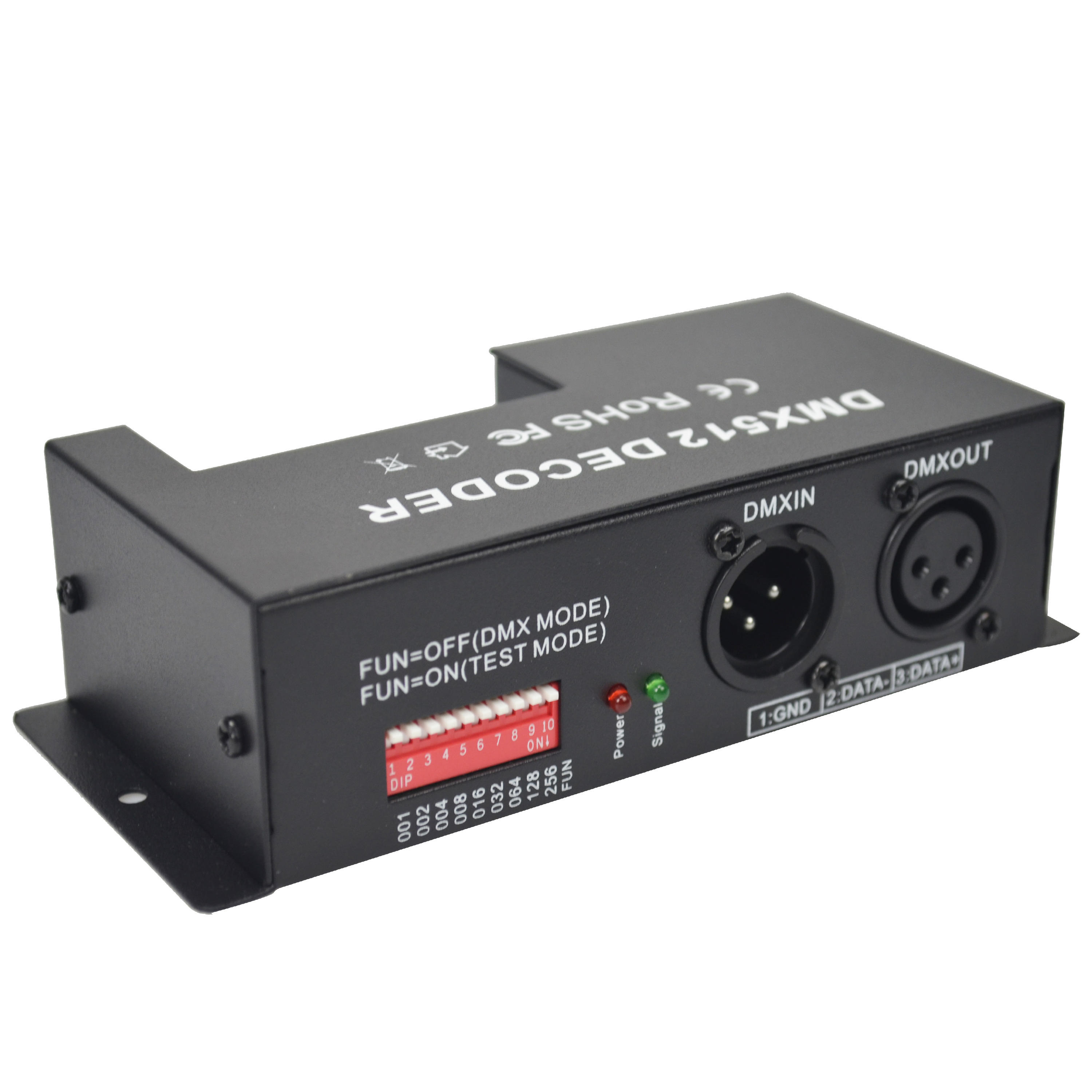

DIP switch or auto-addressing (RDM optional) |
|
Dimming Range |
0–100% (8-bit or 16-bit resolution) |
|
PWM Frequency |
500Hz–4KHz (flicker-free, model specific) |
|
Connection Terminals |

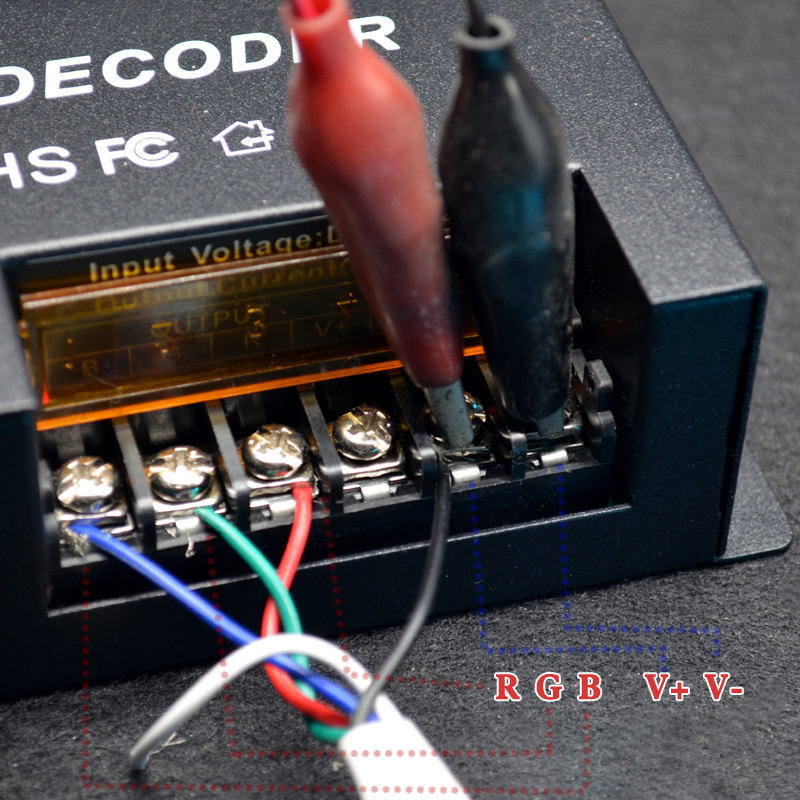

Screw terminals for V+, R, G, B, DMX IN/OUT |
|
Protection Rating |
Reverse polarity, short-circuit, overheat protection |
|
Operating Temperature |
-20°C to +50°C |
|

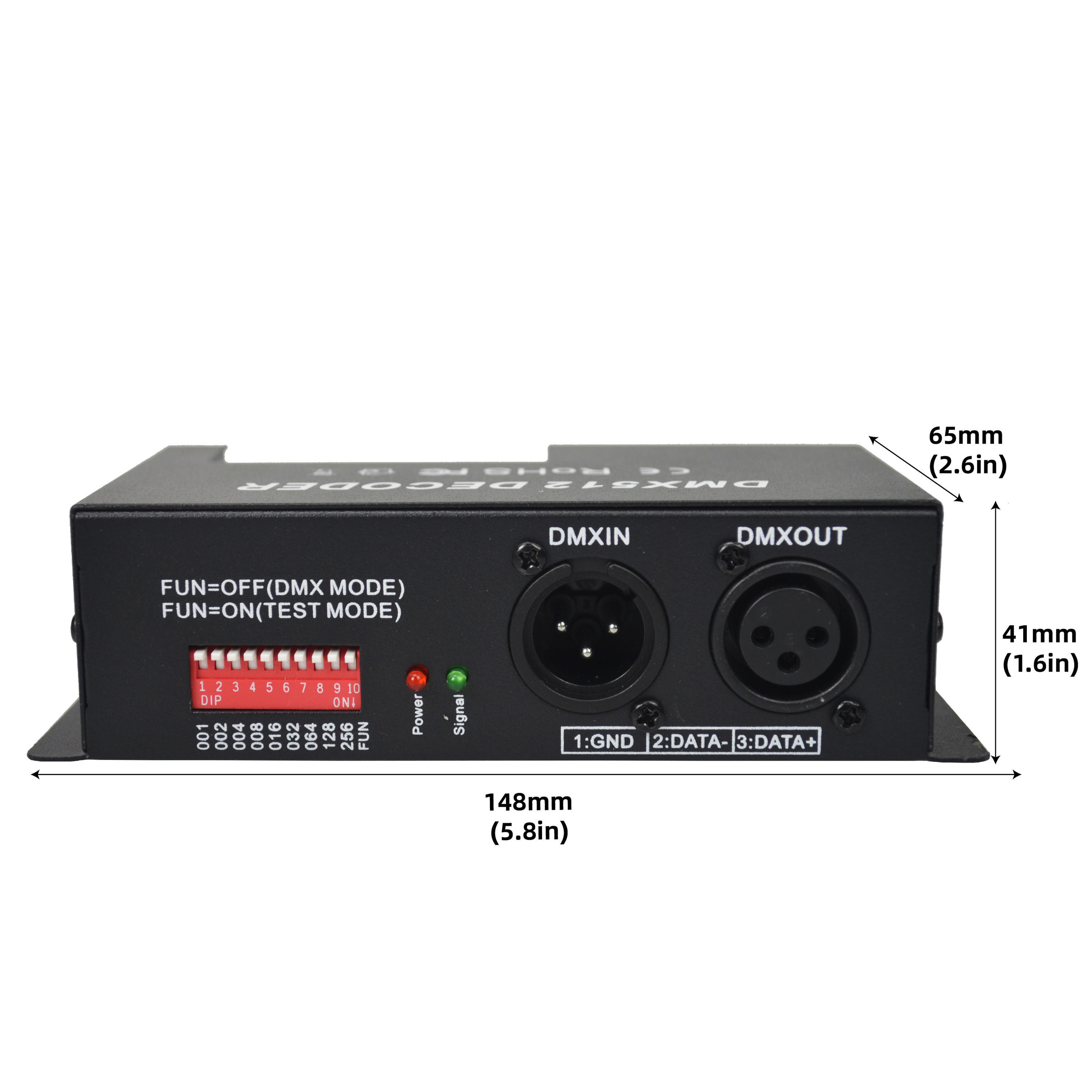

Dimensions (L×W×H) |
Varies by model (e.g., 145×45×25mm typical) |
|
Certifications |
CE, RoHS (optional FCC) |
|
Application |
LED signage, channel letters, lightboxes, architectural RGB/strip lighting |
