Setting up is effortless thanks to the intuitive DIP switch addressing, eliminating the need for complex software configuration. Simply toggle the switches to assign your DMX start address and you’re ready to go. Whether you are controlling RGB strips for vibrant color washes or RGBW strips for precise color mixing and true white output, this decoder handles it all with a robust 4A per channel capacity.
Built to perform in demanding environments, its compact form factor allows for easy installation inside tight spaces, signage cabinets, or stage rigs. Bring your creative visions to life with reliable, high-fidelity DMX control.
🎛️ Effortless DIP Switch Addressing: Features a 9-bit DIP switch for quick and accurate DMX512 start address configuration, allowing for fast deployment without needing a computer or RDM software.
🌈 3-Channel & 4-Channel Versatility: Supports both RGB (3CH) and RGBW (4CH) lighting modes, perfectly adapting to various stage washes, architectural accents, and commercial advertising displays.
💡 High-Fidelity PWM Dimming: Utilizes advanced PWM technology to provide 256 levels of smooth grayscale dimming, ensuring flicker-free performance that is safe for video recording and live broadcasts.
🔌 Wide Voltage & High Power Output: Operates on a DC 9-24V input and delivers up to 4A per channel (Max 288W/384W), easily driving long runs of high-density LED strips.
🛠️ Compact & Stage-Ready Design: Housed in a durable, mini form-factor enclosure, it is built to withstand the rigors of touring, stage use, and outdoor advertising installations.

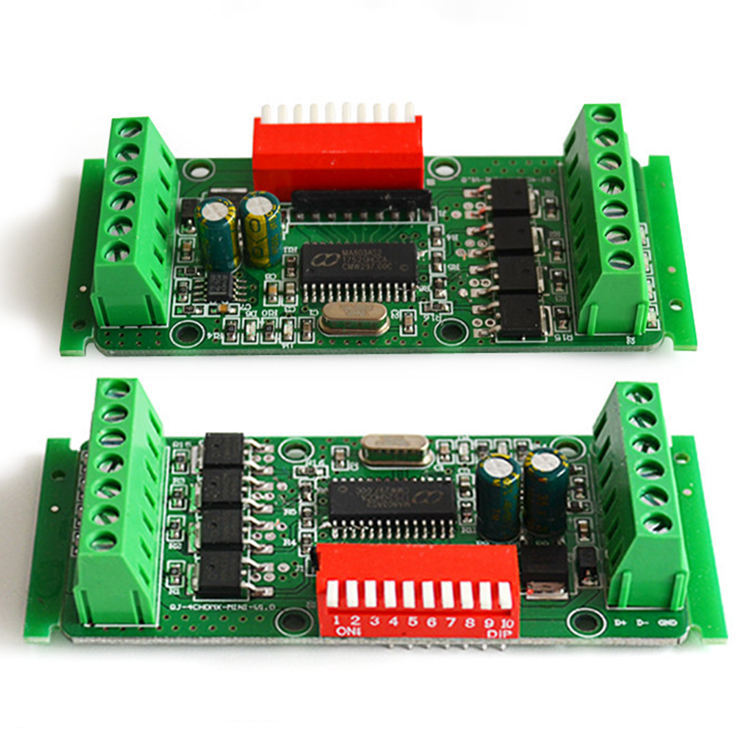

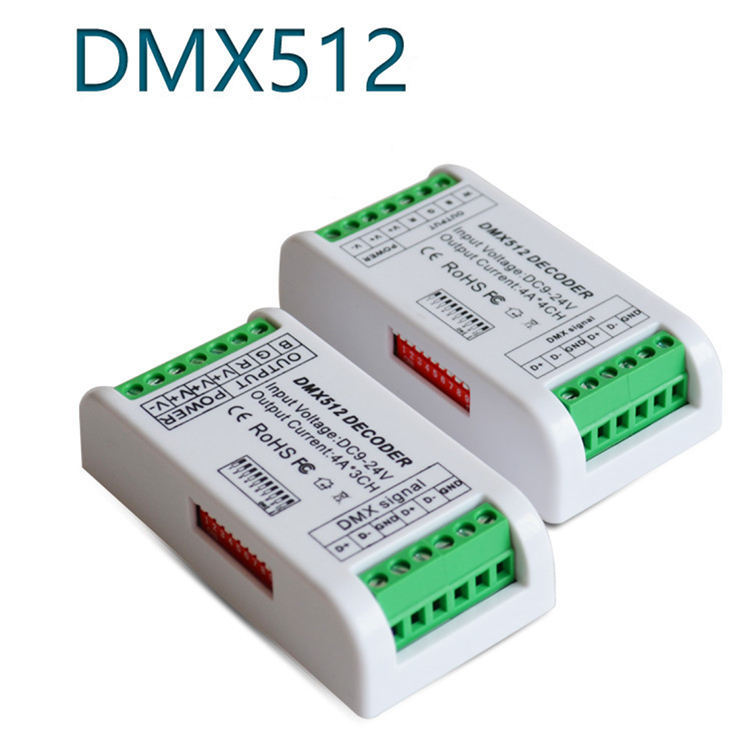

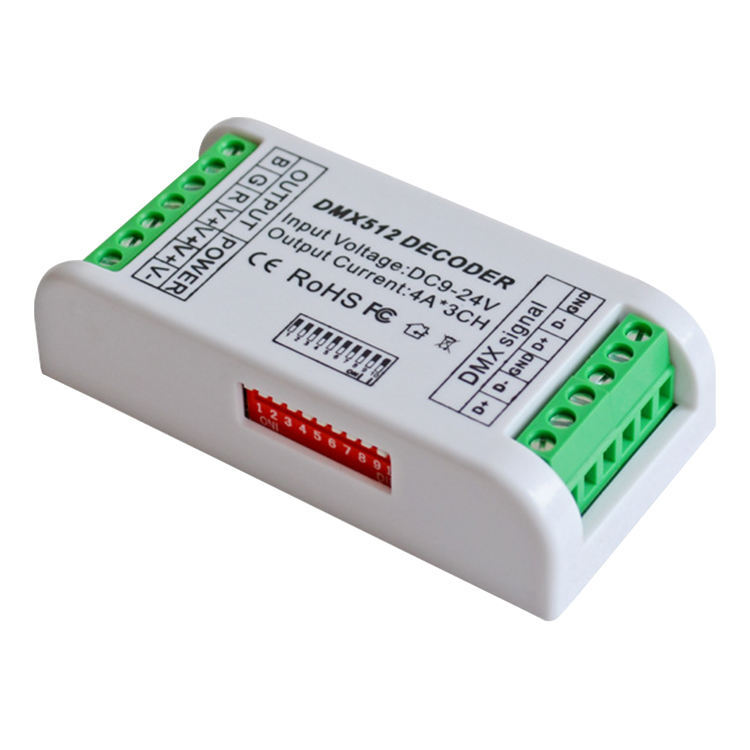

Product Name: Mini 3/4CH DMX512 Constant Voltage Decoder
Model Number: [Your Model Number, e.g., QJ-DMX-4CH]
|
Category |
Specifications |
|---|---|
|
Input Voltage |
DC 9V - 24V (Constant Voltage) |
|
Output Channels |
3 Channels (RGB) / 4 Channels (RGBW) |
|
Max Output Current |
4A per channel (Max 16A total) |
|
Max Output Power |
144W (12V 3CH) / 192W (12V 4CH) |
|
DMX Protocol |
Standard USITT DMX512/1990 |
|
DMX Address Setting |
9-bit DIP Switch (Binary 1-256) |
|
Grayscale Resolution |
256 levels per channel |
|
PWM Frequency |
500Hz - 8KHz (Model dependent) |
|
Output Type |
Constant Voltage PWM, Common Anode (+) |
|

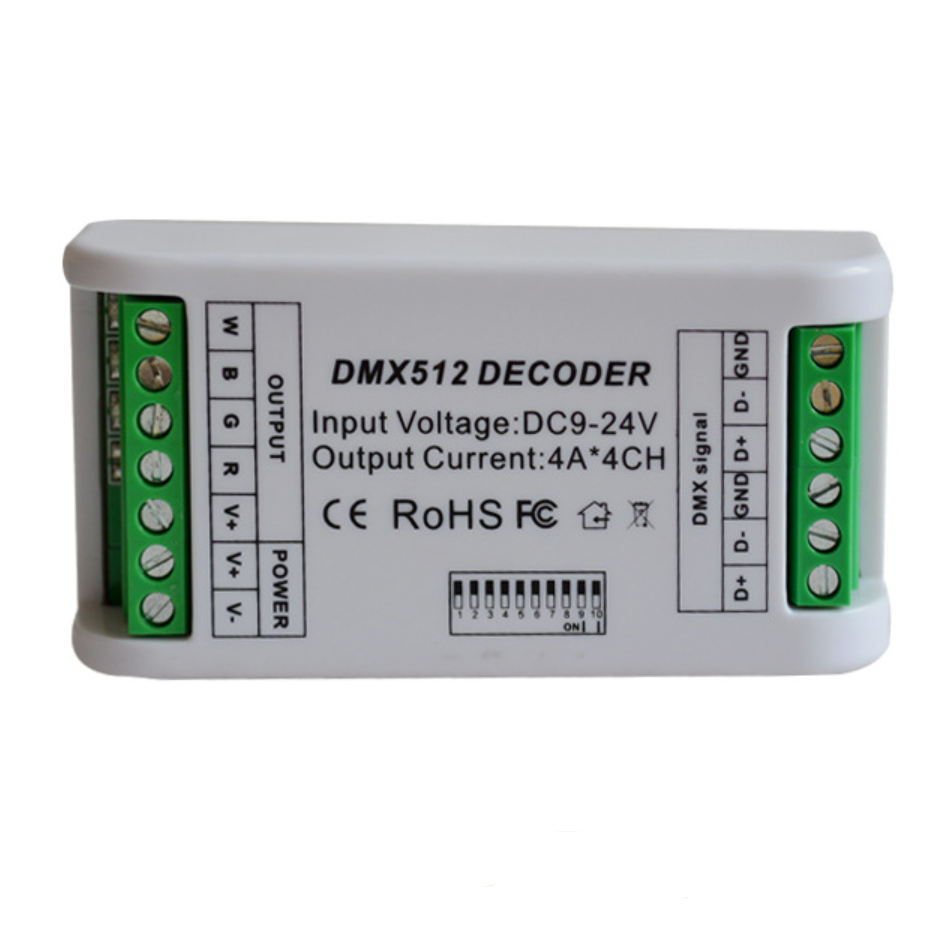

DMX Connector |
XLR 3-pin / RJ45 / Screw Terminal (Optional) |
|

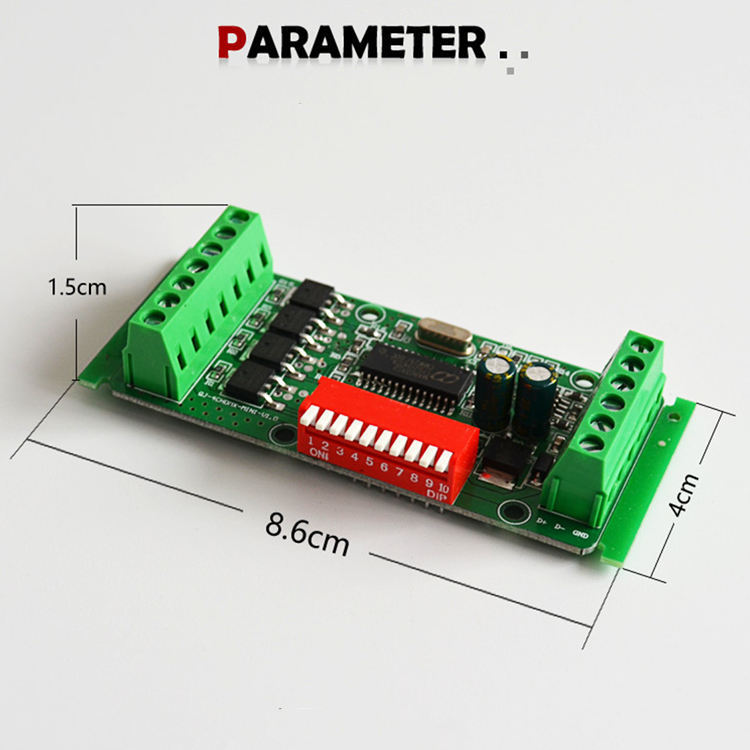

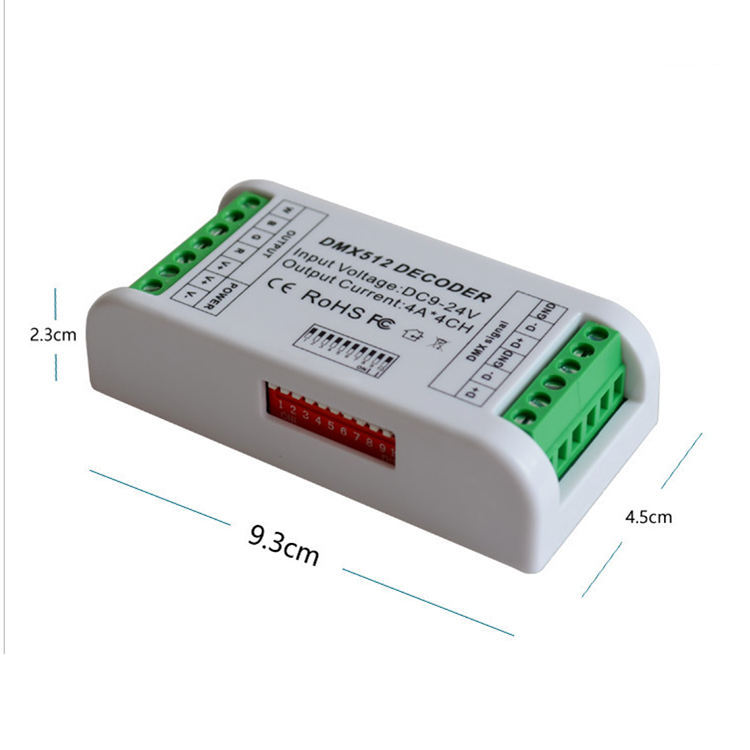

Dimensions |
L95 × W46 × H25 mm (Typical) |
|
Cooling |
Aluminum casing / Passive cooling |
|
Protection Rating |
IP20 (Indoor use / Protected enclosures) |
|
Compatible Loads |
LED Strip, LED Module, LED Pixel Tape (Constant Voltage only) |
