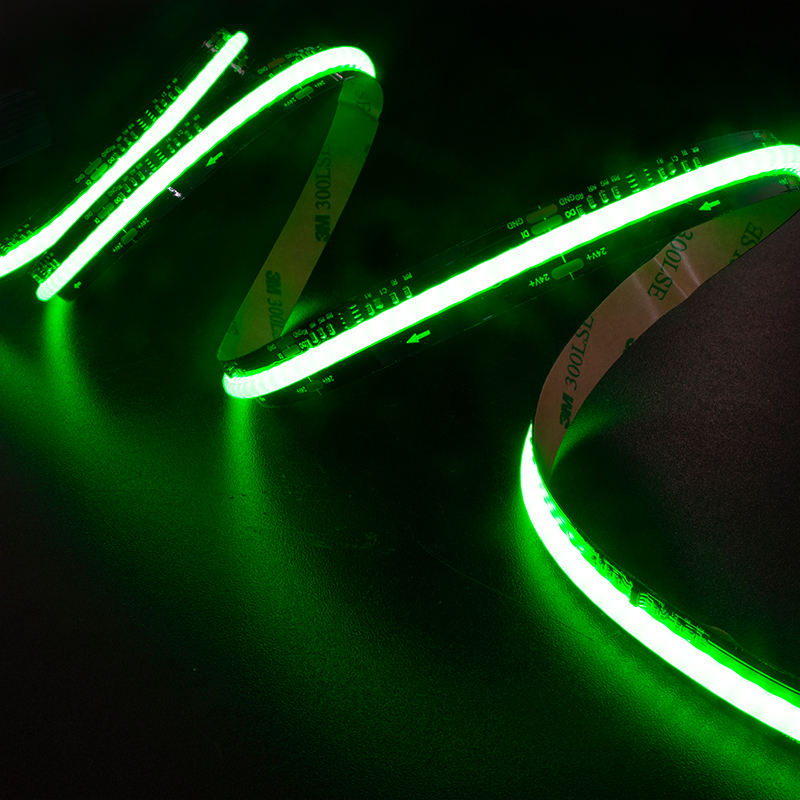

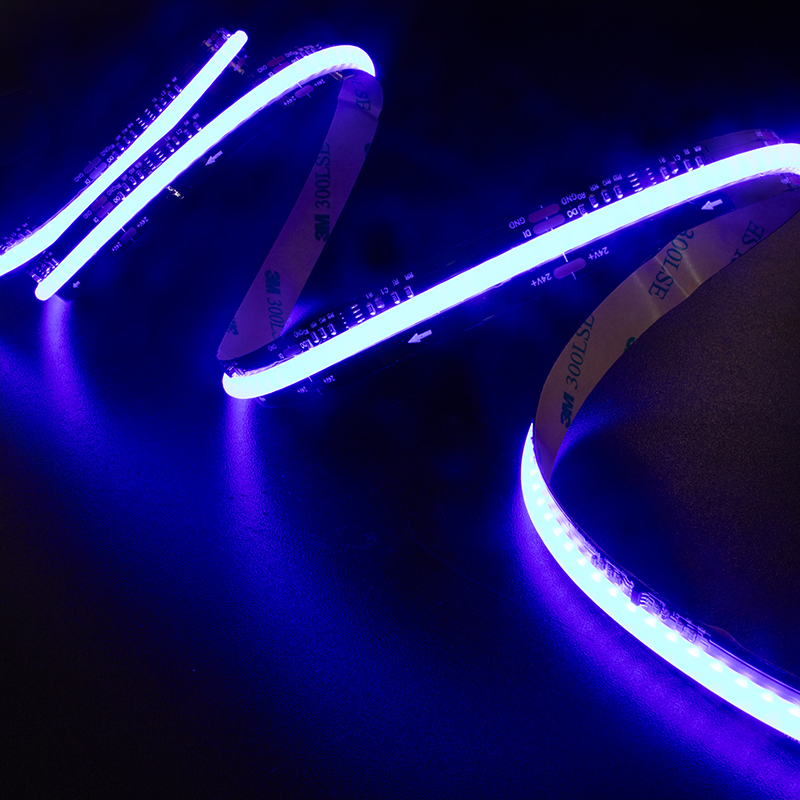

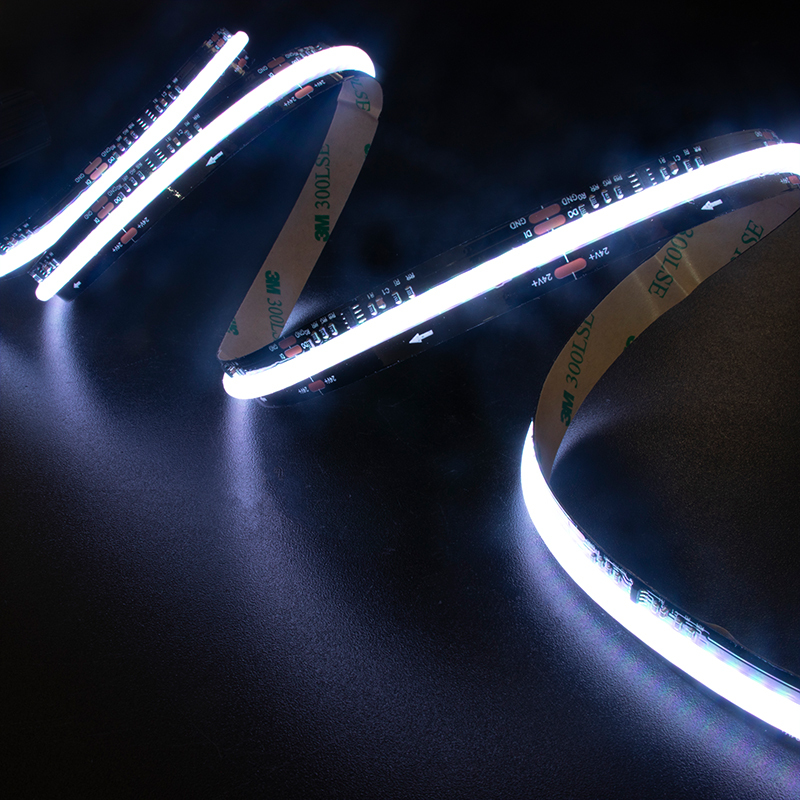

1. 🌈 Dream Color & Addressable Control
Equipped with WS2811F external IC chips and SPI protocol, each of the 20 pixels per meter can be individually controlled. Create stunning rainbow chasing, gradient, and dynamic effects to bring your lighting project to life.
2. 💡 Ultra-High Density COB Technology
Features an impressive 720 LEDs/m. The advanced COB (Chip on Board) design eliminates dark spots and delivers a smooth, linear, and uniform glow, providing a premium lighting experience far superior to traditional SMD strips.
3. ⚡ Stable 24V & High Brightness
Operating at DC24V with 21W/m power consumption, it ensures low voltage drop and consistent brightness even over longer runs. The high-density setup provides intense illumination while maintaining energy efficiency.
4. 📏 Slim 12mm PCB & Extreme Flexibility
Designed with a 12mm wide PCB, this strip is thin yet durable. Its highly flexible circuit board allows it to bend and curve around corners, making it perfect for complex architectural layouts and custom designs.
5. 🛠️ Easy Installation & Wide Application
Comes with a strong 3M adhesive backing for quick, tool-free mounting on any clean surface. Ideal for TV backlighting, gaming rooms, bars, cabinets, and commercial signage. (Requires a compatible SPI controller, not included).

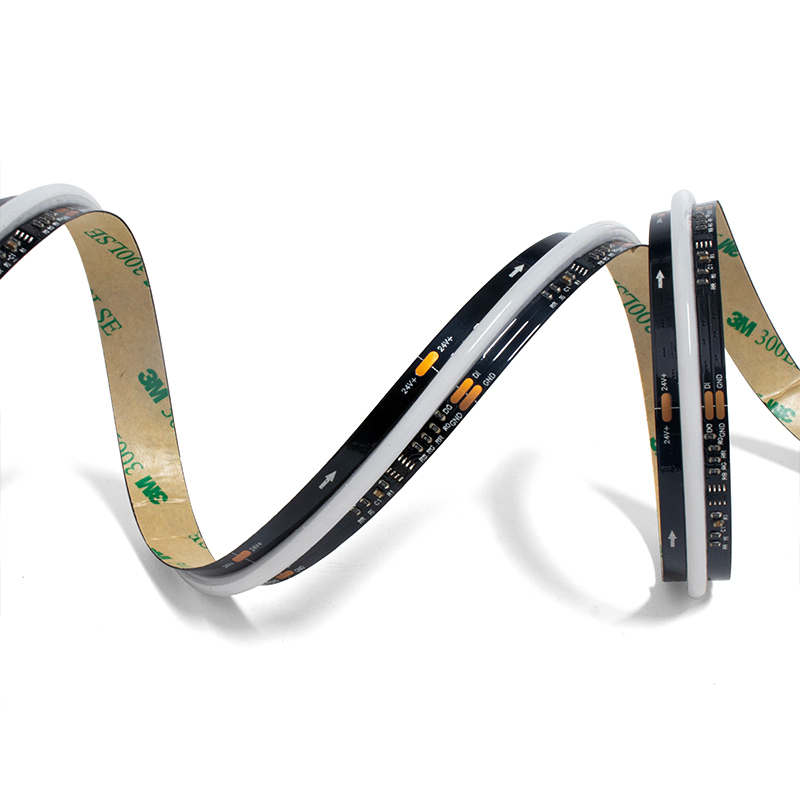

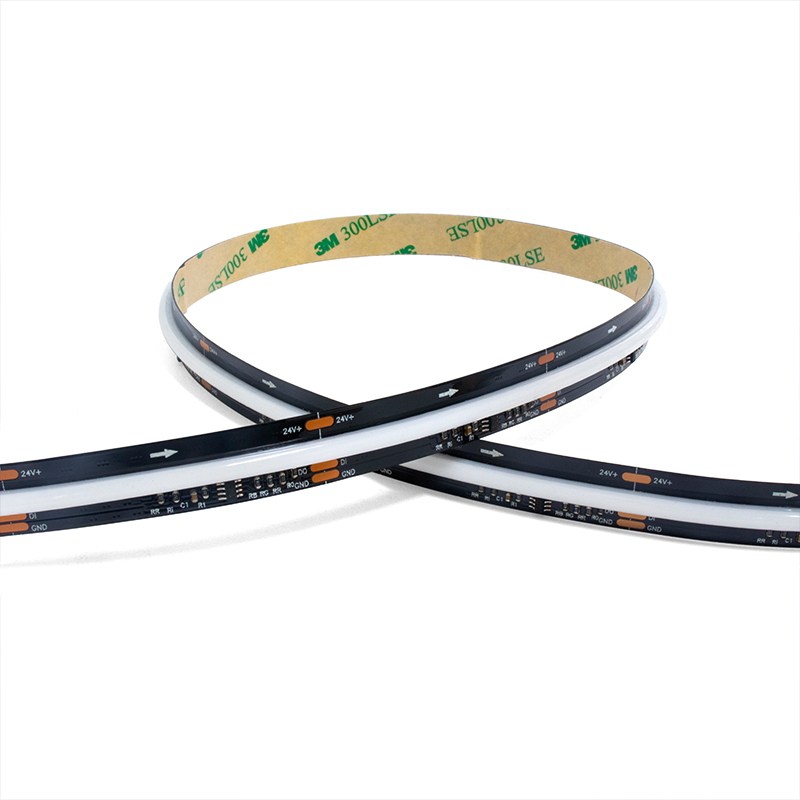

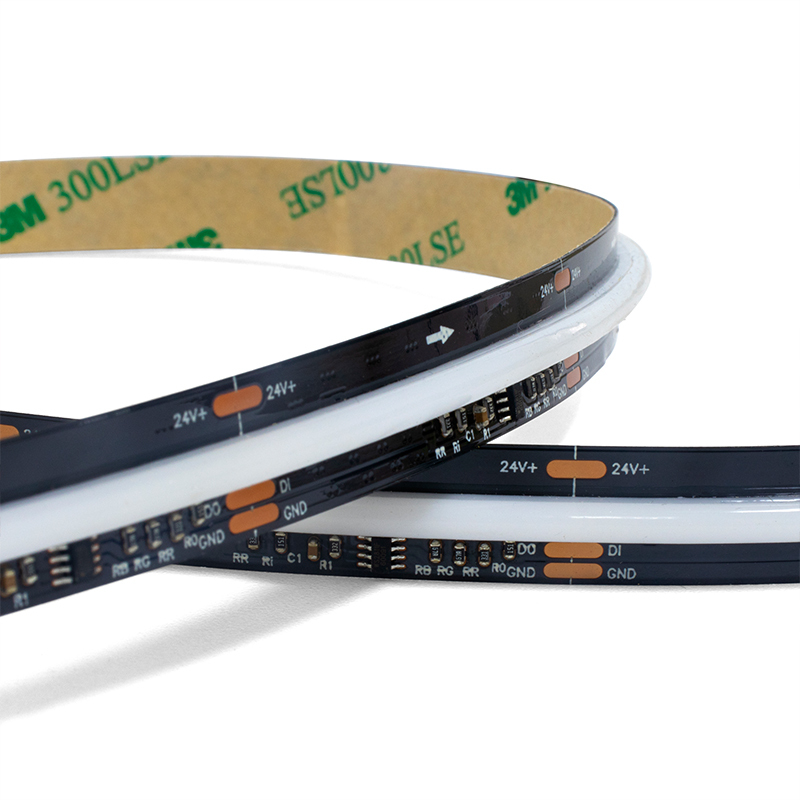

Product Name: 24V SPI RGB COB LED Strip Light (WS2811F External IC)
|
Item |
Specification |
|---|---|
|
LED Type |
COB (Chip on Board) |
|
LED Density |
720 LEDs/m |
|
IC Type |
WS2811F (External IC) |
|
Protocol |
SPI |
|
Pixel Density |
20 pix/m |
|
Voltage |
DC 24V |
|
Power |
21W/m |
|
PCB Width |
12mm |
|
Color |
RGB Full Color / Dream Color |
|
Addressable |
Yes (Individual pixel control) |
|
Cuttable Unit |
Every 50mm (1 pixel) |
|
Beam Angle |
180° |
|
IP Rating |
IP20 (Non-waterproof) / IP65 / IP67 optional |
|
Adhesive |
3M double-sided tape on back |
|
Working Temp. |
-20°C ~ +60°C |
|
Lifespan |
≥50,000 hrs |
|
Warranty |
2 Years |
|
Certification |
CE / RoHS (available upon request) |
Package Includes:
1 × 24V COB RGB LED Strip (Length as ordered)
Note: SPI controller and 24V power supply are NOT included. Please purchase separately.
Application: TV backlighting, gaming setups, bars, restaurants, architectural decor, commercial signage, home ambient lighting.
