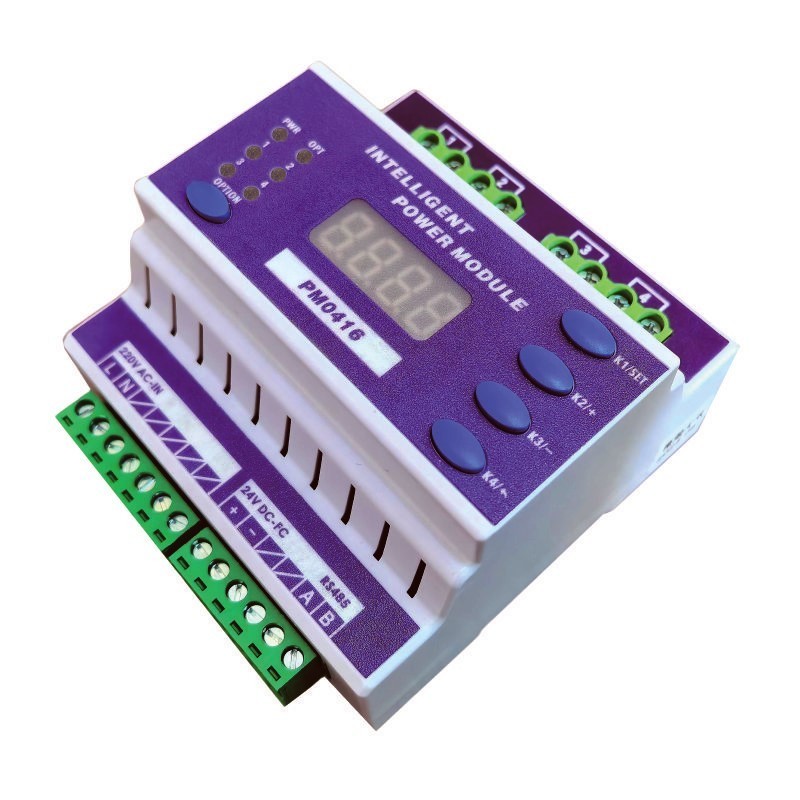

A built-in digital display shows device address and real-time status, while onboard buttons allow manual override and parameter configuration without a computer. Advanced features include adjustable on/off delay per channel, selectable power-on behavior, baud rate setting, and fire linkage input for emergency override (force ON/OFF). The compact 90×104×66mm housing mounts on a standard 35mm DIN rail—perfect for distribution boards. Whether you're retrofitting a single room or deploying a full building, the PM0416 delivers reliable, code-compliant lighting control.
Heavy-Duty 4×20A Relay Outputs: Each of the 4 channels handles up to 20A/250VAC, supporting high-wattage LED, fluorescent, or resistive loads without external contactors.
Standard Modbus-RTU over RS485: Universal protocol ensures plug-and-play compatibility with BMS, PLC, touch panels, and third-party controllers—no proprietary gateway needed.
Local Display & Manual Control: Built-in digital tube shows address and status; onboard keys enable manual ON/OFF and parameter setup for quick commissioning and maintenance.
Advanced Logic Functions: Per-channel delay timing, configurable power-on state, baud rate selection, and single/all-channel control commands for flexible automation scenarios.
Fire Linkage & Emergency Override: Dedicated dry-contact input triggers force ON or force OFF across all channels, meeting building code requirements for emergency lighting and evacuation.
|
Item |
Specification |
|---|---|
|
Model |
PM0416 |
|
Product Type |
4-Channel Intelligent Lighting Control Module |
|
Input Voltage |
220V AC |
|
Output Channels |
4 independent relay channels |
|
Output Rating |
20A / 250V AC per channel (4 × 20A total) |
|
Communication Interface |
RS485 |
|
Communication Protocol |
Modbus-RTU (standard) |
|
Address Setting |
Digital display + keypad (1–255) |
|
Control Modes |
RS485 command / Manual button / Fire linkage |
|
Supported Commands |
All ON, All OFF, Single ON, Single OFF, Delay ON/OFF |
|
Delay Setting |
0–255 seconds per channel (adjustable) |
|
Power-On Mode |
ON / OFF / Last State (configurable) |
|
Baud Rate |
Configurable (9600, 19200, 38400, 115200) |
|
Fire Linkage |
Dry contact input; configurable as Force ON or Force OFF |
|
Mounting |
35mm standard DIN rail |
|
Dimensions (W×H×D) |
90 × 104 × 66 mm |
|
Operating Temperature |
-10°C to +55°C |
|
Storage Temperature |
-20°C to +70°C |
|
Relative Humidity |
5%–95% RH (non-condensing) |
|
IP Rating |
IP20 (for installation inside distribution box) |
|
Certification |
CE / RoHS (available upon request) |
|
Warranty |
2 Years |
