Cut every 83.33mm, run on 24V, and drive it from DINA / SLESA / STICK-DE3 / Art-Net / Madrix. Ideal for clubs, stages, retail brands, hotel ceilings, signage, and fine-pitch architectural pixel lines.
84 LED/m High Density: 7 RGBW LEDs per pixel, 12 pixels/m—smoother gradients and finer pixel pitch than 60LED/m tape; less “dotty” behind diffusers.
RGBW = Color + Clean White: 4-in-1 5050 RGBW gives millions of colors plus a real white channel (3000K / 4000K / 6500K by bin)—better pastels and usable ambient white vs RGB-only.
UCS512H4L DMX512: Differential A/B parallel bus, 65536 grayscale, gamma 2.2, auto/manual addressing, S-AI anti-interference; one bad pixel does not kill the chain like WS2812/SK6812 serial SPI.
24V + 12mm Black 2oz PCB: Lower current than 12V pixel tape, better heat spread; black board disappears in aluminum profiles, coves, and truss edges.
Pro Desk Ready: DINA / SLESA / STICK-DE3 / Art-Net / Madrix / K-series after DMX addressing; IP20/IP65/IP67/IP68 options for indoor-to-outdoor installs.

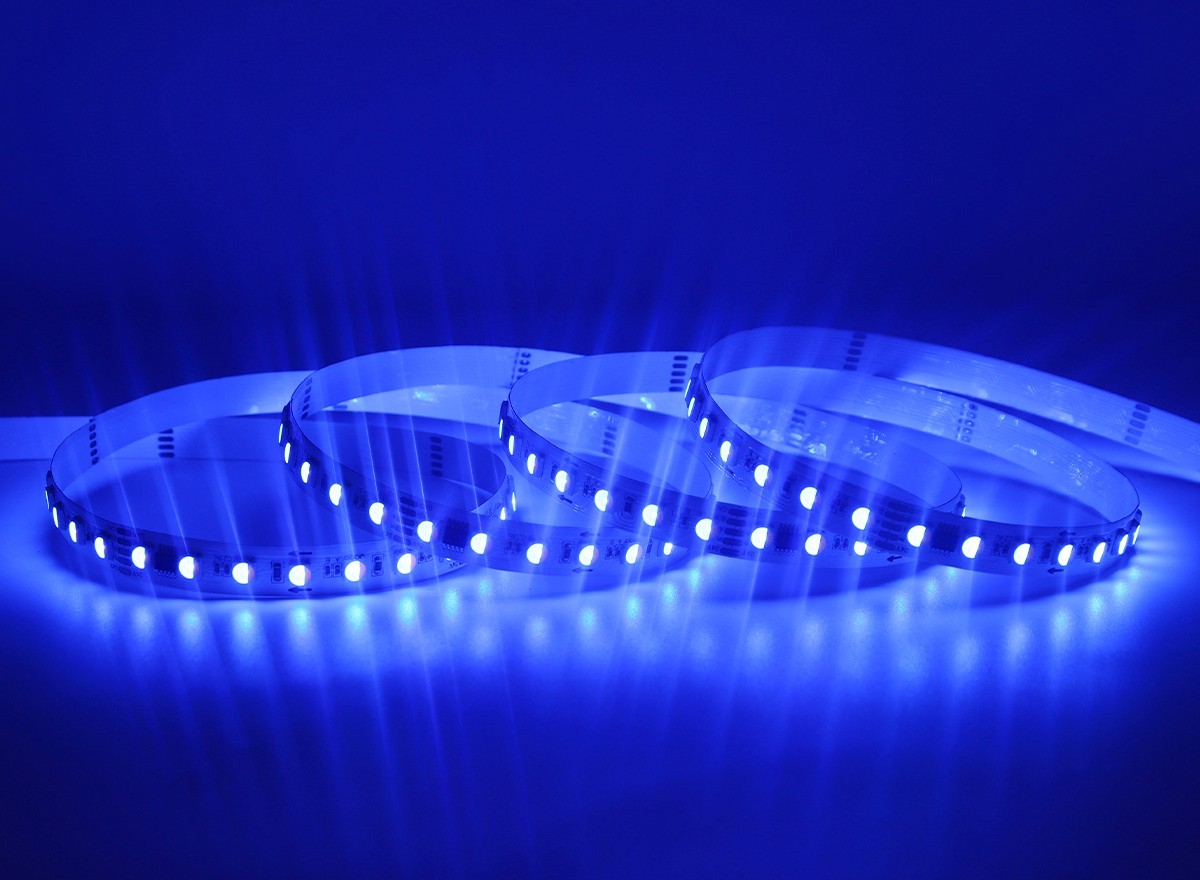

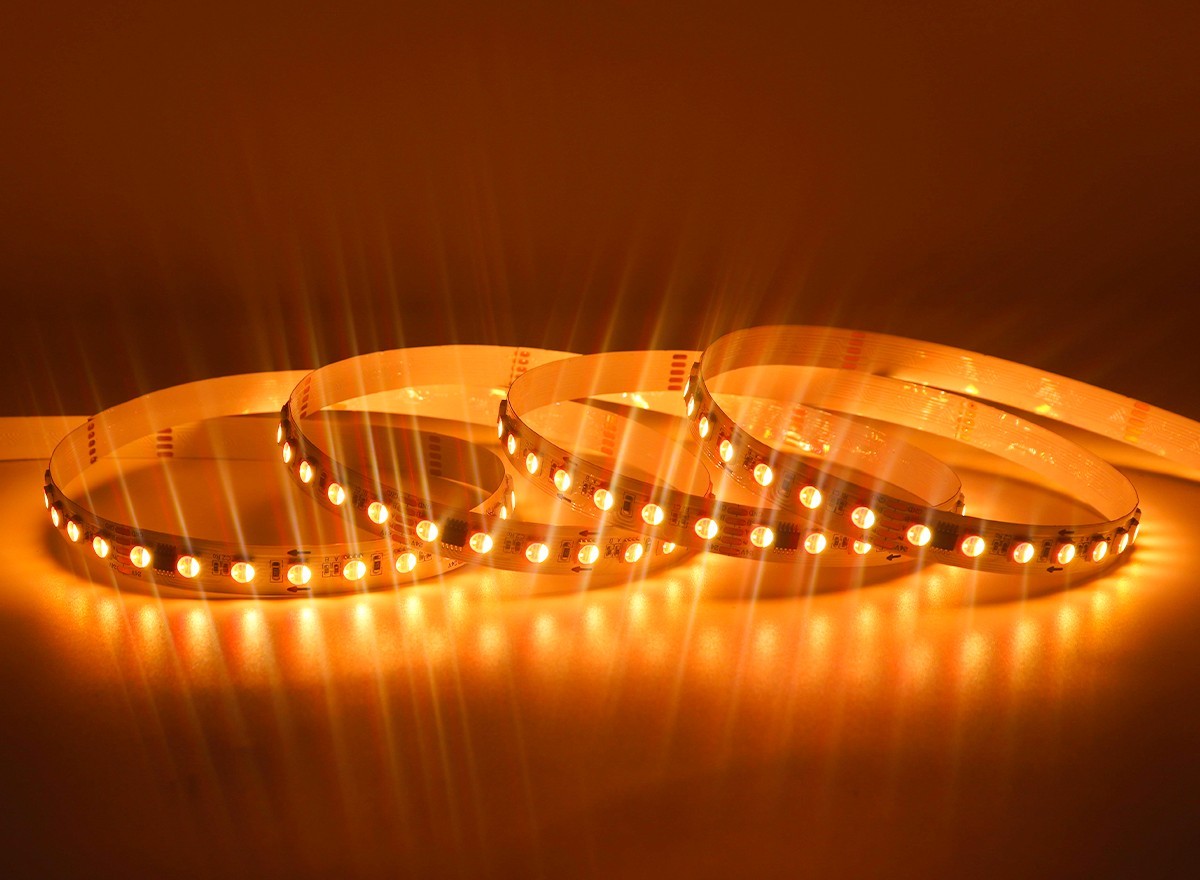

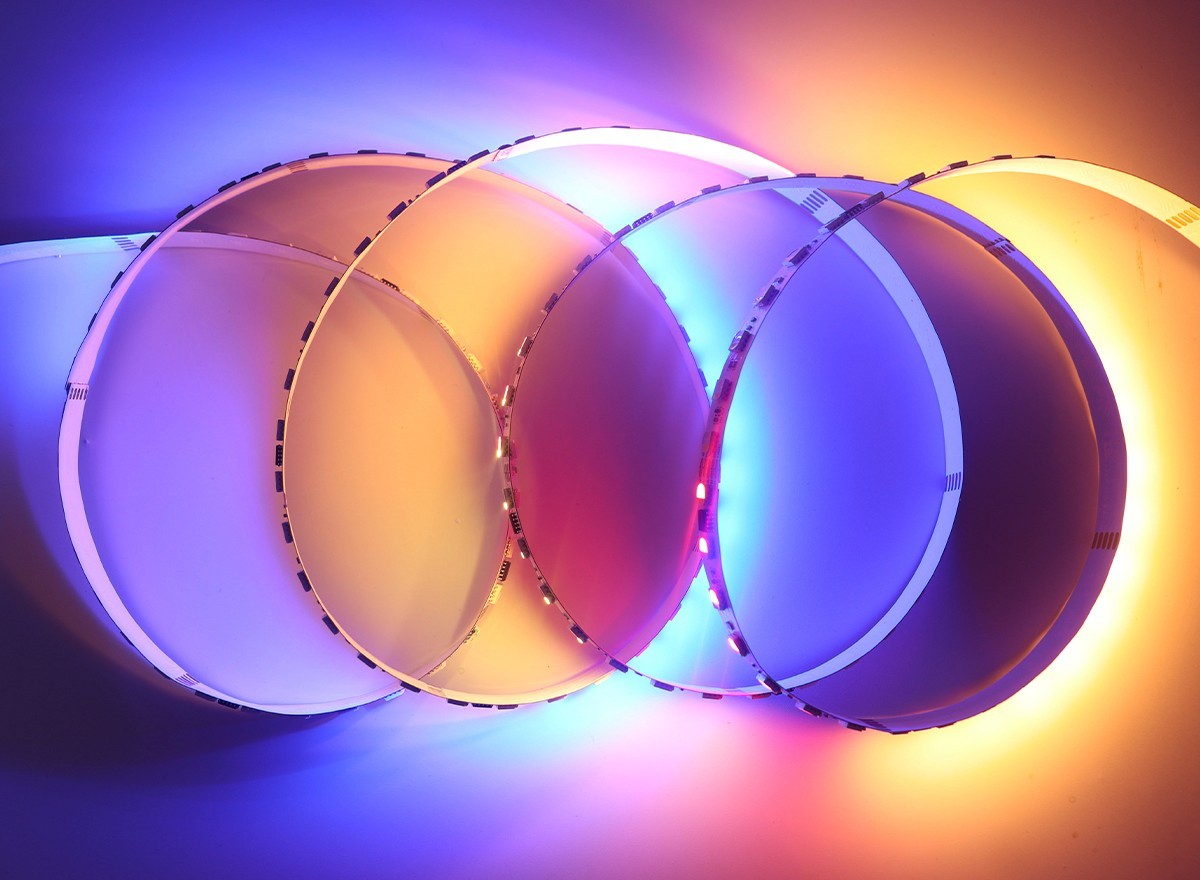

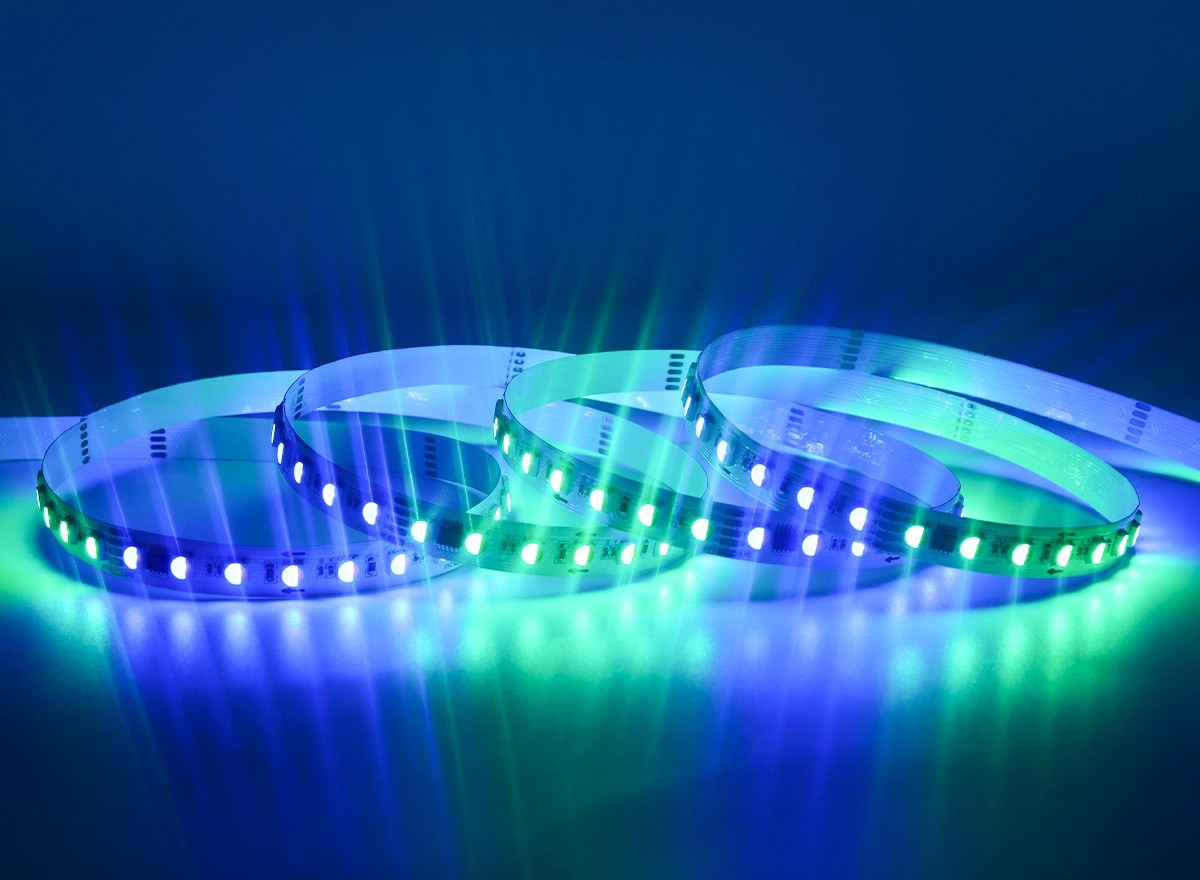

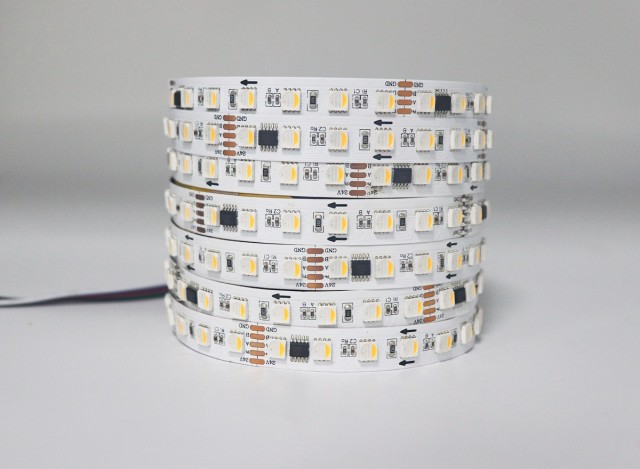

24V 5050 RGBW DMX512 Pixel Strip — UCS512H4L, 84LED/m, 12px/m, 12mm Black PCB
|
Category |
Specification |
|---|---|
|
Model |
PX-TAPE-5050-RGBW-UCS512H4L-84-24V-12B（建议型号，可改） |
|
LED Type |
SMD 5050 RGBW (4-in-1) |
|
LED Density |
84 LEDs/m（420 LEDs / 5m roll） |
|
IC Type |
UCS512H4L（DMX512 differential parallel pixel driver, SOP10） |
|
Pixels |
12 pixels/m（1 IC drives 7 LEDs） |
|
DMX Channels |
4 ch/pixel → 48 ch/m（R, G, B, W） |
|
Voltage |
DC 24V constant voltage |
|
Power |
17 W/m（10mm/12mm light build）→ 23–28 W/m（high-density build，按 BOM 确认） |
|
PCB |
12mm width, 2oz copper, black FPCB（10mm 白板可选） |
|
Cut Unit |
83.33 mm（7 LEDs + 1 IC） |
|
Signal Lines |
24V / A(DMX+) / B(DMX-) / PI(address) / GND — 5-line DMX harness |
|
Addressing |
DMX address writer / auto-coding UCS512H controller / Art-Net DMX |
|
Grayscale |
256-step base / 65536-step on UCS512H4L（gamma 2.2） |
|
Port Refresh |
250Hz / 4K / 8K / 32K（configurable） |
|
White CCT |
3000K / 4000K / 6500K（project-dependent） |
|
Beam |
120° |
|
Max Run |
5 m/reel；long runs need power injection + DMX repeater |
|
IP Rating |
IP20 / IP65 / IP67 / IP68 |
|
Application |
Stage, club, KTV, cove, retail brand wall, hotel ceiling, signage, architectural fine pixel line |
