195lm/W Industry-Leading Efficacy: Sets a new benchmark in LED efficiency—1560 lm/m from just 8W/m, dramatically cutting energy costs and thermal load.
Selectable CRI (Ra80/90/95): One SKU covers all quality tiers, from budget-conscious utility to high-fidelity color rendering for premium interiors.
Ultra-Low Power, Minimal Heat: At 8W/m, many applications require no additional heatsink—enabling ultra-thin, lightweight, and cost-effective installations.
Stable DC24V Constant Voltage: Reliable long-run performance with low brightness drop; safe low-voltage operation for residential and commercial use.
Clean Indirect Lighting: 64 LEDs/m provides smooth, glare-free output; cut every 100mm for easy customization; compatible with all standard dimming protocols.
|
Item |
Specification |
|---|---|
|

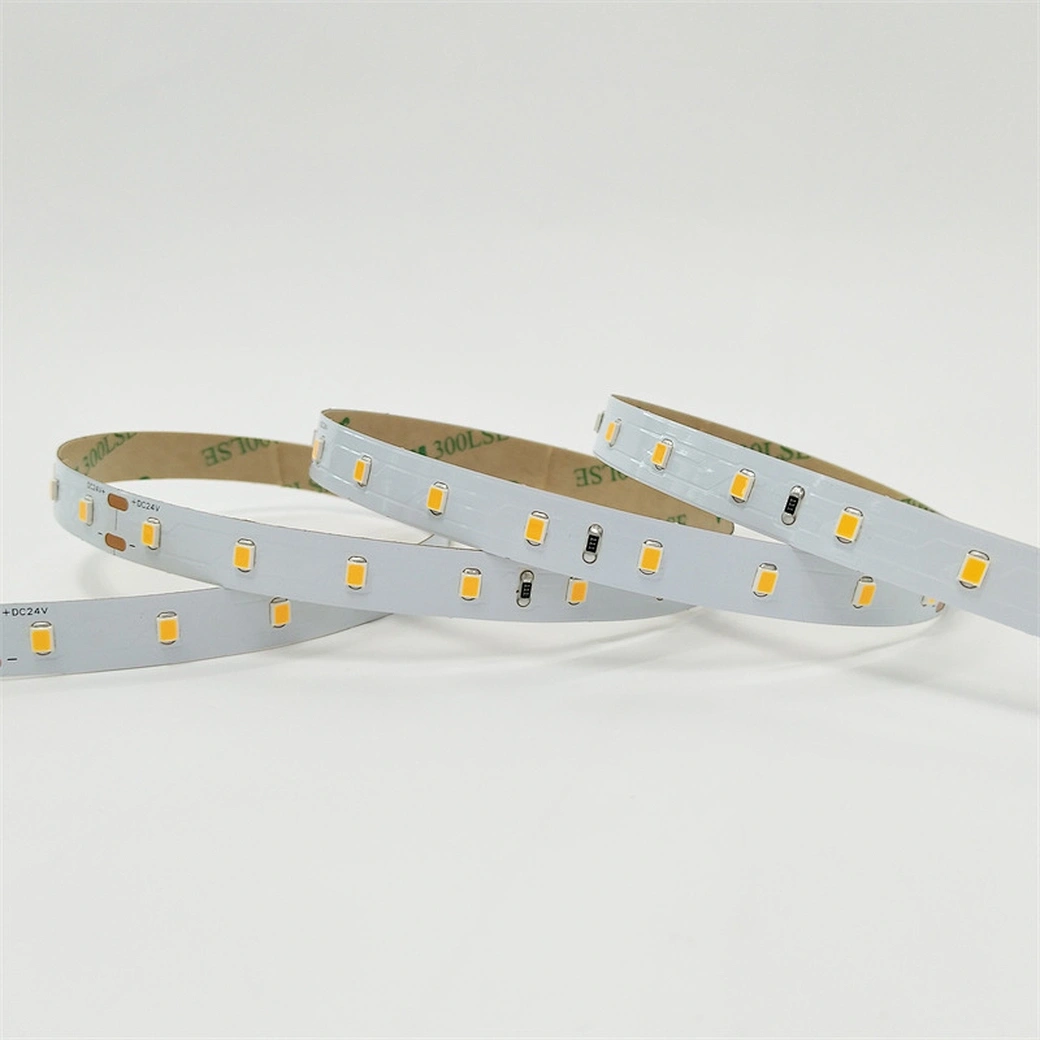

Product Name |
Ultra-Efficient 2835 LED Strip Light |
|
LED Type |
SMD 2835 |
|
LED Density |
64 LEDs/meter |
|
Working Voltage |
DC 24V Constant Voltage |
|
Power Consumption |
8W/meter (max. rated) |
|
Luminous Efficacy |
195 lm/W (LED/module level) |
|
Luminous Flux |
1560 lm/m (rated output) |
|
Color Rendering Index |
Ra80 / Ra90 / Ra95 (selectable) |
|
Color Temperature |
2700K / 3000K / 4000K / 5700K / 6500K (optional) |
|
Cutting Unit |
Every 100mm (8 LEDs) |
|
PCB Width |
8mm / 10mm (optional) |
|
Roll Length |
5 meters/reel |
|
IP Rating |
IP20 / IP65 / IP66 / IP68 (optional) |
|
Dimming |
PWM / 0-10V / DALI compatible |
|
Recommended Driver |
24V CV LED power supply (20–30% power margin) |
|
Heat Dissipation |
Minimal required; aluminum profile optional |
|
Applications |
Ambient cove, residential accent, stair & step, bookshelf, hotel corridor, green building projects |
|
Warranty |
3–5 years (varies by supplier) |
