UCS512H4 family adds auto/manual addressing, 256-step or 65536-step grayscale, gamma 2.2, and breakpoint resume: one failed IC will not crash the run like WS2812/SK6812 serial SPI. Cut every 100mm on 24V and drive it from DINA / SLESA / STICK-DE3 / Art-Net / Madrix. Built for clubs, stages, hotels, retail walls, coves, and architectural outlines.
RGBW = Color + Real White: 4-in-1 5050 RGBW delivers millions of colors plus a dedicated white channel (3000K / 4000K / 6500K by bin)—better pastels and usable ambient white than RGB-only tape.
UCS512H4 DMX512: Differential A/B parallel bus, auto-addressable (H4L/H4LB), 200–750kbps, 4096-channel space, gamma 2.2, low-gray smoothing, breakpoint-tolerant.
24V + 12mm Black 2oz PCB: Lower current than 12V pixel tape, better heat spread; black board hides behind aluminum profiles, coves, and truss edges.
10 Pixels/m, 100mm Cut: 6 LEDs per segment—medium pixel pitch for outlines, ceilings, brand walls, and Madrix pixel maps.
Pro Desk Ready: DINA / SLESA / STICK-DE3 / Art-Net / Madrix / K-1000C after DMX addressing; IP20/IP65/IP67/IP68 options for indoor-to-outdoor installs.

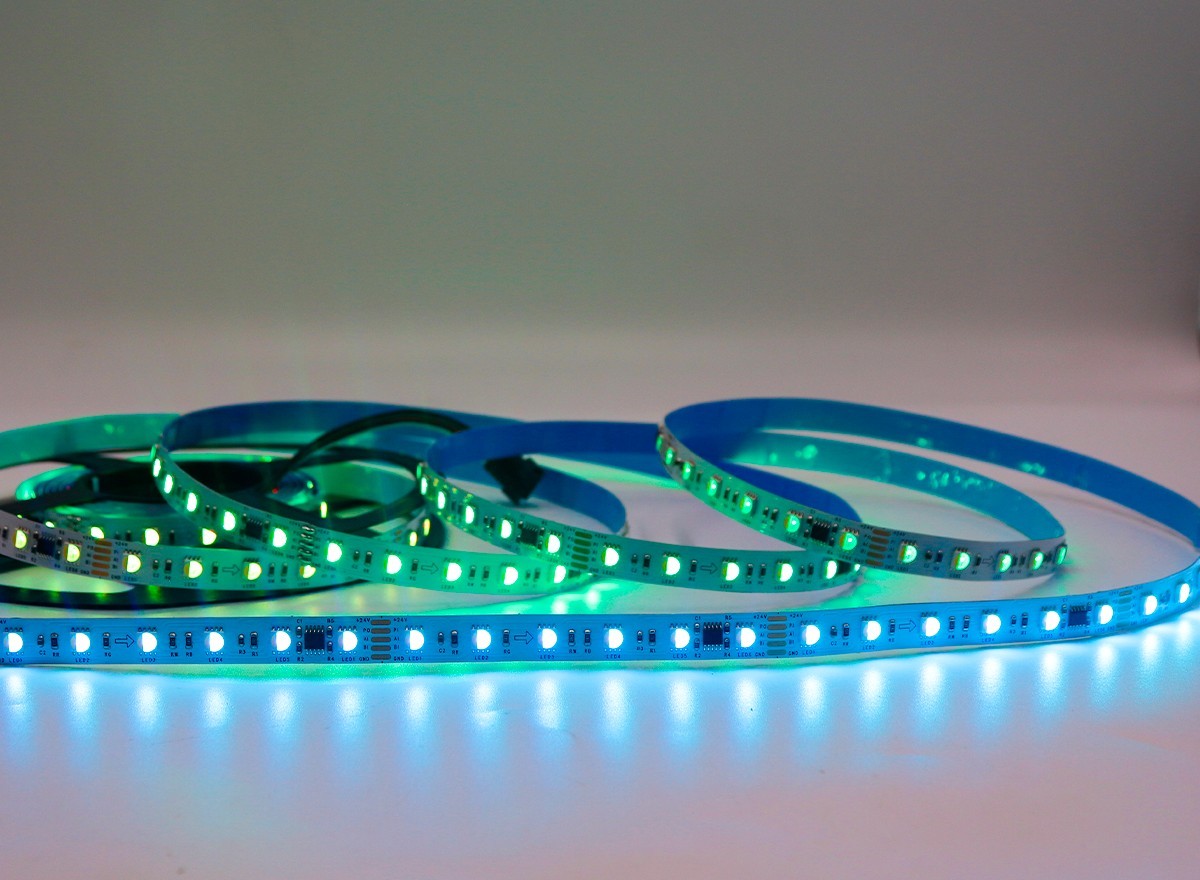

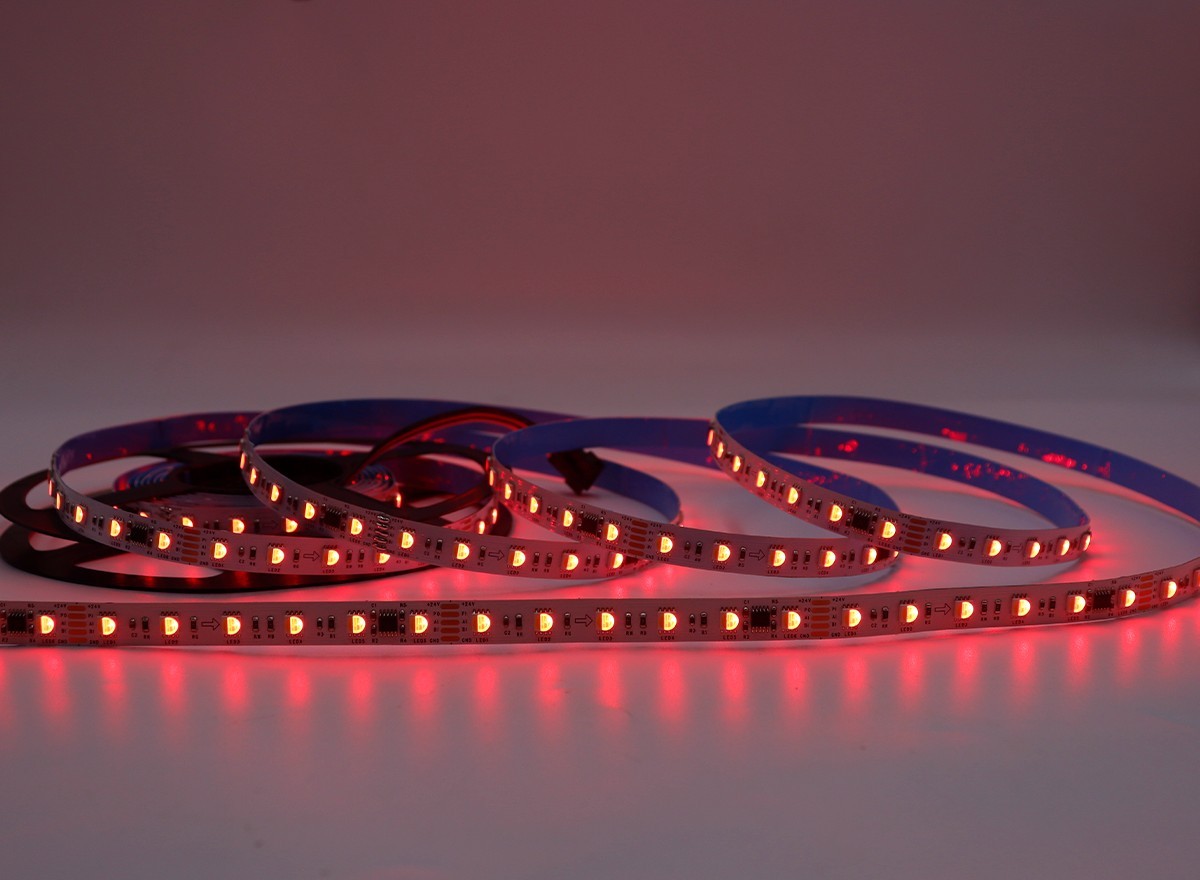

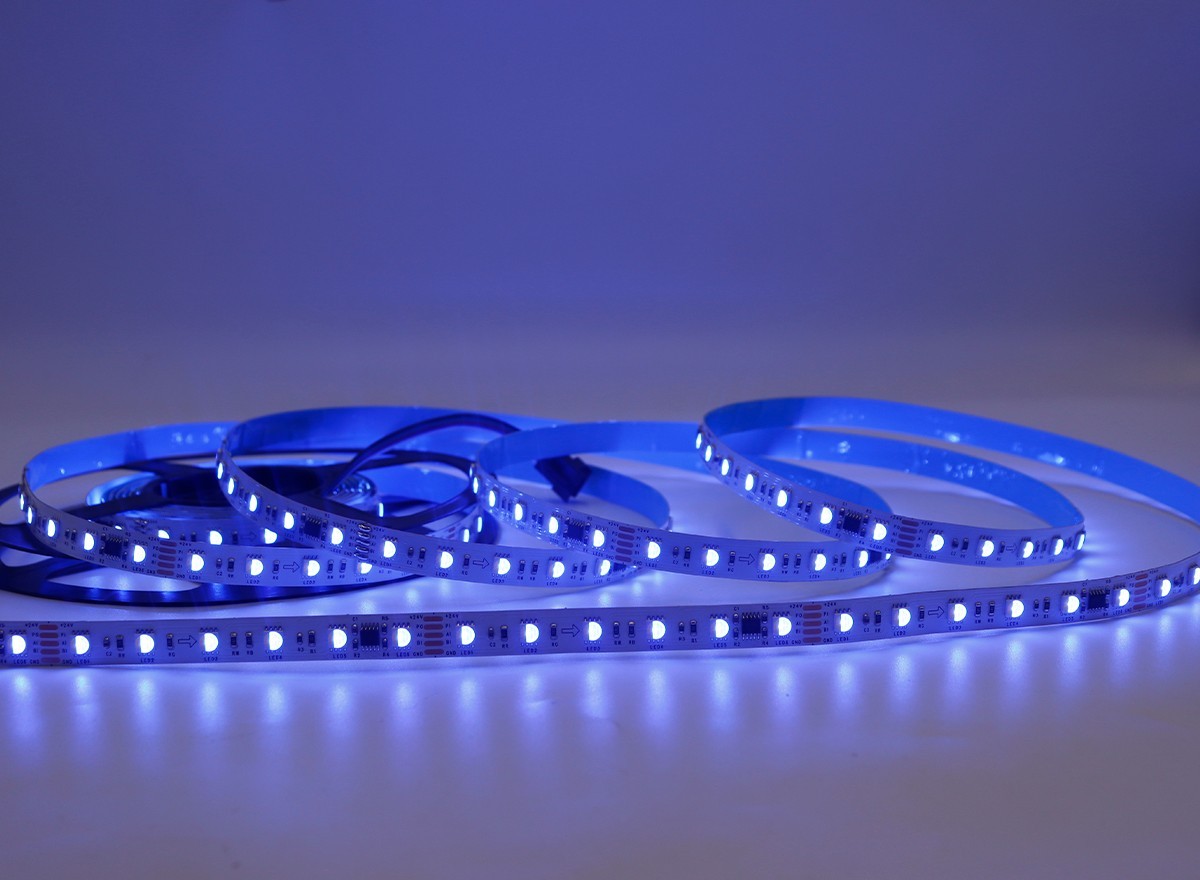

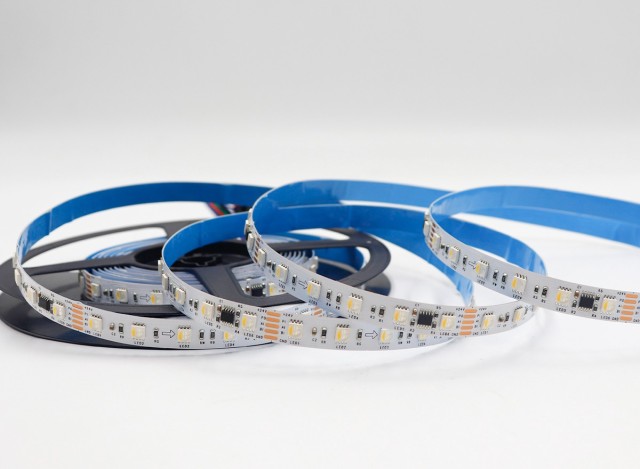

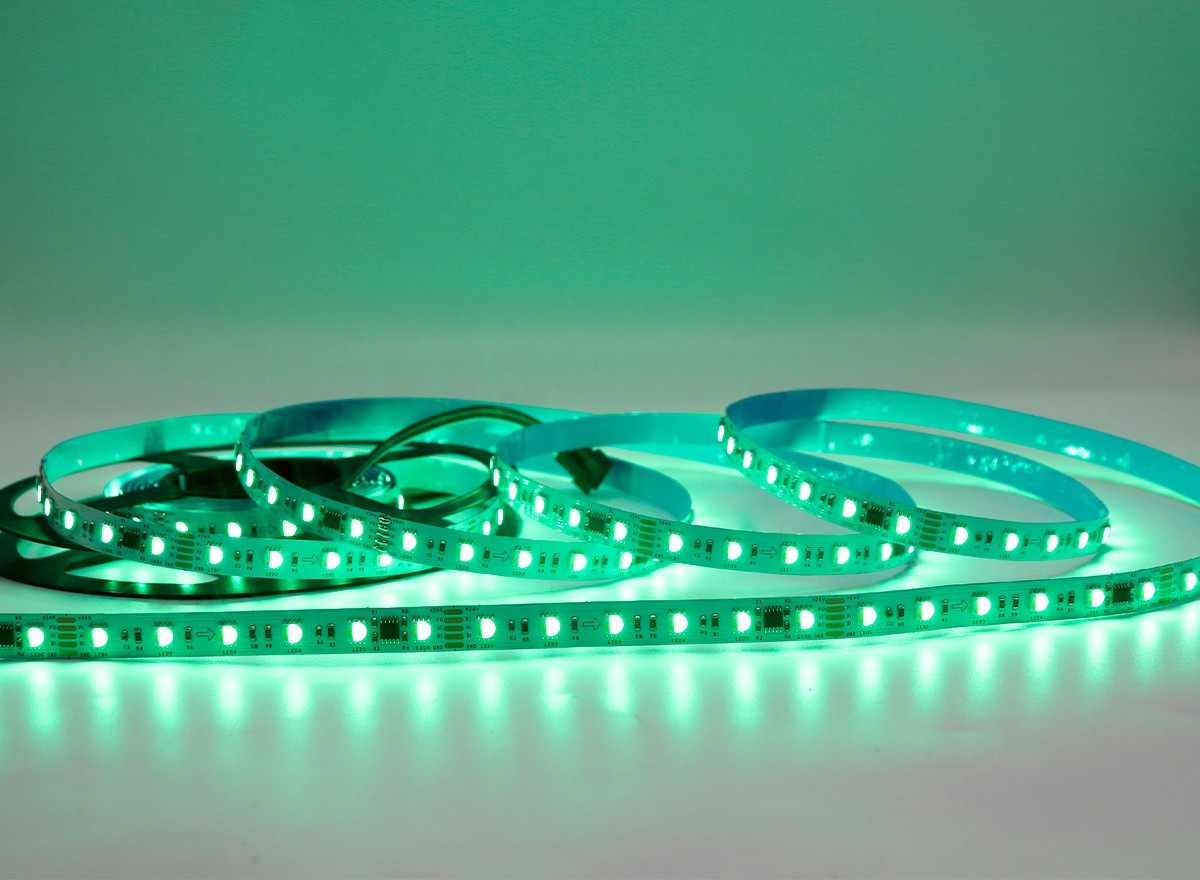

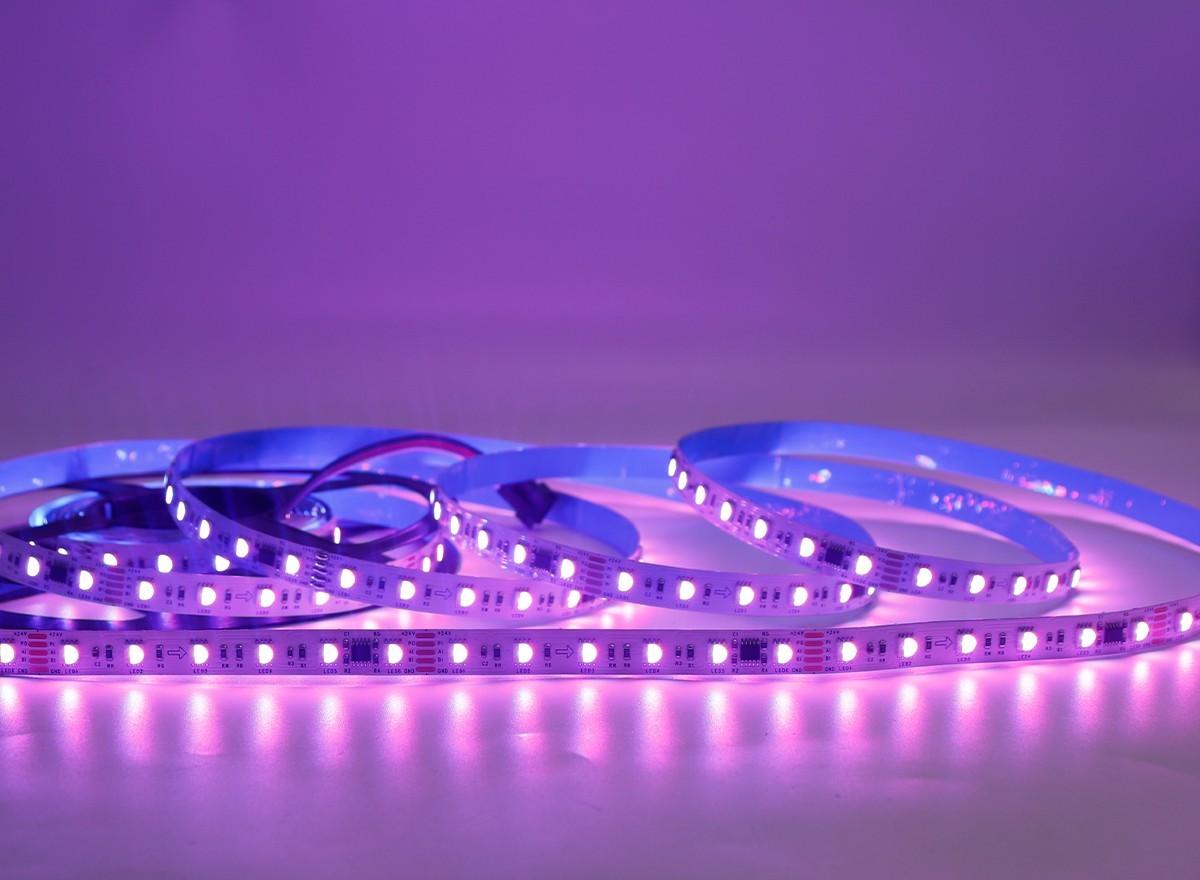

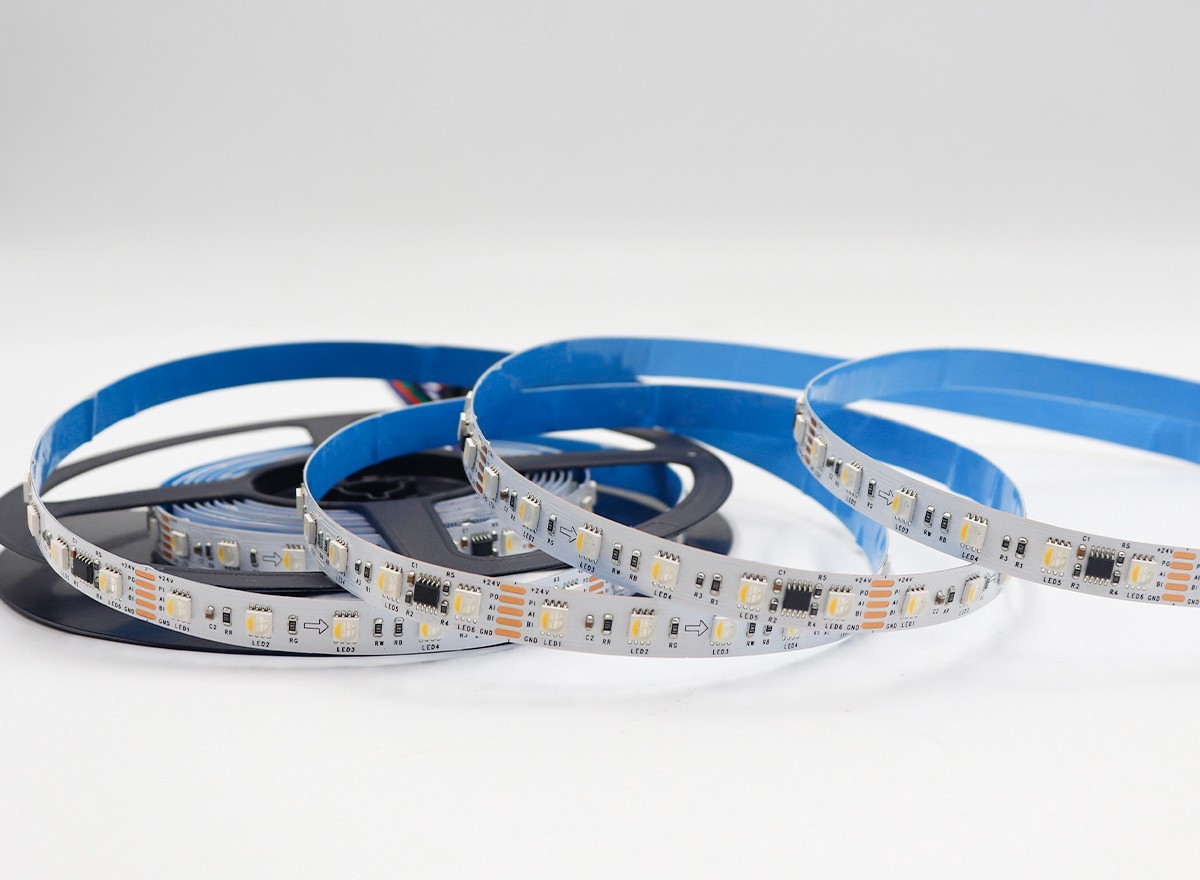

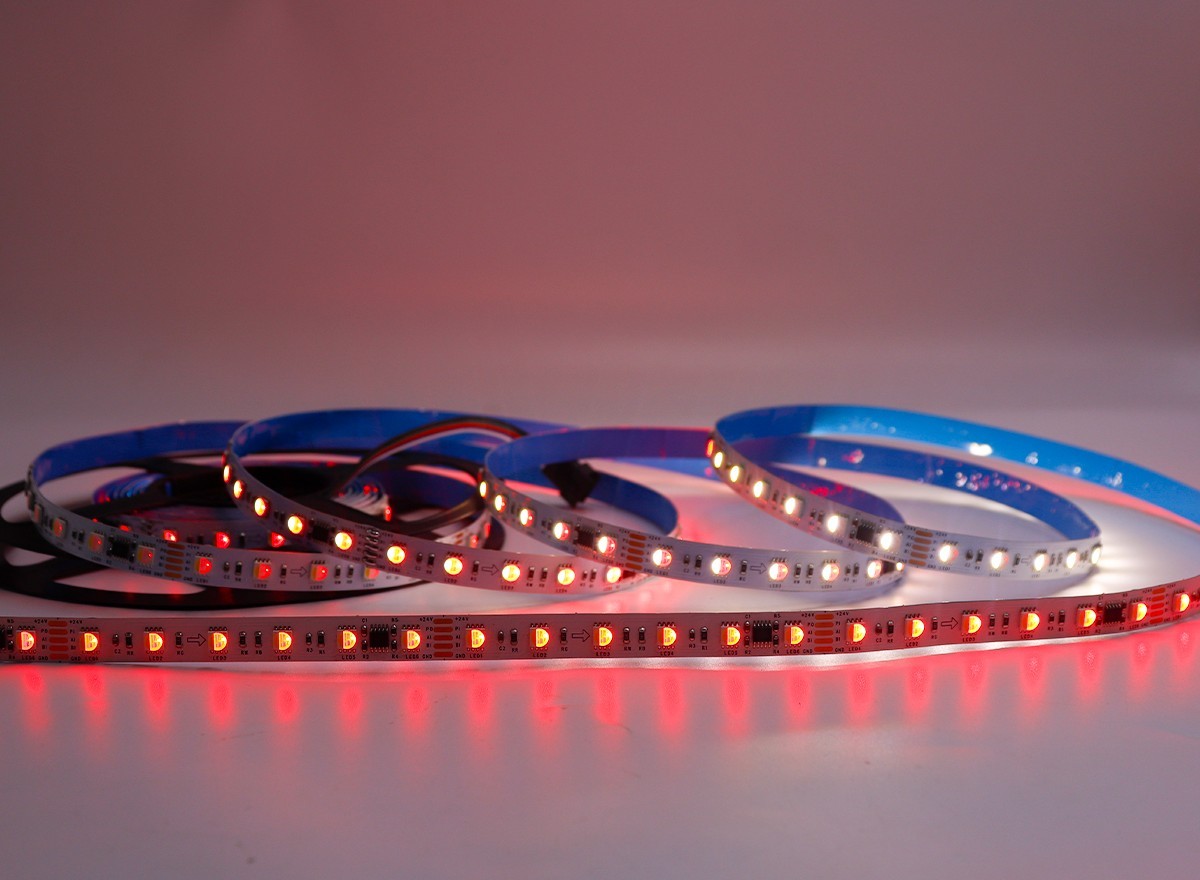

24V 5050 RGBW DMX512 Pixel Strip — UCS512H4 / UCS512H4L, 60LED/m, 10px/m, 12mm Black PCB
|
Category |
Specification |
|---|---|
|
Model |
PX-TAPE-5050-RGBW-UCS512H4-60-24V-12B（建议型号，可改） |
|
LED Type |
SMD 5050 RGBW (4-in-1) |
|
LED Density |
60 LEDs/m（300 LEDs / 5m roll） |
|
IC Type |
UCS512H4 / UCS512H4L（DMX512 differential parallel driver, auto-addressable） |
|
Pixels |
10 pixels/m（1 IC drives 6 LEDs） |
|
DMX Channels |
4 ch/pixel → 40 ch/m（R, G, B, W） |
|
Voltage |
DC 24V constant voltage |
|
Power |
18–19.2 W/m（12mm 黑/白板常见值；轻量版 14.4W/m 需注明） |
|
PCB |
12mm width, 2oz copper, black FPCB（10mm / 白 / 黄板可选） |
|
Cut Unit |
100 mm（6 LEDs + 1 IC） |
|
Signal Lines |
24V / A(DMX+) / B(DMX-) / PI(address) / GND — 5-line DMX harness |
|
Addressing |
Auto-addressing (H4L) / DMX address writer / Art-Net DMX |
|
Grayscale |
8-bit 256-step；16-bit 65536-step on UCS512H series config |
|
Gamma |
1.0 / 2.0 / 2.2 / 2.5（controller/IC config） |
|
White CCT |
3000K / 4000K / 6500K（project-dependent） |
|
Beam |
120° |
|
Max Run |
5 m/reel；long runs need power injection + DMX repeater |
|
IP Rating |
IP20 / IP65 / IP67 / IP68 |
|
Application |
Stage, club, KTV, cove, retail brand wall, hotel ceiling, signage, architectural outline |
