Cut every 100mm on 24V and drive it from DINA / SLESA / STICK-DE3 / Art-Net / Madrix. Ideal for clubs, stages, retail walls, hotels, coves, and architectural outlines.
RGBW 4-in-1: R+G+B+W(3000K / 4000K / 6500K by bin) in one 5050—millions of colors plus usable white light, better pastels than RGB-only tape.
UCS512 DMX512 Platform: Differential A/B parallel bus, 200–750kbps auto-decode, 4096-channel addressing, E2PROM online addressing, breakpoint-tolerant; “C0” BOM variants sit in the same UCS512 family as C4/H4.
24V + 12mm 2oz PCB: Lower current than 12V pixel tape, less voltage drop, better heat spread; black board hides behind aluminum profiles and coves.
10 Pixels/m, 100mm Cut: 6 LEDs per segment—medium pixel pitch for outlines, ceilings, brand walls, signage, and Madrix pixel maps.
Pro Desk Ready: DINA / SLESA / STICK-DE3 / Art-Net / Madrix / K-1000C after DMX addressing; IP20/IP65/IP67/IP68 options.

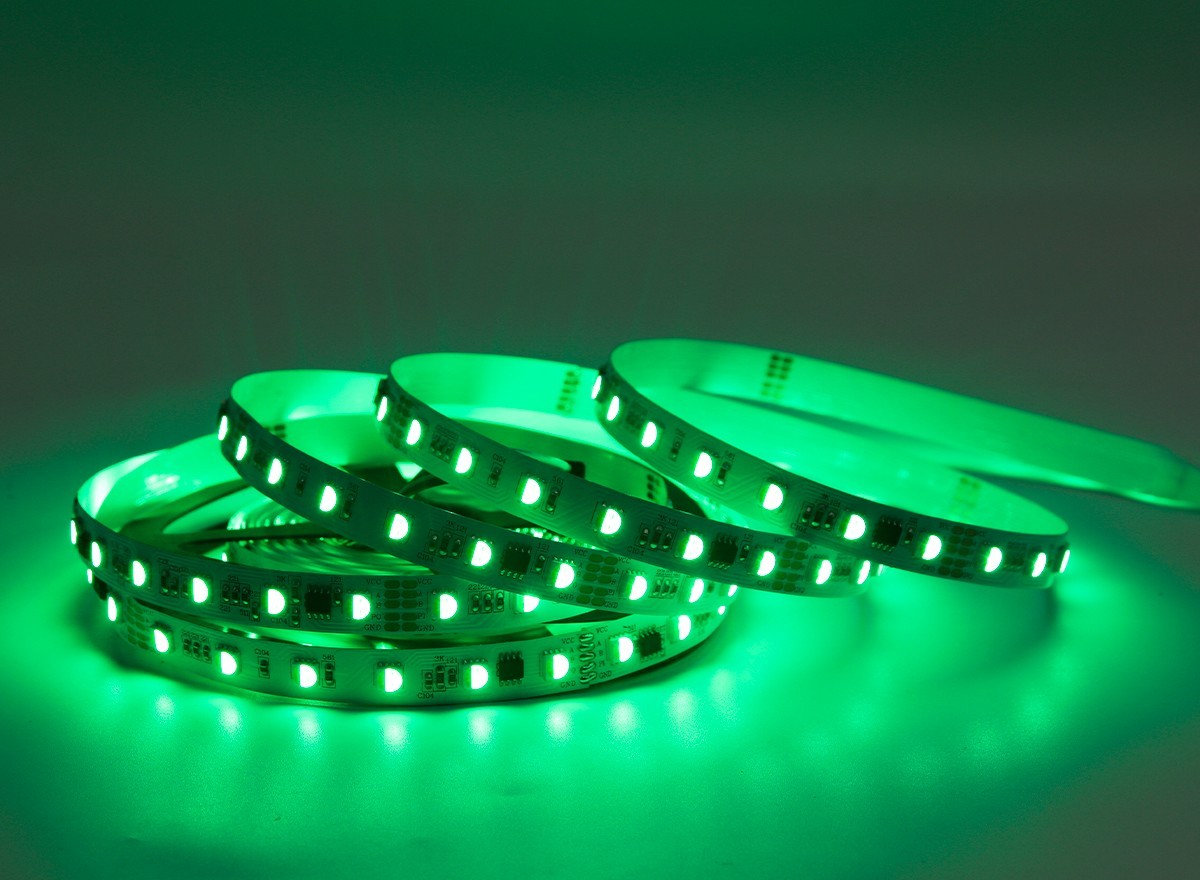

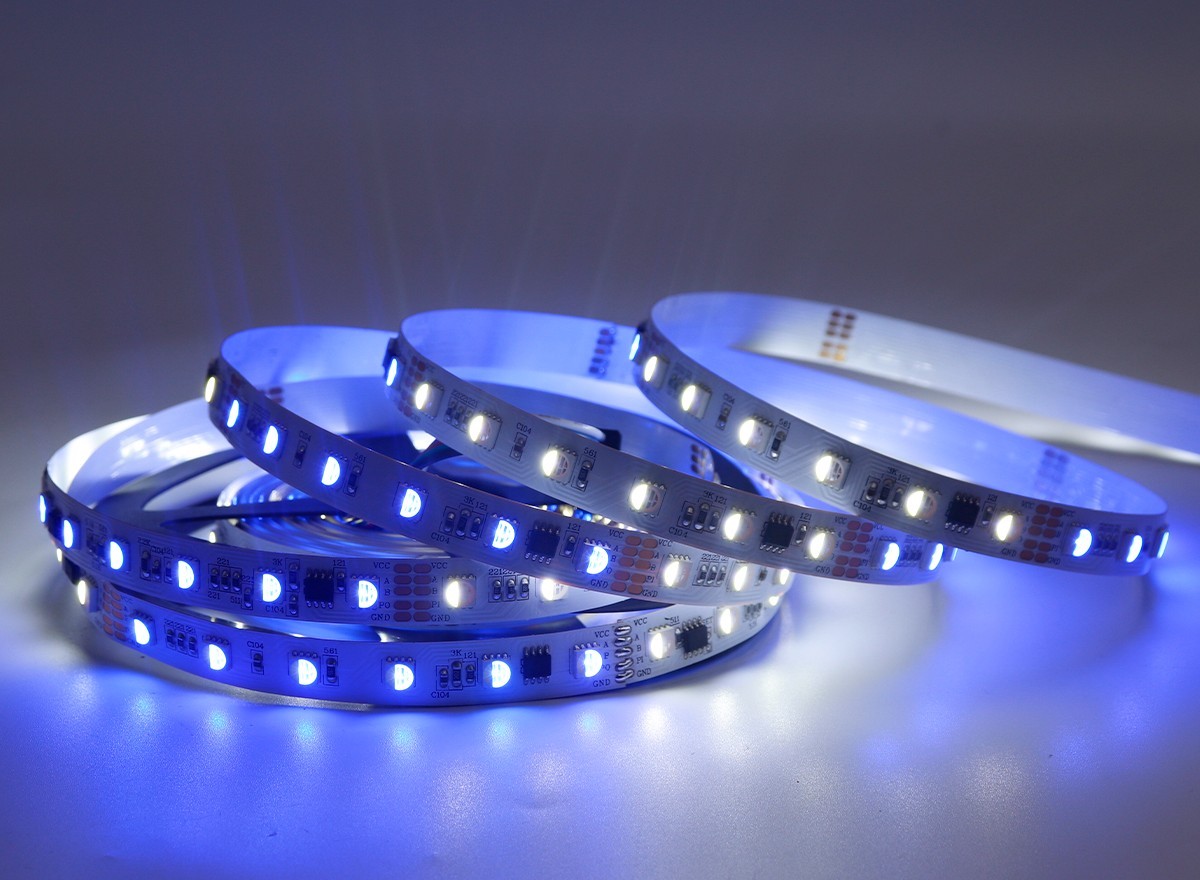

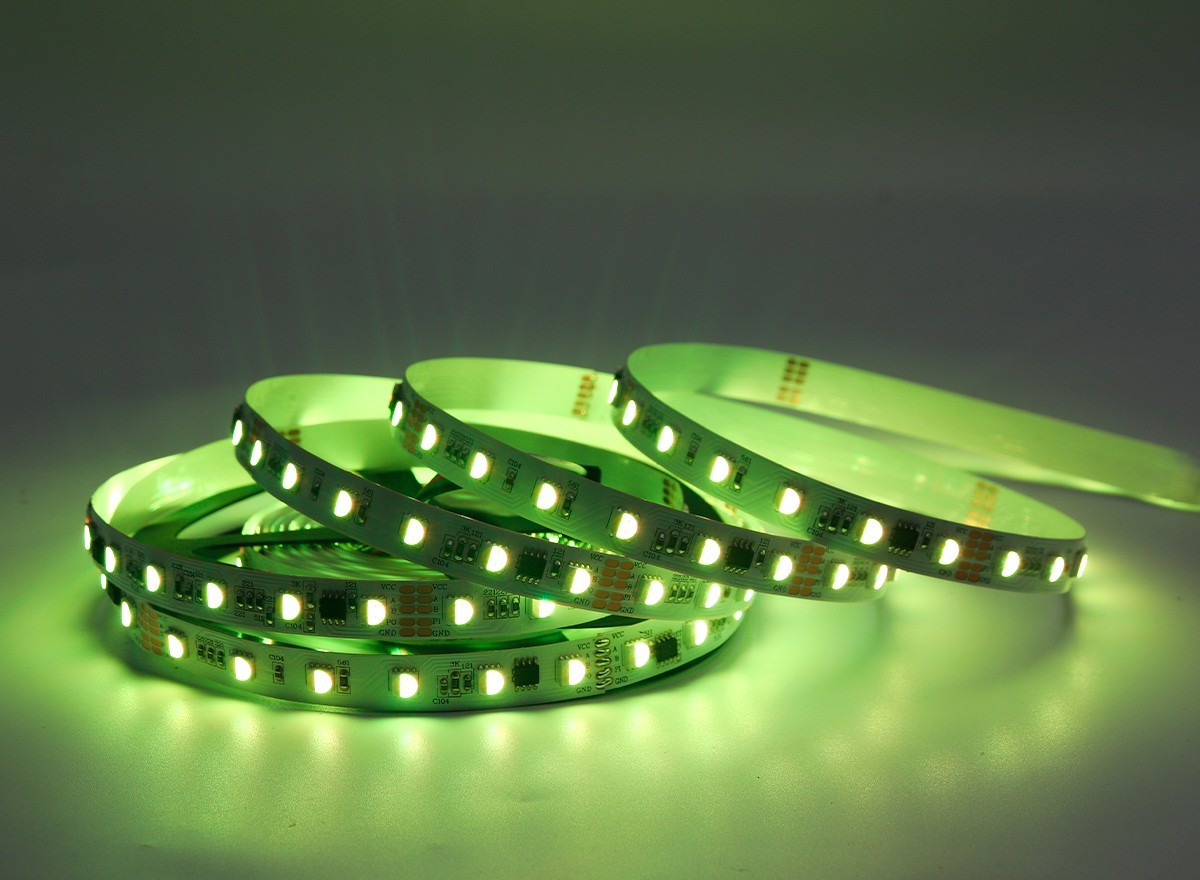

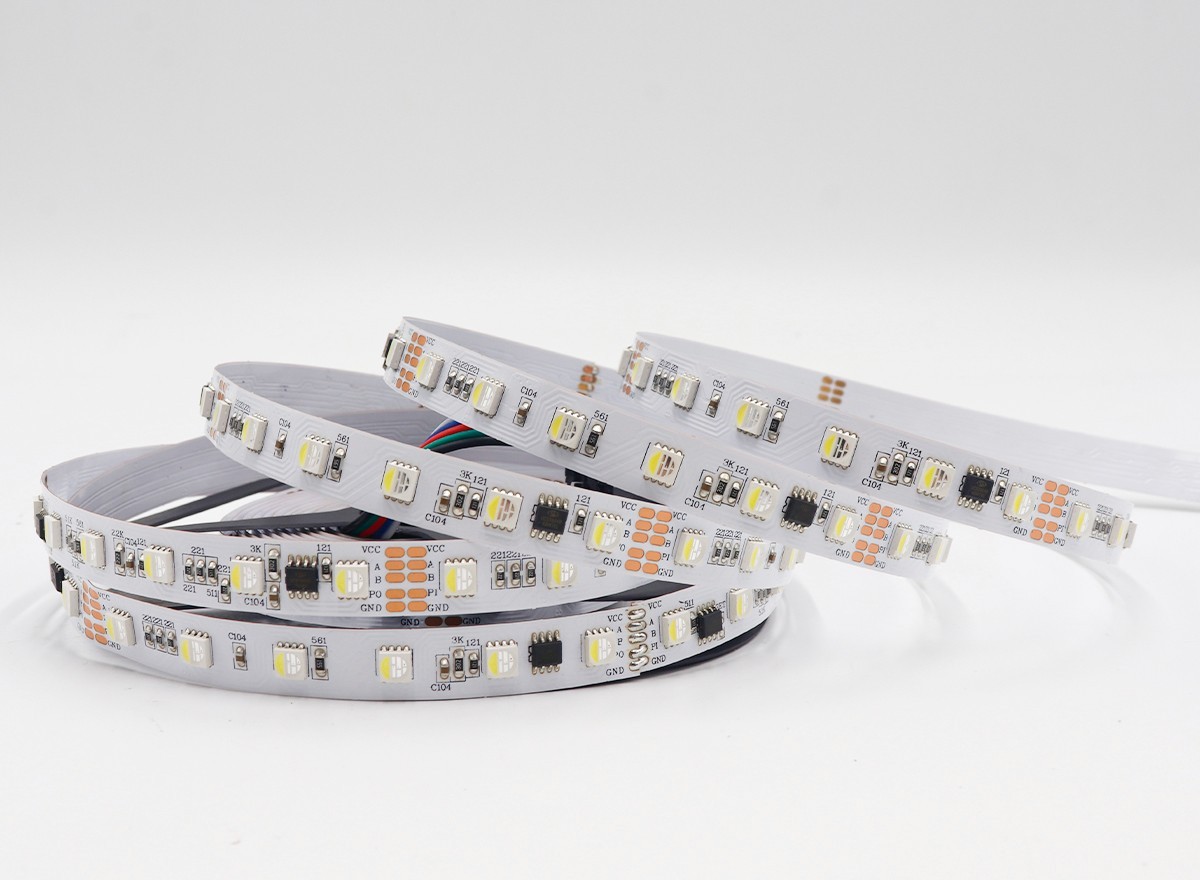

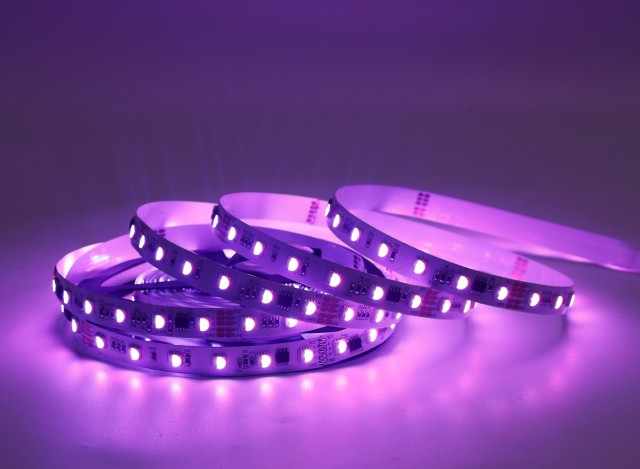

24V 5050 RGBW DMX512 Pixel Strip — UCS512-family (C0/C4/H4 BOM), 60LED/m, 10px/m, 12mm PCB
|
Category |
Specification |
|---|---|
|
Model |
PX-TAPE-5050-RGBW-UCS512-60-24V-12B（建议型号，可改） |
|
LED Type |
SMD 5050 RGBW (4-in-1) |
|
LED Density |
60 LEDs/m（300 LEDs / 5m roll） |
|
IC Type |
UCS512 family — BOM may show UCS512C0 / C4 / H4 / H4L；C0 = differential DMX decode/forward IC, C4/H4 = 4ch RGBW pixel driver |
|
Pixels |
10 pixels/m（1 IC drives 6 LEDs） |
|
DMX Channels |
4 ch/pixel → 40 ch/m（R, G, B, W） |
|
Voltage |
DC 24V constant voltage |
|
Power |
14.4 W/m（light build）/ 18–19.2 W/m（typical RGBW build，按 BOM 确认） |
|
PCB |
12mm width, 2oz copper, black/white FPCB |
|
Cut Unit |
100 mm（6 LEDs + 1 IC） |
|
Signal Lines |
24V / A(DMX+) / B(DMX-) / PI(address) / GND — 5-line DMX harness |
|
Addressing |
A/B online auto-coding / DMX address writer / Art-Net DMX |
|
Grayscale |
8-bit 256-step；16-bit 65536-step on UCS512 H-series config |
|
Gamma |
1.0 / 2.2（configurable） |
|
White CCT |
3000K / 4000K / 6500K（project-dependent） |
|
Beam |
120° |
|
Max Run |
5 m/reel；long runs need power injection + DMX repeater |
|
IP Rating |
IP20 / IP65 / IP67 / IP68 |
|
Application |
Stage, club, KTV, cove, retail brand wall, hotel ceiling, signage, architectural outline |
