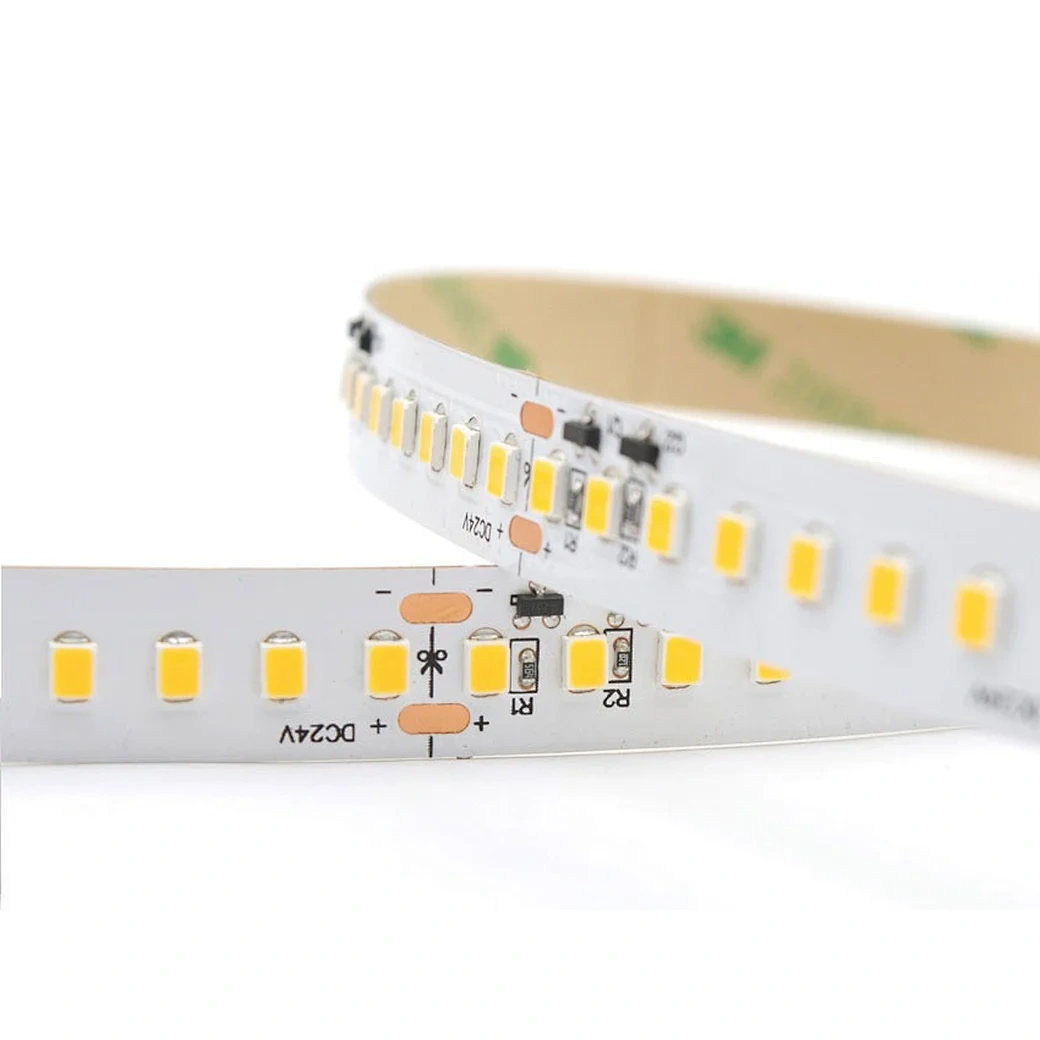

Available in CRI80/90/95 and 2700K–6500K, it suits everything from ambient cove lighting to precision display cases. The slim 8–10mm PCB fits discreetly into narrow profiles, and the low 8W/M power draws minimal heat for reliable operation without heavy aluminum extrusion. Built with premium 2835 chips and 3OZ copper PCB, it offers 50,000-hour lifespan and stable performance. Choose constant current for projects where consistency and efficiency matter most.
Constant Current Stability: Each LED receives fixed current, ensuring perfectly uniform brightness from the first to the last meter—no voltage drop, no end dimming, even on runs up to 20m.
160LM/W High Efficiency at 8W/M: Delivers up to 1,280LM/M while consuming only 8 watts per meter, ideal for energy-conscious ambient and accent lighting.
Ultra-Long Single-Run Capability: Unlike constant voltage strips, a single feed can power 10–20m continuously, reducing wiring complexity and power supply count.
Premium Color Consistency: Single-bin LED selection with CRI80/90/95 options ensures tight SDCM ≤3 color tolerance, perfect for galleries, retail, and architectural applications.
Low Heat, Minimal Profile: At just 8W/M, thermal output is minimal—compatible with slim aluminum profiles or even adhesive-only mounting in low-duty cycles.
|
Item |
Specification |
|---|---|
|
Product Name |
Constant Current High Efficiency LED Strip Light |
|
LED Type |
SMD 2835 |
|
LED Density |
64 LEDs/meter |
|
Drive Type |
Constant Current (CC) |
|
Working Voltage |
DC 24V |
|
Power Consumption |
8W/Meter |
|
Luminous Flux |
1,280 LM/Meter (4000K, Ra80) |
|
Luminous Efficacy |
160 LM/W |
|
Color Rendering Index (CRI) |
Ra80 / Ra90 / Ra95 Optional |
|
Color Temperature (CCT) |
2700K / 3000K / 3500K / 4000K / 5000K / 6500K |
|
Beam Angle |
120° |
|
Cutting Unit |
100 mm (8 LEDs per cut) |
|
PCB Width |
8 mm / 10 mm |
|
PCB Copper Thickness |
2 OZ / 3 OZ Optional |
|
Max Run Length |
10–20 m (Single feed, no voltage drop) |
|
IP Rating |
IP20 (Non-waterproof) / IP65 Optional |
|
Lifespan |
50,000 Hours |
|
Certification |
CE, RoHS, ERP Compliant |
|
Warranty |
3 Years |
