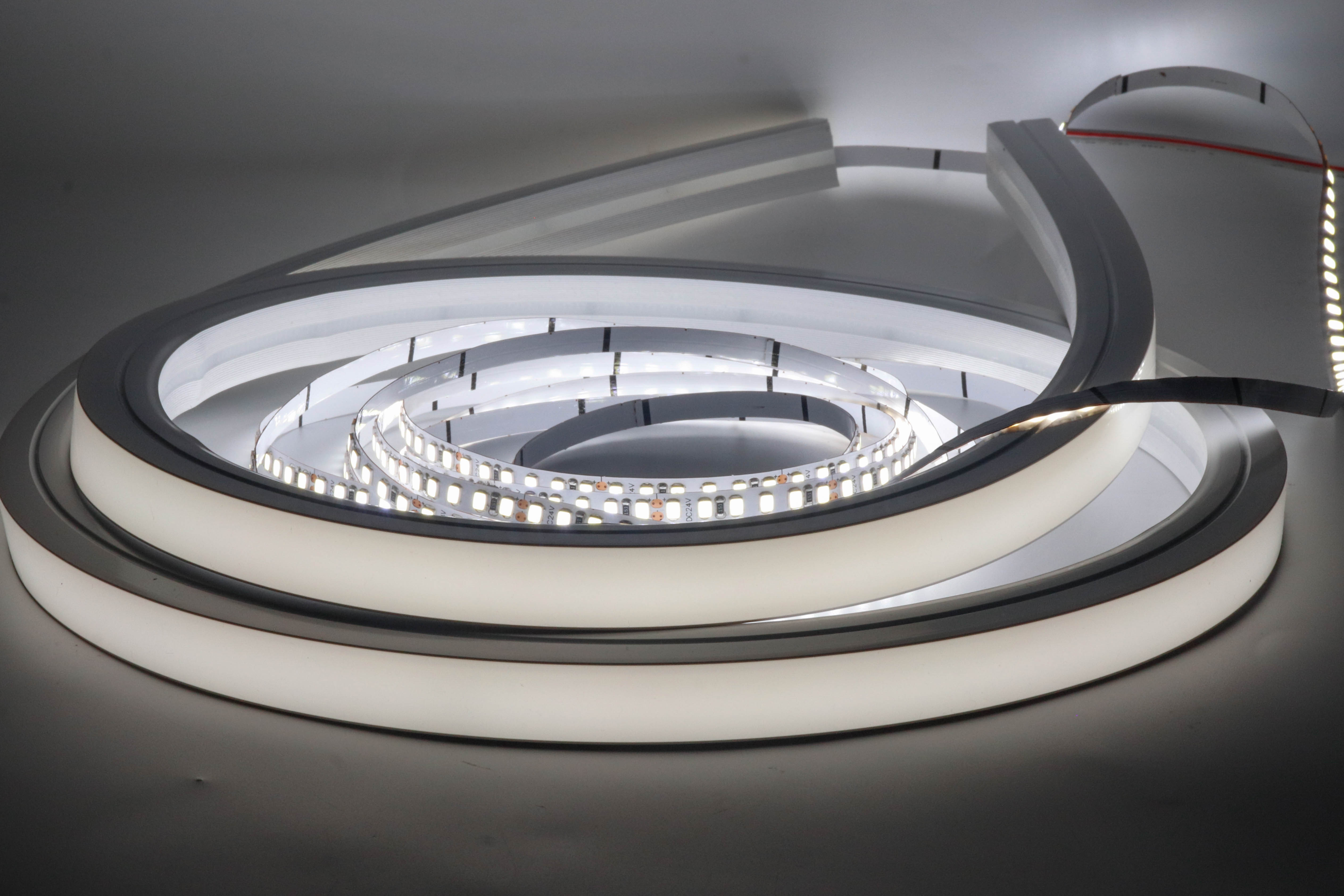

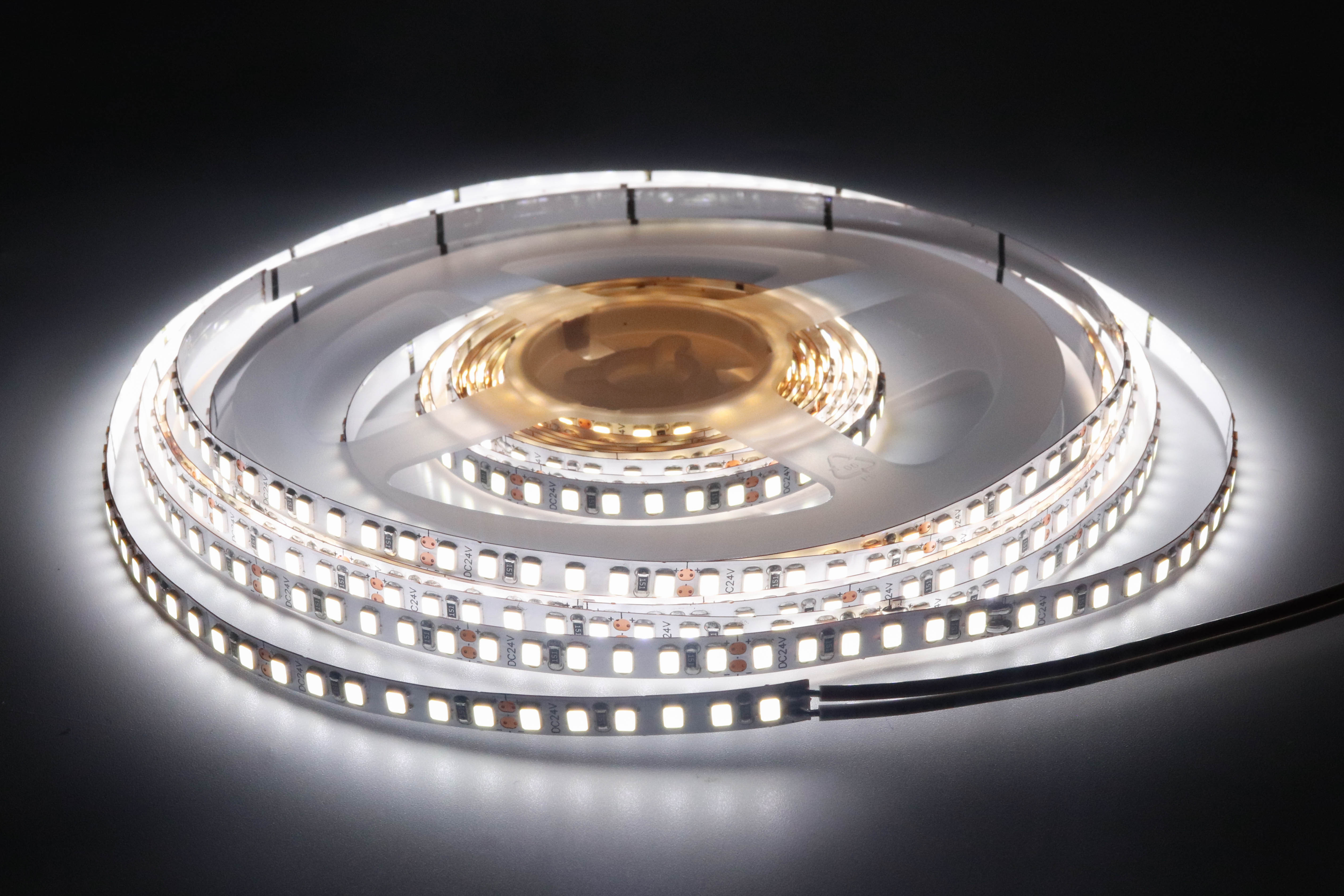

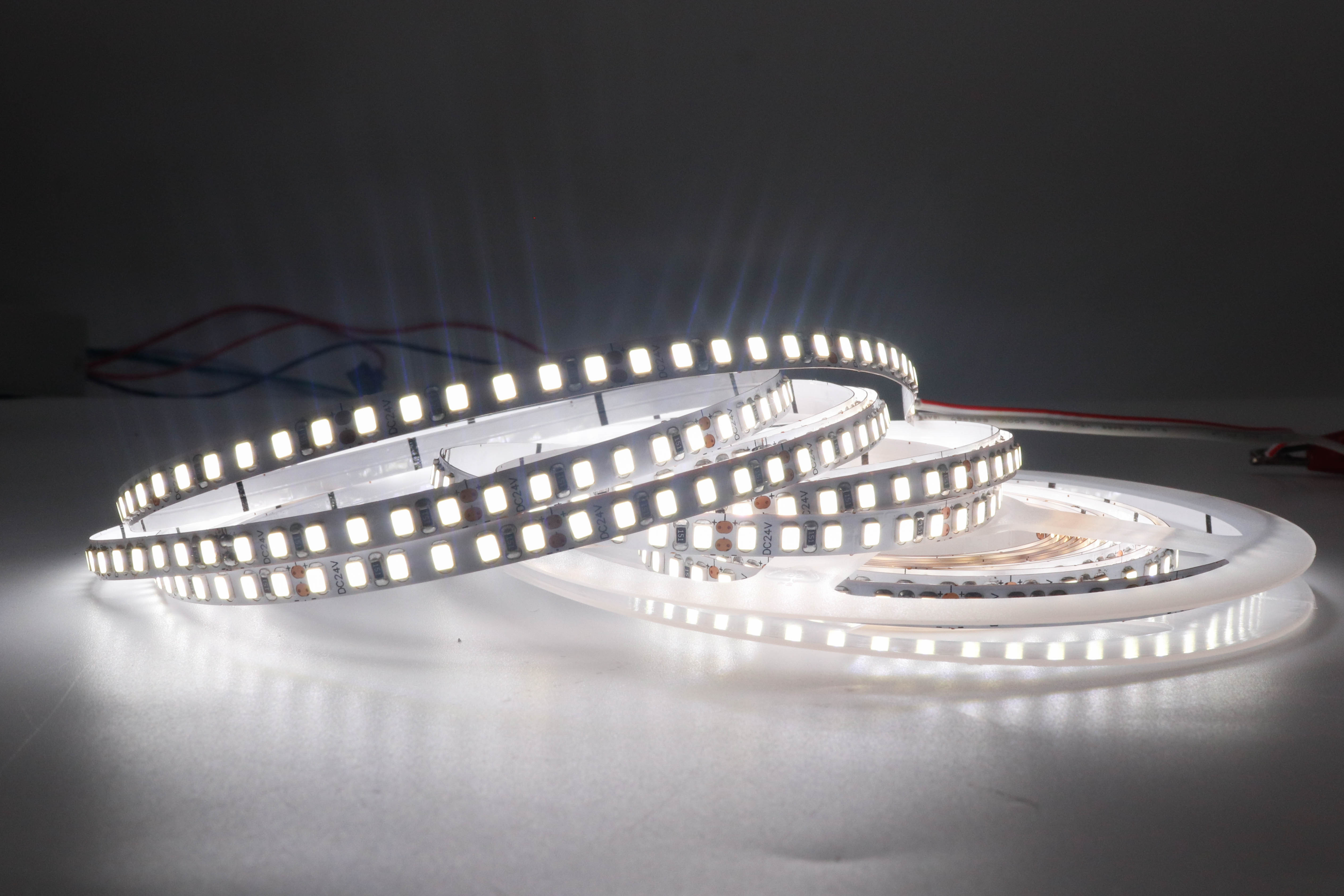

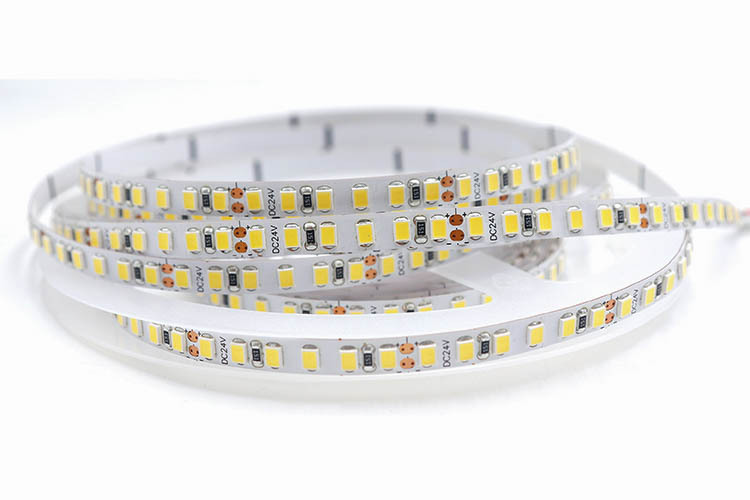

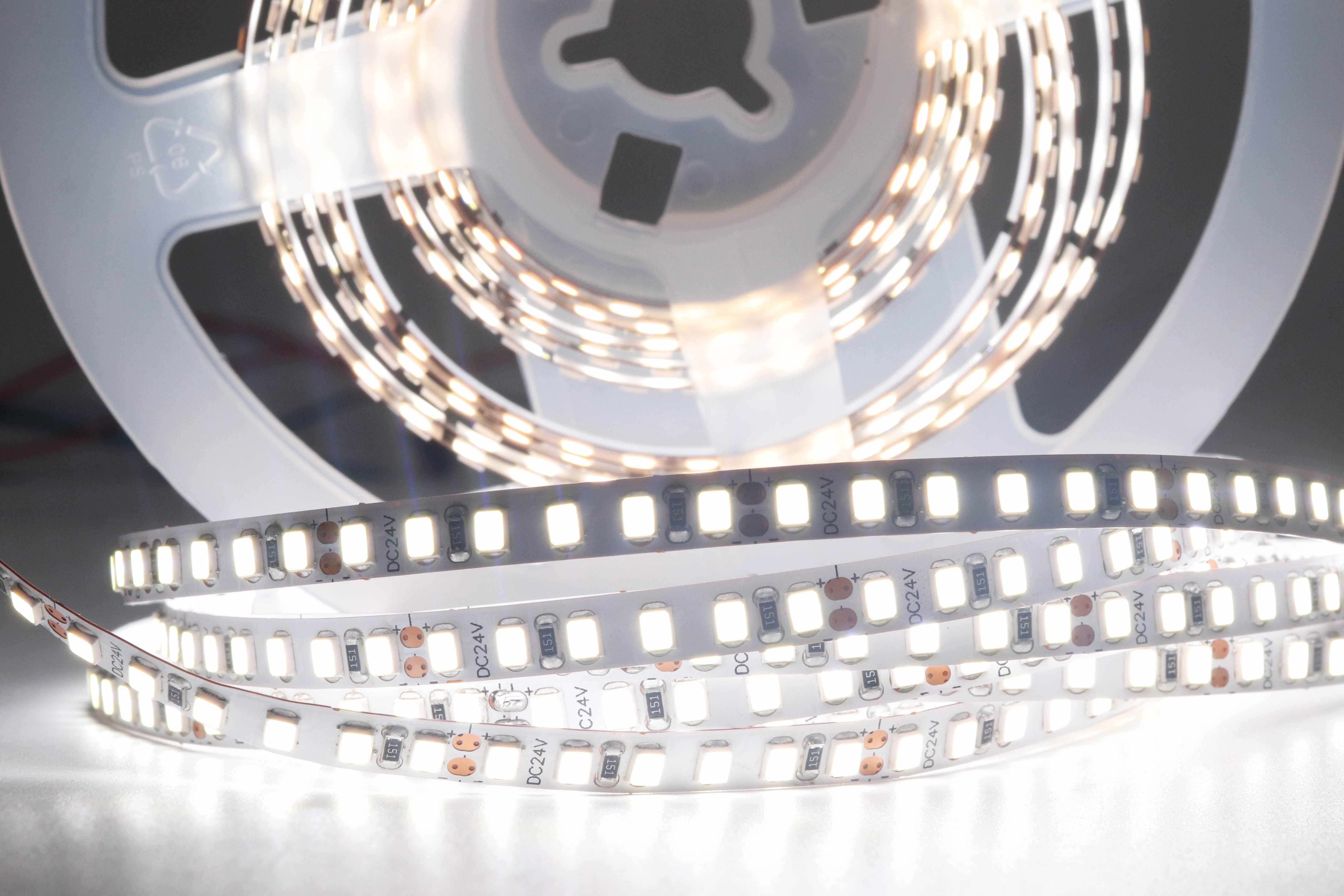

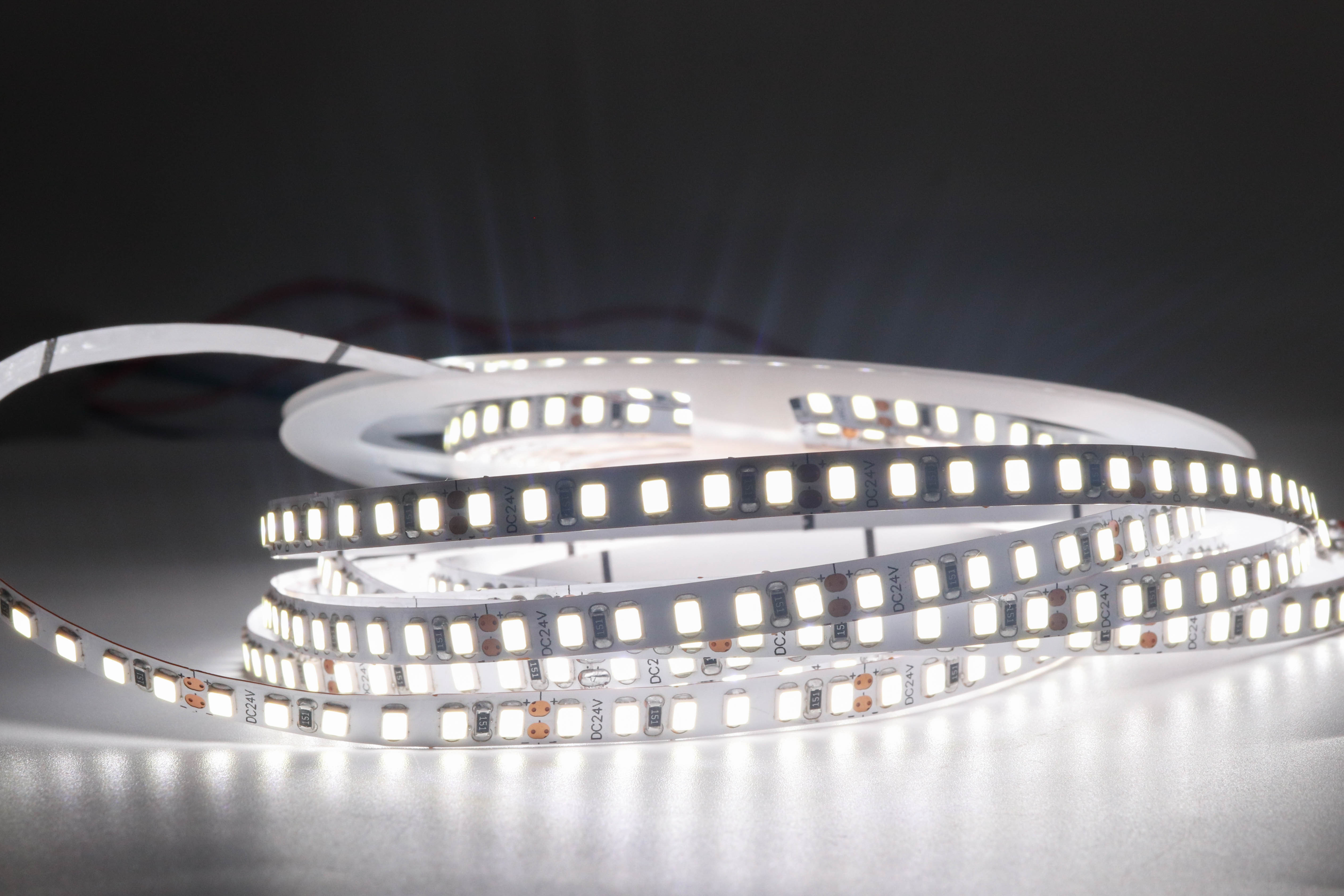

This 24V 2835 single-color strip delivers 168 LEDs per meter on an ultra-narrow 6mm PCB—perfect for tight spaces where standard 8mm or 10mm strips won't fit. The 2835 chip offers excellent lumen-per-watt efficiency and low heat, while 24V operation keeps current draw modest and voltage drop minimal for longer runs. Choose from 2700K/3000K/4000K/6000K with CRI≥80 or ≥90. Cut every 6 LEDs (≈35.7mm), 3M adhesive backing, flexible and easy to install in cabinets, shelves, signage, stair treads, coves and display cases. Reliable, bright and budget-friendly for any interior lighting project.
Ultra-Narrow 6mm PCB: Fits into slim aluminum profiles, narrow gaps, letter signs, stair noses and tight furniture edges.
168 LEDs/m High Density: Smooth, even light output with minimal spotting; great for close-view cove and task lighting.
Efficient 2835 Chip: Proven 2.8×3.5mm package, high lm/W, low heat, long lifespan—cost-effective for large-scale installs.
24V Stable Operation: Lower current than 12V strips, reduced voltage drop, longer continuous runs without power injection.
Flexible & Easy Install: Cut every 6 LEDs (≈35.7mm), 3M tape, IP20/IP65/IP67 options, PWM/0-10V/Triac dimmable with driver.
|
Item |
Specification |
|---|---|
|
LED Type |
SMD 2835 (single chip, 2.8×3.5mm) |
|
Color |
Single Color: WW 2700K / 3000K / 4000K / 6000K |
|
LED Density |
168 LEDs/m |
|
Voltage |
DC 24V |
|
Power |
~12–14 W/m (typical), ~16 W/m max |
|
Cut Unit |
Every 6 LEDs / ≈35.7 mm |
|
PCB Width |
6 mm |
|
CRI |
Ra ≥80 / Ra ≥90 optional |
|
Lumen |
~1000–1300 lm/m (depends on CCT) |
|
Beam Angle |
120° |
|
Dimming |
PWM / 0-10V / Triac (with driver) |
|
IP Rating |
IP20 / IP65 / IP67 optional |
|
Adhesive |
3M tape |
|
Working Temp. |
-20°C ~ +60°C |
|
Lifespan |
30,000–50,000 hrs |
|
Note |
Non-addressable; uniform single-color output; pair with diffuser for best effect |
