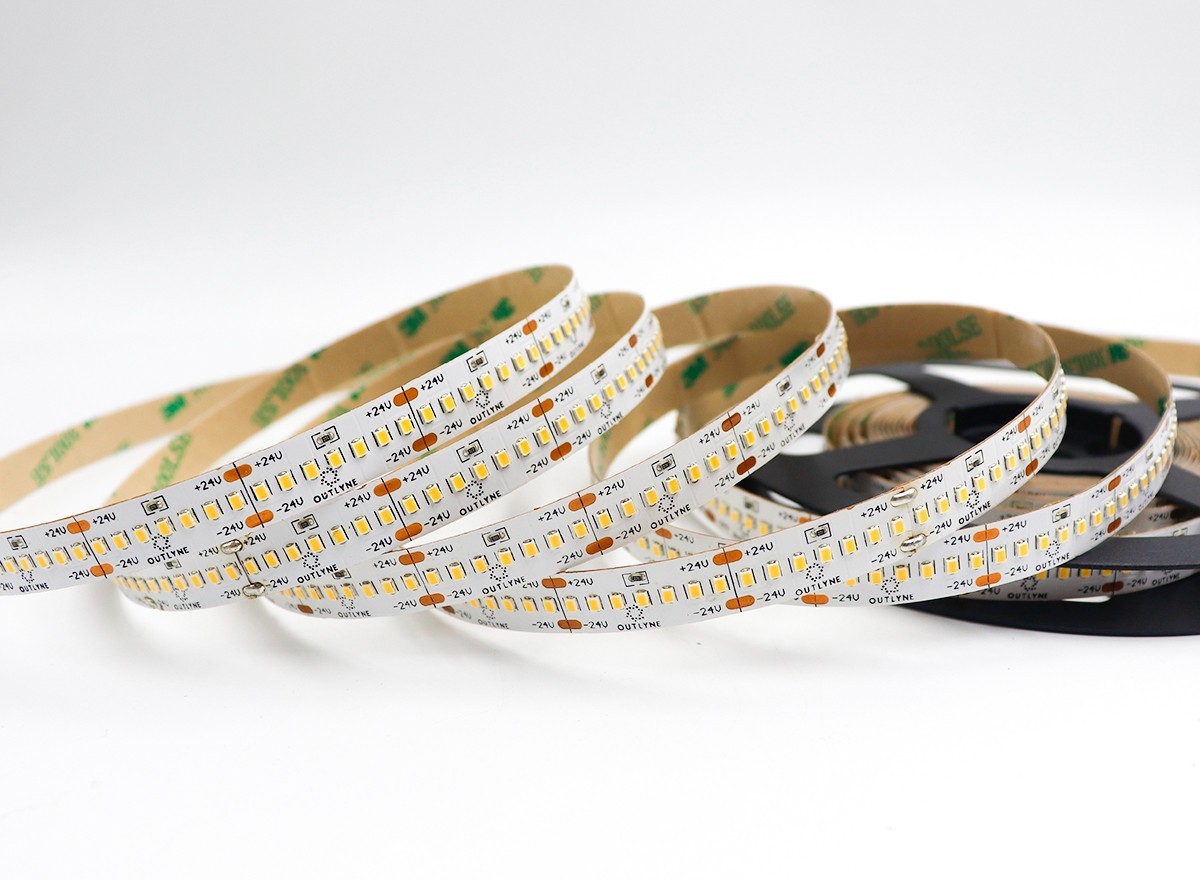

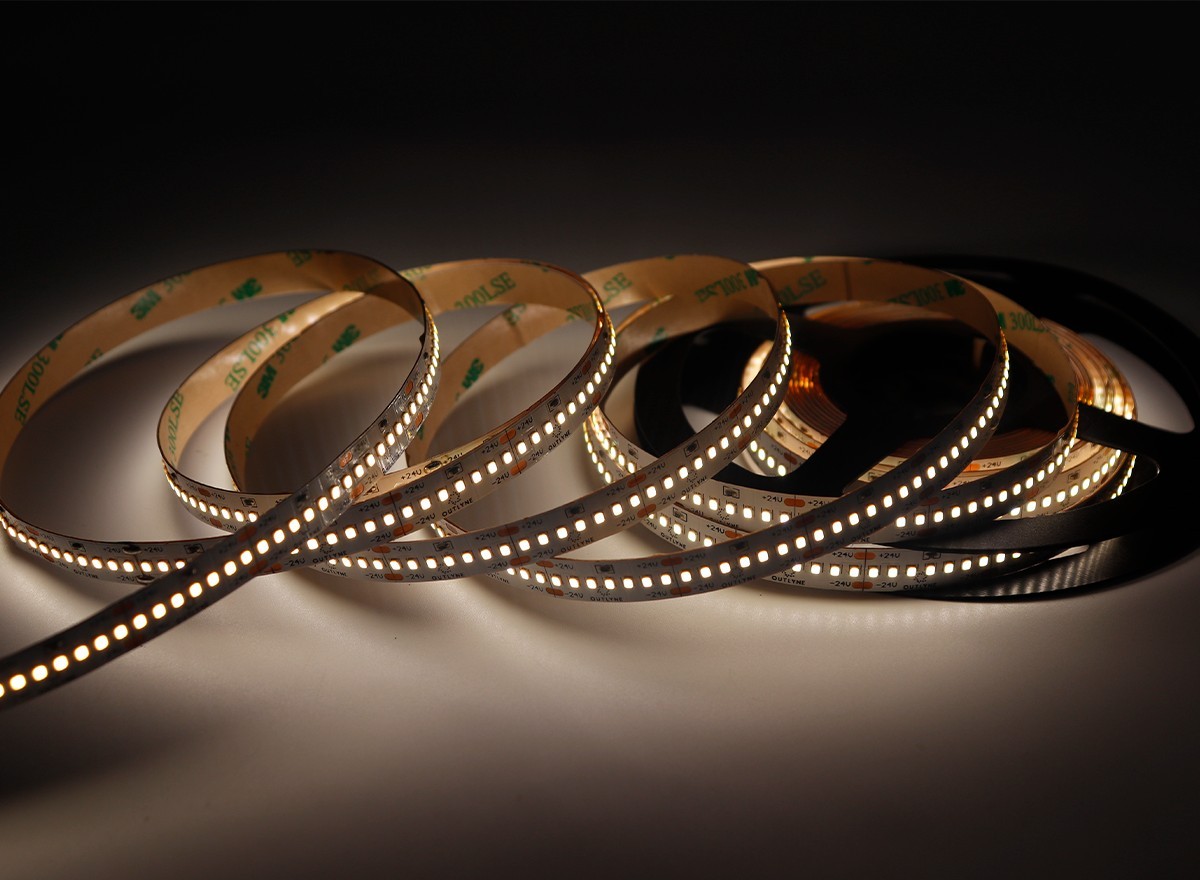

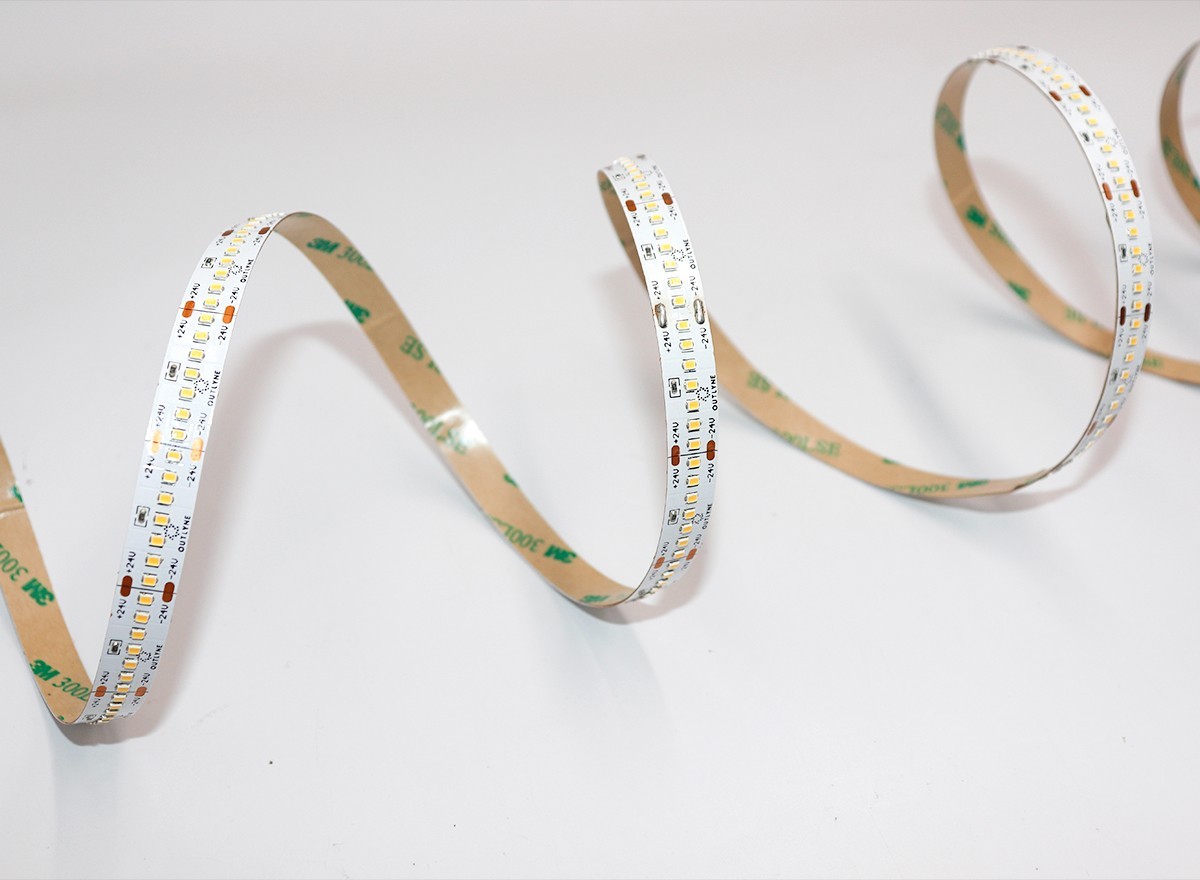

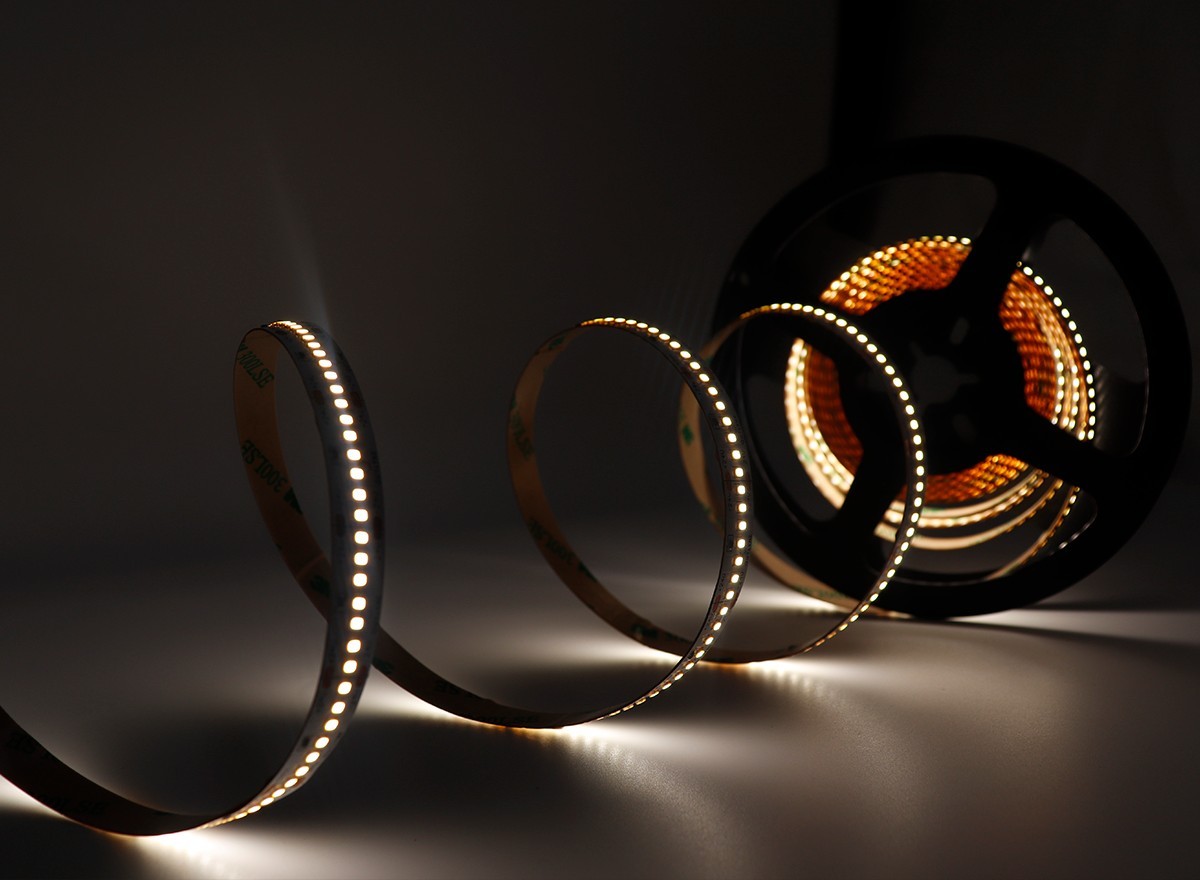

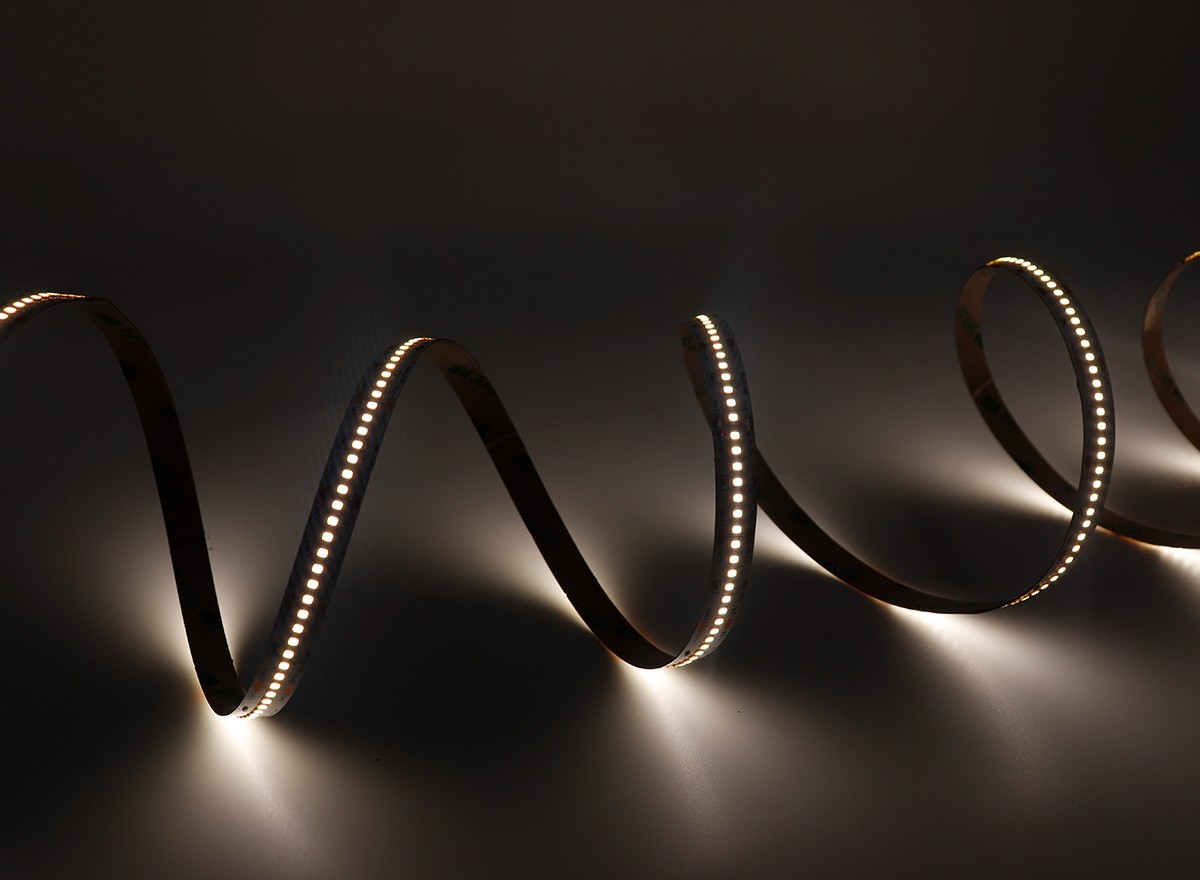

Achieve flawless, dot-free illumination with this 24V 2216 single-color LED strip. Packing 280 ultra-compact 2.2×1.6mm chips per meter, it delivers exceptionally smooth, uniform light—perfect behind aluminum profiles for coves, cabinets, shelves, mirrors and jewelry displays. The mini 2216 package emits less heat than larger LEDs, allowing tighter packing without hot spots. 24V operation reduces current and voltage drop for longer runs. Choose from 2700K/3000K/4000K/6000K with CRI≥90/95. Dimmable via PWM/0-10V/Triac (with driver). Low-profile, flexible, 3M-adhesive backed—professional-grade lighting for interiors, retail and hospitality.
Ultra-High 280 LEDs/m Density: 2216 mini chip (2.2×1.6mm) packs tight for truly dot-free glow; invisible light dots even without deep diffuser.
Premium CRI Options: Ra≥90 or Ra≥95, R9>50, TLCI high—true color rendering for retail, gallery, jewelry and makeup lighting.
24V Low-Heat Stable: Less current than 12V strips, minimal voltage drop, longer continuous runs, cooler operation.
Multiple White Temps: 2700K/3000K/4000K/6000K available; single-color purity, no RGB color shift.
Professional Install: 8mm PCB, cut every 35.7mm (≈12.8mm per LED), 3M adhesive, IP20/IP65/IP67, compatible with standard dimmers/drivers.
|
Item |
Specification |
|---|---|
|
LED Type |
SMD 2216 (single chip, 2.2×1.6mm) |
|
Color |
Single Color: WW 2700K / 3000K / 4000K / 6000K |
|
LED Density |
280 LEDs/m |
|
Voltage |
DC 24V |
|
Power |
~11–14 W/m (typical), ~16 W/m max |
|
Cut Unit |
Every 12 LEDs / ≈35.7 mm |
|
PCB Width |
8 mm (standard) |
|
CRI |
Ra ≥80 / Ra ≥90 / Ra ≥95 optional |
|
Lumen |
~900–1200 lm/m (depends on CCT) |
|
Beam Angle |
120° |
|
Dimming |
PWM / 0-10V / Triac (with driver) |
|
IP Rating |
IP20 / IP65 / IP67 optional |
|
Adhesive |
3M 300LSE |
|
Working Temp. |
-20°C ~ +60°C |
|
Lifespan |
30,000–50,000 hrs |
|
Note |
Non-addressable; uniform single-color output; pair with aluminum profile for dot-free effect |
