The built-in 4-digit digital display and intuitive push-button interface allow quick DMX address assignment, mode selection, and speed adjustment—no external programmer needed. Its compact black aluminum housing with tool-free spring terminal blocks ensures secure wiring and efficient heat dissipation. Compatible with both constant voltage LED strips and DMX512 control systems, it’s ideal for stage lighting, architectural installations, retail displays, and home automation. Whether you're a lighting designer or DIY enthusiast, this decoder offers reliable performance, flexible configuration, and plug-and-play simplicity. Unlock the full potential of your LED lighting with precision DMX control.
24-Channel High-Current Output – Delivers up to 3A per channel (72A max total) across 24 independent channels, supporting long runs of 5V/12V/24V LED strips.
Wide Voltage Compatibility – Works with DC 5V–24V input, making it versatile for various LED lighting setups without needing multiple decoders.

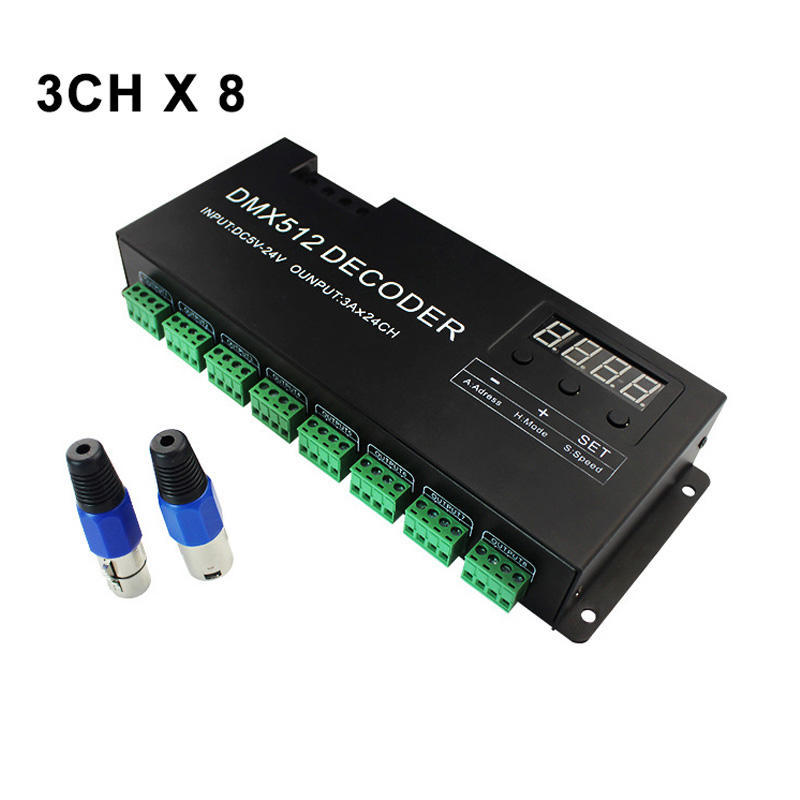

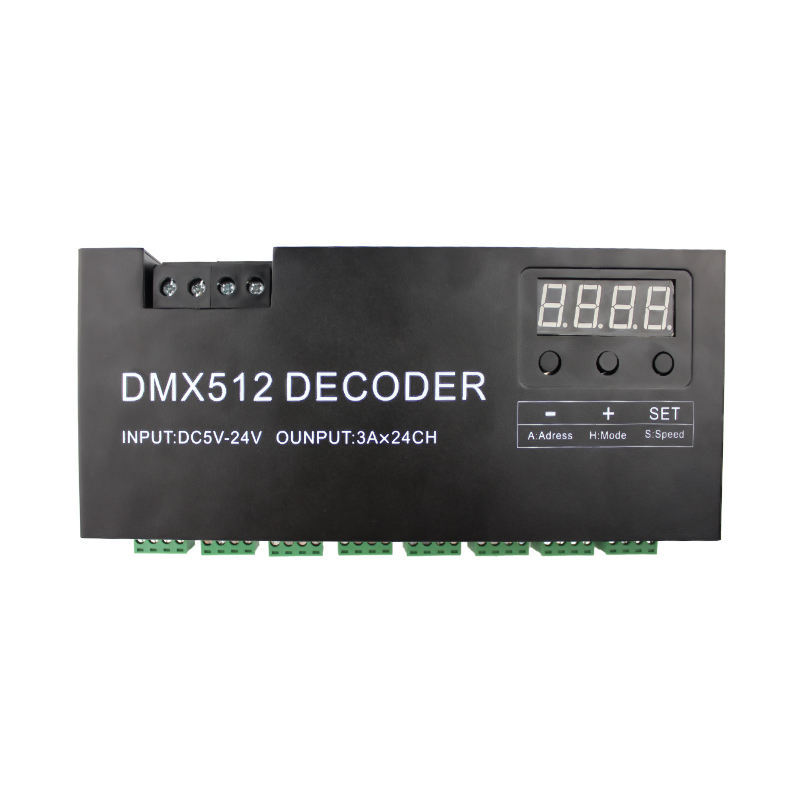

Built-in Digital Display & Controls – Features a 4-digit LED screen with dedicated buttons for DMX address setting (A), mode selection (H), and speed adjustment (S) directly on the device.
Professional DMX512 Decoding – Accurately converts DMX512 digital signals into PWM output for flicker-free dimming and full-color control, compatible with all standard DMX consoles.

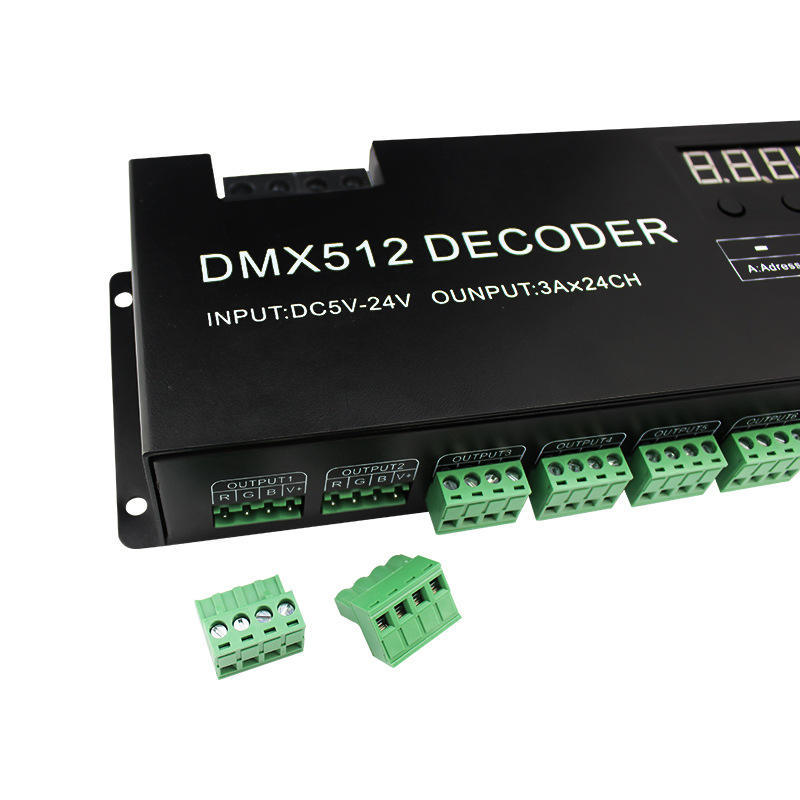

Easy Installation & Robust Design – Tool-free green screw terminals and a durable black enclosure ensure quick wiring, stable signal transmission, and reliable operation in demanding environments.
|
Category |
Item |
Specification |
|---|---|---|
|
General |
Product Name |
DMX512 Decoder (24-Channel) |
|
Model No. |
(Customizable) |
|
|
Housing Color |
Black |
|
|
Electrical |
Input Voltage |
DC 5V – 24V |
|
Output Current |
3A × 24 Channels (Max 72A total) |
|
|
Output Type |
Constant Voltage PWM |
|
|
DMX Channels |
24 (each channel independently controllable) |
|
|
Display & Control |
Display |
4-Digit LED Digital Tube |
|
Buttons |
SET, +, – |
|
|
Functions |
A: Address Setting, H: Mode Setting, S: Speed Setting |
|
|

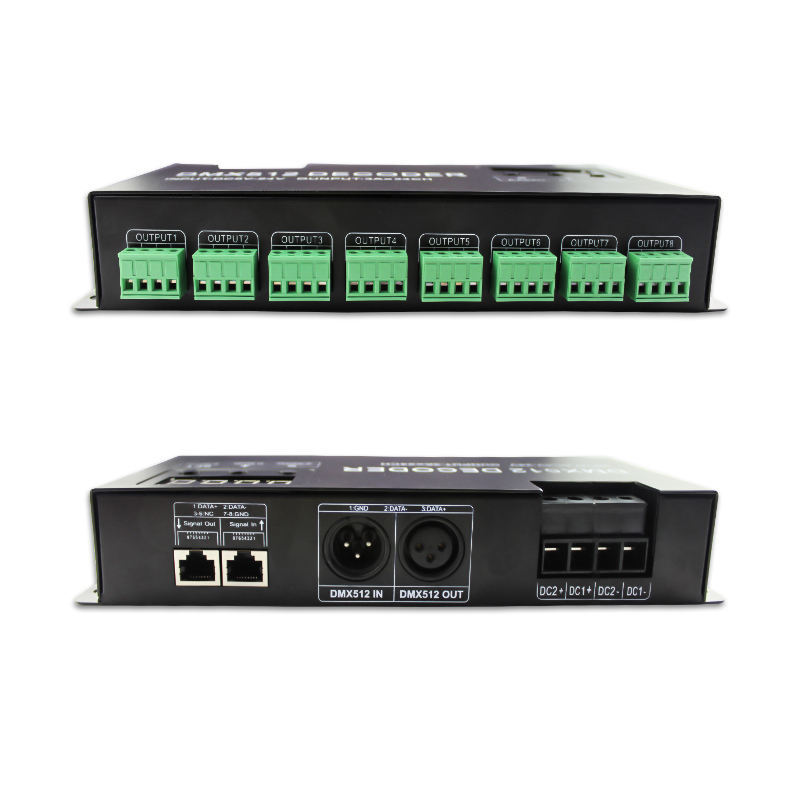

Interfaces |
Signal Port |

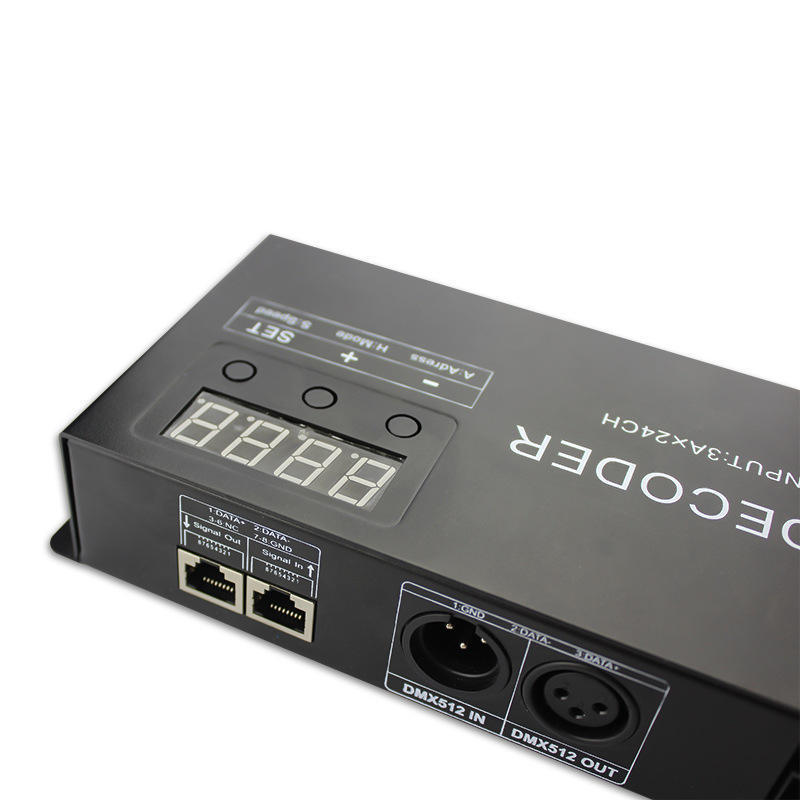

3-Pin DMX Interface (XLR or screw terminal) |
|

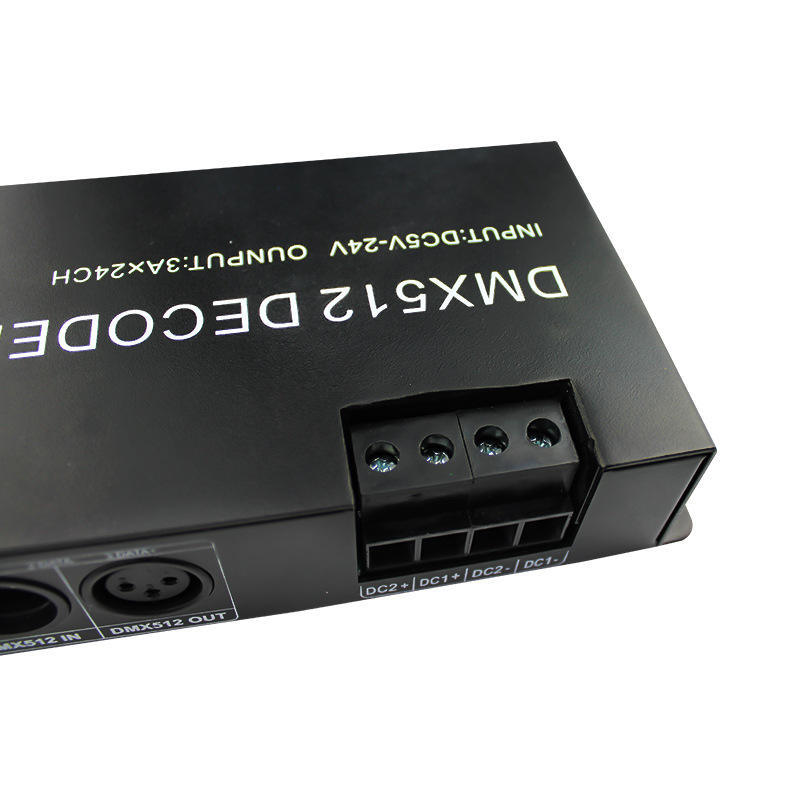

Power/Output |
Green Spring Terminal Blocks |
|
|
Performance |
DMX Standard |
DMX512/1990 |
|
PWM Frequency |
(Typical 500Hz–8KHz, customizable) |
|
|
Refresh Rate |
>400Hz (flicker-free) |
|
|
Physical |
Dimensions |
(To be measured, approx. L×W×H mm) |
|
Weight |
(To be measured) |
|
|
Operating Temp. |
-20°C to 60°C |
|
|
Application |
Compatible Loads |
Single color, CCT, RGB, RGBW LED strips (constant voltage) |
|
Typical Use |
Stage, architecture, retail, home, and event lighting |
