The device supports daisy-chain connectivity via 3-pin XLR inputs and outputs, enabling scalable setups from small venues to large-scale performances. With robust protection against short circuits and overheating, it ensures reliable operation in demanding environments. Whether you are a lighting technician, integrator, or designer, this decoder provides the flexibility and precision needed to bring your creative visions to life. Unlock limitless color possibilities and professional-grade control with this essential lighting tool.
Professional DMX512 Control: Receives standard DMX512 signals and occupies 4 channels (Red, Green, Blue, White) for precise, high-fidelity color mixing and independent white light adjustment.
Versatile Standalone Modes: Built-in programs (H01-H11) allow the decoder to run dynamic color-changing effects automatically without a console, with adjustable speed settings (S01-S20).

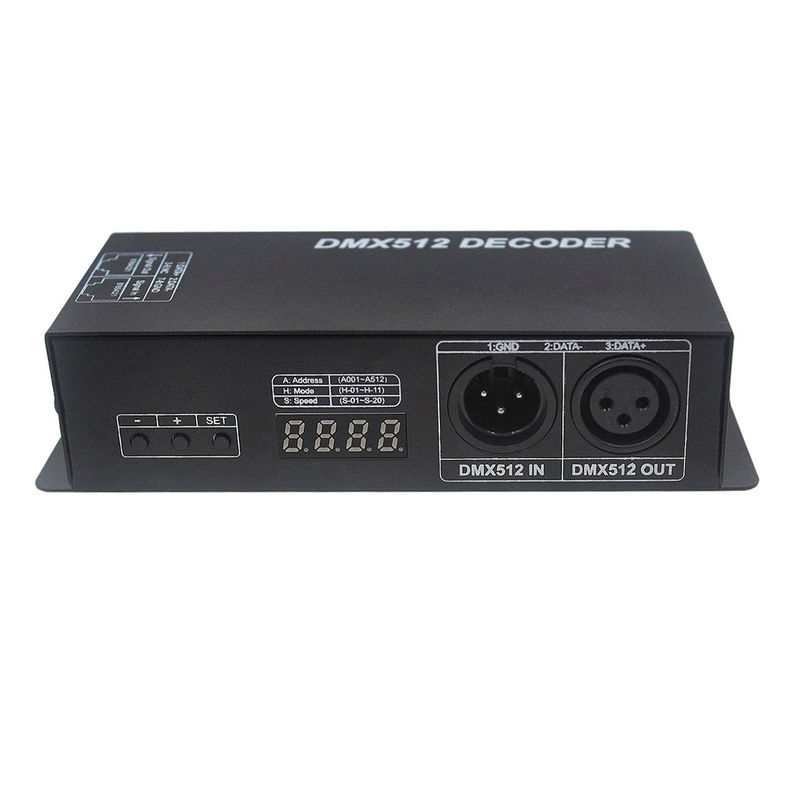

Easy Address Setting: Features a clear digital display and dedicated buttons to set DMX start addresses (001-512) instantly, eliminating the hassle of traditional DIP switches.

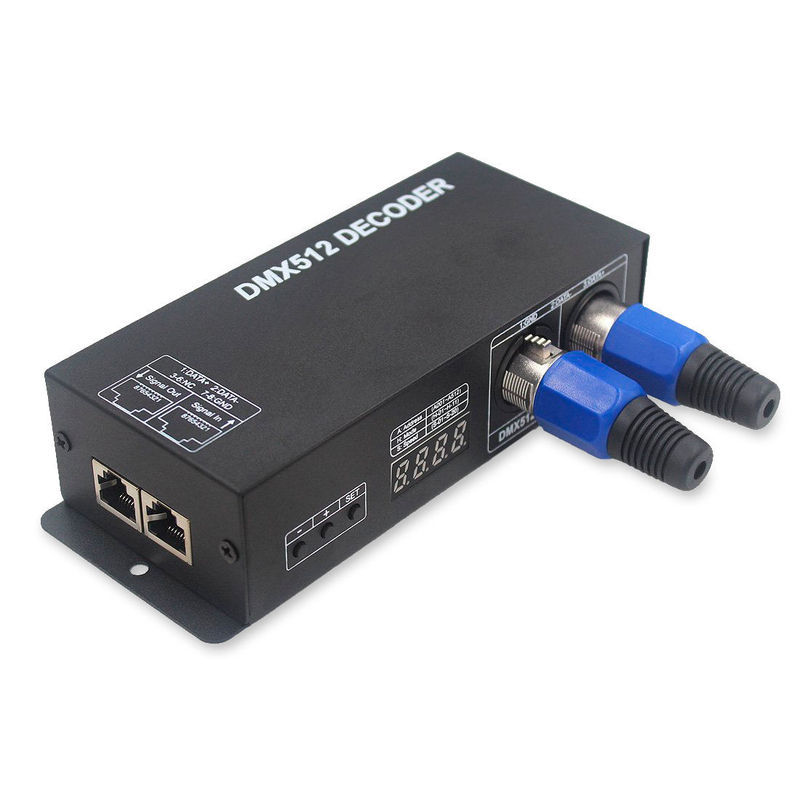

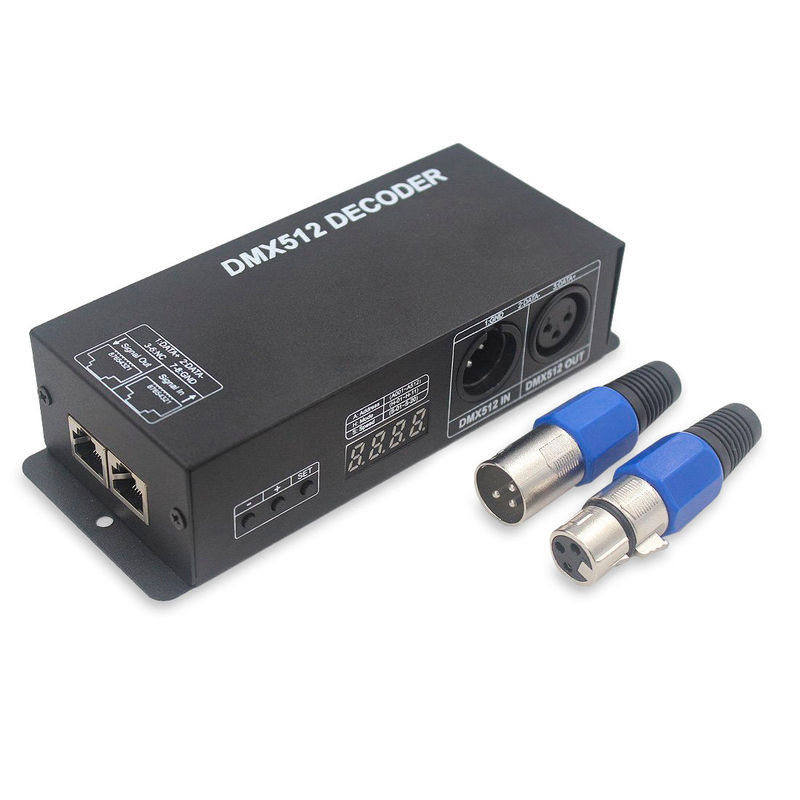

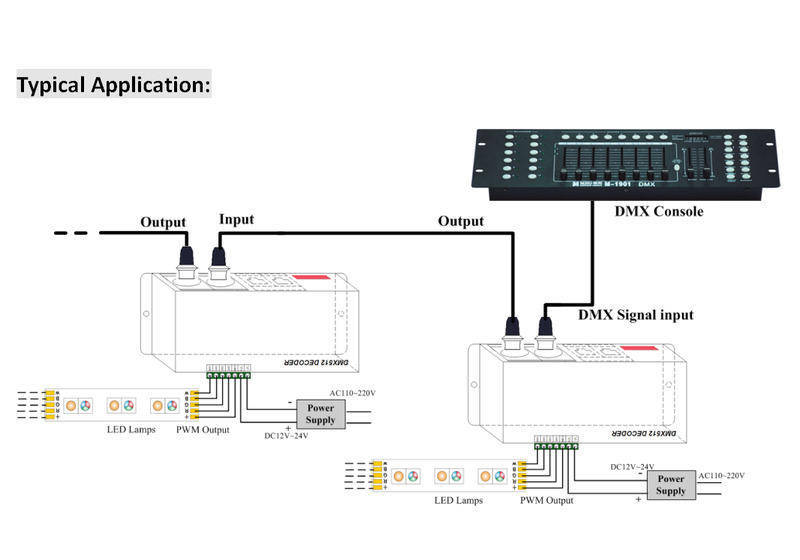

Daisy-Chain Connectivity: Equipped with 3-pin XLR IN and OUT ports to easily link multiple decoders in series for large-scale, synchronized lighting systems.
Reliable & Safe Operation: Built-in protection against short circuits and overheating, ensuring stable performance for stage, KTV, and outdoor architectural applications.
|
Parameter |
Specification |
|---|---|
|
Product Type |
4-Channel RGBW DMX512 Decoder |
|
Input Signal |
Standard DMX512 (1990) |
|
Output Type |
Constant Voltage PWM |
|
DMX Channels |
4 Channels (R, G, B, W) |
|
Input Voltage |
DC 12V - 24V (Please verify exact range on device label) |
|
Max Output Current |
4A / 8A per channel (Model dependent) |
|
Max Output Power |
192W (12V) / 384W (24V) @ 4A per ch |
|
DMX Connector |
3-Pin XLR Female (IN) / Male (OUT) |
|

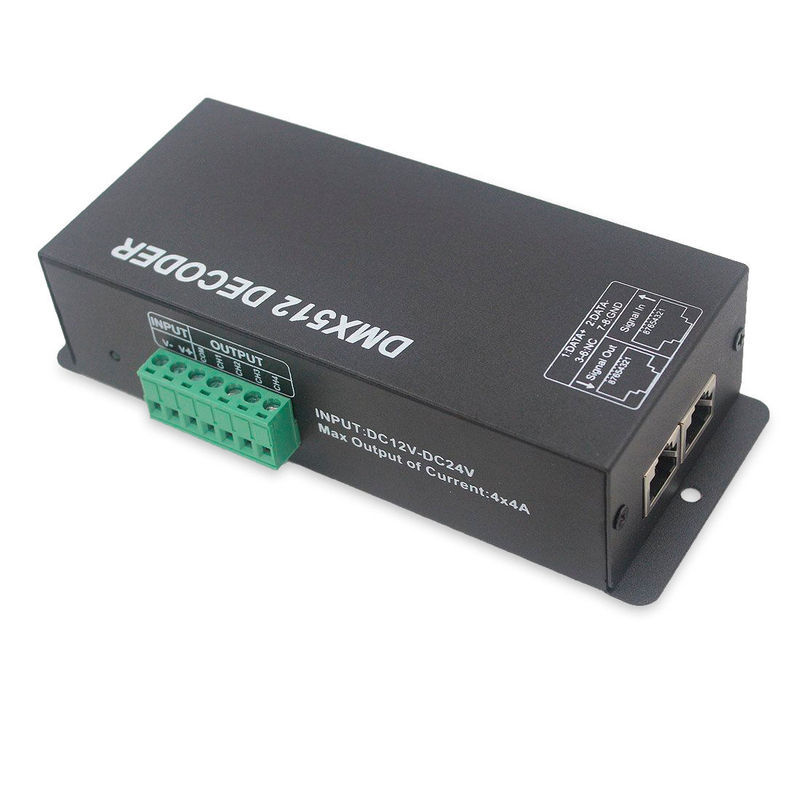

Output Interface |
Screw Terminal Blocks (Common Anode + R, G, B, W) |
|
Display |
4-Digit LED Digital Tube |
|
Control Methods |
DMX Console / Standalone Built-in Programs |
|
Built-in Programs |
11 Modes (H01-H11) with 20 Speed Levels (S01-S20) |
|
Gray Scale |
256 levels per channel |
|
Protection |
Short Circuit, Over-current, Overheat |
|
Housing |
Aluminum Alloy (for heat dissipation) |
|
Dimensions |
Approx. L120 x W50 x H25 mm (Varies by batch) |
|
Applications |
Stage Lighting, KTV, Architectural Facade, LED Strip Control |
