Built-in DMX512 Decoder: Each LED has an integrated DMX decoder—connect directly to standard DMX consoles with no external pixel controller required.
60 LEDs/m Density: High pixel density enables smooth animations, gradients, and text effects suitable for close-viewing applications.
12V Operation: Higher voltage than 5V strips reduces current draw and voltage drop, supporting longer runs with fewer power injection points.
Compact 12mm Width: Narrow FPC fits into tight profiles, aluminum channels, and slim architectural trims without compromising flexibility.
Cuttable & Scalable: Cut at every LED, reconnect via solder or connectors; daisy-chain multiple strips for large-scale installations.

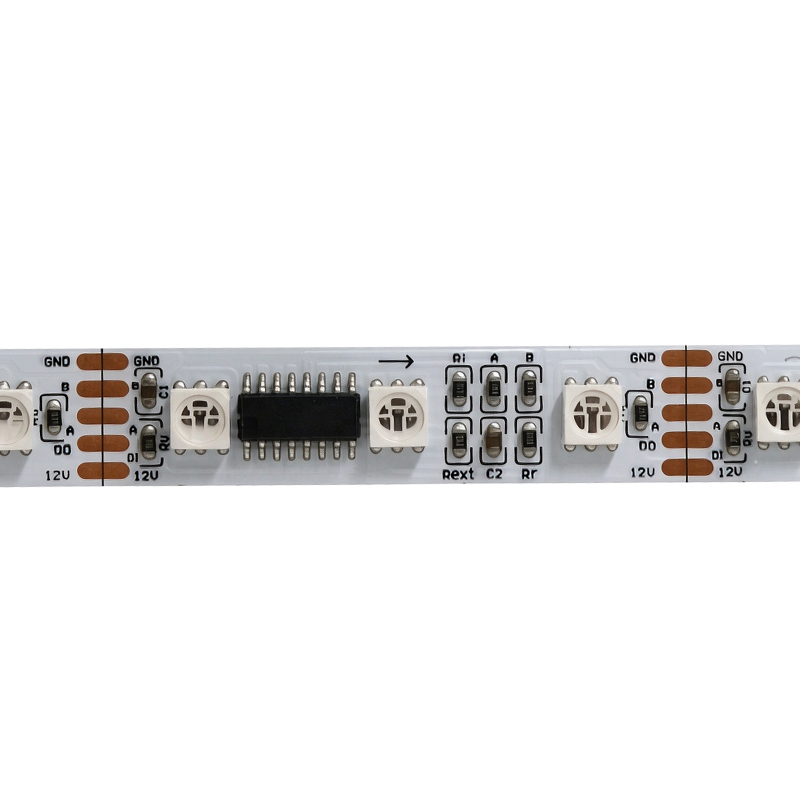

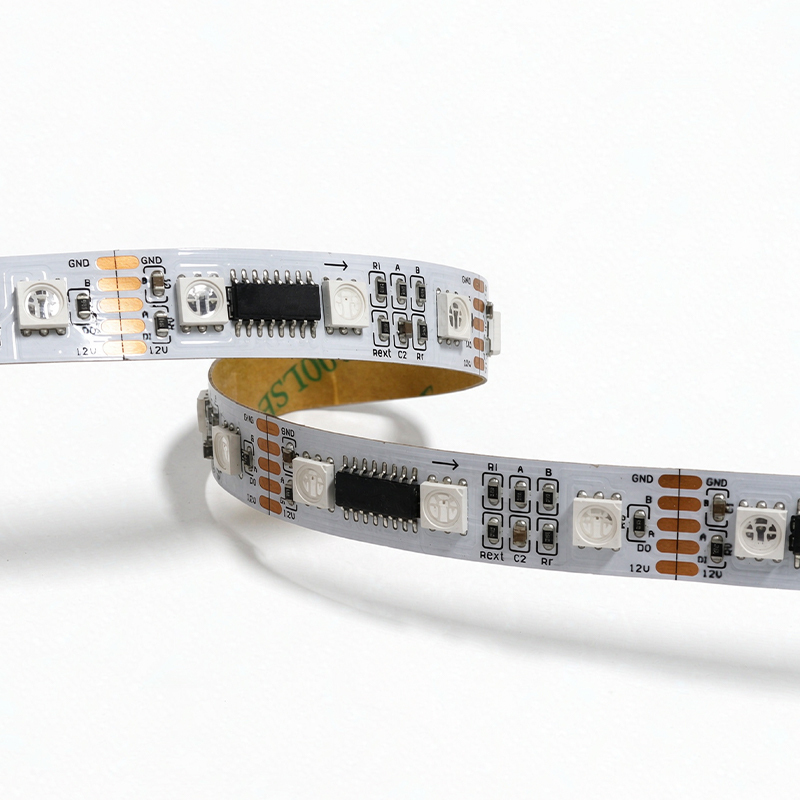

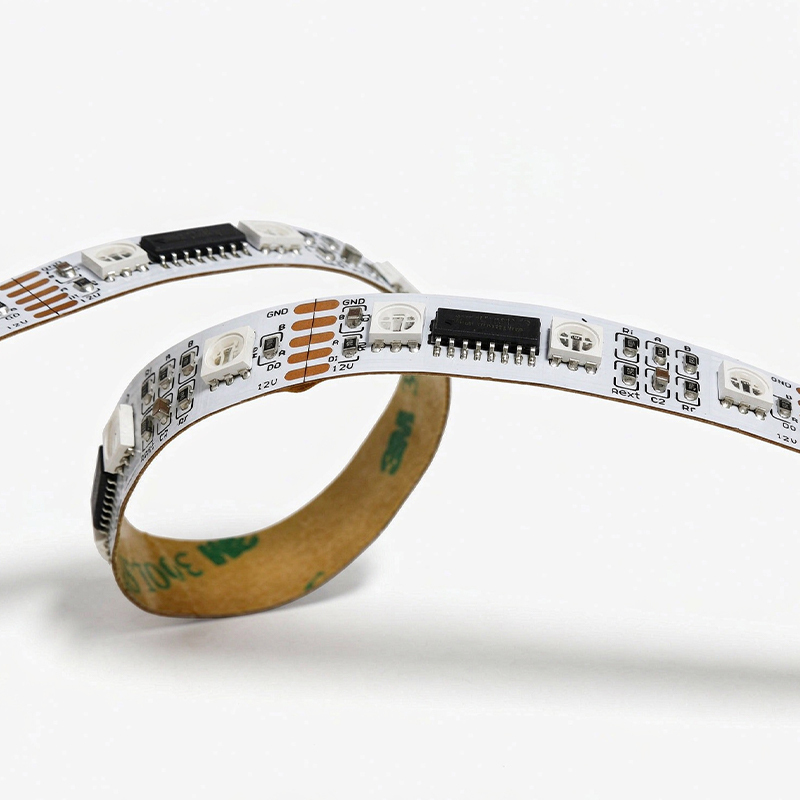

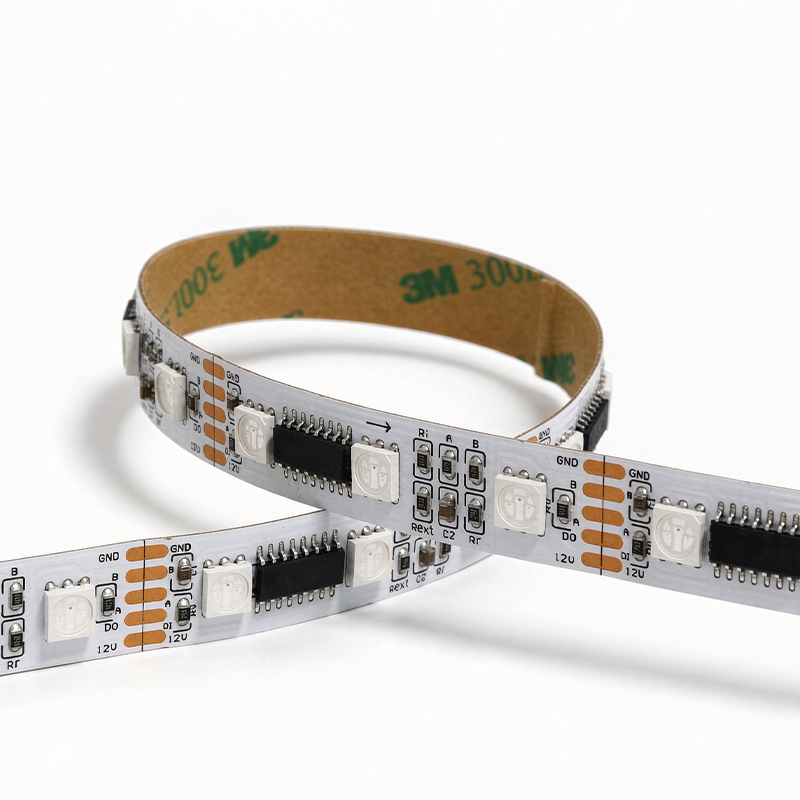

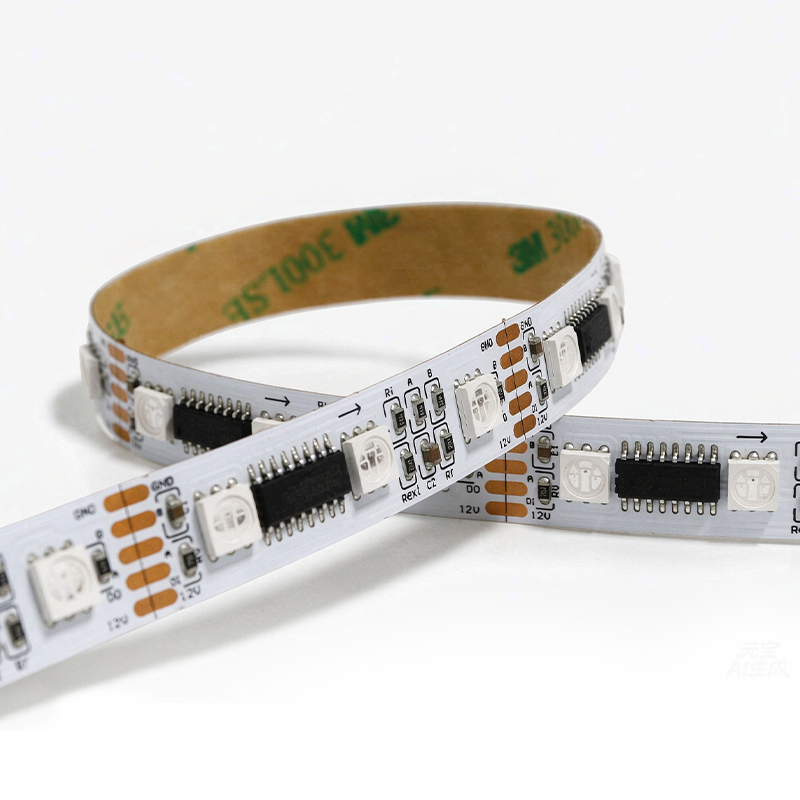

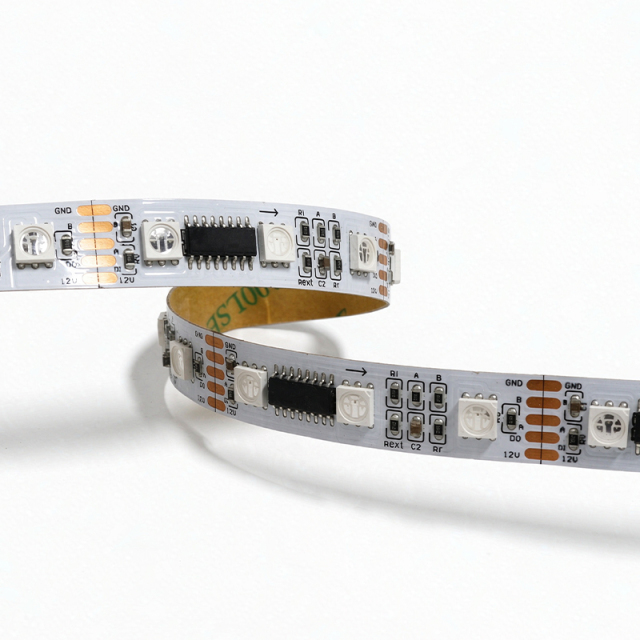

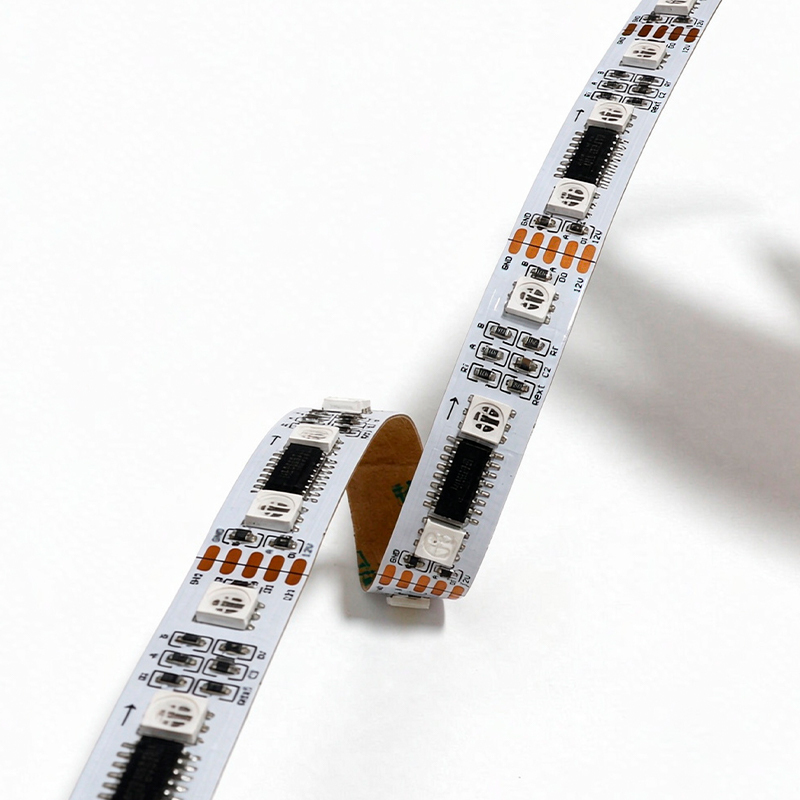

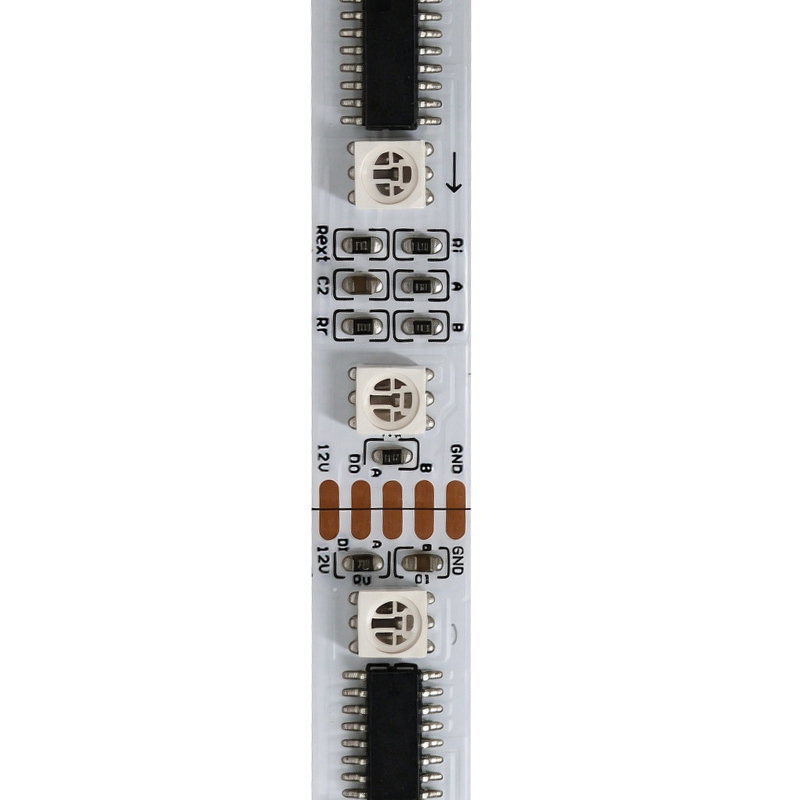

12V DMX512 RGB Addressable LED Strip
|
Category |
Specification |
|---|---|
|
Model |
— (to be assigned) |
|
Input Voltage |
DC 12V |
|
LED Type |
SMD RGB (model to confirm, e.g., 5050) |
|
LED Density |
60 LEDs/m |
|
Control Protocol |
DMX512 (built-in decoder per LED or per group) |
|
DMX Channels |
180 channels/m (60 × 3 ch RGB) or grouped mode |
|
Power Consumption |
~14.4W/m typical (0.24W/LED) |
|
Beam Angle |
120° |
|
Pixel Addressing |
Individual LED or grouped segments (confirm mode) |
|
Color Range |
Full RGB, 8-bit per channel |
|
Cut Unit |
1 LED (or per DMX segment) |
|
PCB Width |
12 mm |
|
Protection Rating |
IP20 (bare board, non-waterproof) |
|
Installation |
3M adhesive backing / mounting clips |
|
Compatible Systems |
DMX512 console, RDM controller, Art-Net/sACN gateway |
|
Applications |
Stage lighting, architectural outline, retail display, signage |
