making it ideal for massive video walls or intricate wearable designs. With a wide 160° viewing angle and robust 3.7-5.5V operation, it delivers stunning visual performance in a rugged, compact form factor. Whether you are designing next-generation transparent displays, flexible light strips, or micro-pixel art, the SK9828RGB-FC1010 offers unparalleled reliability and color fidelity. Upgrade your lighting projects with OPSCO’s precision engineering.

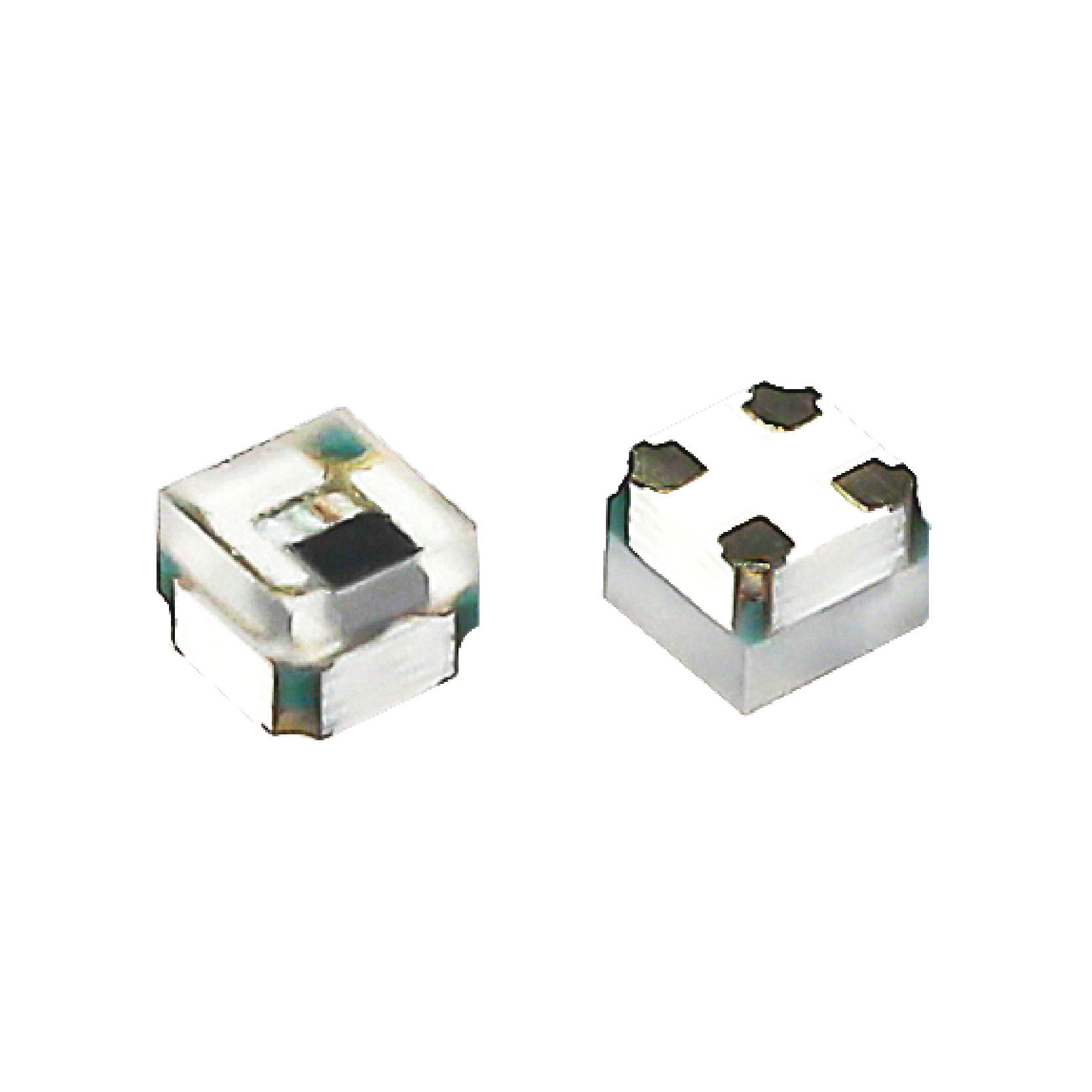

Ultra-Miniature 1010 Package: At just 1.1x1.1x0.7mm, it is one of the smallest integrated RGB LEDs available, perfect for high-density arrays and space-constrained applications.
High Color Depth: Supports 16-bit grayscale (65,536 levels) per channel, providing true-to-life color mixing and eliminating gradient banding.
Integrated Driver IC: The built-in CMOS control circuit ensures consistent current and color matching, simplifying PCB design and reducing BOM costs.
High-Speed Data Transmission: Features a 1500kbps data rate with single-line transmission, supporting stable, long-distance cascading for large-scale installations.
Wide Application Range: Operates on 3.7-5.5V with a 160° viewing angle, suitable for transparent LED screens, flexible strips, and smart wearables.
OPSCO SK9828RGB-FC1010 Datasheet
|
Parameter |
Symbol |
Specification |
Unit |
|---|---|---|---|
|
Electrical Characteristics |
|||
|
Supply Voltage |
VDD |
3.7 - 5.5 |
V |
|
Input Current |
IDD |
0.4 - 3.2 (Adjustable) |
mA |
|
Data Transfer Rate |
Freq |
1500 |
kbps |
|
Optical Characteristics |
|||
|
Wavelength (Red) |
λD |
620 - 625 |
nm |
|
Wavelength (Green) |
λD |
525 - 535 |
nm |
|
Wavelength (Blue) |
λD |
465 - 475 |
nm |
|
Viewing Angle |
2θ1/2 |
160 |
deg |
|
Grayscale Resolution |
- |
65536 (16-bit) |
Levels |
|
Mechanical & Package |
|||
|
Package Type |
- |
Flip-Chip (FC) |
- |
|
Dimensions |
L x W x H |
1.1 x 1.1 x 0.7 |
mm |
|
Communication |
- |
Single-wire, Return-to-Zero |
- |
|
Applications |
Transparent Screens, Flexible PCBs, Wearable Tech, Micro-Pixel Displays |
