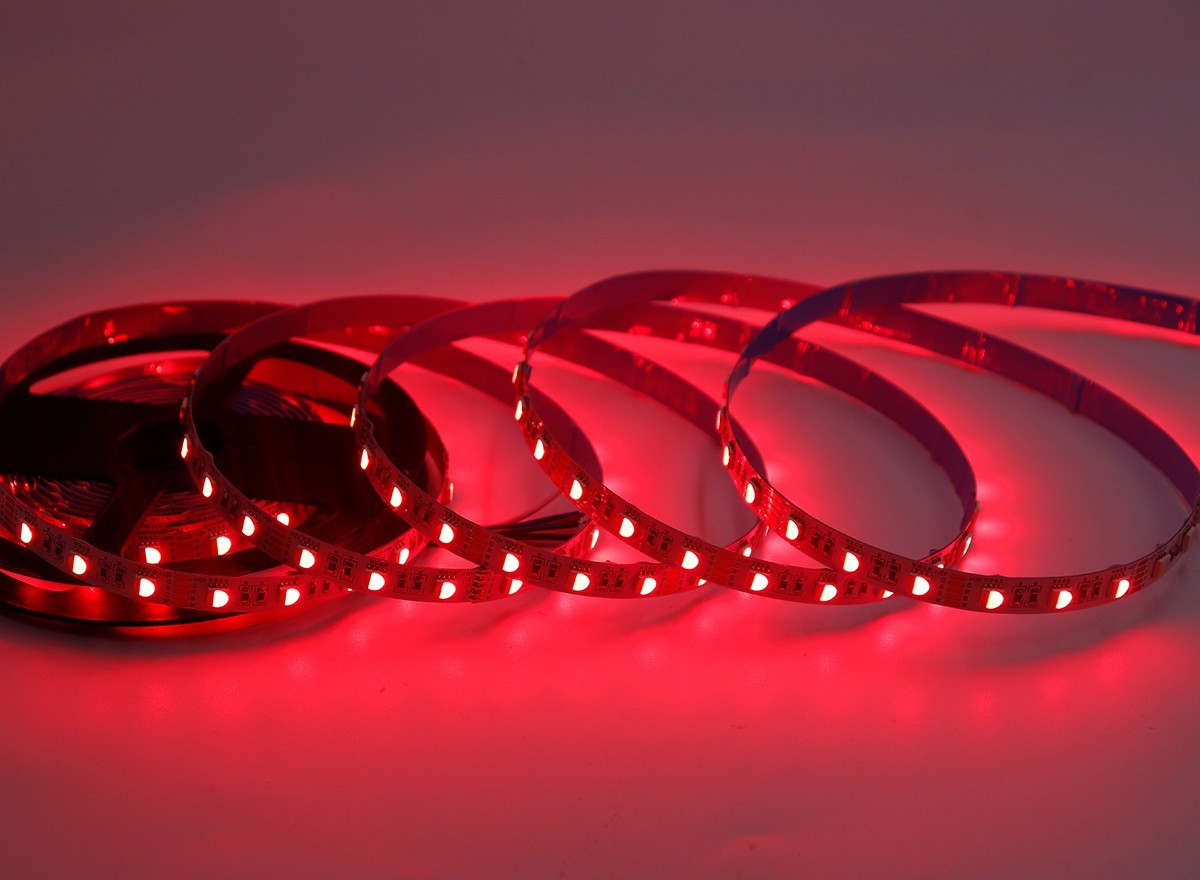

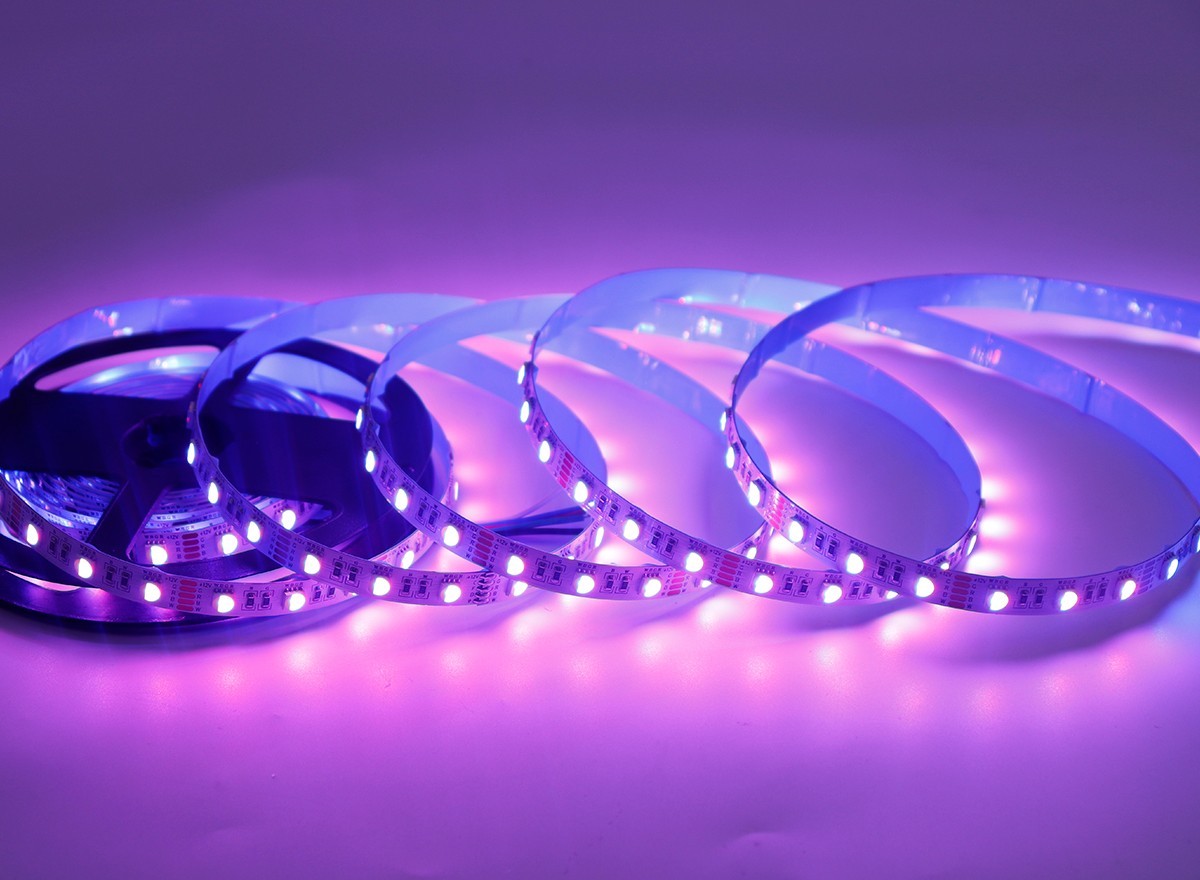

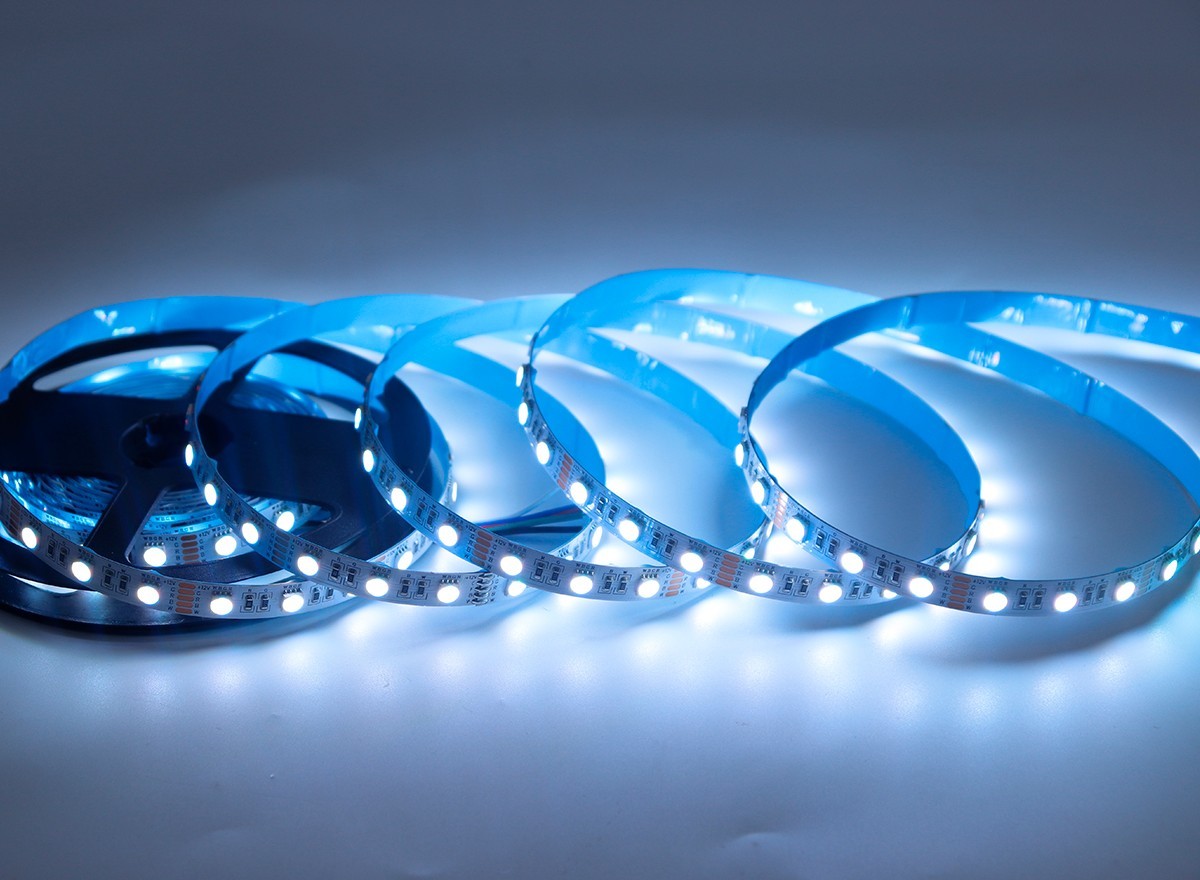

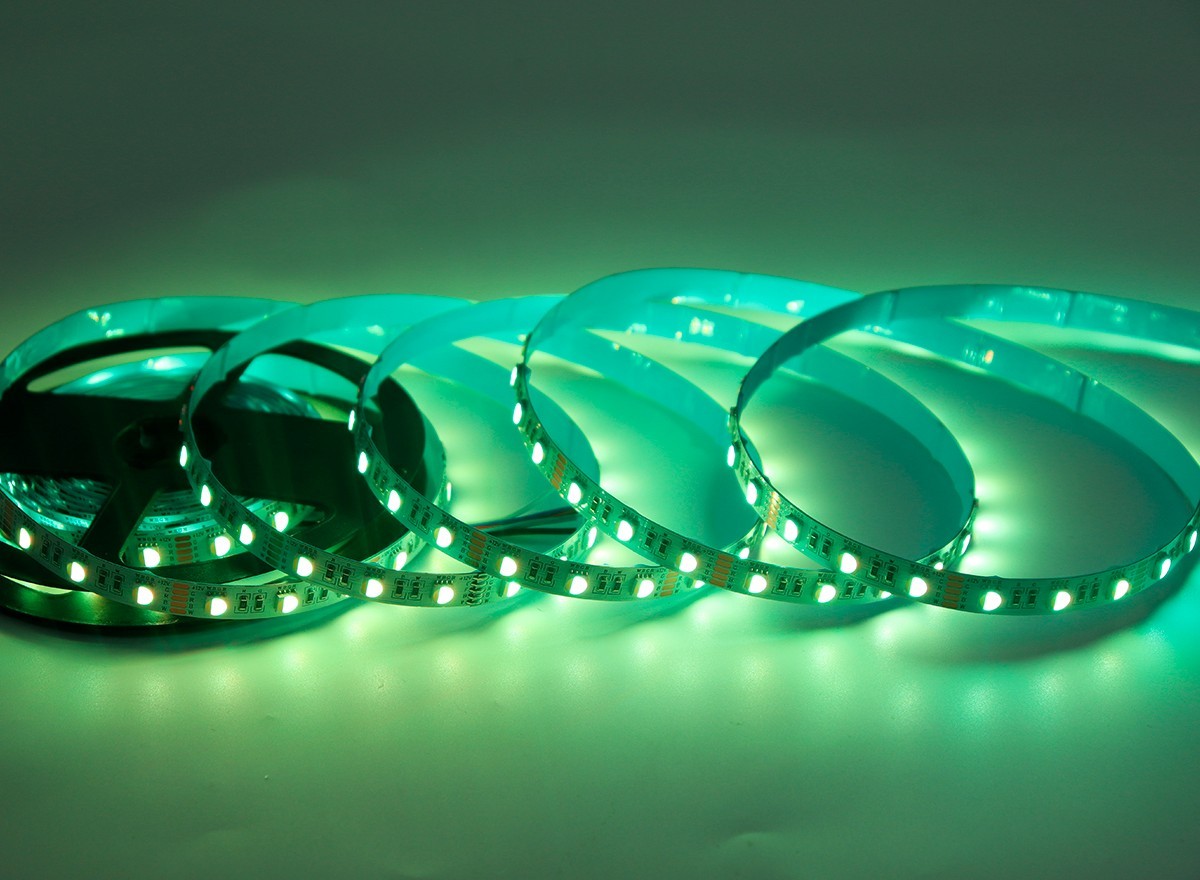

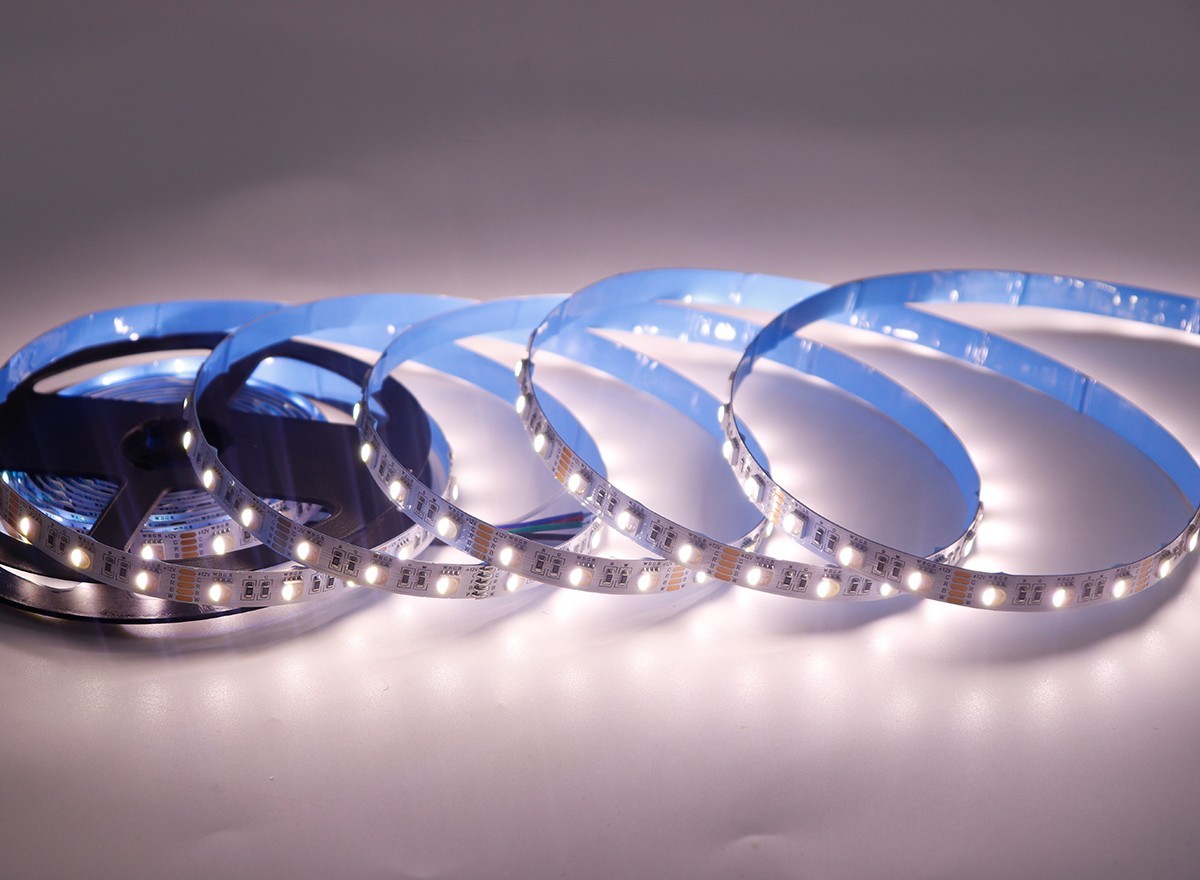

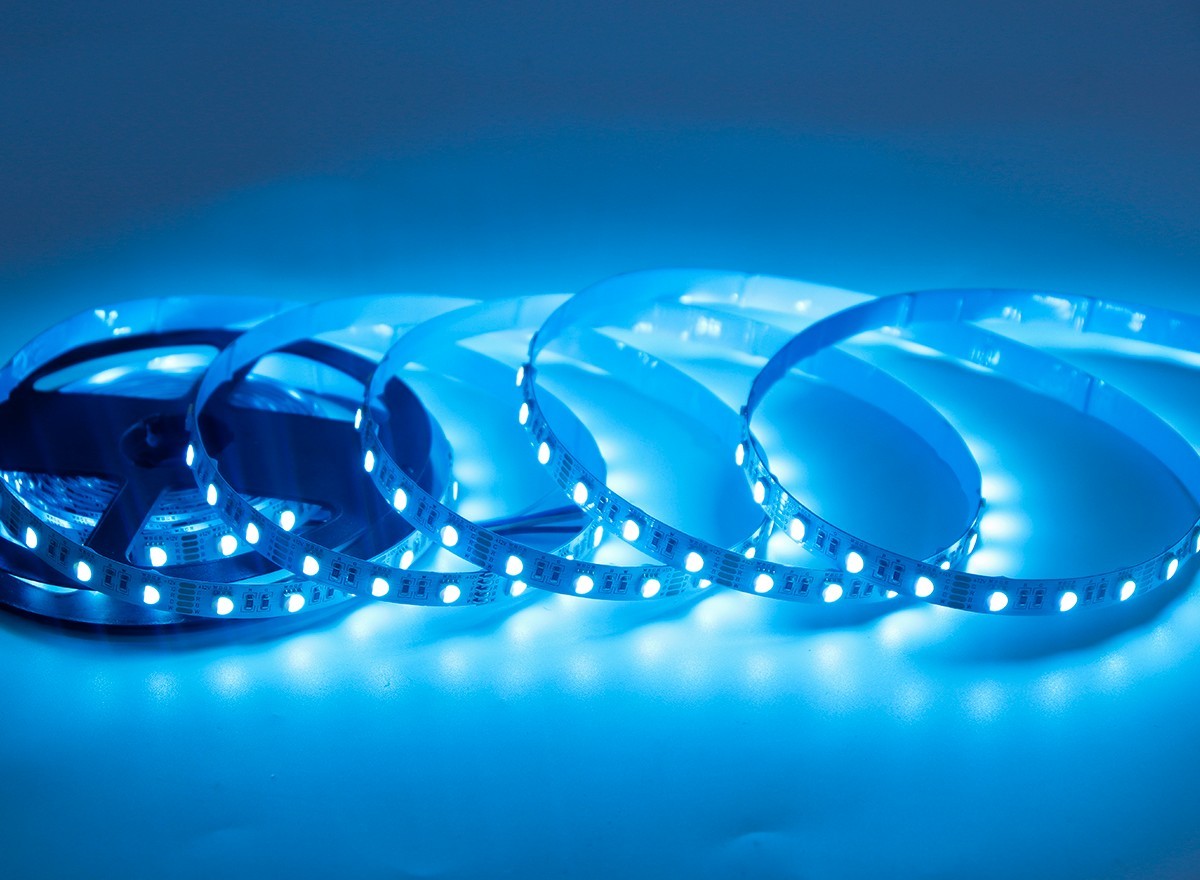

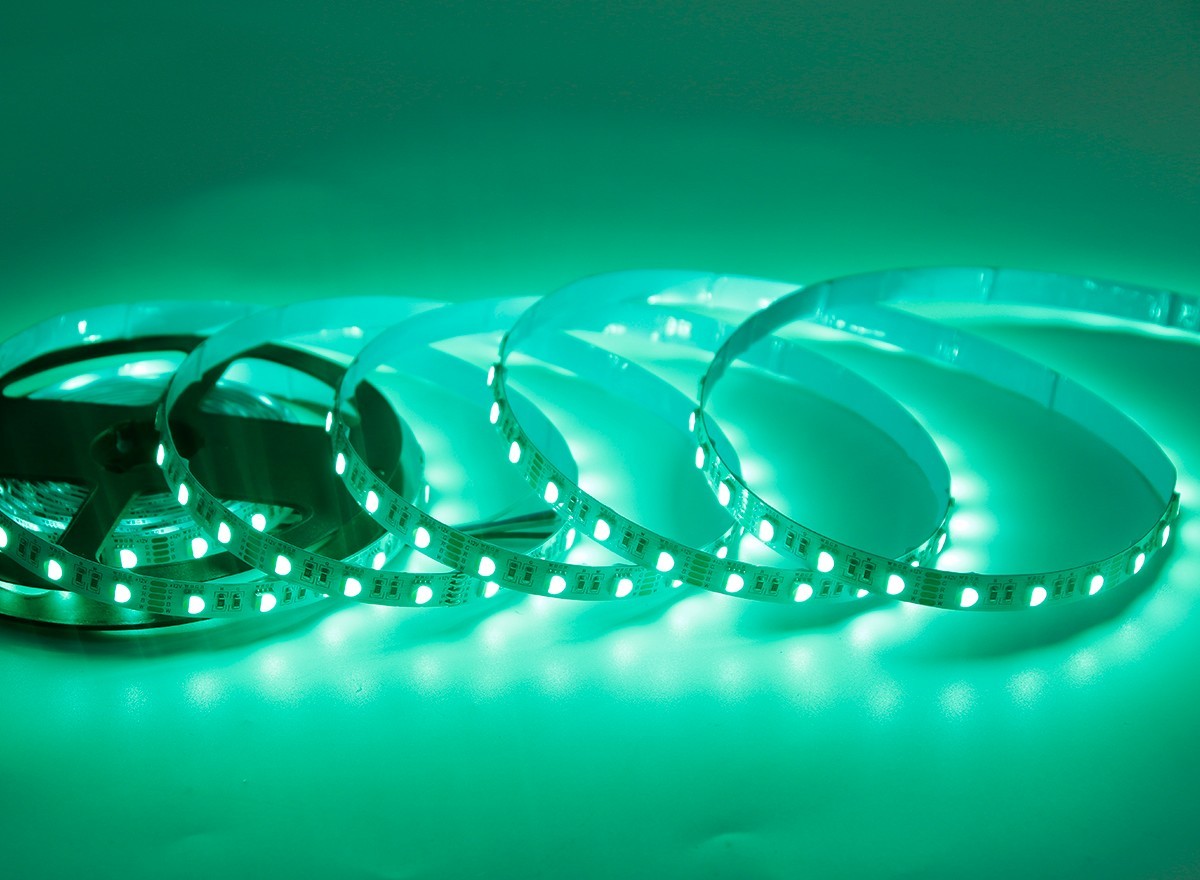

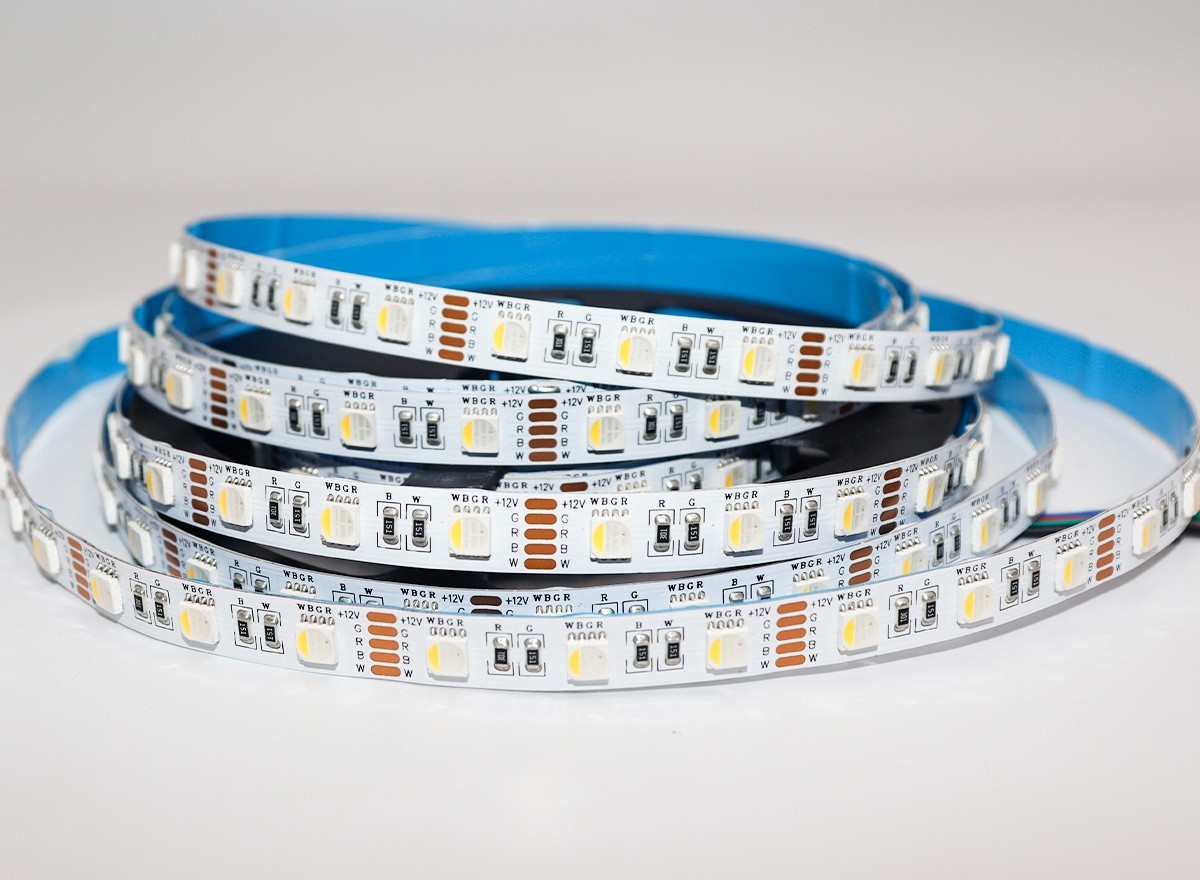

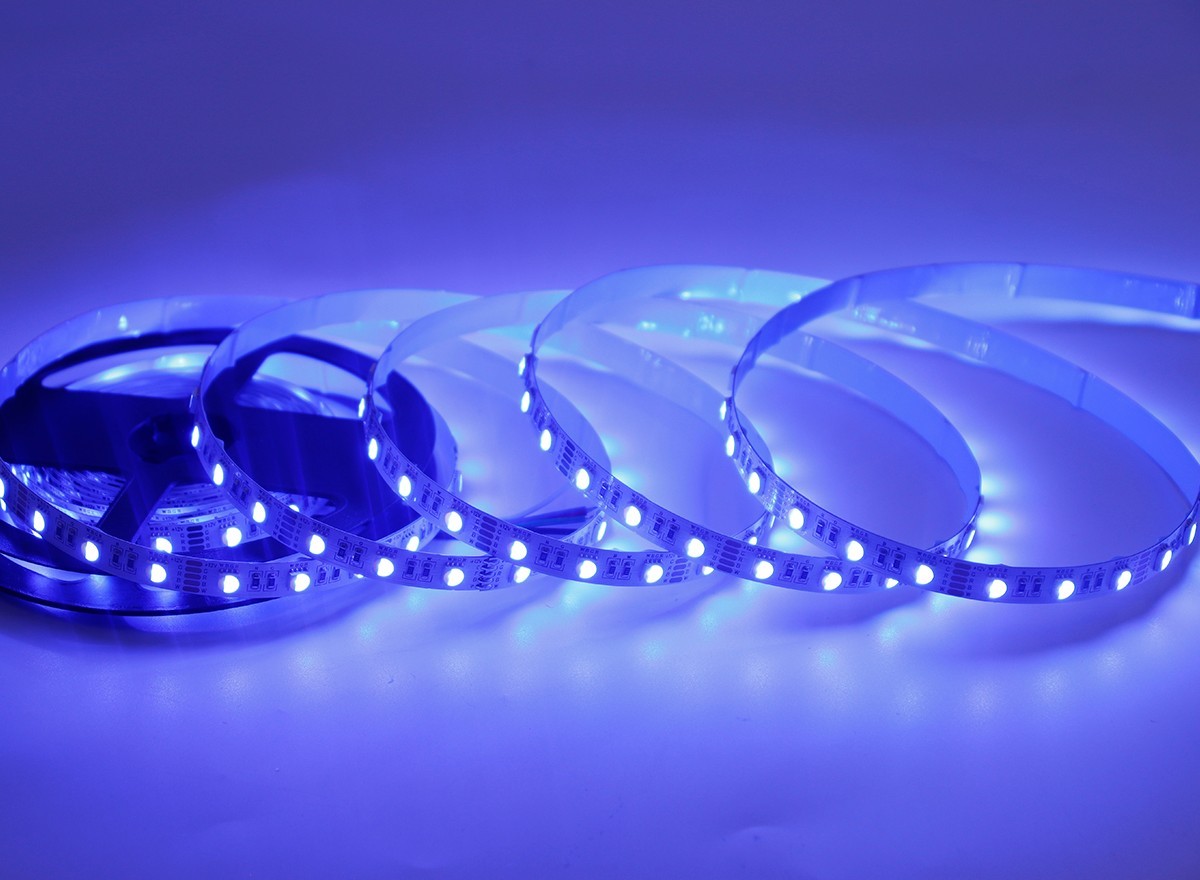

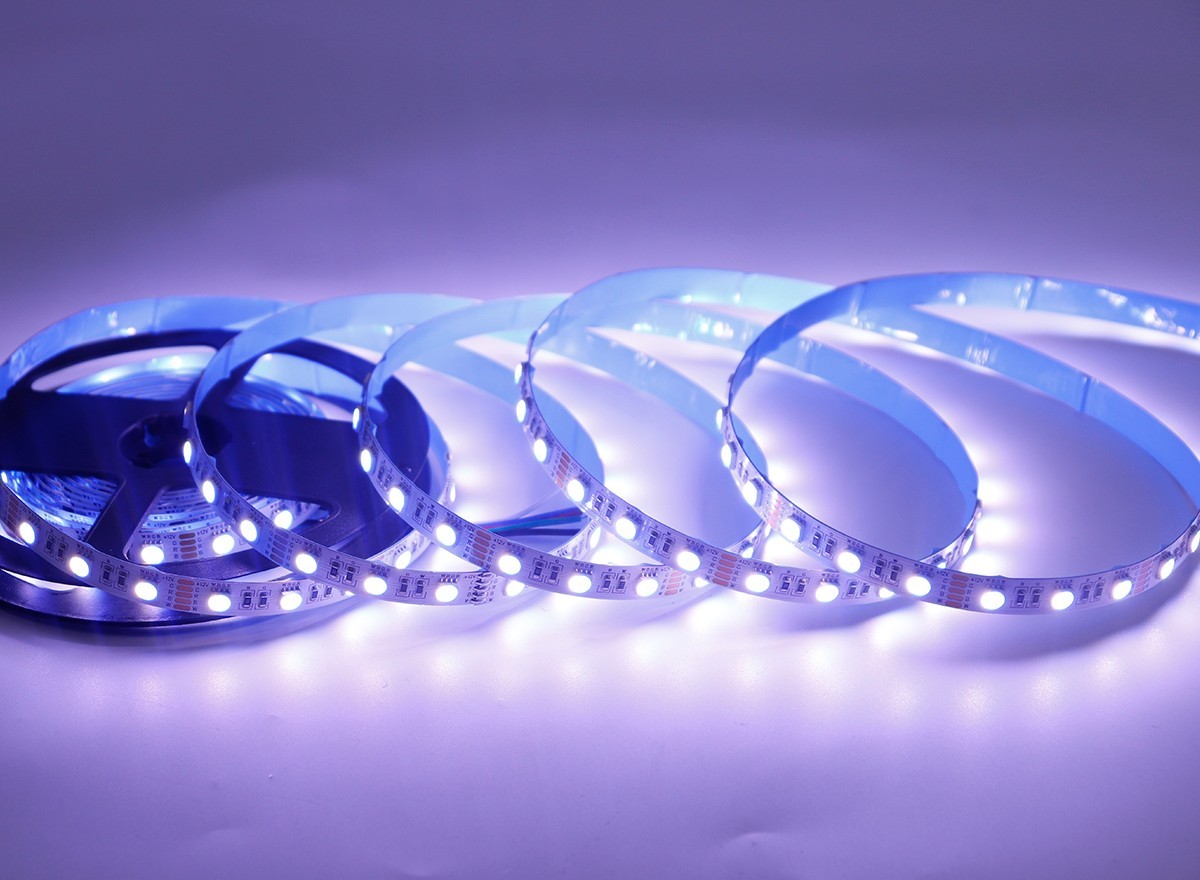

This 12V 5050 RGBW strip uses 60 four-in-1 5050 LEDs per meter on a 12mm PCB, delivering vivid RGB colors plus a true white channel for clean warm/cool white instead of muddy RGB white. 12V operation makes it ideal for cars, RVs, boats, battery systems and existing 12V lighting setups. Whole strip changes color together with PWM dimming and 16M-color mixing. Cut every 3 LEDs (50mm), 3M adhesive backing, 5-wire common-anode connection, compatible with IR/RF/WiFi/RF RGBW controllers. Great for cabinets, shelves, coves, mirrors, retail displays and mobile/DIY projects where 12V power is already available.
True RGBW 4-in-1: R+G+B+White in one 5050 package; pure white (3000K/4000K/6500K optional), no fake RGB white.
12V Wide Compatibility: Works with car/RV/battery/12V PSU systems; easier drop-in replacement for old 12V RGB strips.
60 LEDs/m / 12mm PCB: Balanced brightness and width; fits standard aluminum profiles and furniture edges.
PWM Dimmable & Sync: Whole strip syncs; supports IR/RF/WiFi/0-10V/RGBW controllers, millions of color mixes.
Easy Cut & Install: Cut every 3 LEDs = 50mm, 3M tape, IP20/IP65/IP67 optional, 5-pin common-anode wiring.
|
Item |
Specification |
|---|---|
|
LED Type |
SMD 5050 RGBW 4-in-1 |
|
LED Density |
60 LEDs/m |
|
Voltage |
DC 12V |
|
Power |
~14.4 W/m (typical), up to 19.2 W/m full white |
|
Cut Unit |
Every 3 LEDs / 50 mm |
|
PCB Width |
12 mm |
|
White Option |
WW 3000K / NW 4000K / CW 6500K |
|
Control |
Non-addressable PWM RGBW |
|
Channels |
R / G / B / W (common anode) |
|
CRI |
Ra ≥80 / Ra ≥90 optional |
|
Beam Angle |
120° |
|
Lumen |
~900–1100 lm/m |
|
IP Rating |
IP20 / IP65 / IP67 optional |
|
Adhesive |
3M tape |
|
Controller |
RGBW PWM / IR / RF / WiFi / DMX decoder |
|
Working Temp. |
-20°C ~ +60°C |
|
Lifespan |
30,000–50,000 hrs |
|
Note |
Synchronized color only; not pixel-addressable, no breakpoint resume |
