Operating on safe 24V DC at 19.2W/m, the double-layer PCB provides excellent heat dissipation and electrical stability. Cut every 100mm for custom lengths. Compatible with any 5-channel RGBCW controller (IR, RF, WiFi, Bluetooth, smart home hub), it supports static colors, fade, music sync, independent white dimming, and CCT tuning. The 12mm width fits standard aluminum profiles while accommodating all five channels. From romantic warm-white dinners to full-spectrum gaming setups, one strip covers every lighting need. Perfect for cove lighting, TV backlight, bedrooms, bars, hotels, retail, and architectural accents.
🌈🤍 5-in-1 RGBCW Chip: Red + Green + Blue + 2700K Warm White + 6500K Cool White in one 5050 package—millions of colors plus tunable white from one strip.
🌡️ Tunable White 2700K–6500K: Blend warm and cool white channels for infinite CCT control—cozy ambiance to task-ready daylight, all in one fixture.
📐 Double-Layer PCB Stability: 2-layer FPCB with 2oz copper handles 19.2W/m with minimal voltage drop and superior heat dissipation vs. single-layer strips.
🎛️ Independent Channel Control: 5-channel design allows separate control of RGB and white—run white alone, color alone, or blend for pastel tones and dynamic scenes.
⚡ 24V Safe & Easy Install: DC 24V reduces current and voltage drop; cut every 100mm; 3M VHB backing; fits 12–15mm aluminum profiles for clean architectural mounting.

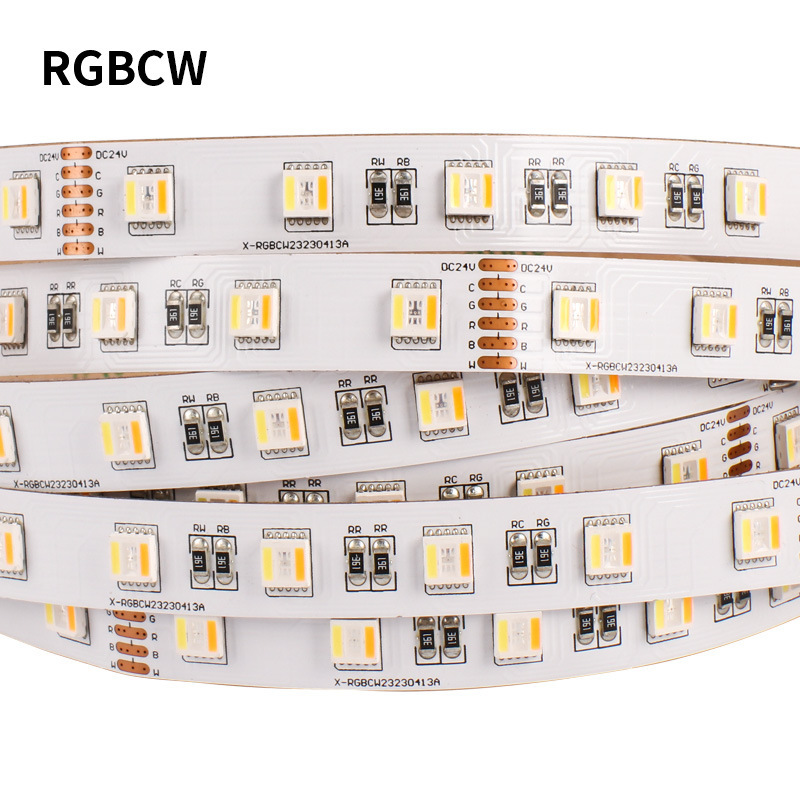

Product Specification Sheet — 12mm 5050 RGBCW 5-in-1 LED Strip
|
Category |
Item |
Specification |
|---|---|---|
|
General |
Product Type |
12mm 5050 RGBCW LED Strip (Non-Addressable, 5-in-1) |
|
LED Type |
SMD 5050 RGBCW (5-chip in one package) |
|
|
LED Density |
60 LEDs/m |
|
|
Electrical |
Input Voltage |
DC 24V (Constant Voltage) |
|
Power Consumption |
19.2W/m (96W / 5m roll) |
|
|
Current |
~0.8A/m @ 24V |
|
|
Channels |
5 channels (R, G, B, WW, CW) |
|
|
Cuttable Unit |
Every 100mm (6 LEDs per cut) |
|
|
Optical |
Color |
RGB full color + Tunable White (2700K–6500K blend) |
|
White CRI |
Ra ≥80 (standard); Ra ≥90 optional |
|
|
White Brightness |
~600–800 lm/m (white channels combined) |
|
|
RGB Brightness |
~18–22 lm/LED per color |
|
|
Viewing Angle |
120° |
|
|
Control Mode |
Static, fade, strobe, flash, music sync, CCT tuning (via RGBCW controller) |
|
|
Physical |
PCB Width |
12mm |
|
PCB Type |
Double-layer FPCB (2oz copper) |
|
|
Roll Length |
5m / roll (10m / 20m available) |
|
|
Back Adhesive |
3M 9448A / VHB |
|
|
Environment |
IP Rating |
IP20 (indoor; IP65 silicone coating / IP67 tube optional) |
|
Operating Temp. |
-20℃ to +50℃ |
|
|
Lifespan |
30,000–50,000 hours |
|
|
Controller |
Compatibility |
RGBCW controller (6-pin: V+, R, G, B, WW, CW); IR / RF / WiFi / Bluetooth / Smart home |
|
Remote |
Optional IR 44-key RGBCW / RF touch remote |
|
|
Application |
TV backlight, cove, bedroom, living room, bar, KTV, hotel, retail display, gaming, accent wall, under-cabinet, false ceiling, architectural outline |
