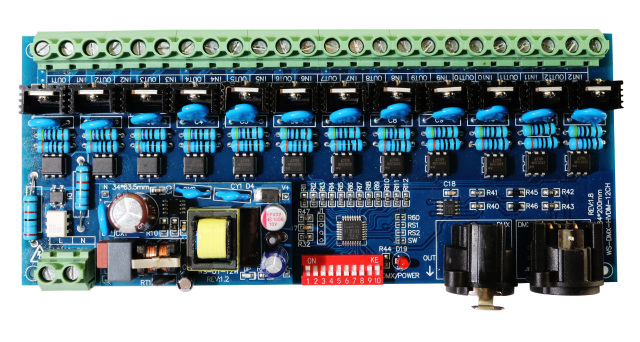

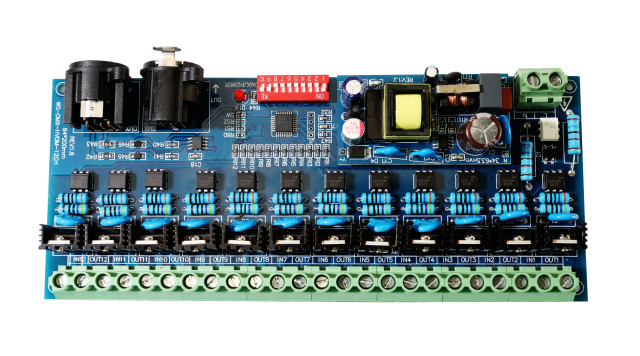

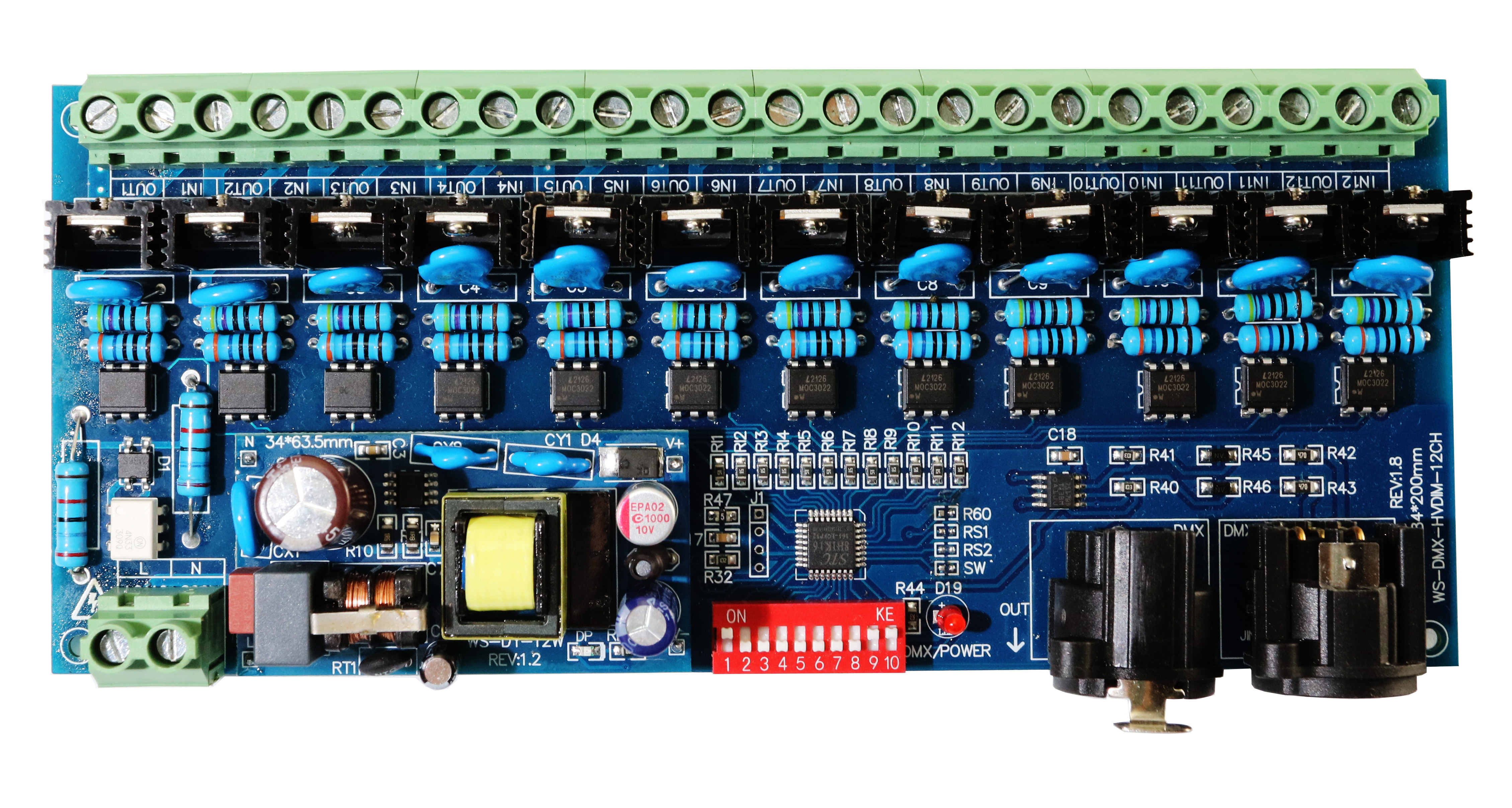

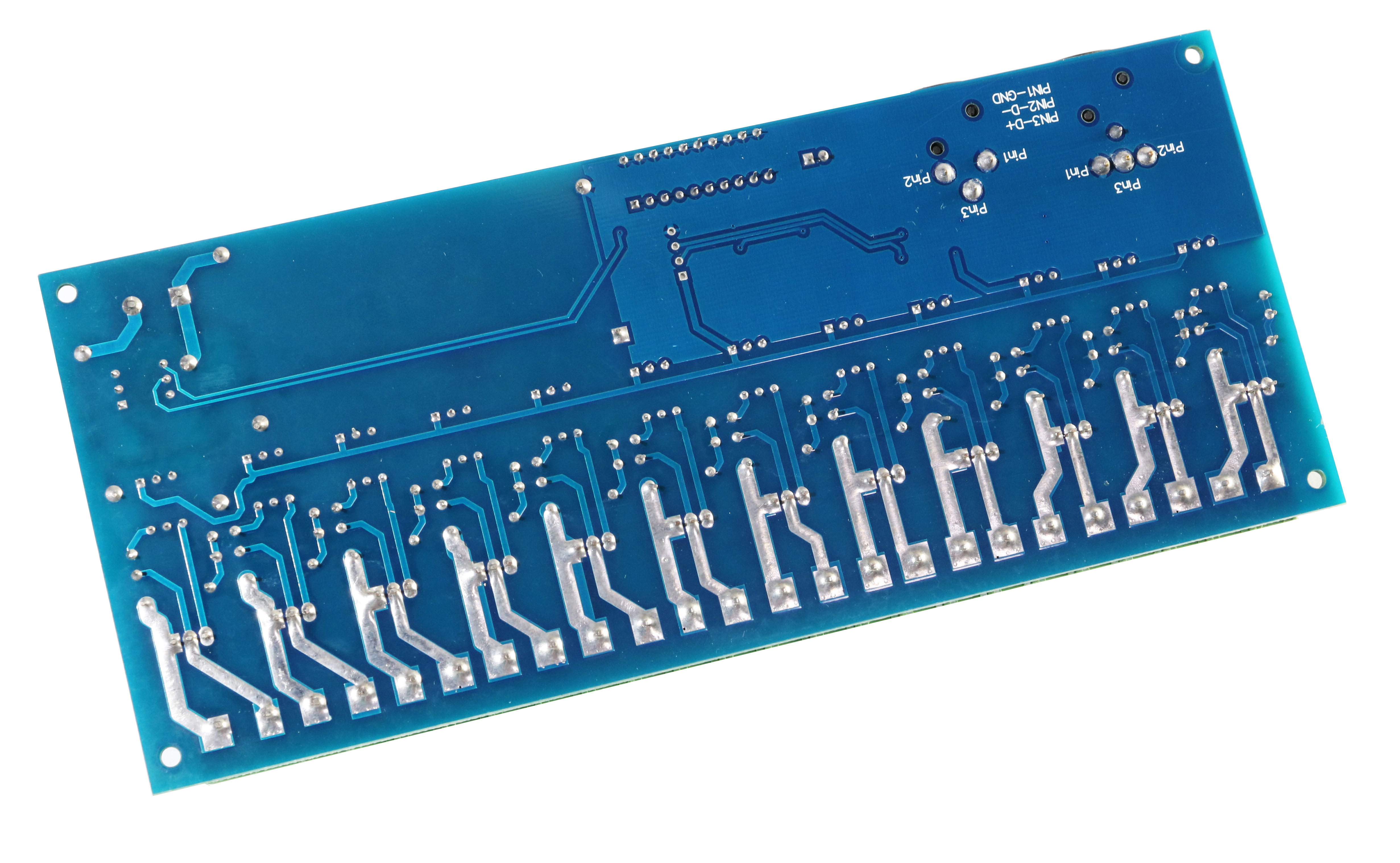

The WS-DMX-HVDIM-12CH-CE (DMX-HVDIM-12CH CE version) is a 12-channel DMX512 high-voltage dimmer decoder for AC110V-220V lighting, including dimmable AC LED fixtures. It occupies 12 DMX addresses, sets start address via binary DIP (1/2/4/8/16/32/64/128/256 + FUN), and supports 5A per channel. With CE marking, 200×80×35mm size and 180g weight, it suits stage, architectural and commercial installs. 50Hz standard with 60Hz select/customizable option. DMX pass-through aids daisy-chain wiring. Follow mains safety, verify LED dimming compatibility, and avoid DMX/channel overlap.
CE-Version/Compliance Marked: WS-DMX-HVDIM-12CH-CE for regulated/export-friendly procurement.
12CH HV Dimming: Drives AC110V-220V loads from DMX512 control.
5A/Channel & LED Dimmable: For dimmable AC LED/phase-dimmable lamps (confirm fixture spec).
DIP + FUN Config: Binary address + FUN(10) for test/speed modes; DMX IN/OUT daisy-chain.
50/60Hz Support: 50Hz as spec, 60Hz select/customizable for regional power compatibility.
|
Parameter |
Specification |
|---|---|
|
Product / SKU |
DMX-HVDIM-12CH CE |
|

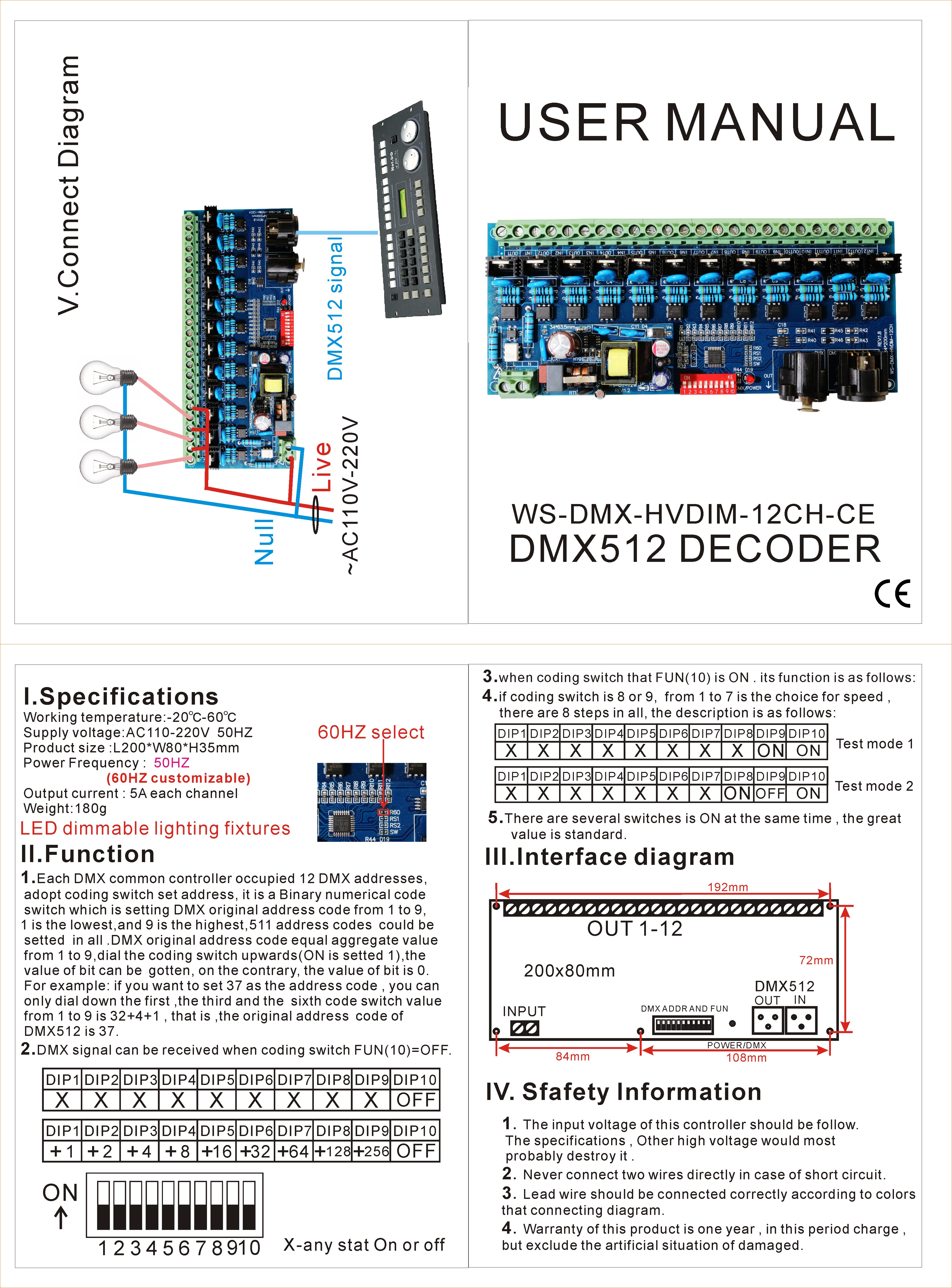

Label in Manual |
WS-DMX-HVDIM-12CH-CE |
|
Type |
12CH DMX512 High Voltage Dimmer Decoder |
|
Control |
DMX512 (DMX IN/OUT or POWER/DMX per diagram) |
|
Input Power |
~AC110V-220V |
|
Frequency |
50Hz (60Hz select / customizable per image note) |
|
Output |
12-channel AC dimming (OUT 1–12) |
|
Output Current |
5A per channel |
|
DMX Footprint |
Occupies 12 DMX addresses |
|
Address Setting |
DIP: +1/+2/+4/+8/+16/+32/+64/+128/+256, FUN(10) |
|
Working Temp. |
-20℃ ~ 60℃ |
|
Size |
L200 × W80 × H35 mm |
|
Weight |
180 g |
|
Load Note |
LED dimmable lighting fixtures (AC/phase-dimmable compatible) |
|
Marking |
CE |
|
Safety |
Mains voltage; no short; follow local electrical code; don’t apply AC to DMX; check DMX A/B & 120Ω termination |
