Connect via WiFi or wired Ethernet, with multi-panel sync and APP remote control. Auto/manual screen lock prevents accidental taps. Powered by 9–24V DC at 0.5A, it fits standard 86-type back boxes for discreet flush-mount installation.
Android-Powered Flexibility: Full Android OS with 700×700 resolution supports APK installation, GIF animations, and rich media UI—far beyond fixed-function panels.
Universal Protocol Bridge: Custom UDP commands can be converted to RS485/RS232 output, directly controlling third-party DMX, relays, HVAC, and AV gear without extra gateways.

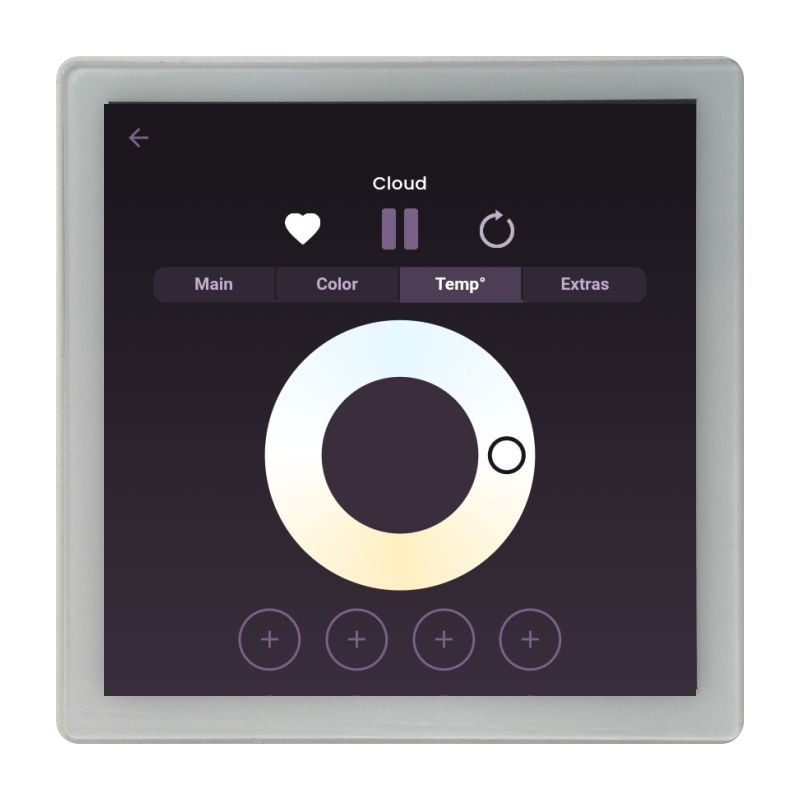

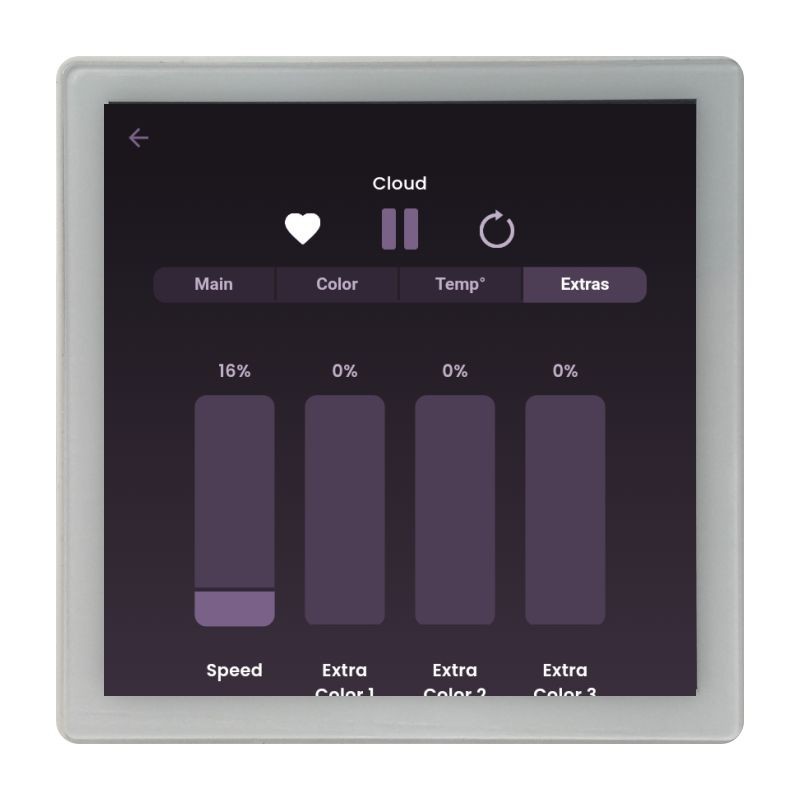

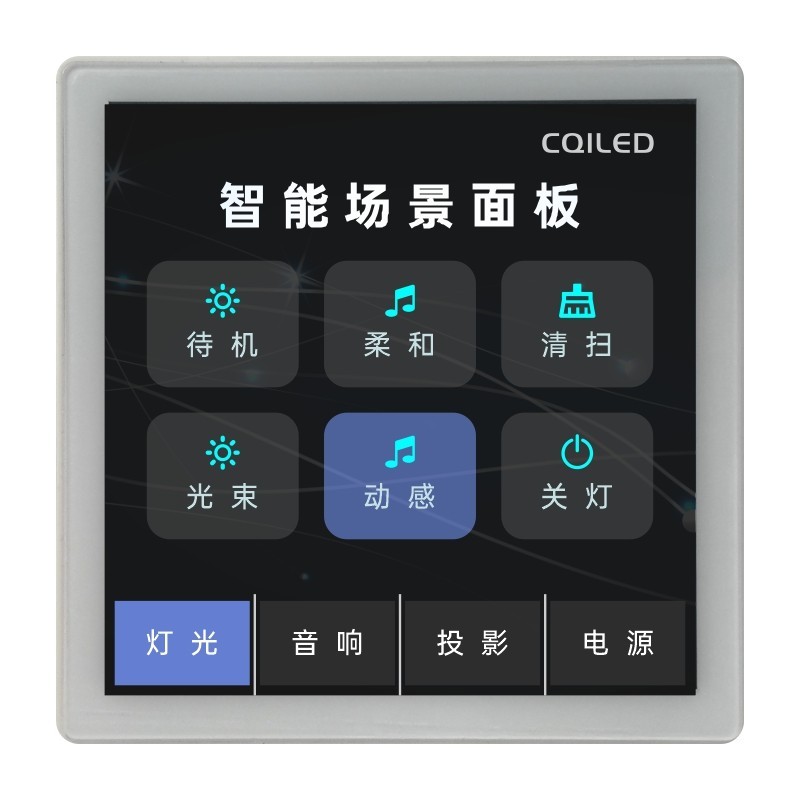

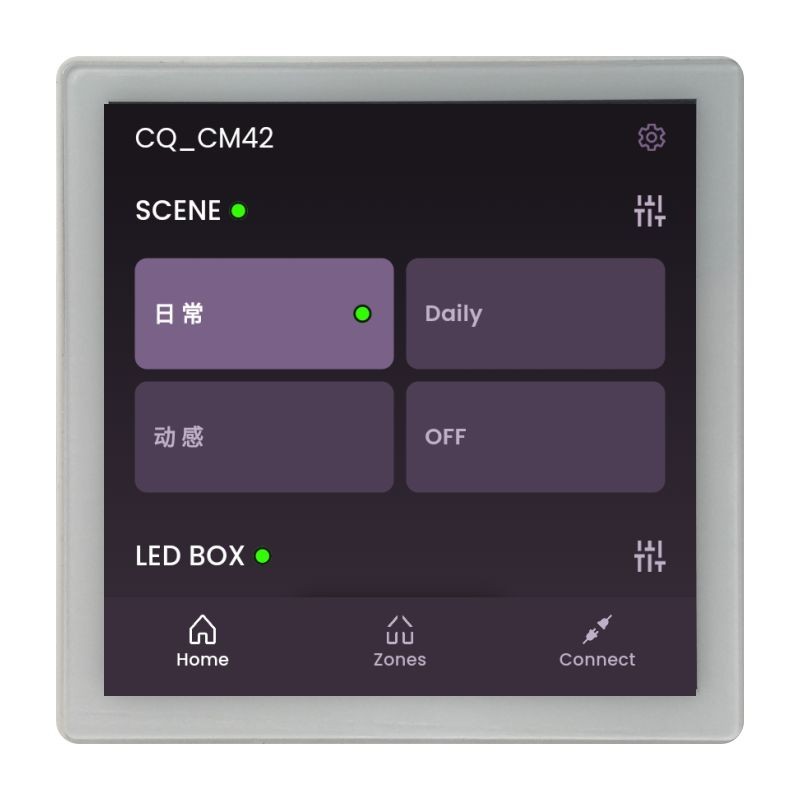

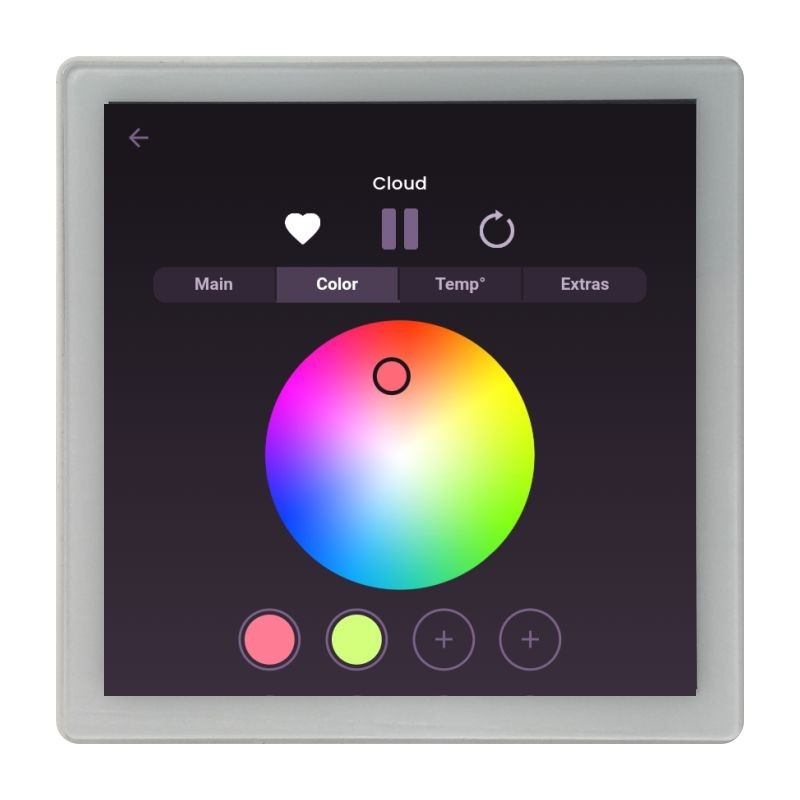

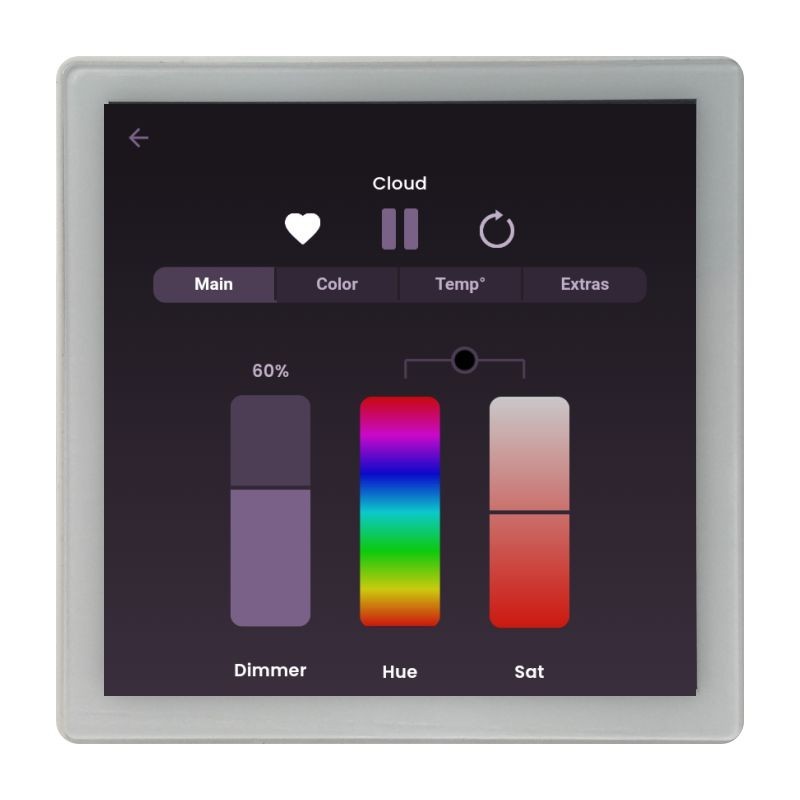

Fully Custom UI: Define button quantity, multi-page navigation, graphic text (multi-language), and animated backgrounds (PNG/JPG/GIF) for a project-specific interface.
Multi-Device Sync & Remote: Wired Ethernet or WiFi; multi-panel state synchronization and smartphone APP control keep every station updated in real time.
Easy Power & Mount: 9–24V DC wide input (0.5A), standard 86-type flush box—simple two-wire install, no PoE switch required.

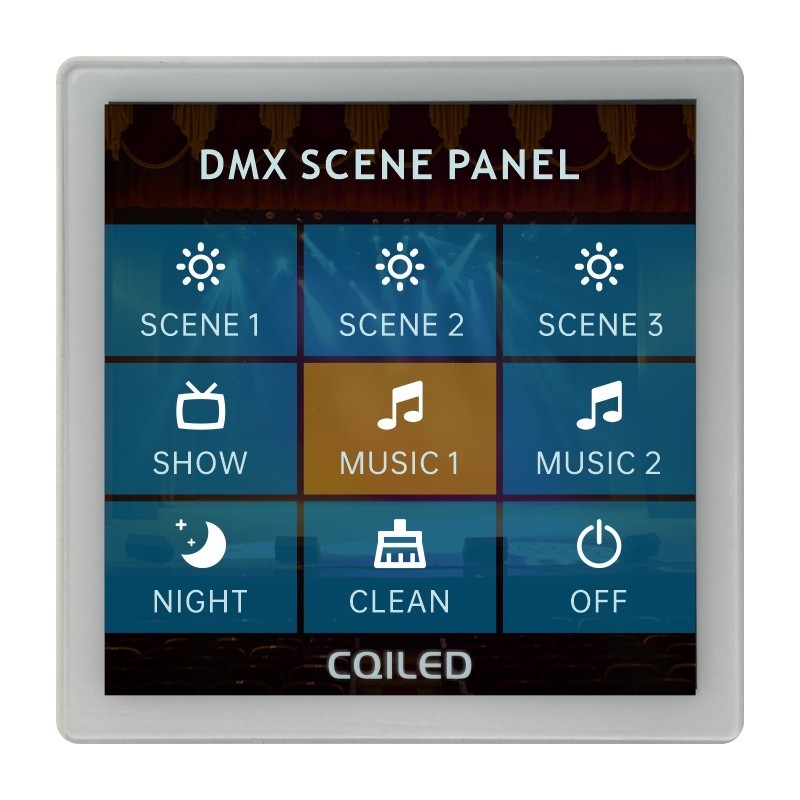

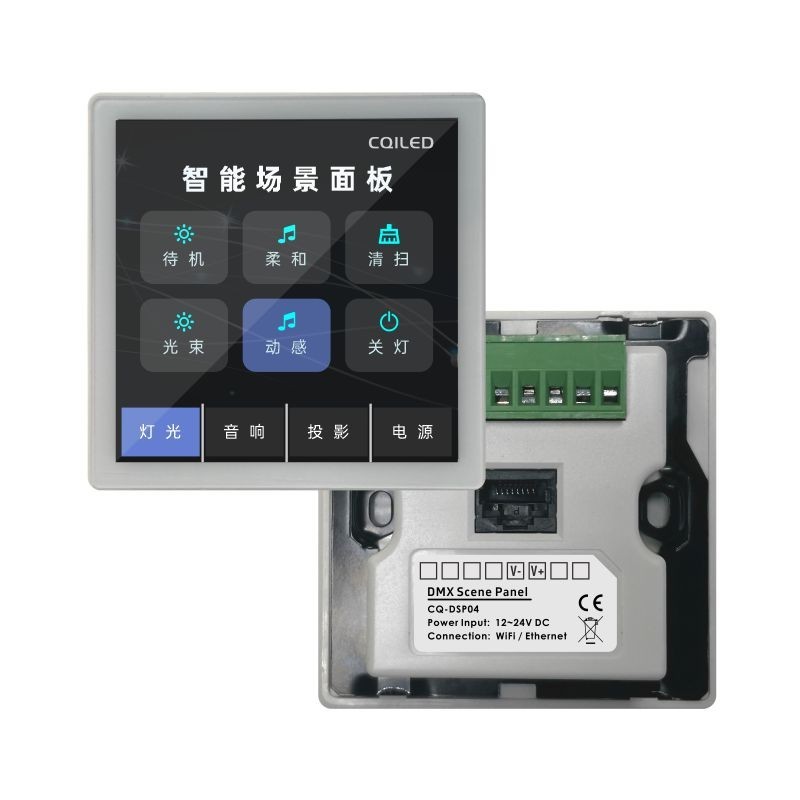

CQ-DSP04 4" Android Smart Scene Panel
|
Category |
Specification |
|---|---|
|
Model |
CQ-DSP04 |
|
Display |
4" Touchscreen, 700 × 700 pixels, IPS |
|
Operating System |
Android OS |
|
UI Customization |
Custom buttons, pages, PNG/JPG/GIF animation support, graphic text, multi-language |
|
Communication |
WiFi, Wired Ethernet, UDP, RS485, RS232 |
|
Protocol Features |
Custom UDP commands, UDP ↔ RS485/RS232 conversion |
|
Control Modes |
On-screen touch, multi-panel sync, APP remote control |
|
Power Supply |
9–24V DC, 0.5A (wide input) |
|
Installation |
86-type standard back box (flush mount) |
|
Screen Lock |
Auto-lock / manual lock to prevent accidental operation |
|
Available Sizes |
4" / 7" / 10" and larger (optional) |
|
Configuration |
On-device UI editor, Android app support |
