Running on DC24V at ~19W/m, the double-layer 2oz copper FPCB keeps current low, voltage drop small, and heat well managed over long runs. With CRI ≥90, surfaces and merchandise look natural; paired with an aluminum profile and diffuser, the 192-LED density reads as a smooth, low-glare light line without obvious dots. Control is simple: a 2-channel CCT dimmer gives brightness + color-temperature control, while smart/CCT drivers add app, 0-10V, DALI or Triac compatibility. Ideal for kitchens, bedrooms, hotels, offices, retail shelves, cove lighting and furniture integration. Reliable, efficient, and easy to cut every marked unit—professional indoor white lighting made affordable.

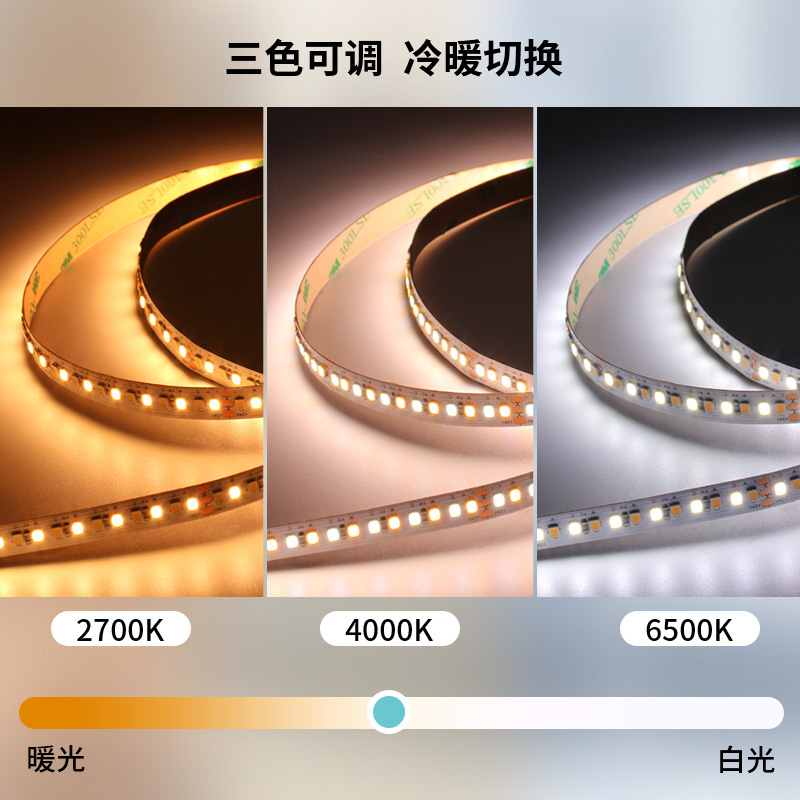

🌗 2700K / 4000K / 6500K Tri-White: Switch or blend warm, neutral and cool white to match time of day, mood and task—no RGB clutter, just clean architectural white light.

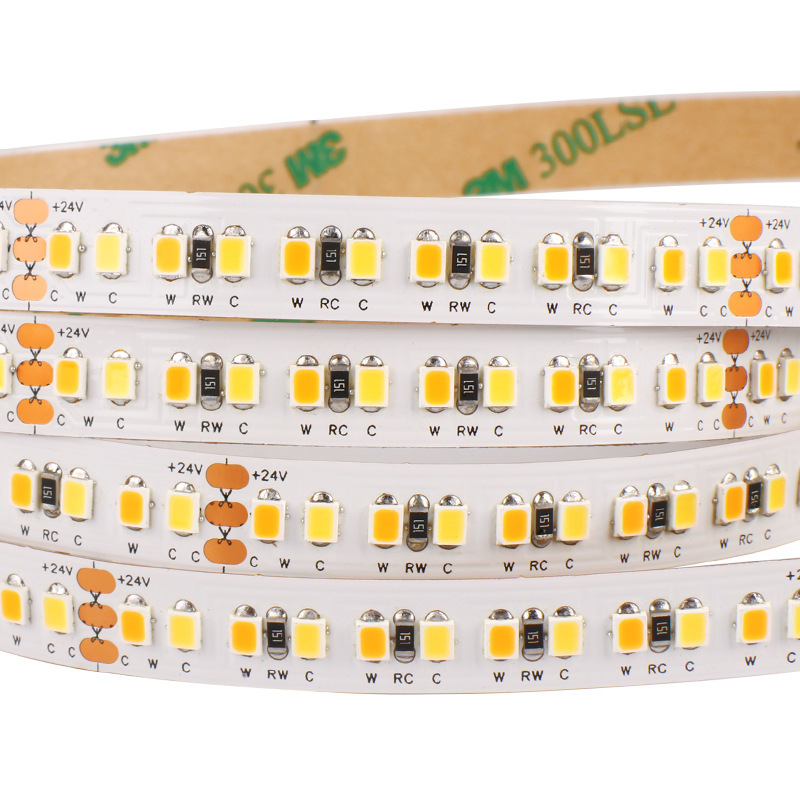

💡 192 LEDs/m High Uniformity: Dense SMD2835 layout delivers 1800–2200 lm/m class output with soft, dotted-free lines when used in a profile + diffuser.
📐 Double-Layer 2oz Copper FPCB: Better heat dissipation and less voltage drop than single-layer tapes; stable for 5m+ residential/commercial runs on 24V.
🎛️ Smart CCT Dimming: Works with CCT wall dimmers, RF/WiFi apps, 0-10V, DALI, Triac drivers; brightness and Kelvin tuned independently.
🏠 Indoor Lighting Grade: CRI ≥90, 120° beam, low glare—built for cabinets, coves, ceilings, shelves, hotels and retail, not just decoration.

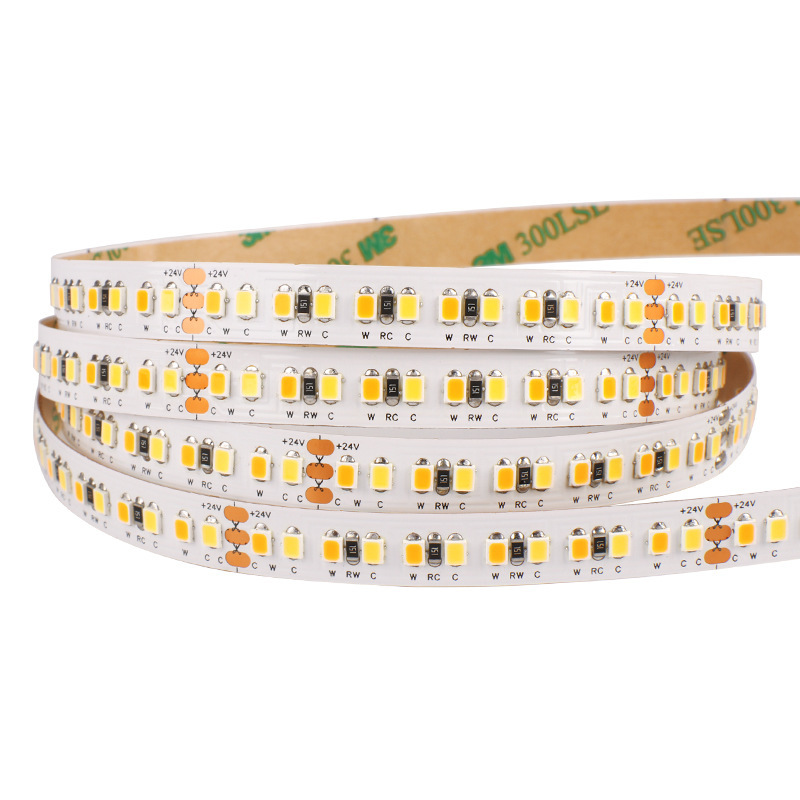

Product Specification Sheet— 10mm 2835 3-CCT Tunable White LED Strip
|
Category |
Item |
Specification |
|---|---|---|
|
General |
Product Type |
10mm 2835 Tri-CCT / Tunable White LED Strip |
|
LED Type |
SMD 2835 (Warm + Neutral + Cool groups) |
|
|
LED Density |
192 LEDs/m |
|
|
Electrical |
Input Voltage |
DC 24V Constant Voltage |
|
Power |
~19W/m (95W / 5m roll) |
|
|
Current |
~0.79A/m @ 24V |
|
|
Optical |
CCT Modes |
2700K / 4000K / 6500K (3-step) or 2700K–6500K tunable |
|
CRI (Ra) |
≥90 (≥95 optional) |
|
|
Lumen Output |
~1800–2200 lm/m (depends on CRI & bin) |
|
|
Efficacy |
95–130 lm/W |
|
|
Beam Angle |
120° |
|
|
Control |
Wiring |
3-wire: V+ / WW / CW (CCT dimmer) |
|
Dimming |
PWM, 0-10V, DALI, Triac (driver dependent) |
|
|
Smart |
WiFi/RF/Zigbee CCT controller optional |
|
|
Mechanical |
PCB Width |
10mm |
|
PCB |
Double-layer FPC, 2oz copper |
|
|
Cut Unit |
Typically 12 LEDs ≈ 62.5mm @ 24V (confirm by bin) |
|
|
Roll |
5m standard |
|
|
Adhesive |
3M 300LSE / VHB |
|
|
Environment |
IP |
IP20 standard; IP54 / IP65 / IP67 optional |
|
Temp. |
-20℃ ~ +60℃ |
|
|
Life |
50,000h |
|
|
Application |
Kitchen, bedroom, cove, shelf, hotel, office, retail, false ceiling, furniture |
