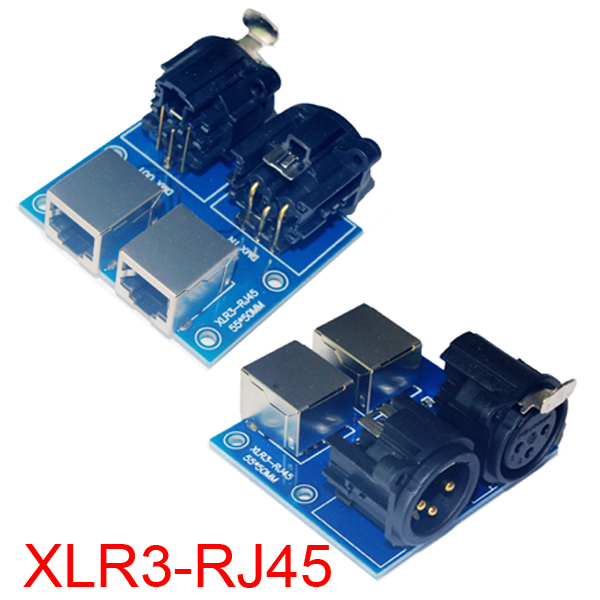

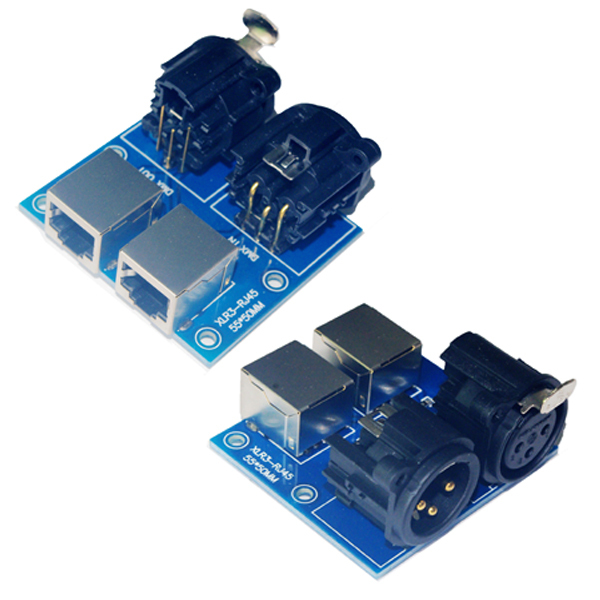

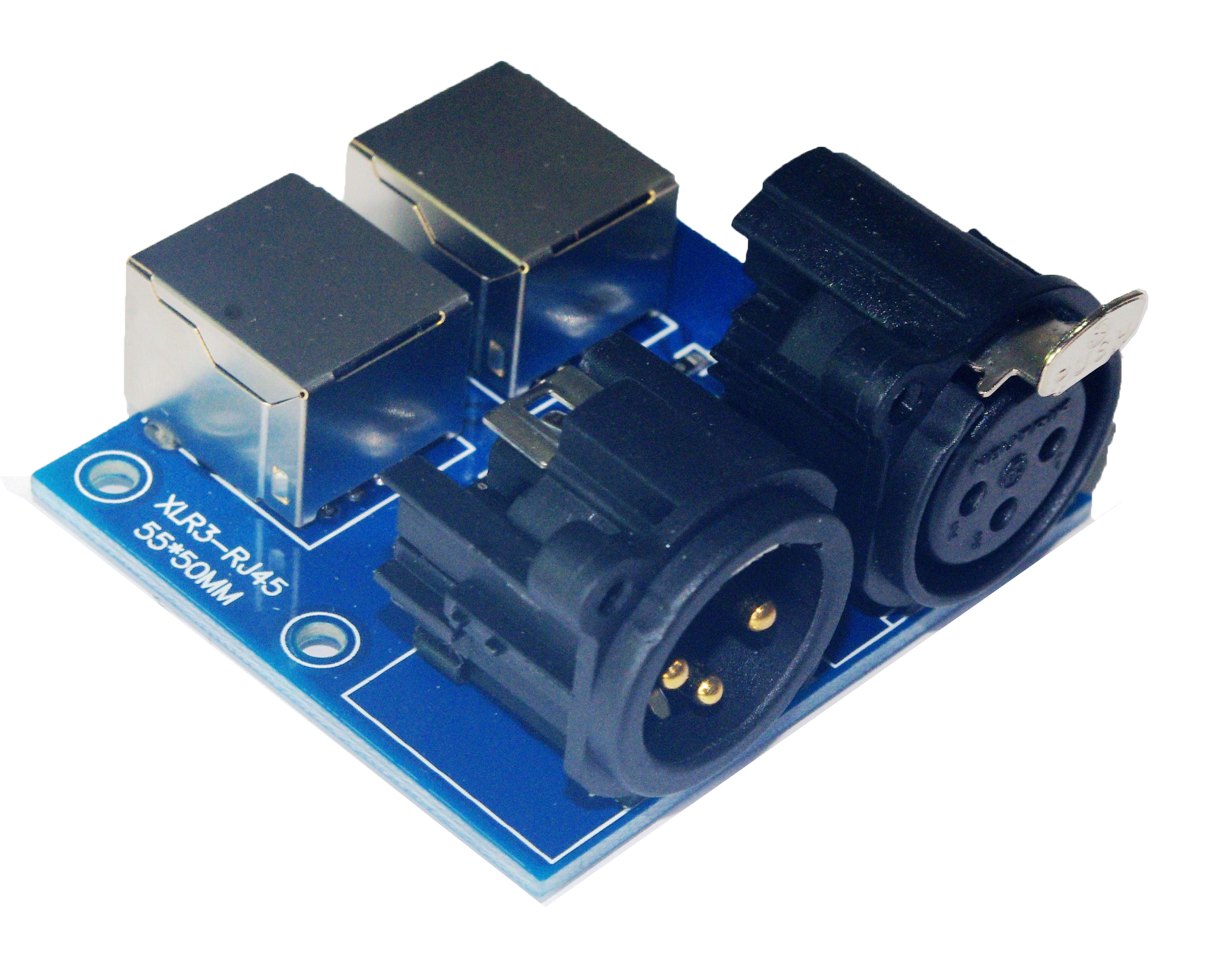

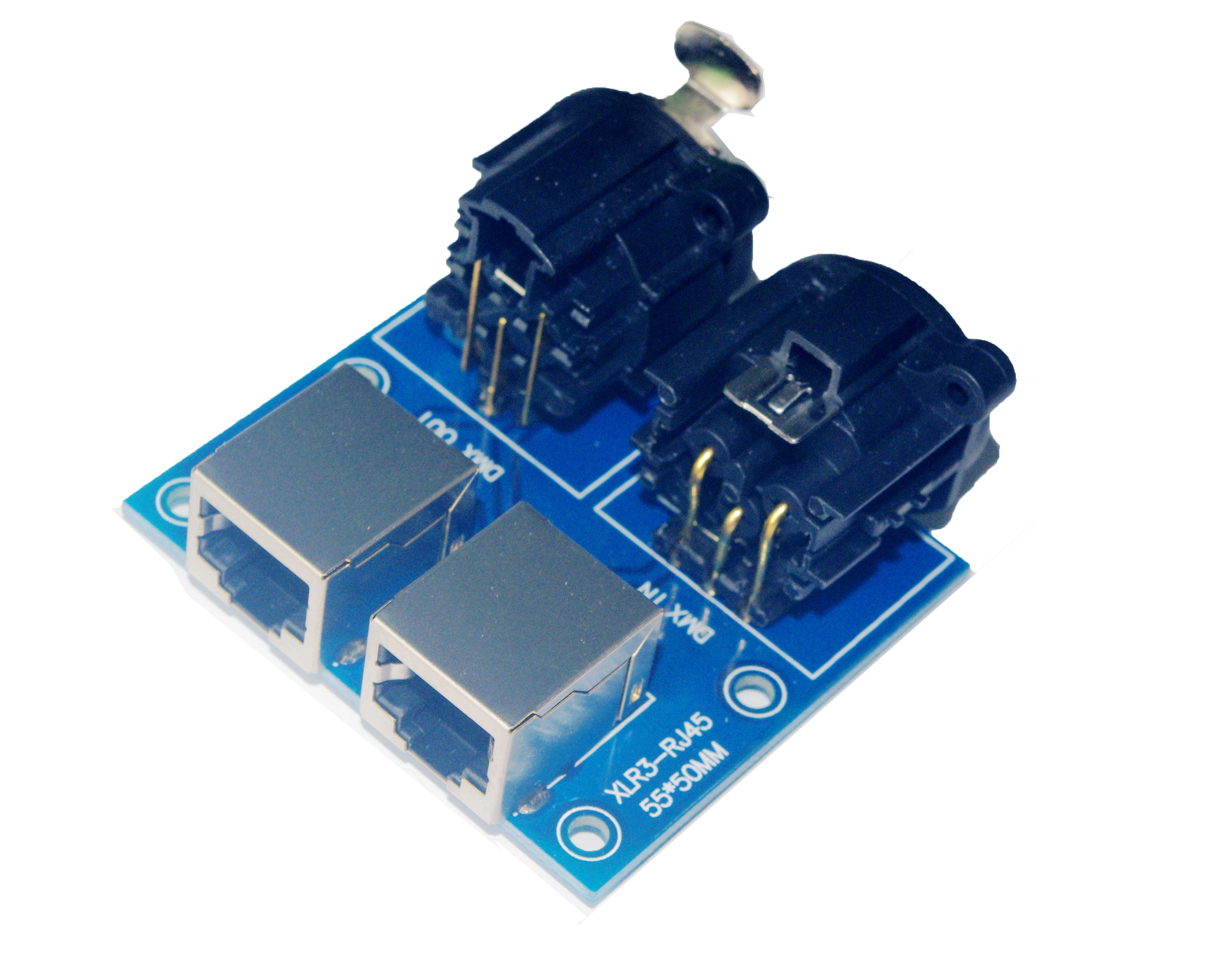

This XLR3-RJ45 adapter board converts 3-pin XLR DMX/RS485 signals to RJ45 Ethernet-style connectors for easy cabling with standard network cables. It maps XLR3 Pin1 GND, Pin2 D-, Pin3 D+ to RJ45 Pin1 D+, Pin2 D-, Pin7/Pin8 GND, with other RJ45 pins NOP. With 50×55×35mm size and 40g weight, it supports IN/OUT interfaces for daisy-chain or signal distribution. Ideal for DMX512 lighting consoles, LED fixtures, stage rigs and AV control systems, it reduces soldering work and enables fast, stable field deployment.
XLR3 ↔ RJ45 Conversion: Bridges 3-pin XLR and RJ45 for DMX512/RS485 cabling.
Defined Pin Mapping: XLR3 Pin1 GND/Pin2 D-/Pin3 D+; RJ45 Pin1 D+/Pin2 D-/Pin7-8 GND.
IN/OUT Interfaces: Supports pass-through or daisy-chain wiring in lighting/control networks.
Compact & Light: 50×55×35mm, 40g, easy to mount in fixtures or cases.
Installer Friendly: Enables network-cable-based DMX runs; saves time vs. custom XLR wiring.
|
Parameter |
Specification |
|---|---|
|
Product Label |
XLR3-RJ45 |
|
Interface |
XLR 3-Pin + RJ45 8P (IN/OUT per diagram) |
|
XLR3 Pinout |
Pin1 = GND; Pin2 = D-; Pin3 = D+ |
|
RJ45 Pinout |
Pin1 = D+; Pin2 = D-; Pin3-6 = NOP; Pin7 = GND; Pin8 = GND |
|
Signal Type |
DMX512 / RS485 differential control signal (per mapping) |
|
Dimension |
50 × 55 × 35 mm |
|
Weight |
40 g |
|
Mounting |

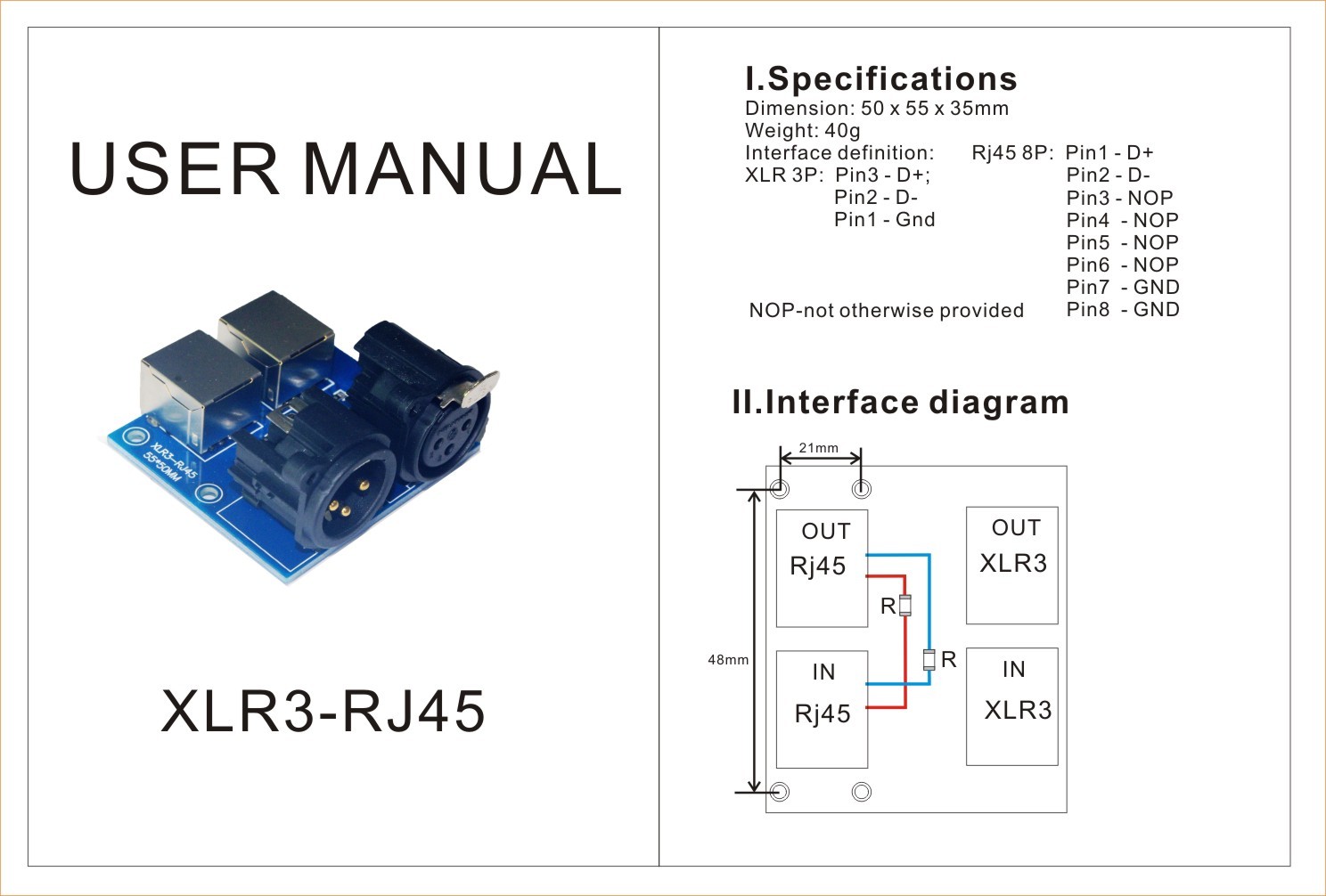

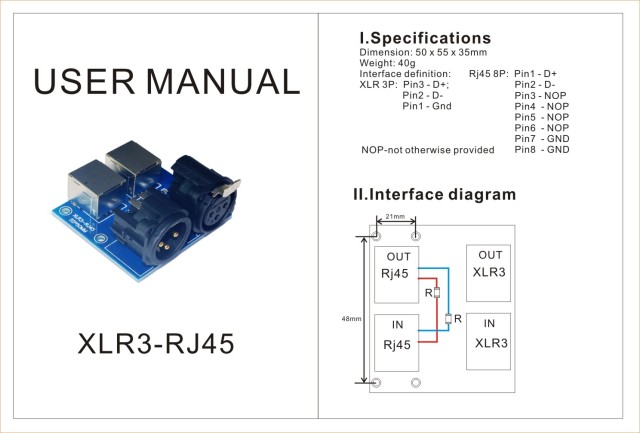

PCB/panel mount holes (see diagram) |
|
Application |
Stage lighting, DMX console, LED fixture, AV control, DMX-over-CAT5 |
|
Note |
NOP = not otherwise provided; confirm termination/resistor version before DMX bus use |
