Each SMD 5050 LED is individually addressable, enabling limitless color chasing effects, dynamic patterns, and smooth gradients controlled via Arduino or ESP32. The 10mm flexible PCB ensures easy installation in tight spaces, while the dual-signal line design offers enhanced stability; if one LED fails, the rest of the strip remains illuminated. With 60 high-density LEDs per meter, you achieve uniform, dot-free illumination when paired with an aluminum profile. Upgrade to the WS2815 for professional-grade brightness, reliability, and vibrant color control.
True RGBW Color Mixing: Features a 4-in-1 SMD 5050 chip with a dedicated white diode, providing both vibrant colors and high-CRI, pure white light (3000K/4000K/6000K options) for versatile ambiance.
Stable 12V Operation: Runs on 12V DC, minimizing voltage drop and allowing for longer single-run lengths compared to 5V strips, ensuring uniform brightness from end to end.
Individual Addressability: Each of the 60 LEDs per meter can be controlled separately, supporting complex animations, pixel-chasing effects, and custom patterns via a single data line.
Breakpoint Resume & Dual Signal: Equipped with a backup data line; if a single LED is damaged, the remaining lights continue to function normally, ensuring maximum reliability for permanent installations.

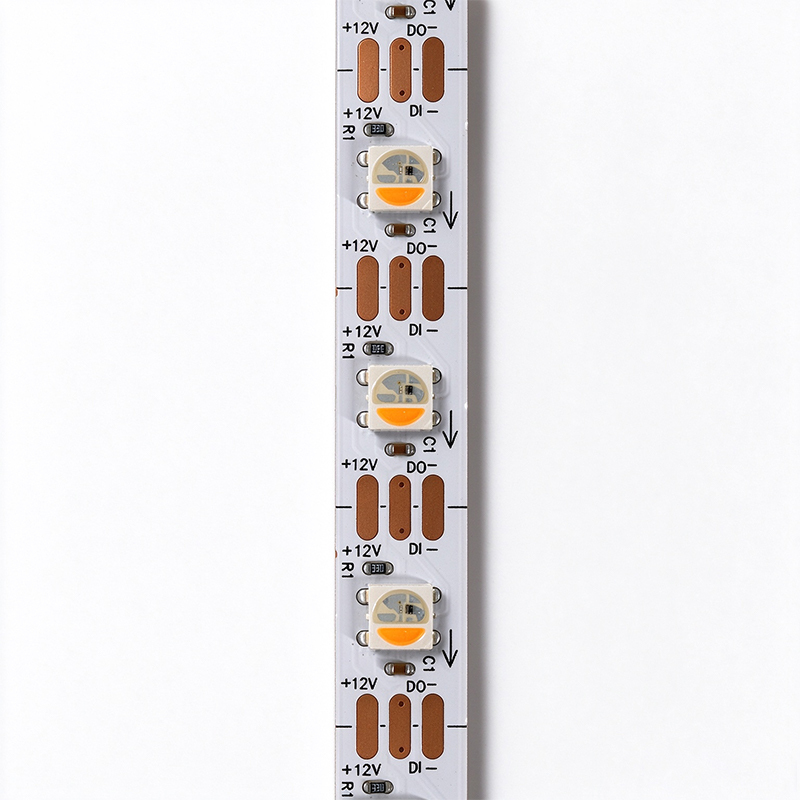

High Density & Flexibility: The 10mm wide PCB houses 60 LEDs/m for smooth, dot-free lighting. It is cuttable every 10 LEDs (16.67cm) and mounts easily with 3M adhesive backing.

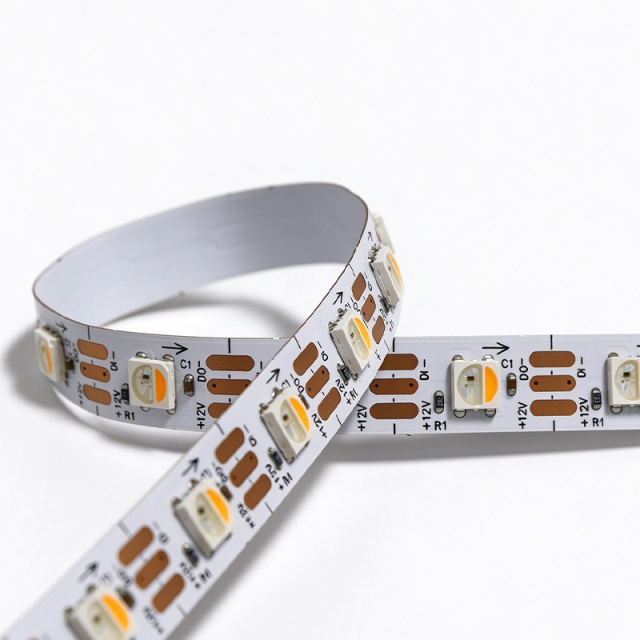

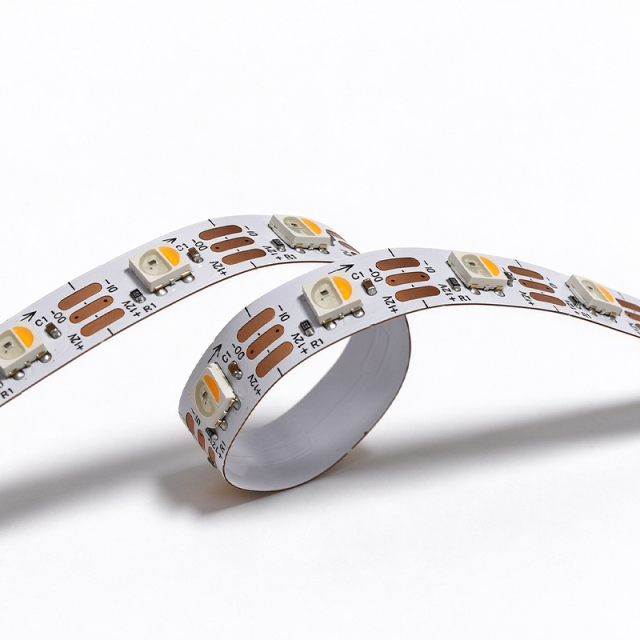

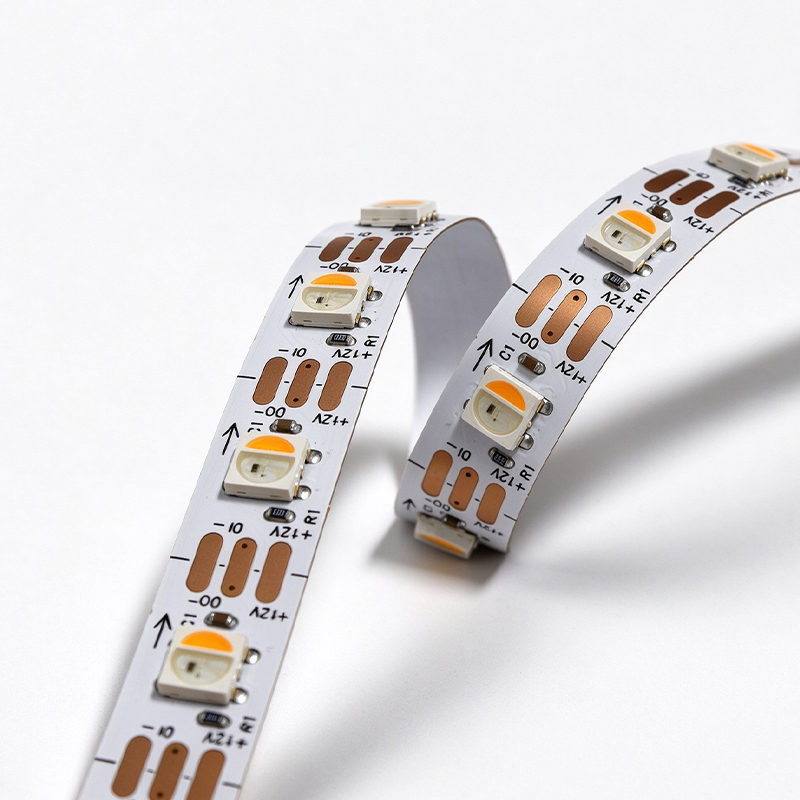

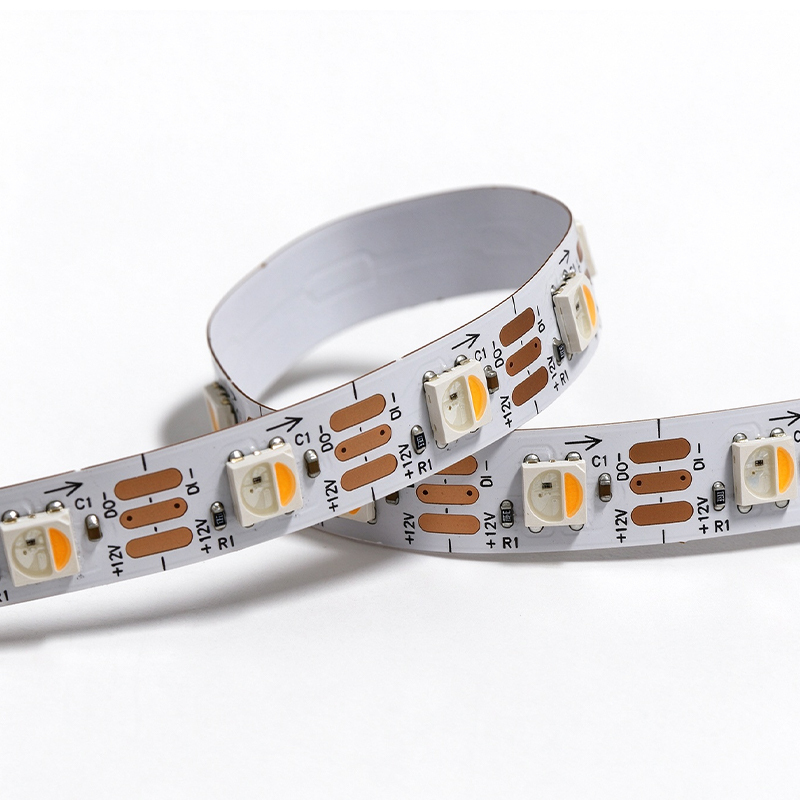

Product Specification: WS2815 12V 60LED/m RGBW LED Strip
|
Parameter |
Specification |
|---|---|
|
Part Number |
WS2815-12V-60-RGBW-10mm |
|
LED Type |
SMD 5050 RGBW (4-in-1) |
|
LED Density |
60 LEDs / Meter |
|
Operating Voltage |
DC 12V |
|
Power Consumption |
18W / Meter (Max) |
|
IC Type |
WS2815 (Built-in) |
|
Control Protocol |
Single-wire Return-to-Zero Code |
|
Gray Levels |
16-bit (65536 levels/channel) |
|
Refresh Rate |
> 2KHz (Flicker-free) |
|
Cutting Unit |
Every 10 LEDs (16.67 cm) |
|
PCB Width |
10 mm (White/Black options) |
|
Beam Angle |
120° |
|
IP Rating |
IP20 / IP65 / IP67 (Optional) |
|
Working Temp. |
-20°C to +60°C |
|
Compatibility |
Arduino, ESP32, Raspberry Pi, SPI Controllers |
Note: Power supply should be 20% higher than total load. Recommended aluminum profile for heat dissipation.
