Available in multiple ring sizes from a single pixel to expansive 241-LED arrays, the modular design stacks into concentric halos for eye-catching depth. Running on DC5V, it's fully compatible with Arduino, ESP32, and WLED, making it a favorite for cosplay props, smart mirrors, PC mods, and ambient decor. Whether you're building a clock face, a music visualizer, or a photography ring light, this module delivers professional-grade lighting in a compact, easy-to-wire format.

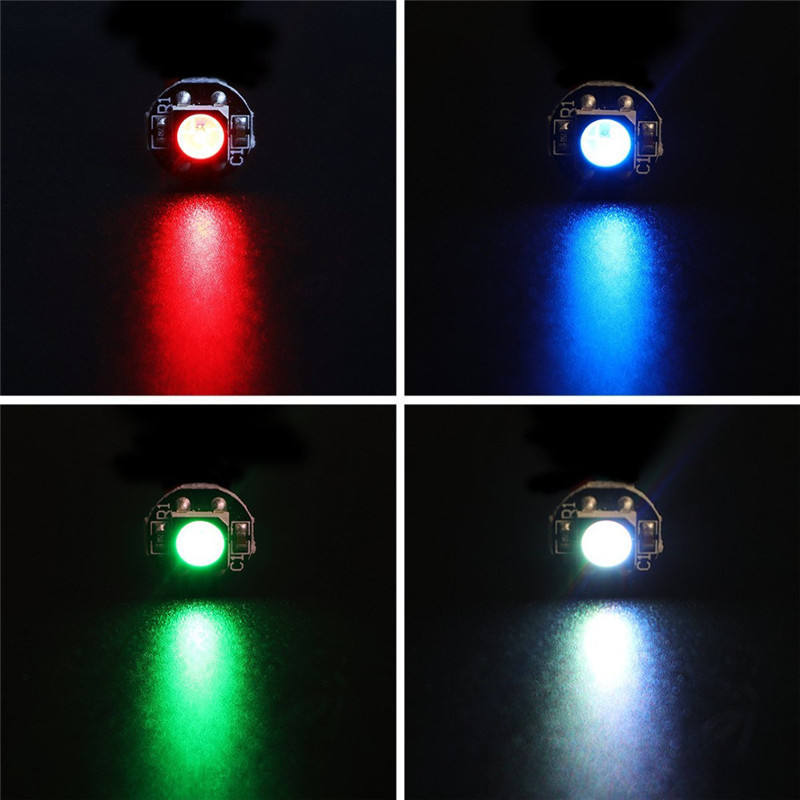

Individual Pixel Control — Every LED features a built-in driver IC (WS2812B/SK6812), enabling 24-bit color precision and limitless animation effects via a single data line.
Tunable White Options — RGBWW variants offer independent warm-white and cool-white channels, delivering authentic 2700K–6500K color temperatures for both accent and task lighting.

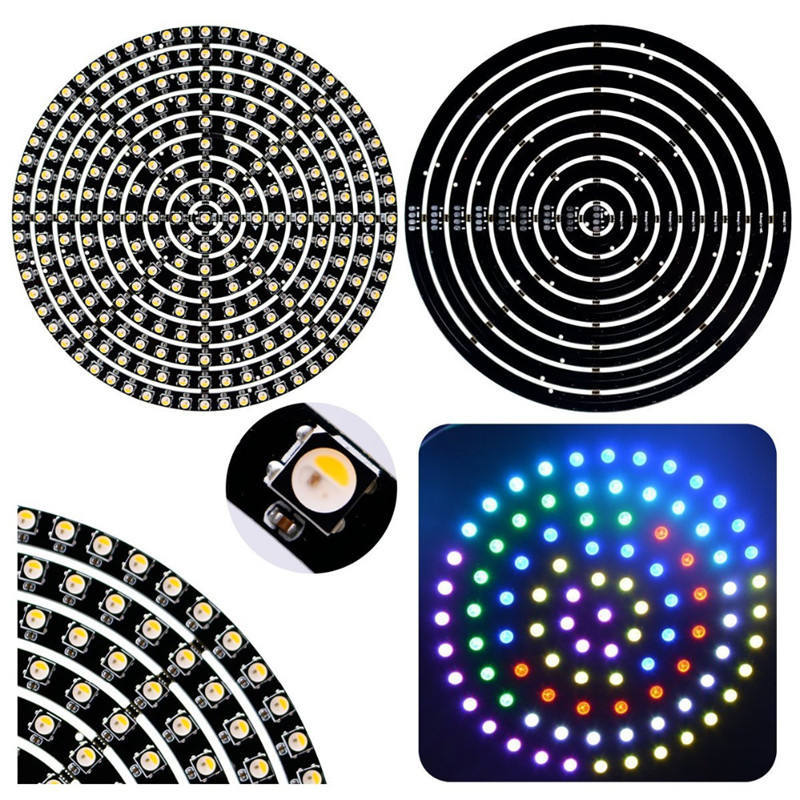

Flexible Configurations — Choose from 1 to 241 LEDs across multiple ring diameters; modules can be stacked into concentric rings (e.g., 37, 93, 148, 241 LEDs total) for layered visual depth.
Broad Ecosystem Compatibility — Works seamlessly with Arduino, ESP32, Raspberry Pi, and WLED firmware; supports Adafruit NeoPixel and FastLED libraries for quick development.

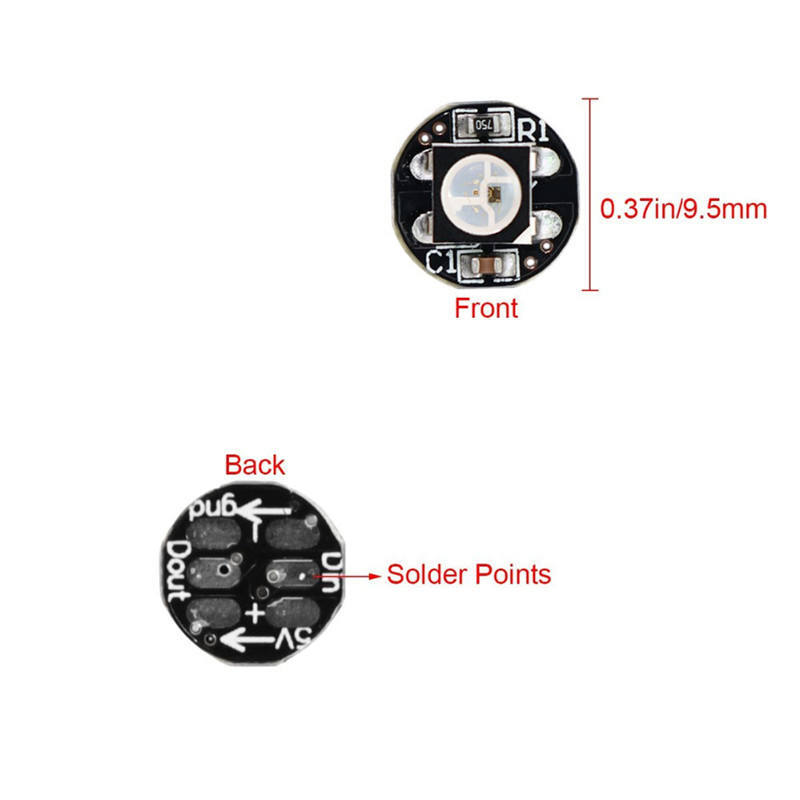

Plug-and-Play 5V Design — Standard 4-pin interface (VCC, GND, DIN, DOUT) with cascade support; compact SMD5050 form factor fits tight enclosures, wearables, and custom fixtures.
|
Parameter |
Details |
|---|---|
|
Product Name |
Addressable LED Ring Module |
|
LED Type |
SMD5050 with built-in IC |
|
IC Variants |
WS2812B (RGB), SK6812 (RGB / RGBW / RGBWW) |
|
Color Options |
RGB / RGBW / RGBWW (Tunable 2700K–6500K) |
|
LED Count Options |
1, 8, 12, 16, 24, 32, 40, 48, 60 (single rings); 37, 93, 148, 241 (nested multi-ring assemblies) |
|
Operating Voltage |
DC 5V ±0.5V |
|
Power Consumption |
~0.3W per LED at full white (max ~80W for 241-LED version) |
|
Data Protocol |
Single-wire NZR (800kHz) |
|
Gray Scale |
256 levels per channel (16.7 million colors for RGB) |
|
Refresh Rate |
≥400 Hz |
|
PCB Color |
Black / White (optional) |
|
Interface |
4-pin: VCC, GND, DIN, DOUT |
|
Cascade Support |
Yes (DOUT → DIN) |
|
Operating Temperature |
-25°C to +80°C |
|
IP Rating |
IP20 (non-waterproof, indoor use) |
|
Compatible Platforms |
Arduino, ESP32, ESP8266, Raspberry Pi, T-1000S, SP105E, WLED |
|
Supported Libraries |
Adafruit NeoPixel, FastLED |
|
Applications |
Smart mirrors, clock faces, PC case mods, photography ring lights, cosplay, ambient wall decor, music visualizers |
