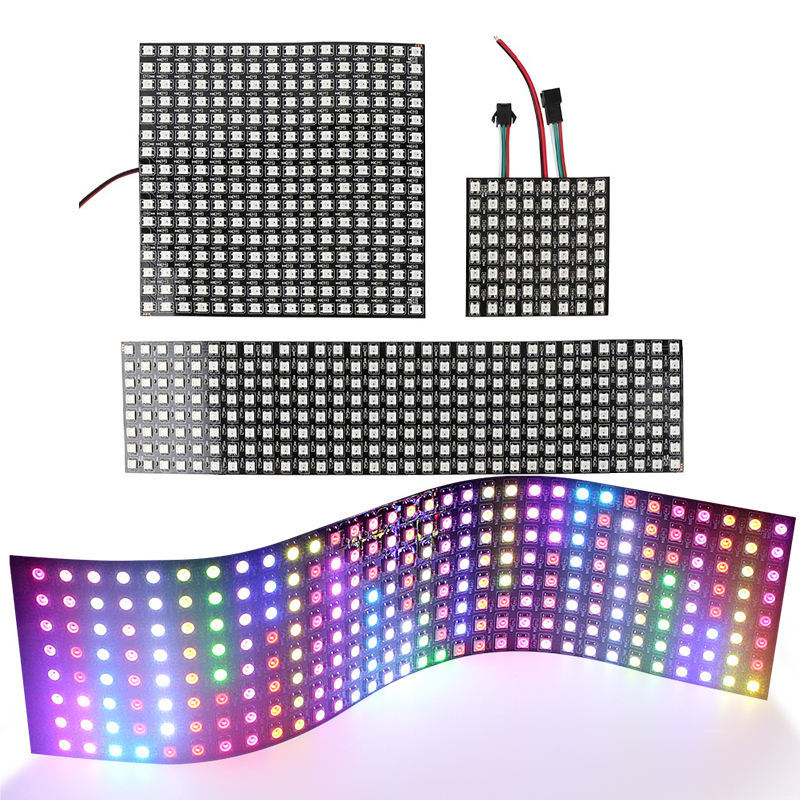

Featuring a flexible FPCB substrate, it can be bent to fit curved surfaces, making it perfect for DIY lighting, smart wearables, and art installations. Pre-soldered terminals and clear signal flow arrows ensure a hassle-free setup. Whether you're building a retro game display, a digital clock, or an interactive art piece, this panel provides the ultimate canvas for your projects.
Individually Addressable Pixels: Each LED features a built-in WS2812B driver IC, allowing for independent 24-bit color control (16.7 million colors) to create complex animations, text, and gradients.

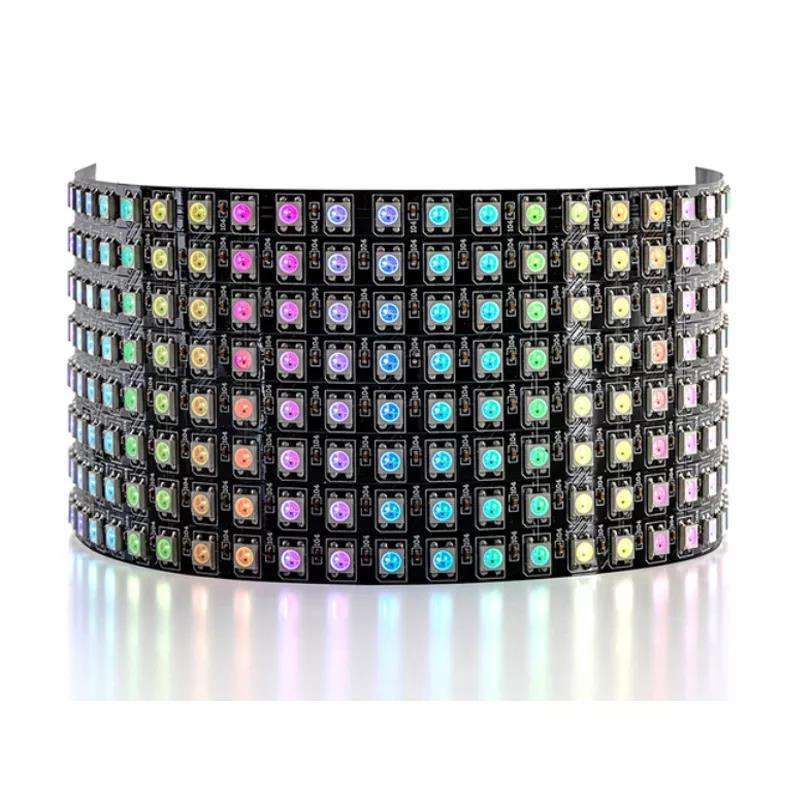

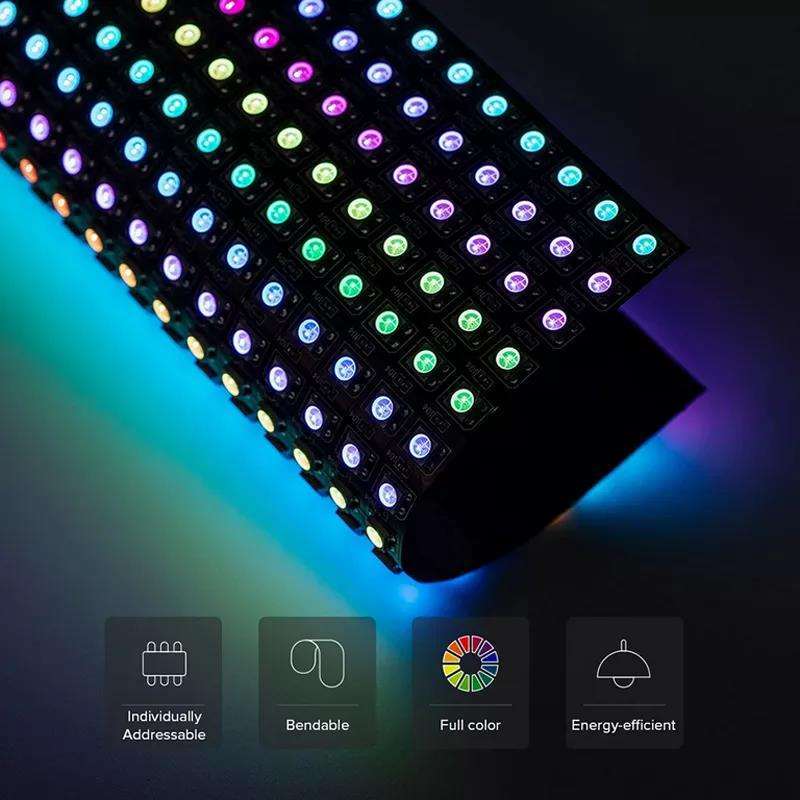

Flexible & Durable FPCB: Unlike rigid boards, our flexible printed circuit board allows you to bend and mount the panel on curved surfaces without damaging the circuitry.

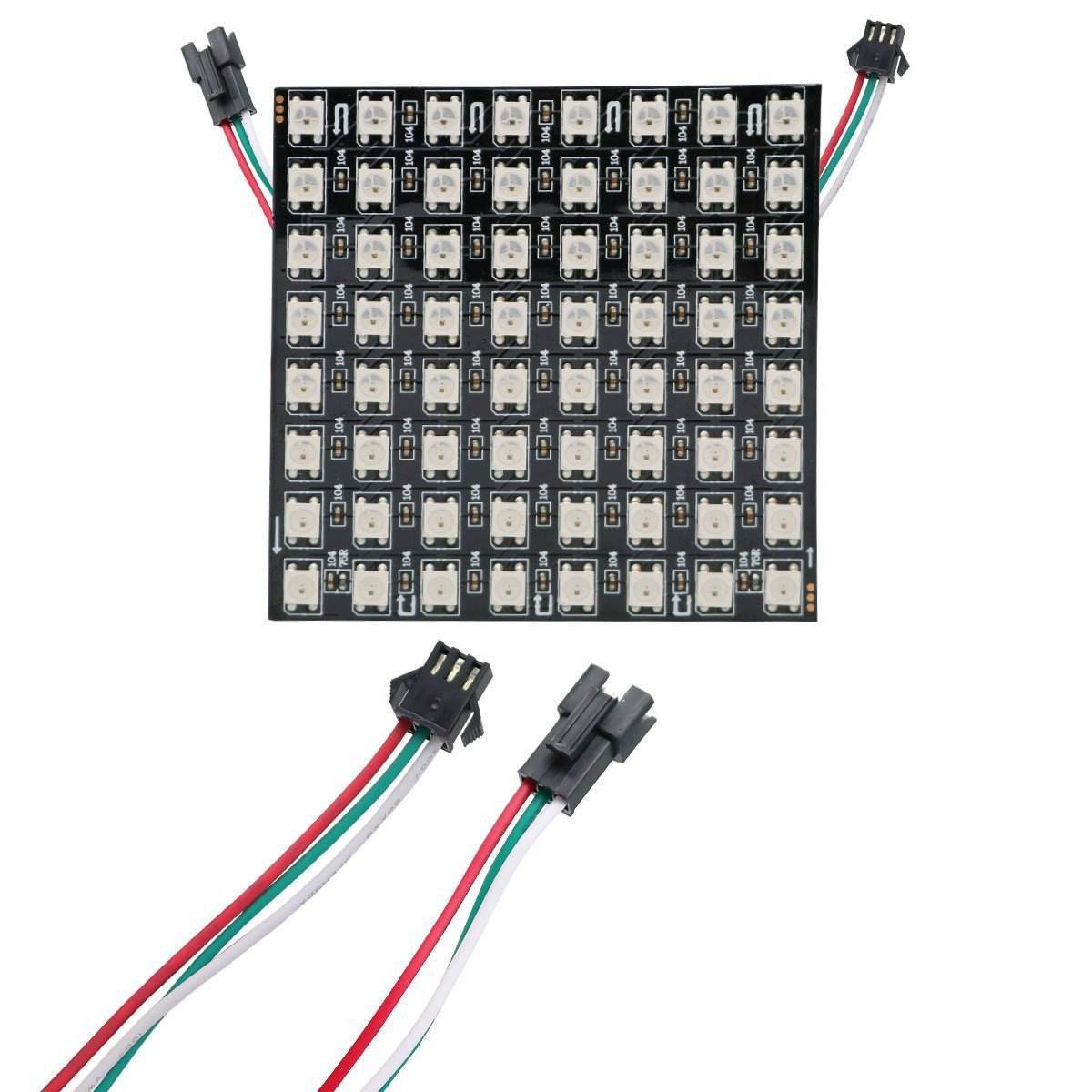

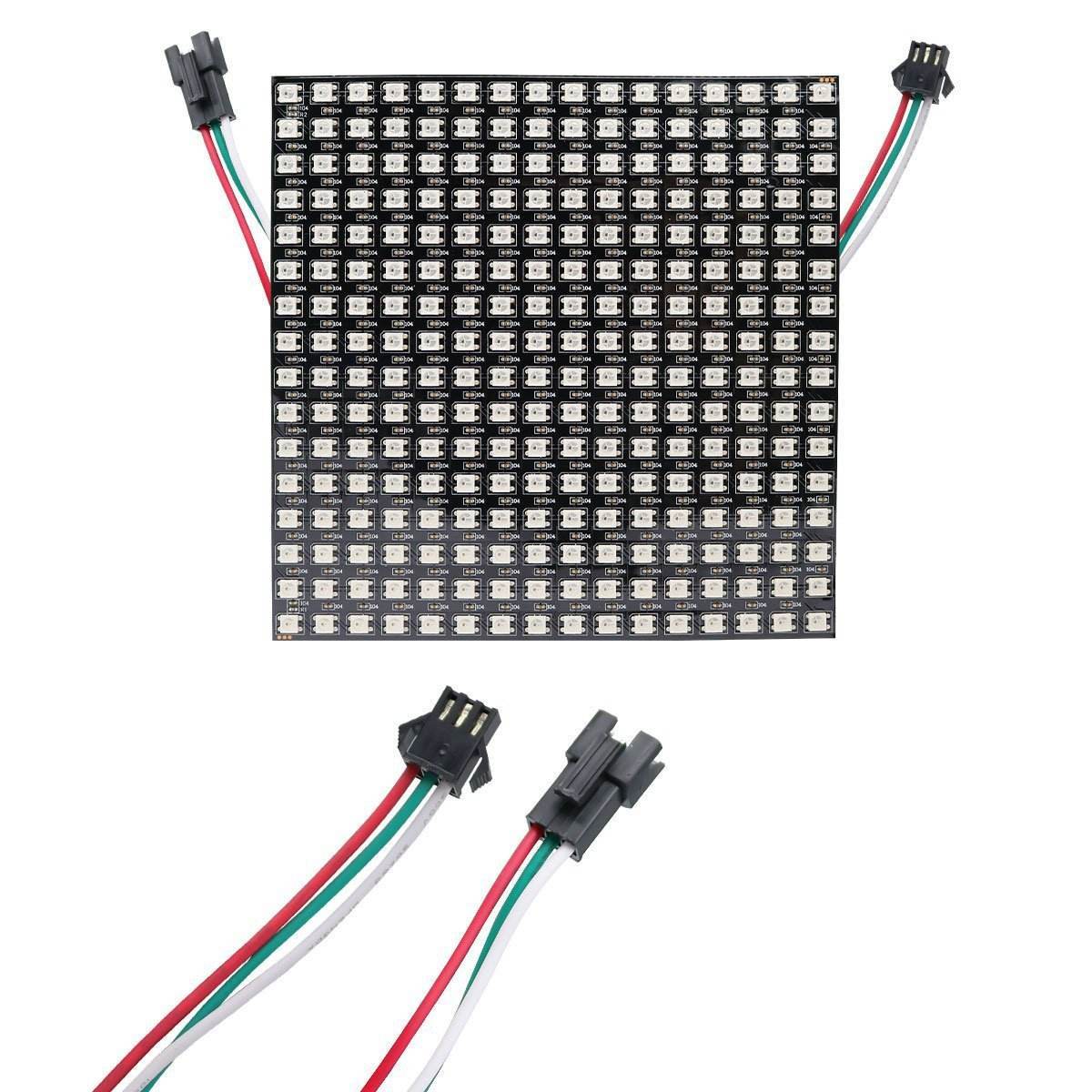

Simplified Wiring & Cascading: Controlled via a single data line. Panels can be easily chained together using the clearly marked DIN and DOUT arrows for larger, scalable displays.
Wide Compatibility: Fully compatible with popular platforms including Arduino, ESP8266/ESP32, and Raspberry Pi. Supports mainstream libraries like FastLED and Adafruit NeoPixel.
High Brightness & Energy Efficient: Powered by DC 5V, these LEDs offer high luminous intensity while maintaining low power consumption (recommended 4A-10A power supply for 256-pixel models).
|
Parameter |
Specification Details |
|---|---|
|
Product Name |
WS2812B Addressable RGB LED Matrix Panel |
|

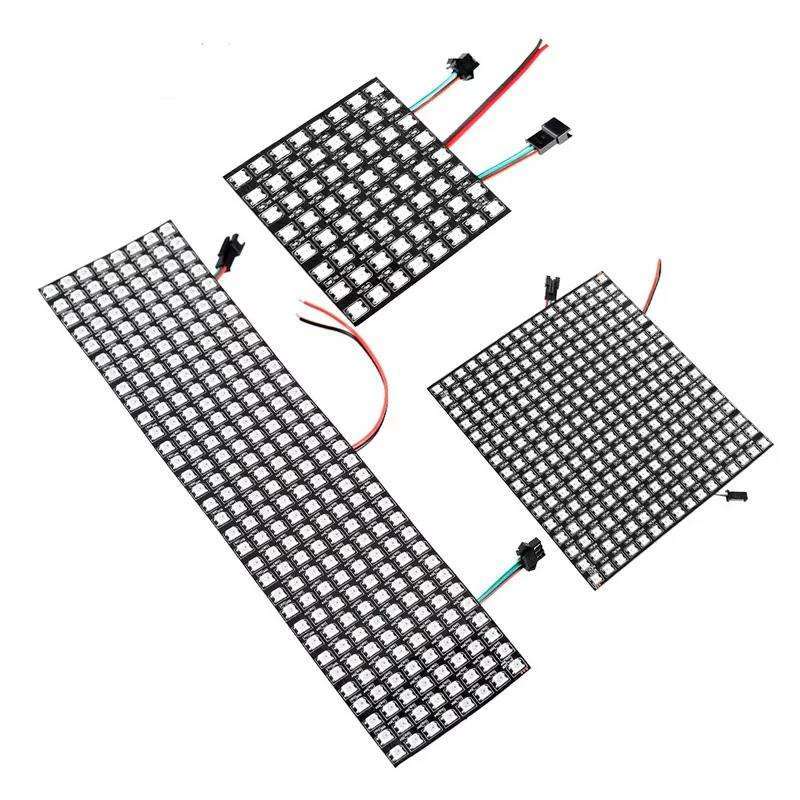

Available Sizes |
8x8 (64 Pixels), 8x32 (256 Pixels), 16x16 (256 Pixels) |
|
LED Type |
WS2812B (Integrated Control IC) |
|
Operating Voltage |
DC 5V |
|
Data Protocol |
Single-wire return-to-zero (NZR) |
|
Communication Speed |
800 kHz |
|
Color Order |
GRB (Green-Red-Blue) |
|
Color Depth |
24-bit (256 levels per channel, 16.7 million colors) |
|
Max Power Consumption |
~0.3W per LED (76.8W theoretical max for 256-pixel panels) |
|
Recommended PSU |
5V/4A (Medium Brightness) to 5V/10A+ (Full Brightness) |
|
Viewing Angle |
120 Degrees |
|
PCB Material |
Flexible FPCB (High-Temperature resistant) |
|
Interface |
3-pin (VCC, GND, DIN) |
|
Operating Temperature |
-20°C to 60°C |
|
Compatible Platforms |
Arduino, ESP32, ESP8266, Raspberry Pi, micro:bit |
|
Recommended Libraries |
FastLED, Adafruit NeoPixel, Adafruit NeoMatrix |
