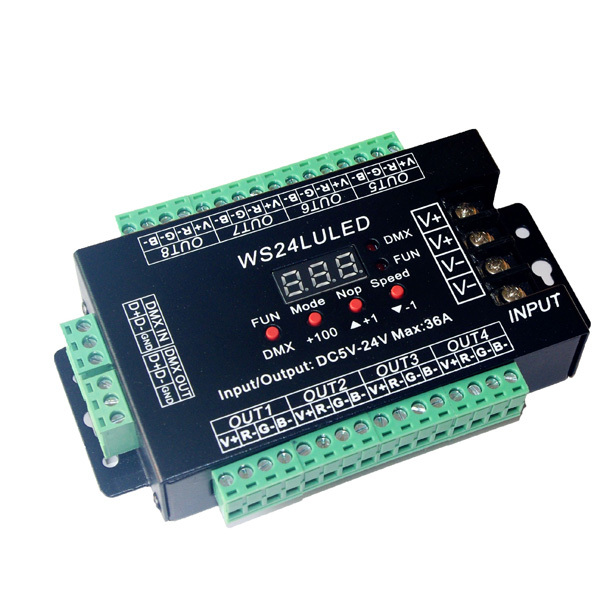

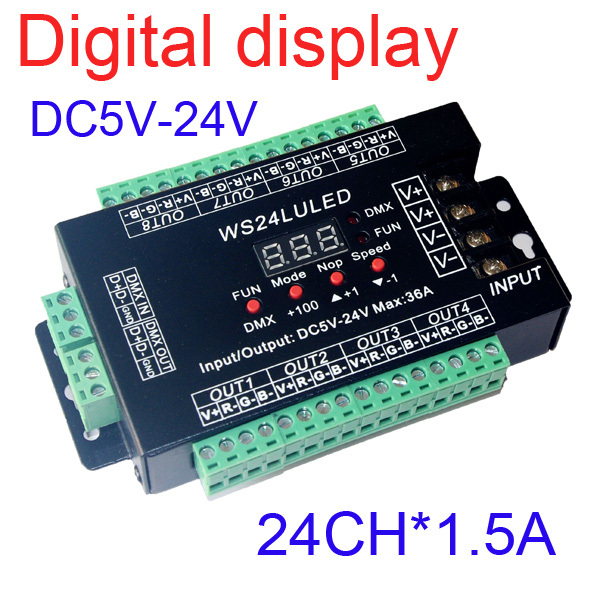

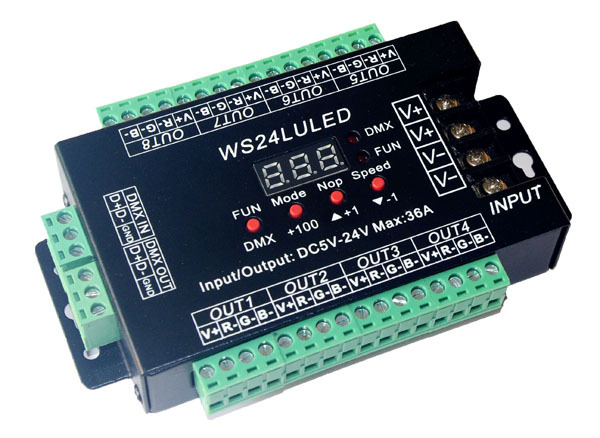

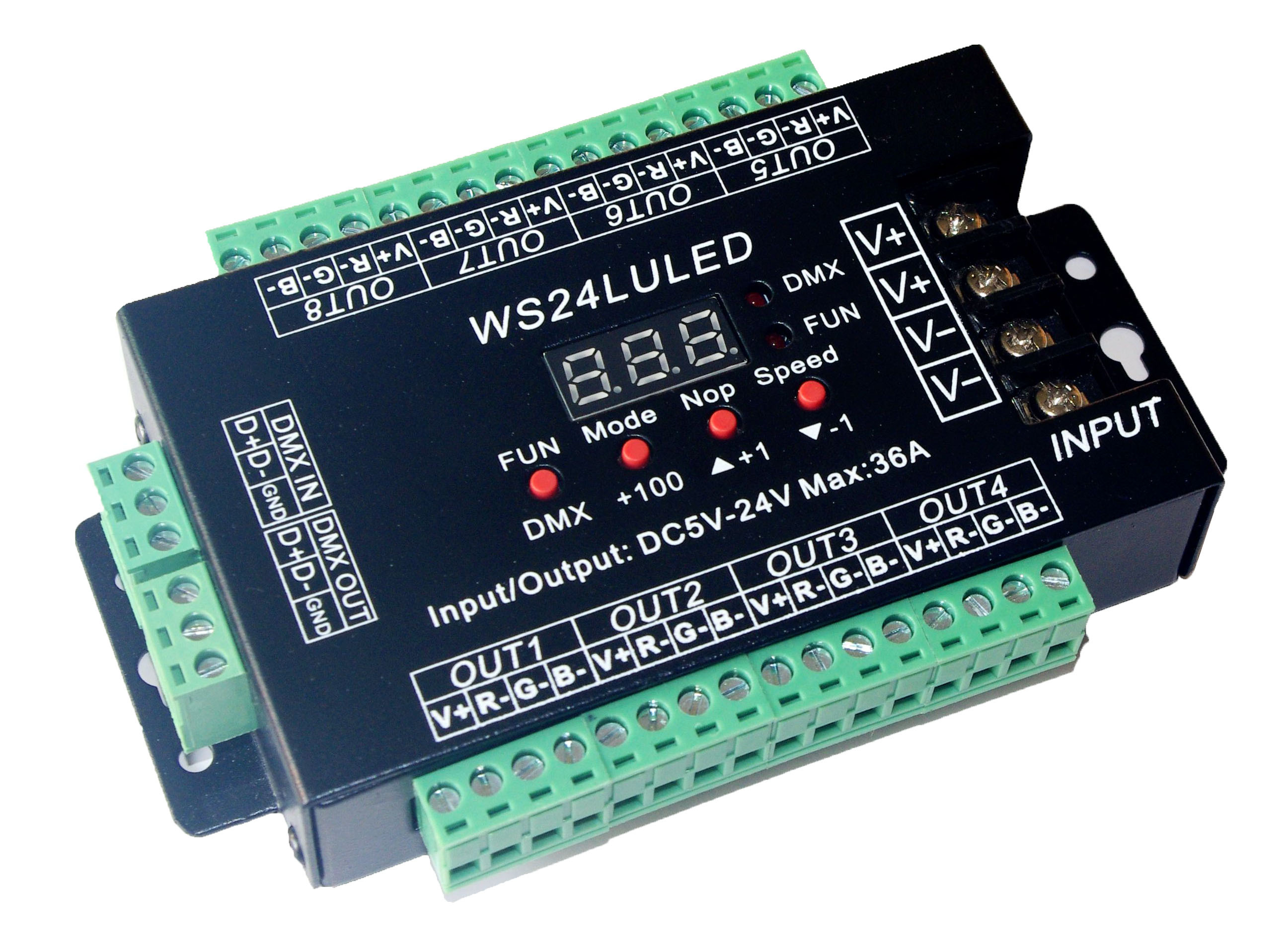

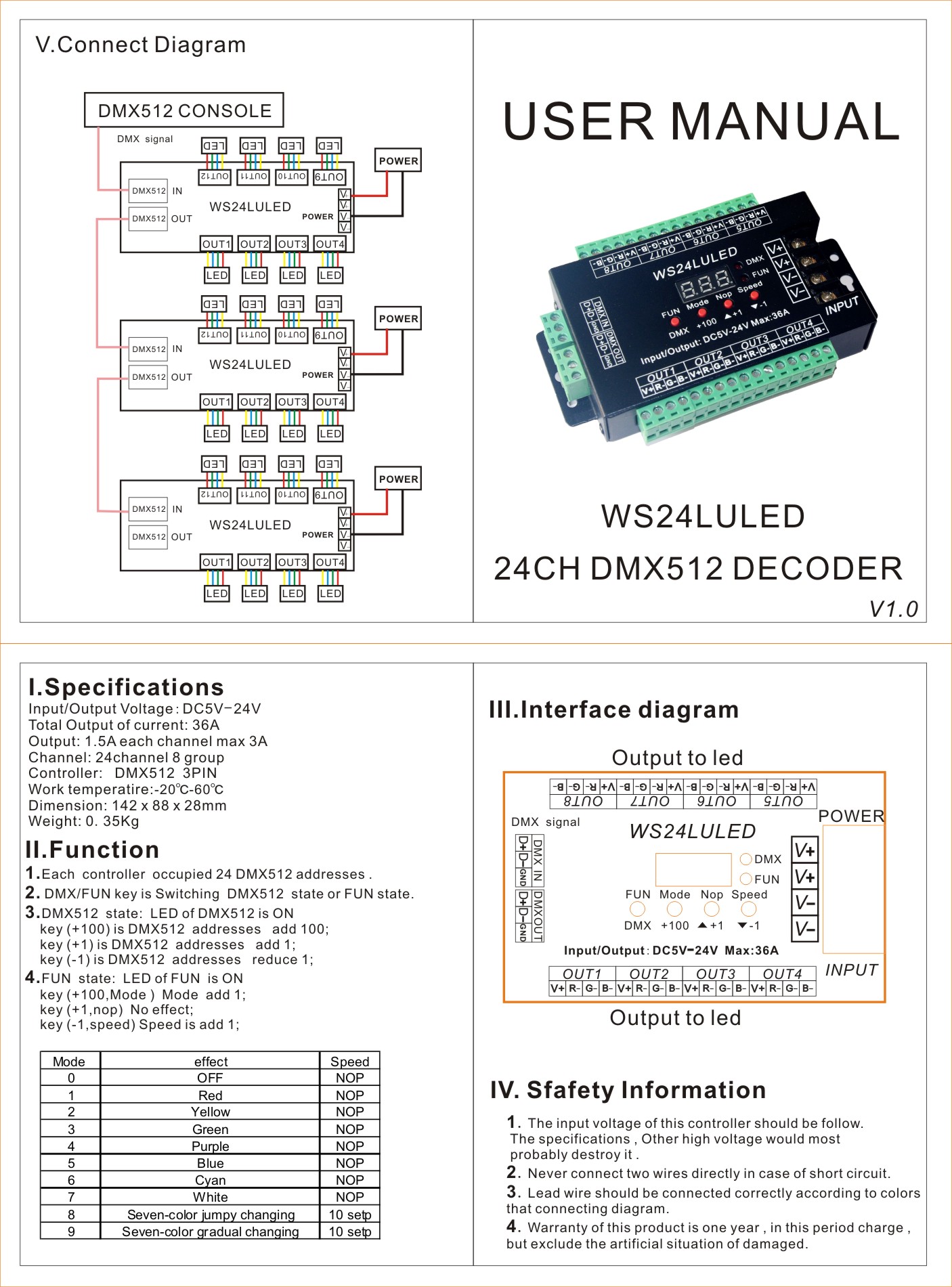

The WS24LULED (V1.0) is a 24-channel DMX512 LED decoder for DC5V-24V common-anode RGB loads, driving 8 RGB groups and occupying 24 consecutive DMX addresses. Rated 1.5A/CH (max 3A/CH, 36A total), it supports DMX console or key-based operation: +100/-1 adjust address, Mode/Nop/Speed keys for built-in effects (Off/Red/Yellow/Green/Purple/Blue/Cyan/White/7-color jump/gradual). With DMX IN/OUT and V+/R/G/B terminals, size 142×88×28mm/0.35kg, it fits stage, architectural and signage. DC only—do not connect AC mains; follow polarity and current margin.
24CH / 8 RGB Groups: Controls eight RGB strings, occupies 24 DMX addresses for precise console programming.
DC5V-24V Wide Range: Suits 5V/12V/24V common-anode LED strips/modules (not AC HV dimmer).
1.5A/CH, Max 3A/CH: 36A total rating; plan load, wiring and thermal margin in installation.
Key + DMX/FUN Operation: +100/-1 for address, Mode/Nop/Speed for standalone effects; DMX LED/FUN LED status.
DMX IN/OUT Chainable: Screw-terminal V+/R/G/B and DMX pass-through for stage/architectural multi-unit wiring.
|
Parameter |
Specification |
|---|---|
|
Model / Label |
WS24LULED / 24CH DMX512 DECODER (V1.0) |
|
Type |
24-Channel DMX512 LED Decoder (8 RGB groups) |
|
Control |
DMX512 3PIN; DMX IN / DMX OUT; Key operation (+100 / -1 / Mode / Nop / Speed) |
|
Input/Output Voltage |
DC5V-24V |
|
Output |
24 channels (OUT1–OUT4 / V+/R/G/B groups per diagram) |
|
Output Current |
1.5A per channel; max 3A per channel; Total 36A |
|
DMX Footprint |
Occupies 24 DMX addresses |
|
Mode/Effect |
Off/Red/Yellow/Green/Purple/Blue/Cyan/White/7-color jump/7-color gradual; speed steps |
|
Working Temp. |
-20℃ ~ 60℃ |
|
Dimension |
142 × 88 × 28 mm |
|
Weight |
0.35 kg |
|
Application |
LED strip, RGB modules, signage, architectural, stage/decor |
|
Safety |
DC only; no AC/mains; common-anode polarity; no short; check DMX A/B & termination |
