Ultra-High Density – 240 LEDs/m: Delivers perfectly uniform, dot-free light output; ideal for shallow profiles and close-view architectural applications.
Outstanding 160lm/W Efficacy: Industry-leading luminous efficiency maximizes brightness while minimizing energy consumption and heat generation.
Three CRI Options (Ra80 / Ra90 / Ra95): Scalable color quality—choose Ra80 for cost-effective projects, Ra90 for retail, or Ra95 for museums and high-end interiors.
Stable DC24V Constant Voltage: Supports longer continuous runs with less than 3% brightness drop over 5 meters; safe, low-voltage operation.
Precision Cut & Full Control: Cut every 25mm (6 LEDs) for exact length matching; compatible with PWM, 0-10V, and DALI dimming systems.
|
Item |
Specification |
|---|---|
|
Product Name |

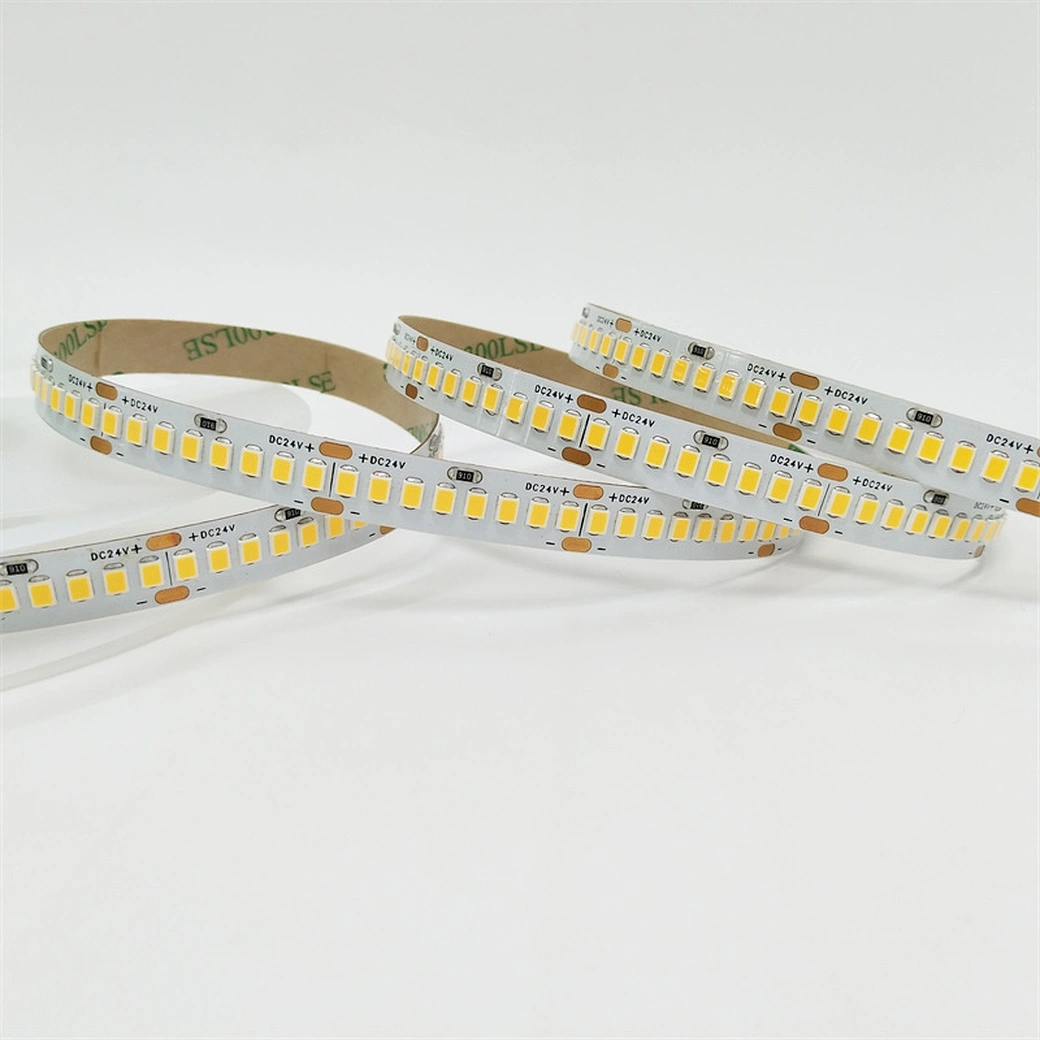

Ultra-High-Density 2835 LED Strip Light |
|
LED Type |
SMD 2835 |
|
LED Density |
240 LEDs/meter |
|
Working Voltage |
DC 24V Constant Voltage |
|
Power Consumption |
22W/meter (max. rated) |
|
Luminous Efficacy |
160 lm/W (LED/module level) |
|
Luminous Flux |
Approx. 3520 lm/m (theoretical max.) |
|
Color Rendering Index |
Ra80 / Ra90 / Ra95 (selectable) |
|
Color Temperature |
2700K / 3000K / 4000K / 5700K / 6500K (optional) |
|
Cutting Unit |
Every 25mm (6 LEDs) |
|
PCB Width |
10mm / 12mm (optional) |
|
Roll Length |
5 meters/reel |
|
IP Rating |
IP20 / IP65 / IP66 / IP68 (optional) |
|
Dimming |
PWM / 0-10V / DALI compatible |
|
Recommended Driver |
24V CV LED power supply (20–30% power margin) |
|
Heat Dissipation |
Required with aluminum profiles (22W/m thermal load) |
|
Applications |
High-end cove, retail showcase, museum, hotel, linear pendant, backlighting |
|
Warranty |
3–5 years (varies by supplier) |
