Advanced DMX512 Control: Built-in UCS512H4L IC with differential A/B signal transmission for anti-interference, automatic addressing, and stable long-distance communication—ideal for professional stage and architectural lighting.

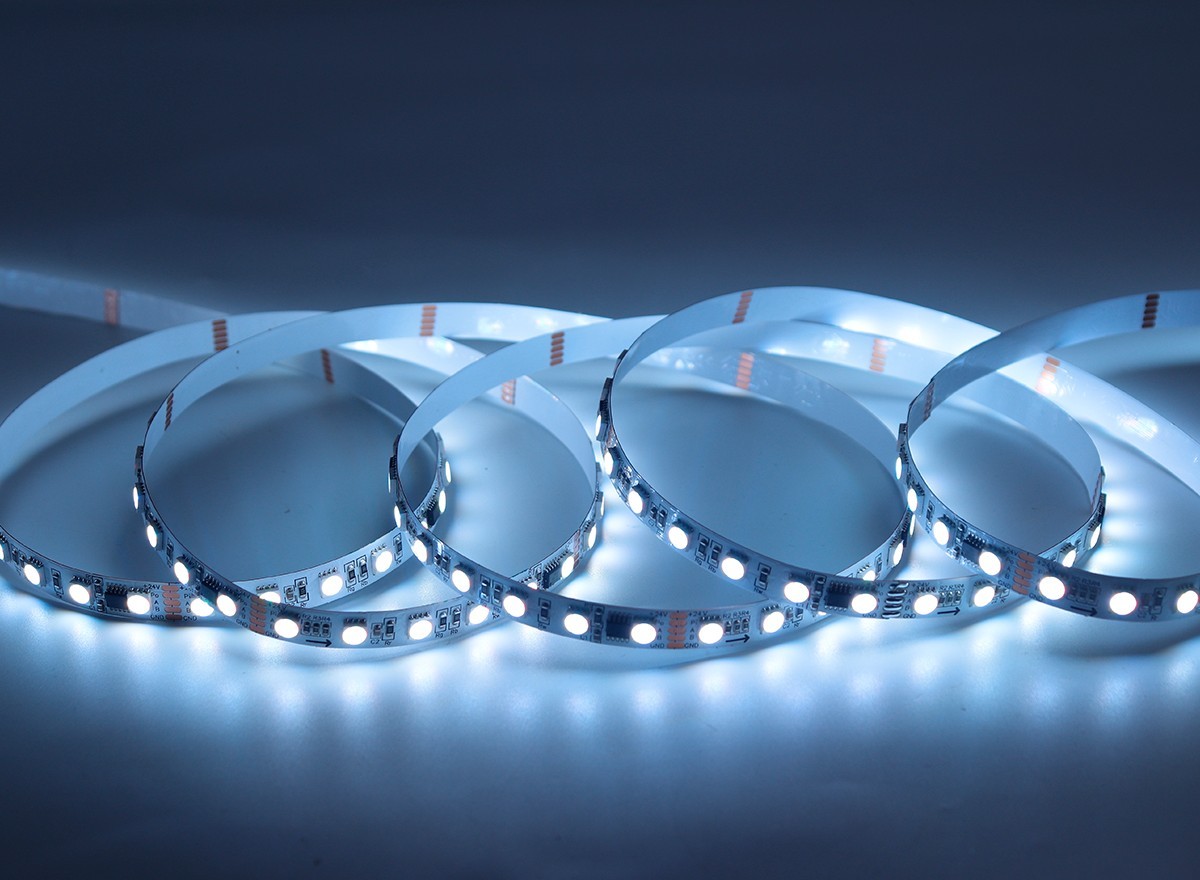

High-Density RGBW Illumination: 72 LEDs/m and 12 pixels/m (6 LEDs per segment) with 5050 RGBW quad-chip LEDs, delivering rich colors and pure white light (3000K/4000K/6000K) for versatile ambiance.
Professional 24V System: Operates on 24V DC with low voltage drop; supports head-end power for 5m rolls and dual-end feeding for longer runs, ensuring consistent brightness.

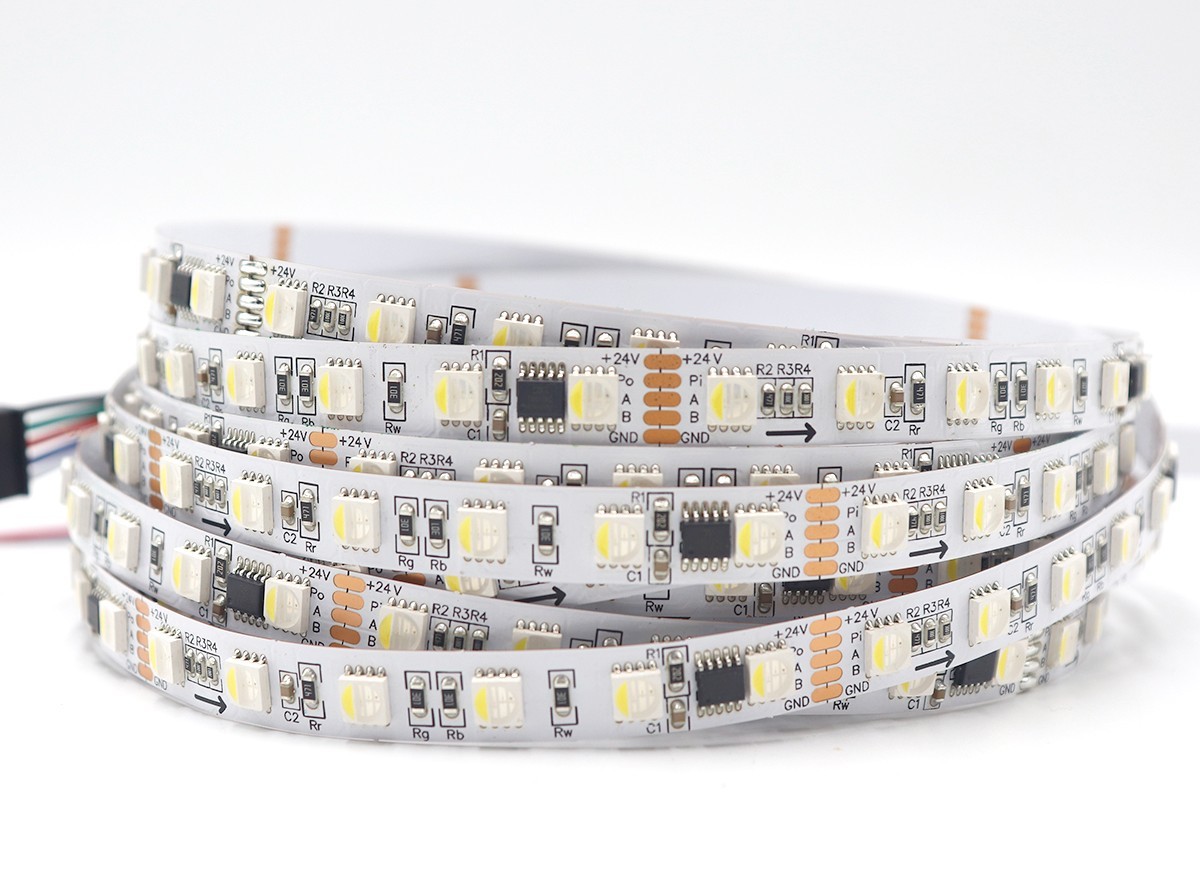

Durable 12mm PCB: Extra-wide circuit board enhances heat dissipation, reduces glare, and improves reliability for continuous commercial use.

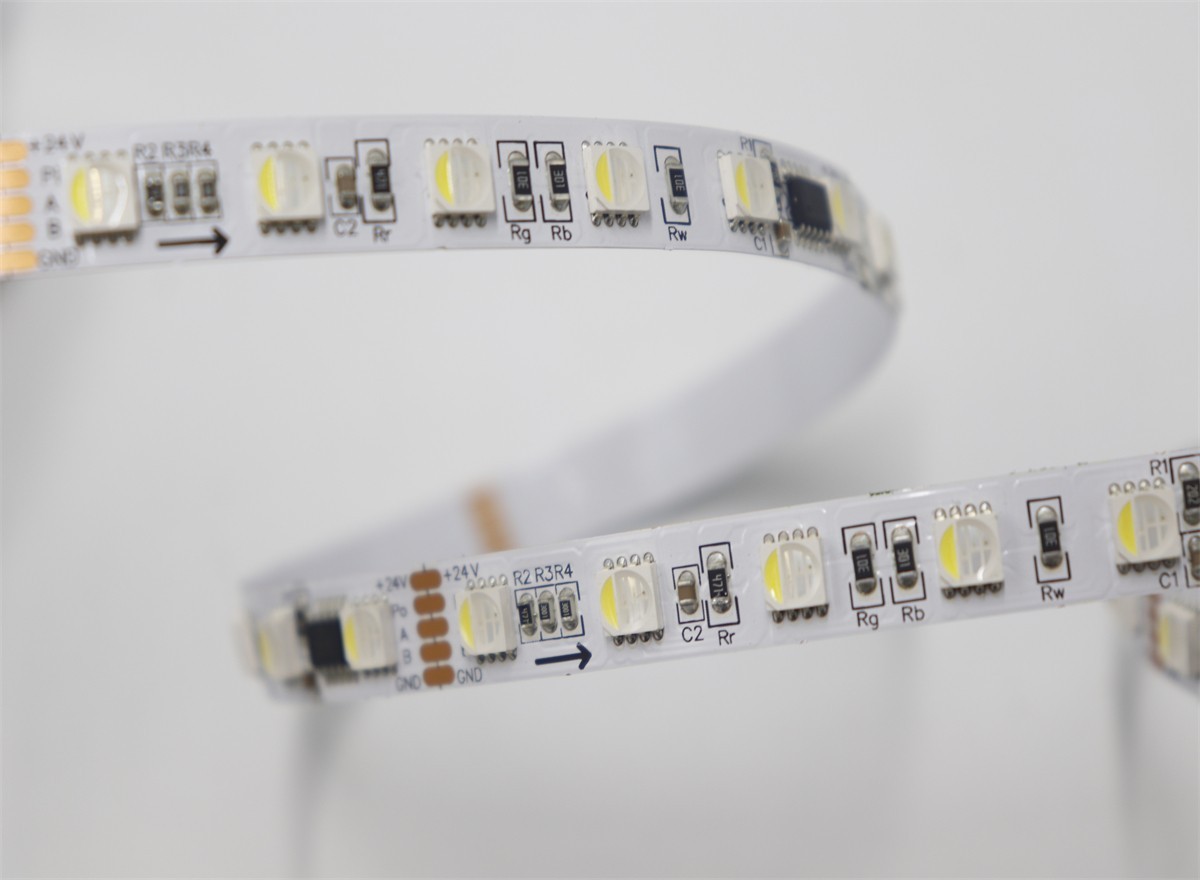

Flexible & Cuttable: Cut every 6 LEDs (83.3mm) without damaging remaining sections; compatible with DMX512 consoles, ArtNet, and Madrix software for limitless creative effects.
|
Item |
Specification |
|---|---|
|
Product Name |
UCS512H4L 5050 RGBW Addressable LED Strip Light |
|
LED Type |
SMD 5050 RGBW (4-in-1) |
|
LED Density |
72 LEDs/meter |
|
IC Model |
UCS512H4L (DMX512 differential, auto-addressing) |
|
Pixel Density |
12 pixels/meter (1 IC controls 6 LEDs) |
|
Operating Voltage |
DC 24V |
|
Power Consumption |
23–28W/meter (Max. 140W/5m roll) |
|
PCB Width |
12mm (White or Black options) |
|
Cutting Unit |
Every 6 LEDs (83.33mm / 3.28 inches) |
|
Gray Scale |
65536 levels per channel |
|
Signal Interface |
Differential A/B, GND, 24V (P line for auto-write code) |
|
Recommended Controller |
DMX512 console, ArtNet node, Madrix, or UCS512-compatible decoder |
|
IP Rating |
IP20 (Non-waterproof), optional IP65/IP67 silicone coating |
|
Working Temperature |
-20°C to +60°C |
|
Lifespan |
≥50,000 hours |
|
Standard Length |
5 meters/reel (16.4ft) |
|
Certification |
CE, RoHS (upon request) |
|
Application |
Stage lighting, architectural outline, cove lighting, signage, DIY projects |
