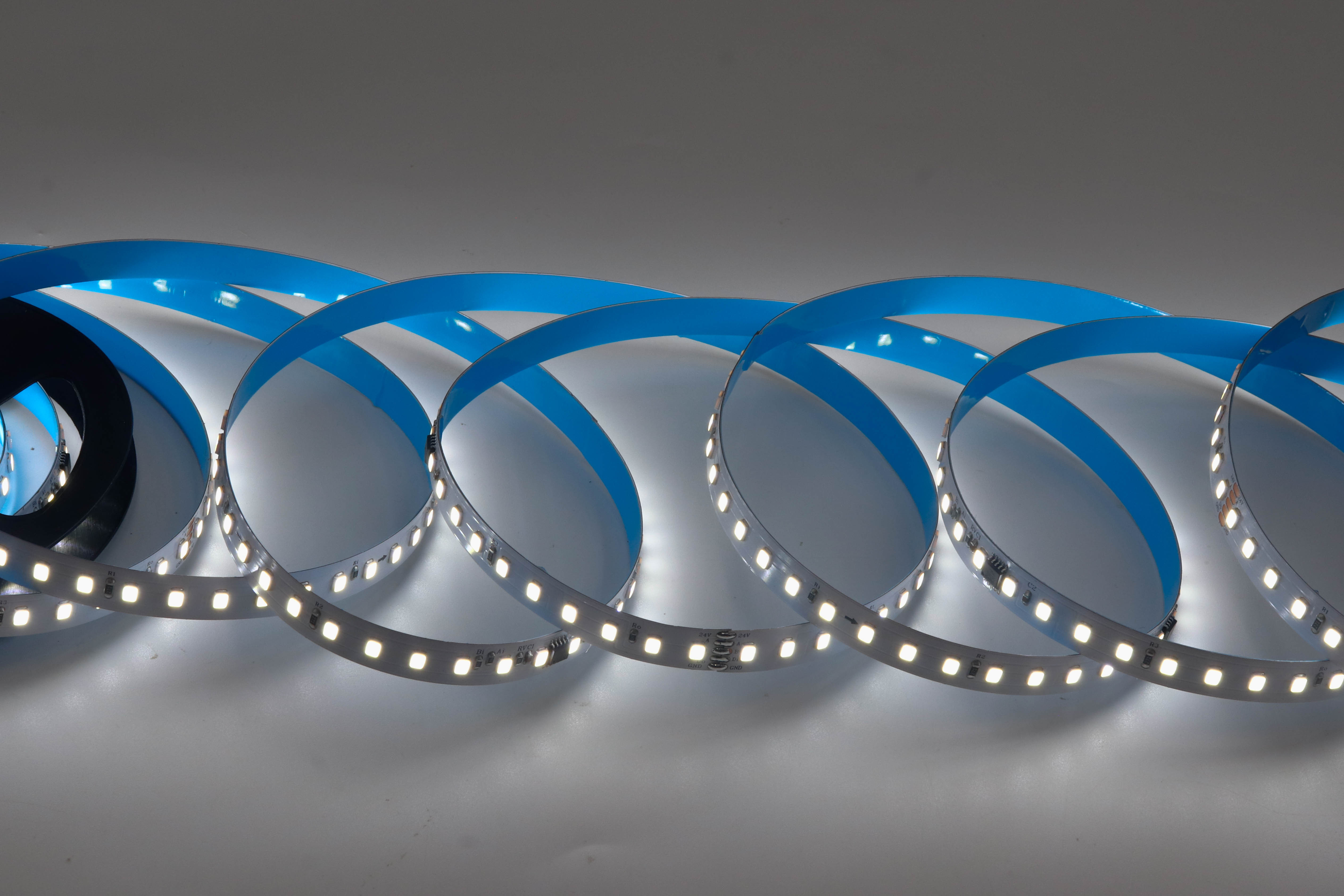

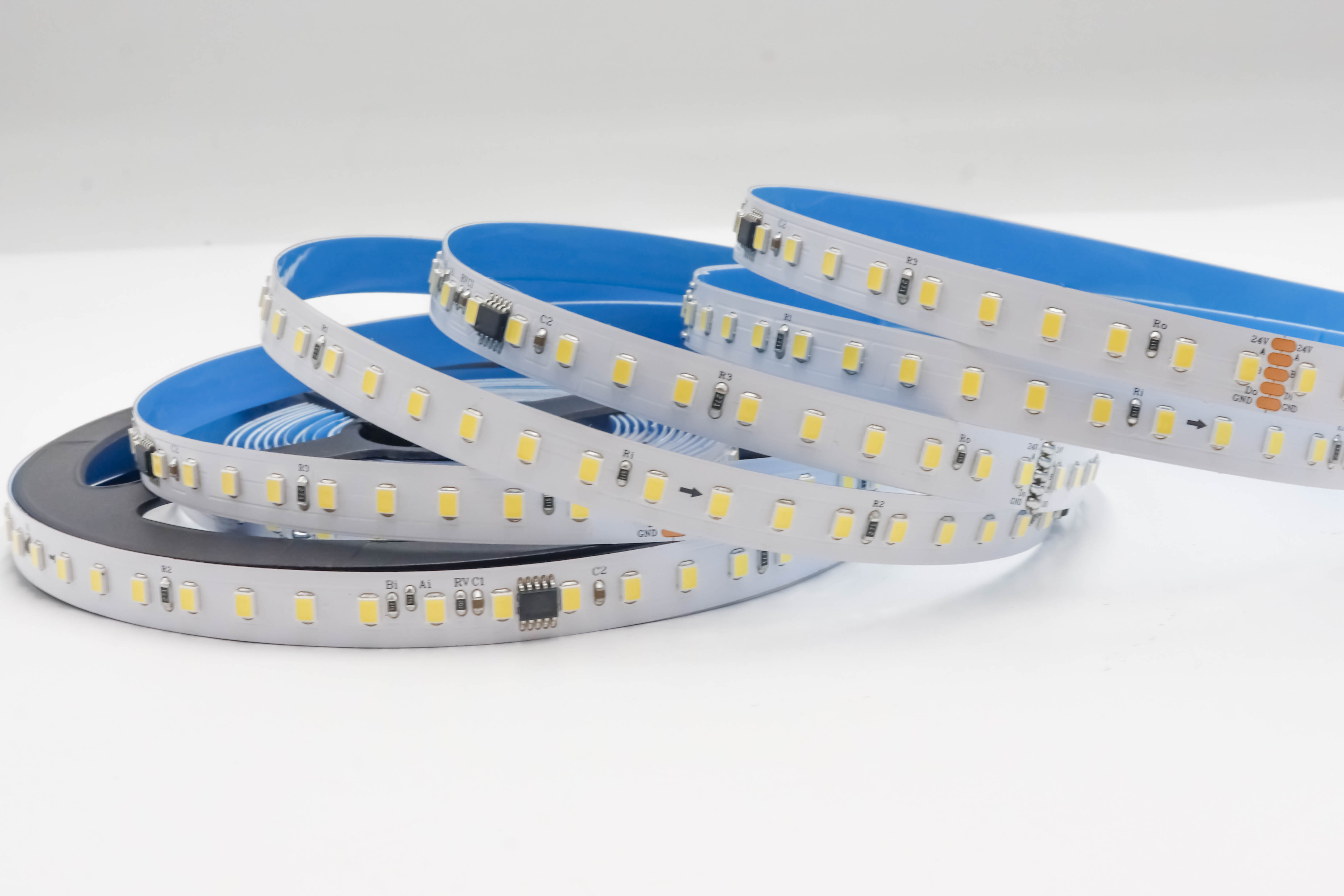

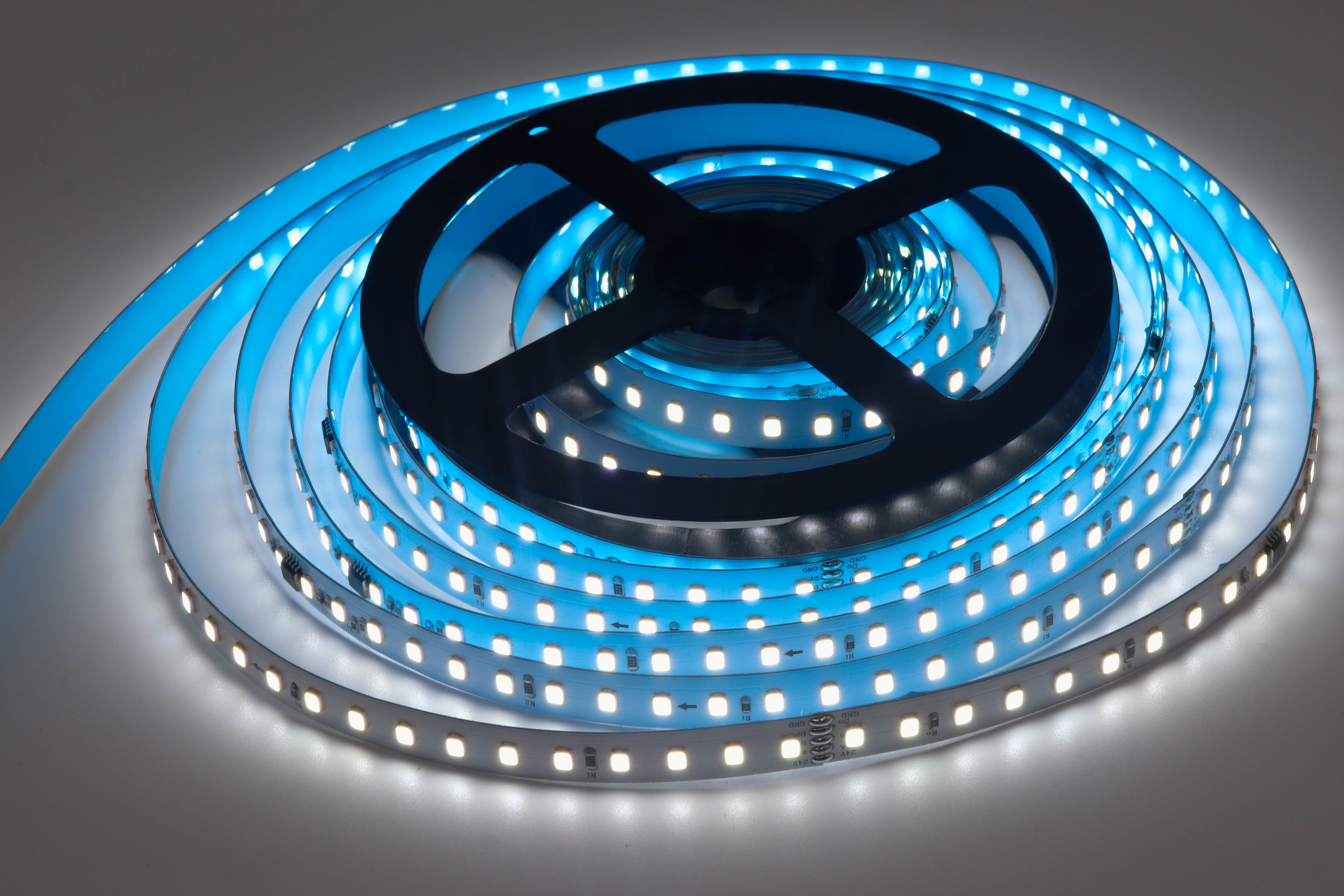

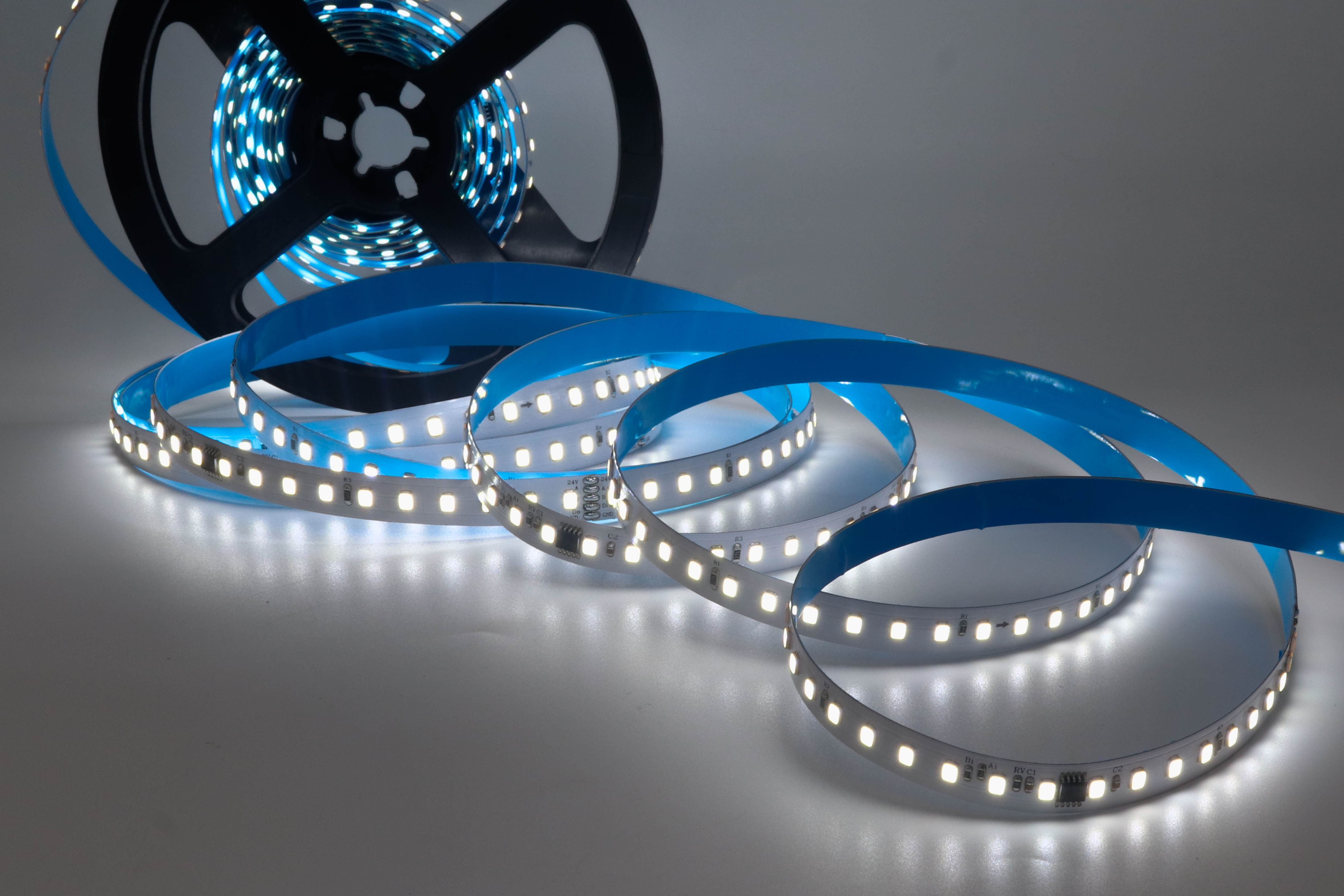

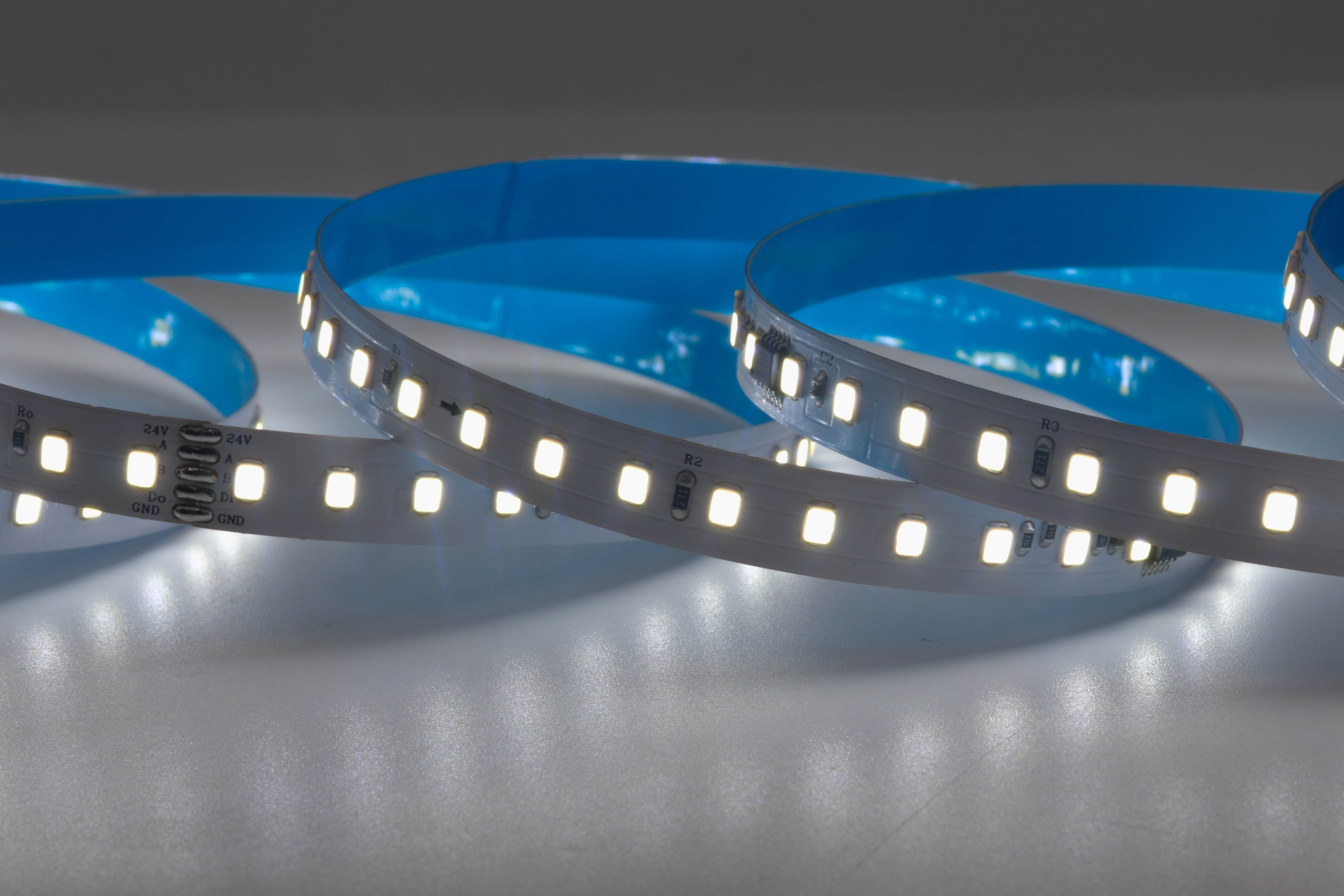

The UCS512H4L 2835 Single Color LED Strip packs 120 high-efficiency 2835 LEDs per meter into 4 independently controllable segments, powered by stable DC24V. Featuring the DMX512-compatible UCS512H4L driver IC, it delivers smooth chase, run, blink and custom single-color effects with excellent grayscale uniformity. Its flexible, cuttable PCB fits curves and custom lengths, making it ideal for architectural contours, channel letters, retail displays and stage decoration. A professional yet easy-to-wire solution for contractors needing reliable DMX control.
4-Segment DMX Control: UCS512H4L IC drives 4 addressable segments/m (30 LEDs/segment) for chase/flow effects.
High-Density 2835 LEDs: 120 LEDs/m deliver bright, uniform single-color light with low glare and low heat.
Stable 24V Operation: DC24V system supports longer runs with less voltage drop and safer low-voltage install.
Cuttable & Flexible: Soft FPC bends to curves and cuts at marked 4-segment units for custom project shapes.
DMX512 Compatible: Works with standard DMX controllers / MADRIX for professional architectural and commercial lighting.
|
Item |
Specification |
|---|---|
|
Model |
UCS512H4L-2835-4S-120-24V |
|
LED Type |
SMD 2835 |
|
LED Qty |
120 LEDs/m |
|
Segment / Pixel |
4 segments per meter (1 IC controls 30 LEDs) |
|
IC Type |
UCS512H4L (external IC, DMX512 protocol) |
|
Color |
Single Color: 3000K / 4000K / 6000K, or R/G/B optional |
|
Voltage |
DC 24V |
|
Power |
approx. 9–12W/m (depends on color bin) |
|
Cutting Unit |
30 LEDs / 4-segment unit |
|
PCB Width |
10mm (8mm/12mm optional) |
|
PCB |
2oz copper, white/black optional |
|
Beam Angle |
120° |
|
Signal |
DMX512, dual-signal optional |
|
IP Rating |
IP20 / IP65 / IP67 optional |
|
Standard Length |
5m/reel |
|
Lifespan |
30,000–50,000 hrs |
|
Certificates |
CE, RoHS |
