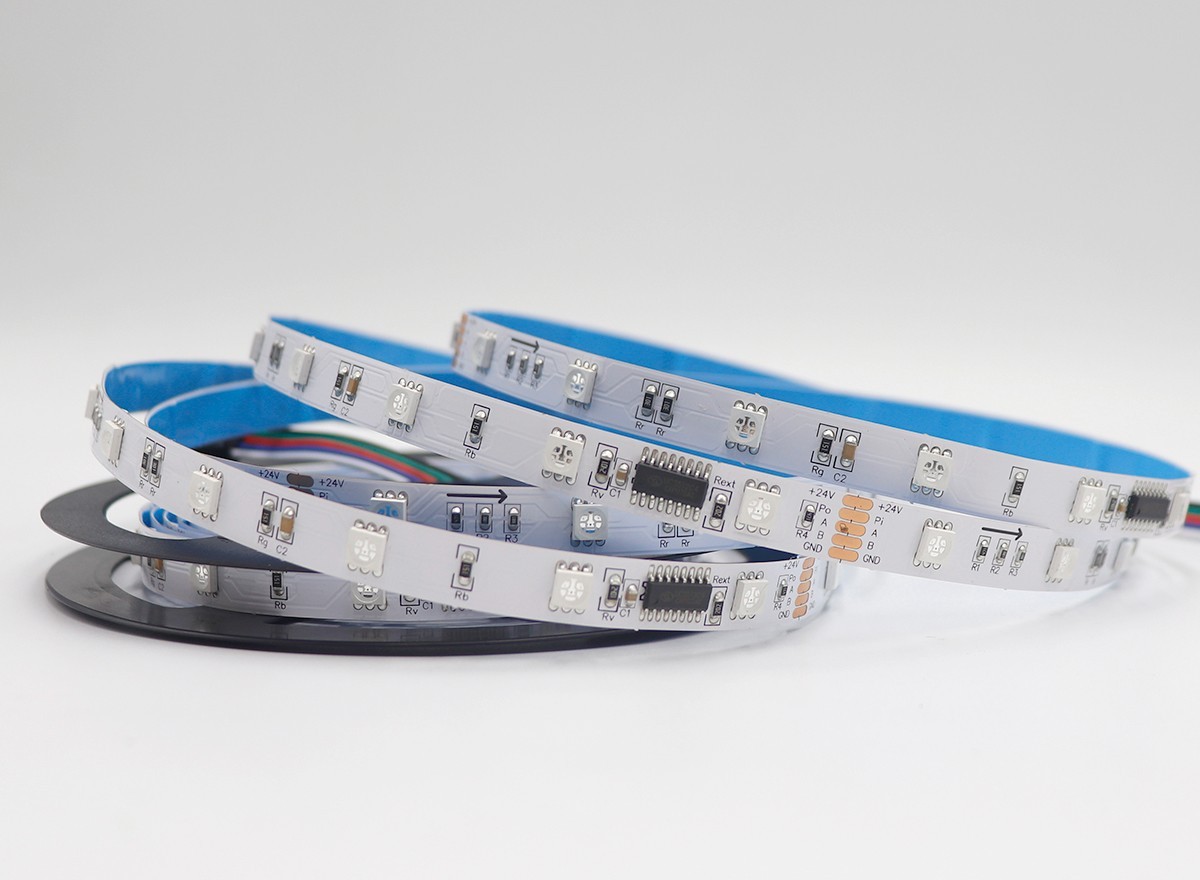

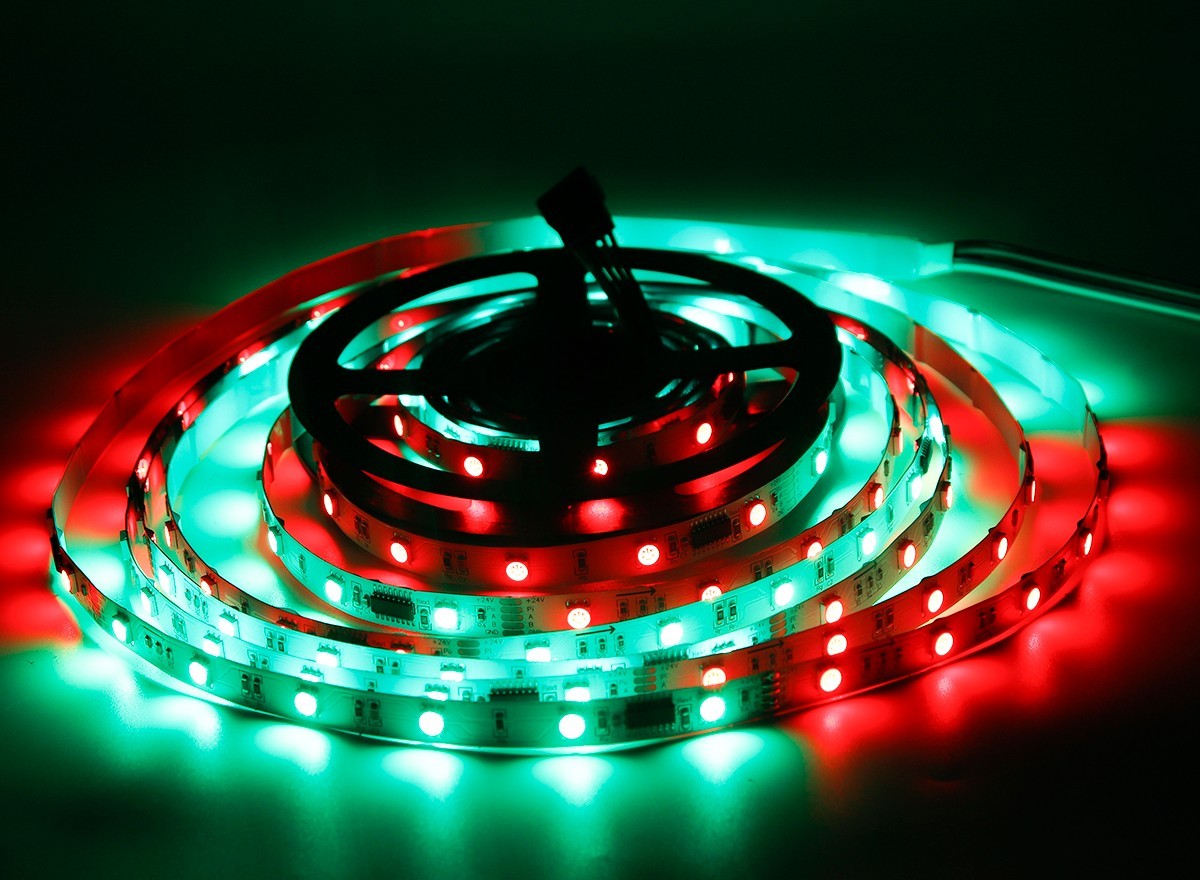

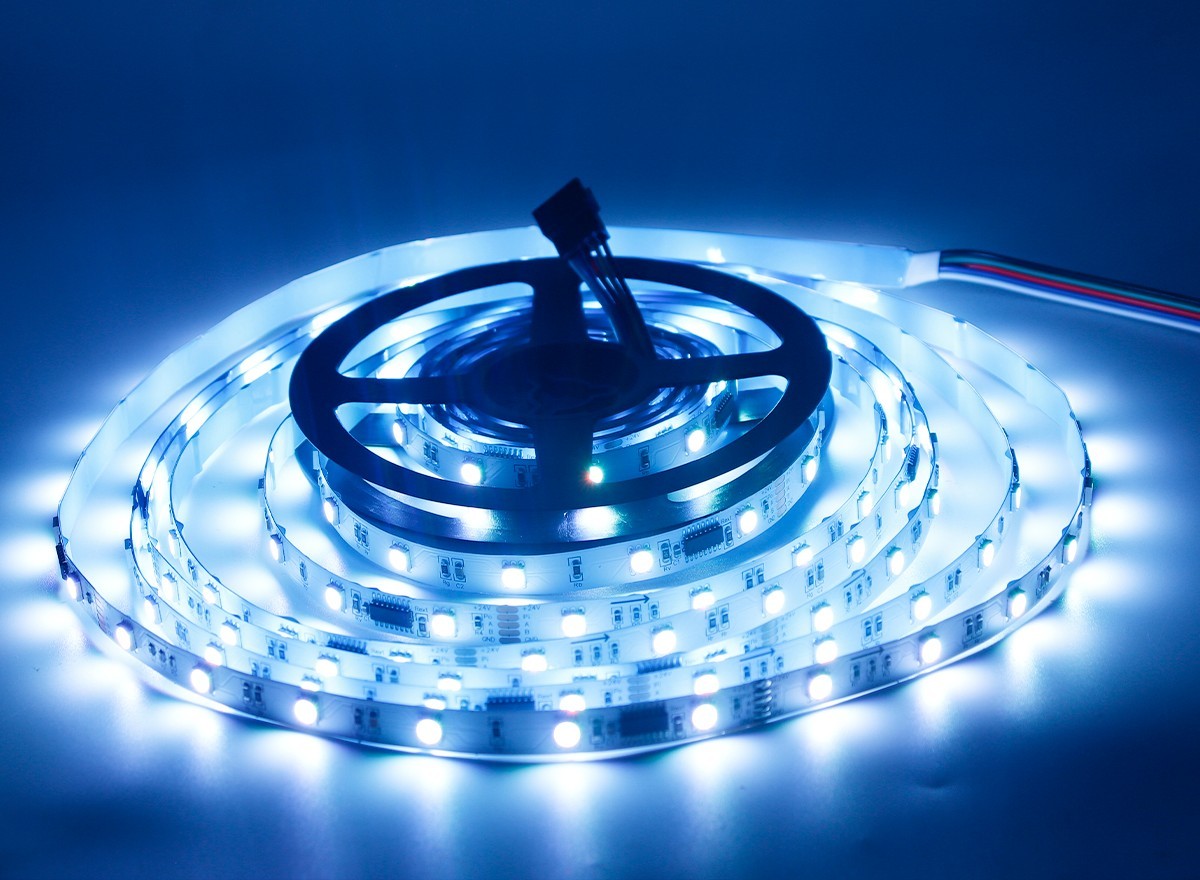

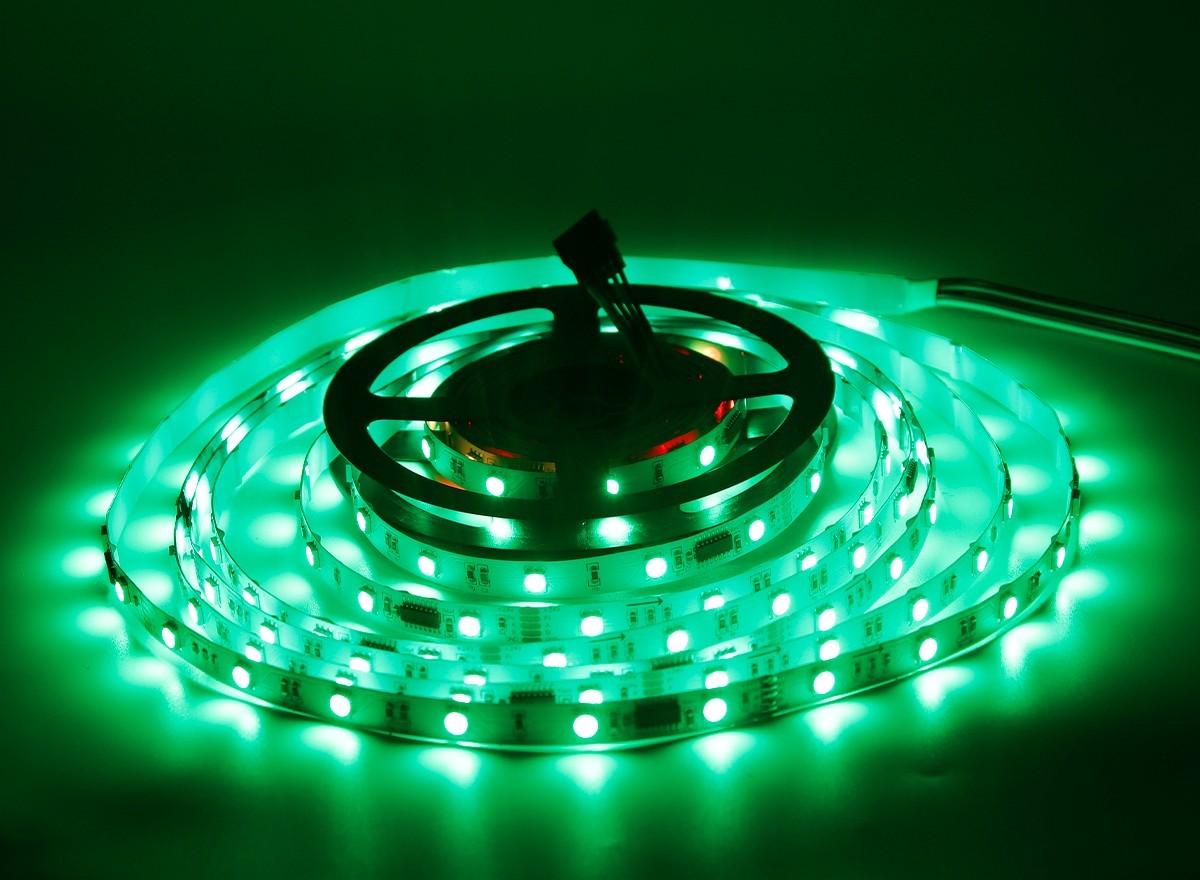

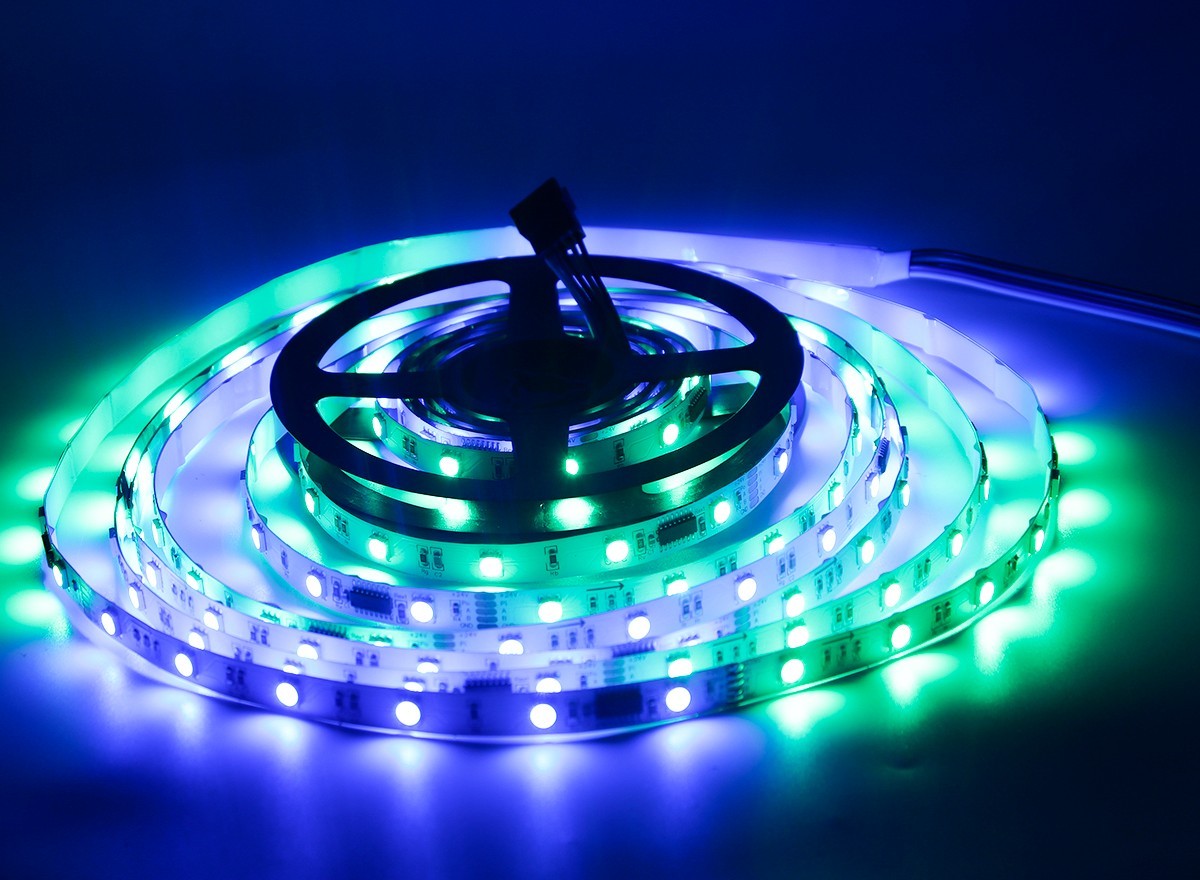

The UCS512C4 5050 RGB LED Strip integrates 36 high-brightness 5050 RGB LEDs per meter with 6 DMX512-addressable pixels on DC24V, built on a 12mm 2oz FPC. Each UCS512C4 IC drives 6 LEDs, enabling chase, flow, gradient and dream-color effects under DMX consoles, Art-Net and MADRIX. Parallel A/B DMX signal provides breakpoint tolerance—if one IC fails, the rest keep running. Cuttable every 166.7mm, low-power and installer-friendly, ideal for building outlines, hotel decor, KTV, bars, signage and retail displays.
DMX512 Pixel Control: 6 addressable pixels/m (1 IC / 6 LEDs) for clean chase, flow and gradient effects.
5050 RGB Brightness: Tri-chip 5050 LEDs deliver vivid full-color output with 120° beam angle.
24V Low Heat: DC24V reduces current and voltage drop; 12mm 2oz copper PCB improves heat dissipation.
Breakpoint Tolerant: Differential A/B DMX bus; one pixel/IC fault does not stop the whole strip.
Cut Every 166.7mm: Large pixel pitch, easy addressing and lower DMX channel count for big projects.
|
Item |
Specification |
|---|---|
|
Model |
UCS512C4-5050RGB-36D-24V-12mm |
|
LED Type |
SMD 5050 RGB (3-in-1) |
|
LED Qty |
36 LEDs/m |
|
Pixel / IC |
6 pixels/m, 1 UCS512C4 controls 6 LEDs |
|
IC Type |
UCS512C4, DMX512 protocol, 3-channel constant-current |
|
Color |
Full RGB |
|
Input Voltage |
DC 24V |
|
Power |
8.4 W/m |
|
Grayscale |
256 levels/channel |
|
DMX Channels |
18 ch/m (6 pixels × 3) |
|
Cutting Unit |
166.7 mm / 6 LEDs |
|
PCB Width |
12 mm |
|
PCB |
2 oz copper, white/black optional |
|
Beam Angle |
120° |
|
Signal Lines |
24V+, GND, A (DMX+), B (DMX-), PI (address write) |
|
Control |
DMX512 / Art-Net / MADRIX (address writing required) |
|
IP Rating |
IP20 / IP65 / IP67 / IP68 optional |
|
Reel Length |
5 m |
|
Working Temp. |
-25°C to +80°C |
|
Lifespan |
30,000–50,000 hrs |
|
Certificates |
CE, RoHS |
