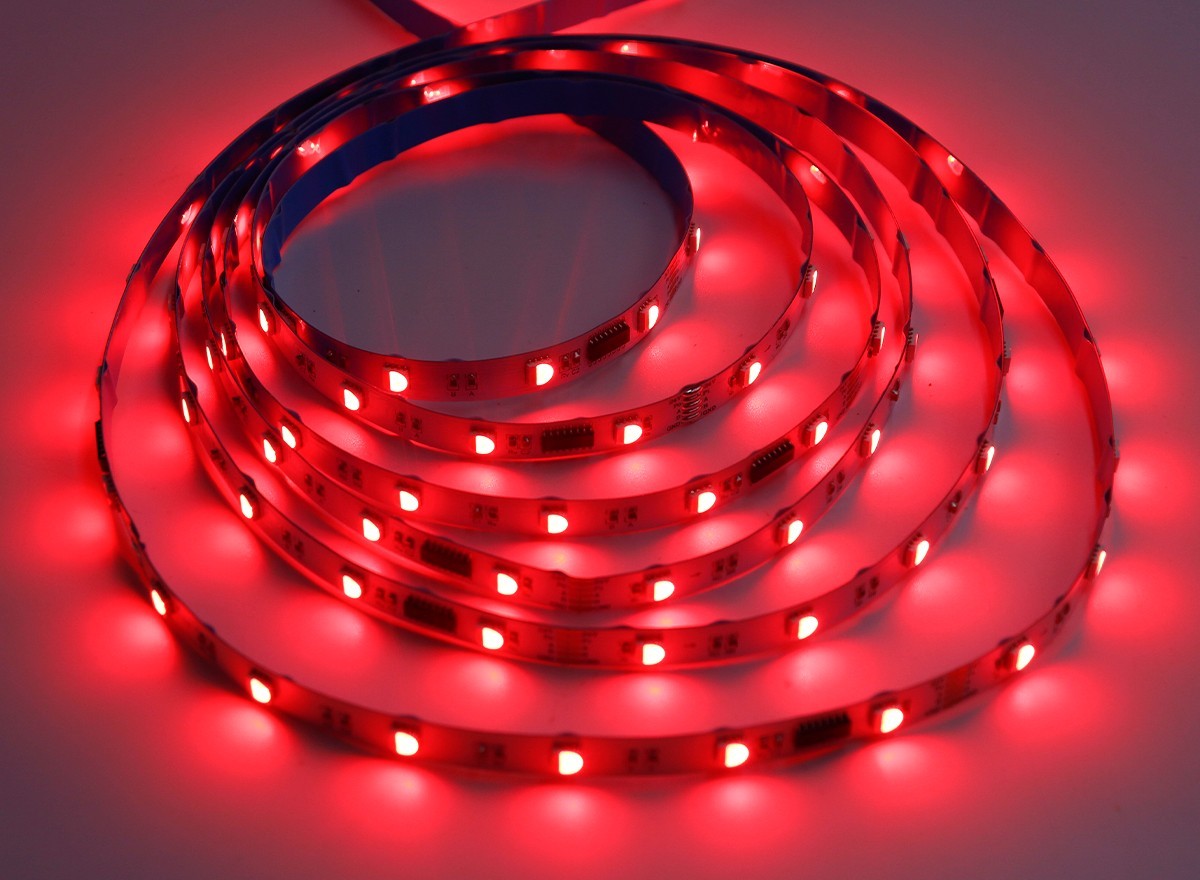

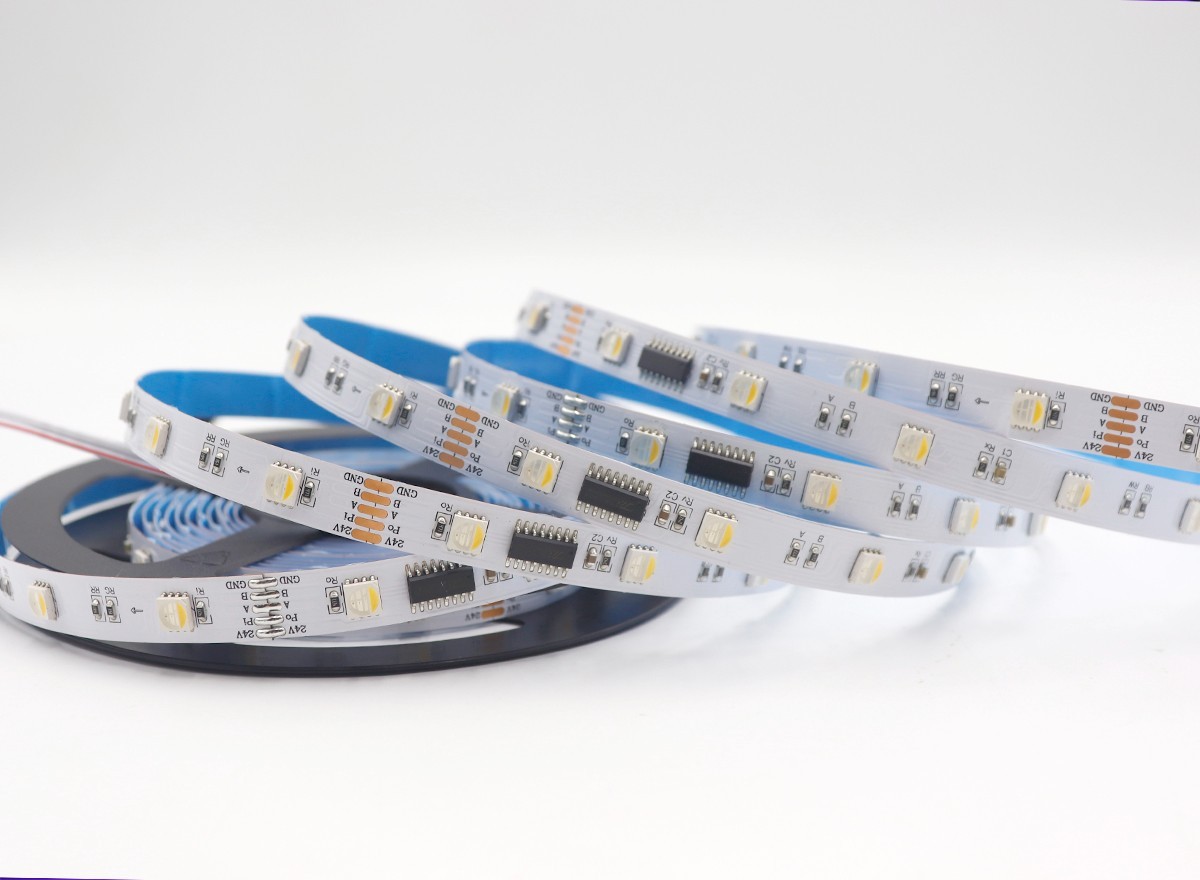

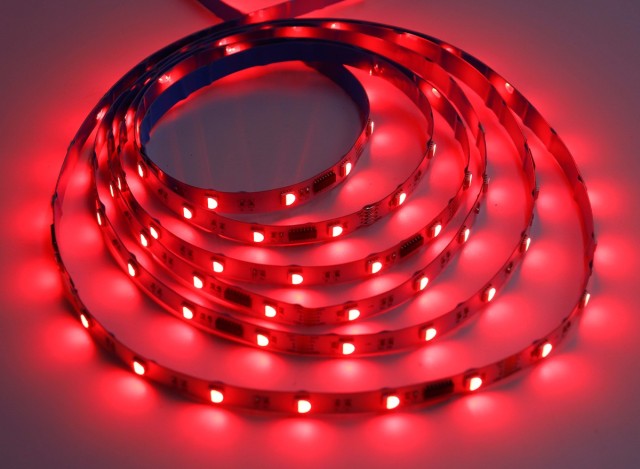

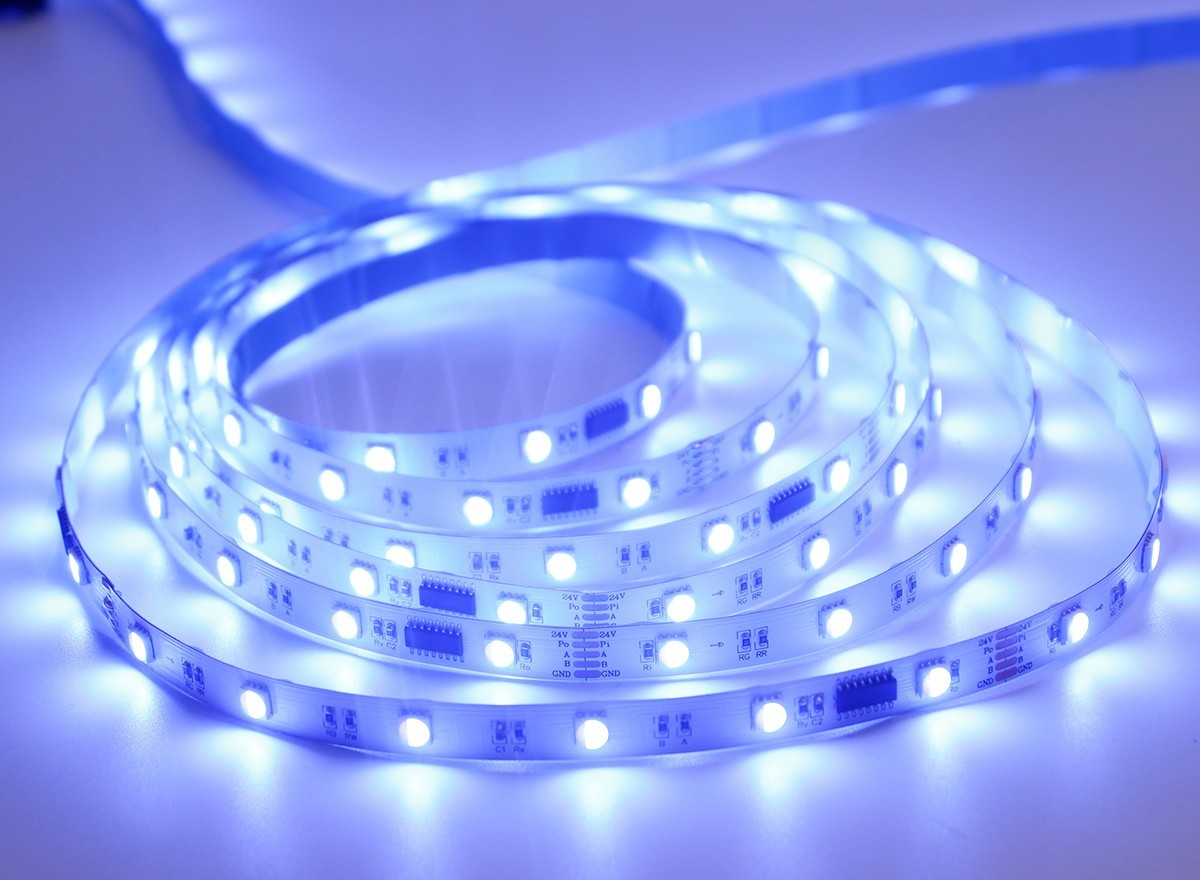

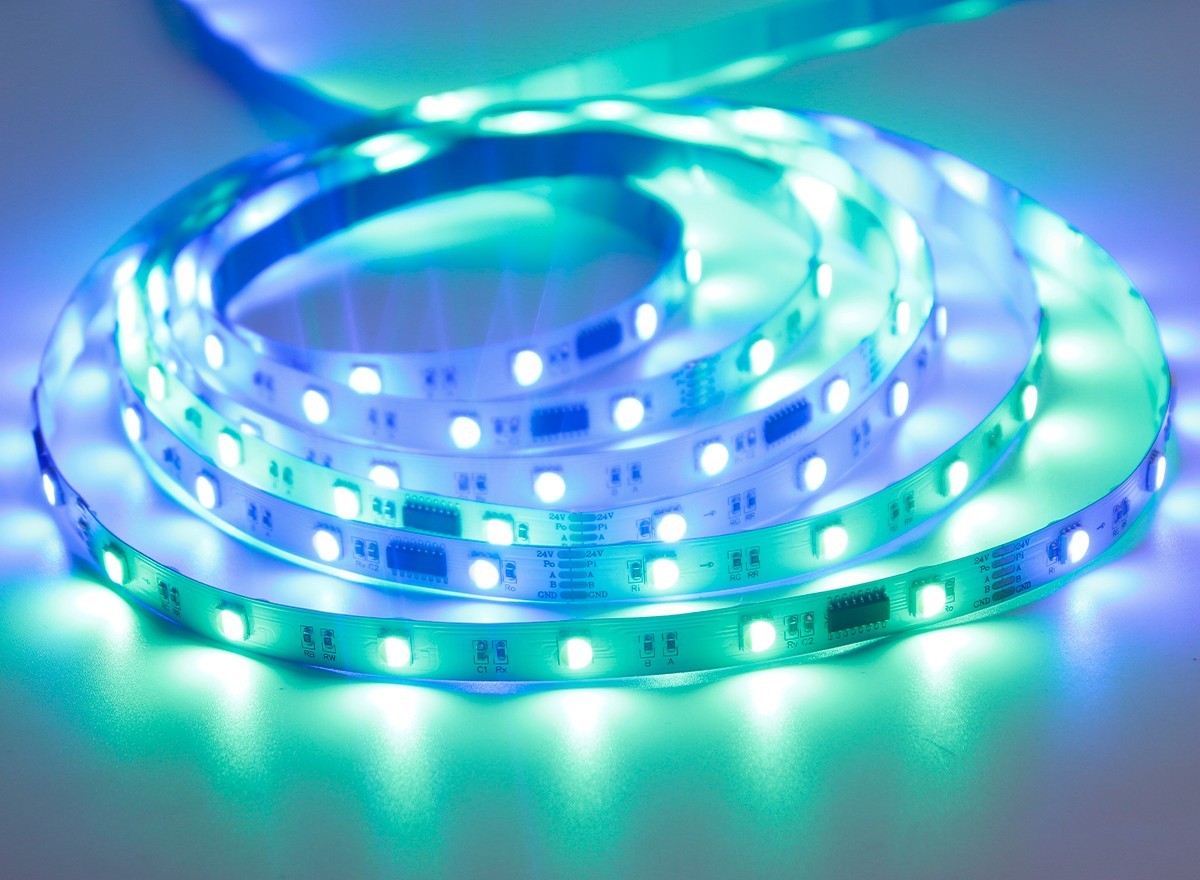

The TM512AC 5050 RGBW LED Strip integrates 36 quad-chip 5050 RGBW LEDs per meter with 6 DMX512-addressable pixels on DC24V. Each TM512AC IC drives 6 LEDs and supports 16-bit grayscale with 2.2 gamma correction for smoother dimming than 8-bit DMX strips. Parallel A/B DMX signal gives breakpoint continuity—if one IC fails, other pixels keep running. Cuttable every 166.7mm, low-power and pro-grade, ideal for building outlines, hotels, bars, retail displays and architectural accent lighting under DMX / Art-Net / MADRIX.
True RGBW Pixels: 6 pixels/m with independent R/G/B/W channels for richer color and real white light.
TM512AC 16-bit Quality: 65536 grayscale + gamma 2.2, smoother fades than UCS512C4 8-bit strips.

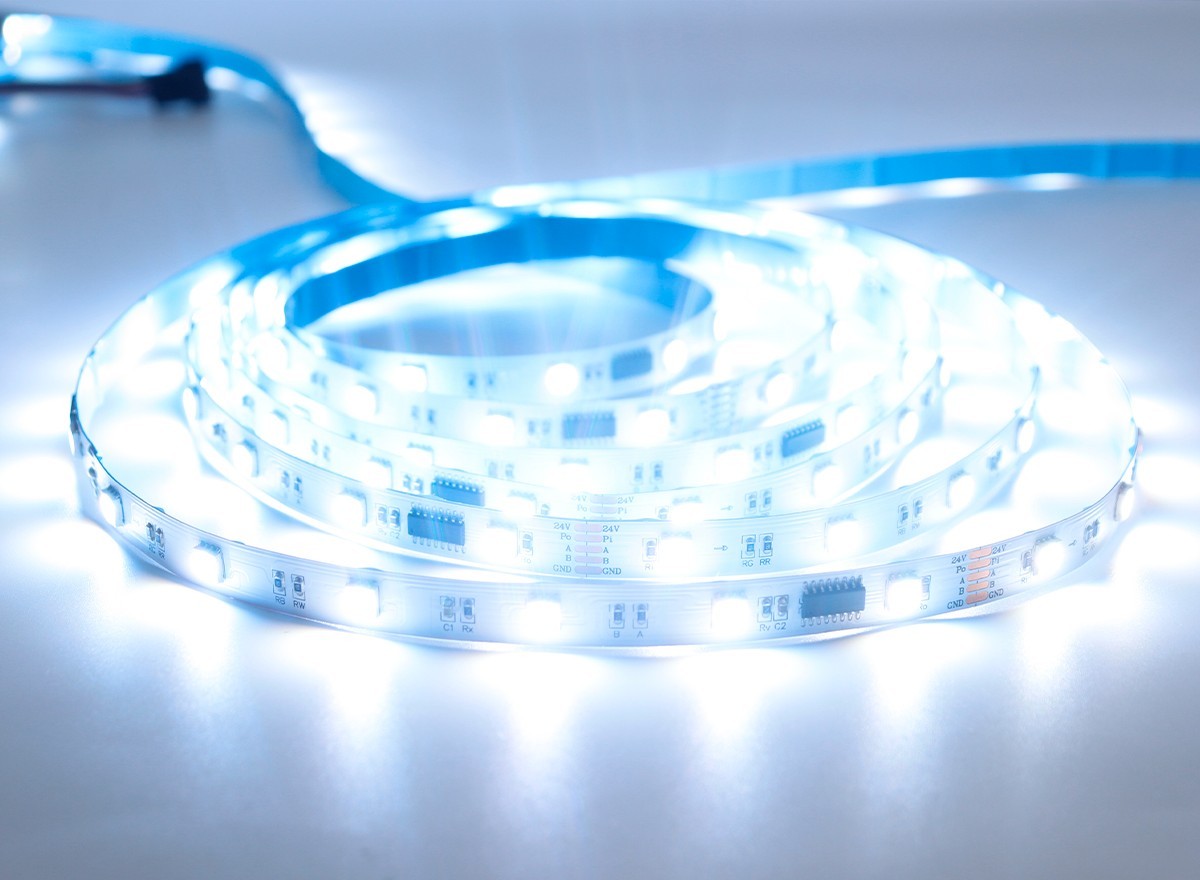

24V DMX512 Parallel Bus: A/B differential signal, breakpoint continuous; one IC fault does not break the run.
Low Power 36 LEDs/m: ~8.6W/m, easy DMX channel mapping, good for large facade and contour projects.
Cut Every 166.7mm: 6 LEDs/pixel, 10/12mm FPC, works with DMX console, Art-Net, MADRIX and DMX address writer.
|
Item |
Specification |
|---|---|
|
Model |
TM512AC-5050RGBW-36D-24V |
|
LED Type |
SMD 5050 RGBW (4-in-1) |
|
LED Qty |
36 LEDs/m |
|
Pixel / IC |
6 pixels/m, 1 TM512AC controls 6 LEDs |
|
IC Type |
TM512AC, DMX512 protocol, 4-channel constant-current |
|
Color Resolution |
16-bit / 65536 gray levels, gamma 2.2 |
|
Color |
RGB + 2700K / 3000K / 4000K / 6000K white |
|
Input Voltage |
DC 24V |
|
Power |
8.64 W/m |
|
DMX Channels |
18 ch/m (6 pixels × 4) |
|
Cutting Unit |
166.7 mm / 6 LEDs |
|
PCB Width |
10mm / 12mm optional |
|
PCB |
2oz copper, white/black optional |
|
Beam Angle |
120° |
|
Signal Lines |

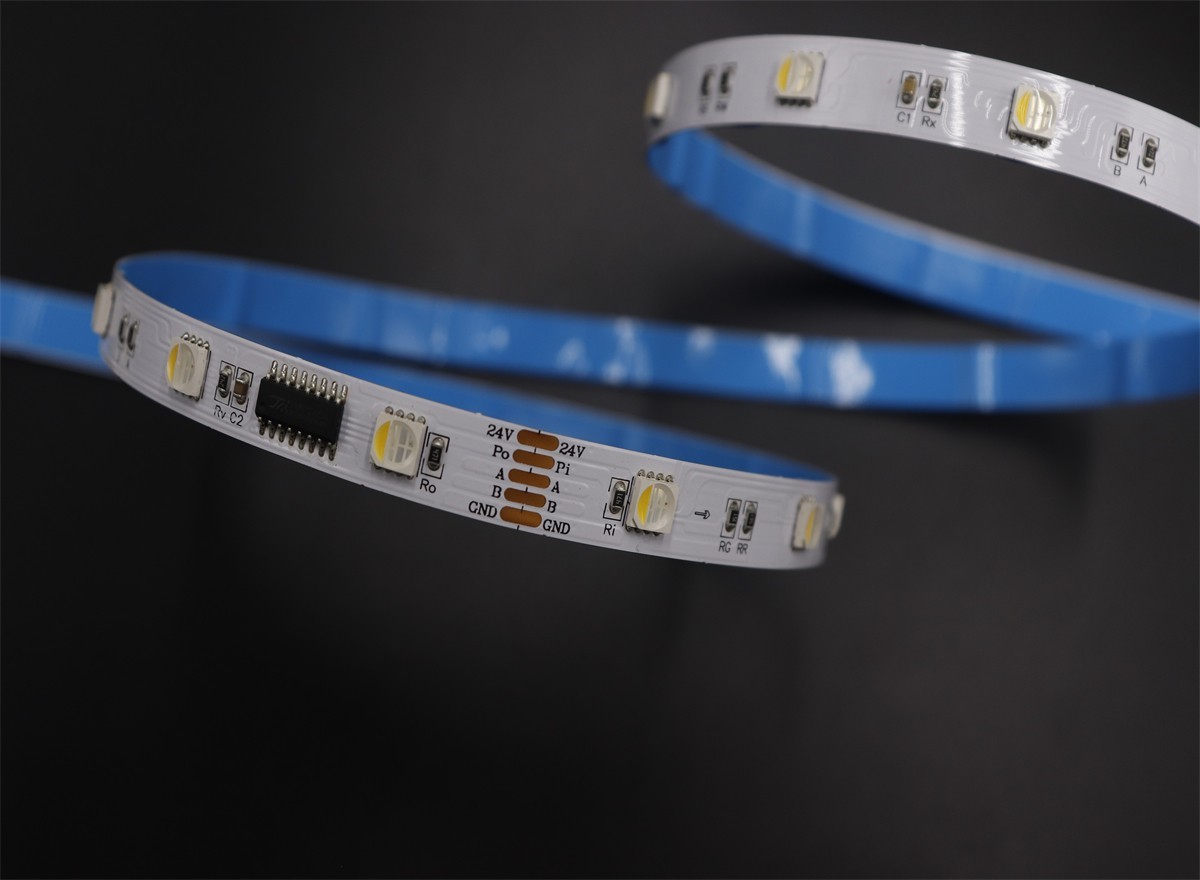

24V+, GND, A (DMX+), B (DMX-), PI/PO (address write) |
|
Control |
DMX512 / Art-Net / MADRIX (address writing required) |
|
Data Rate |
200–1000 kbps |
|
IP Rating |
IP20 / IP65 / IP67 / IP68 optional |
|
Reel Length |
5 m |
|
Working Temp. |
-25°C to +80°C |
|
Lifespan |
30,000–50,000 hrs |
|
Certificates |
CE, RoHS |
