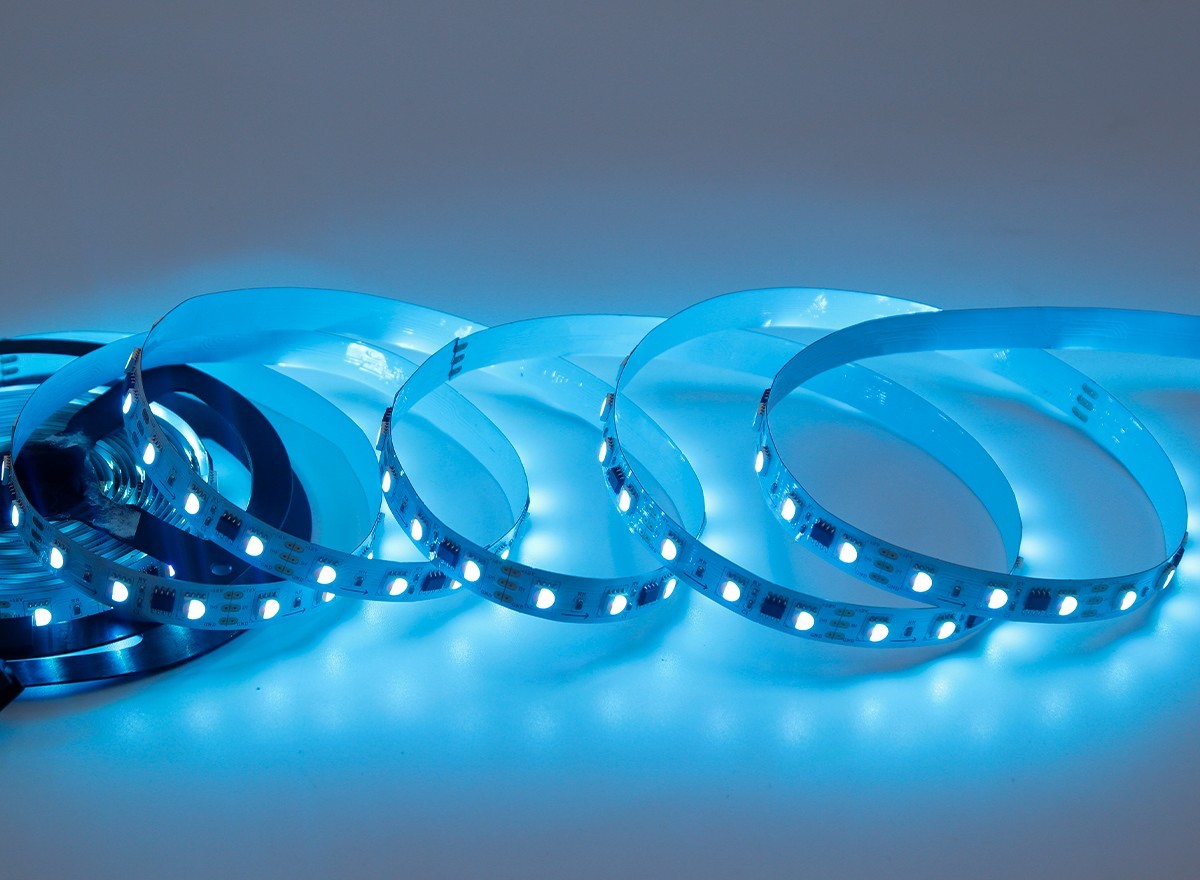

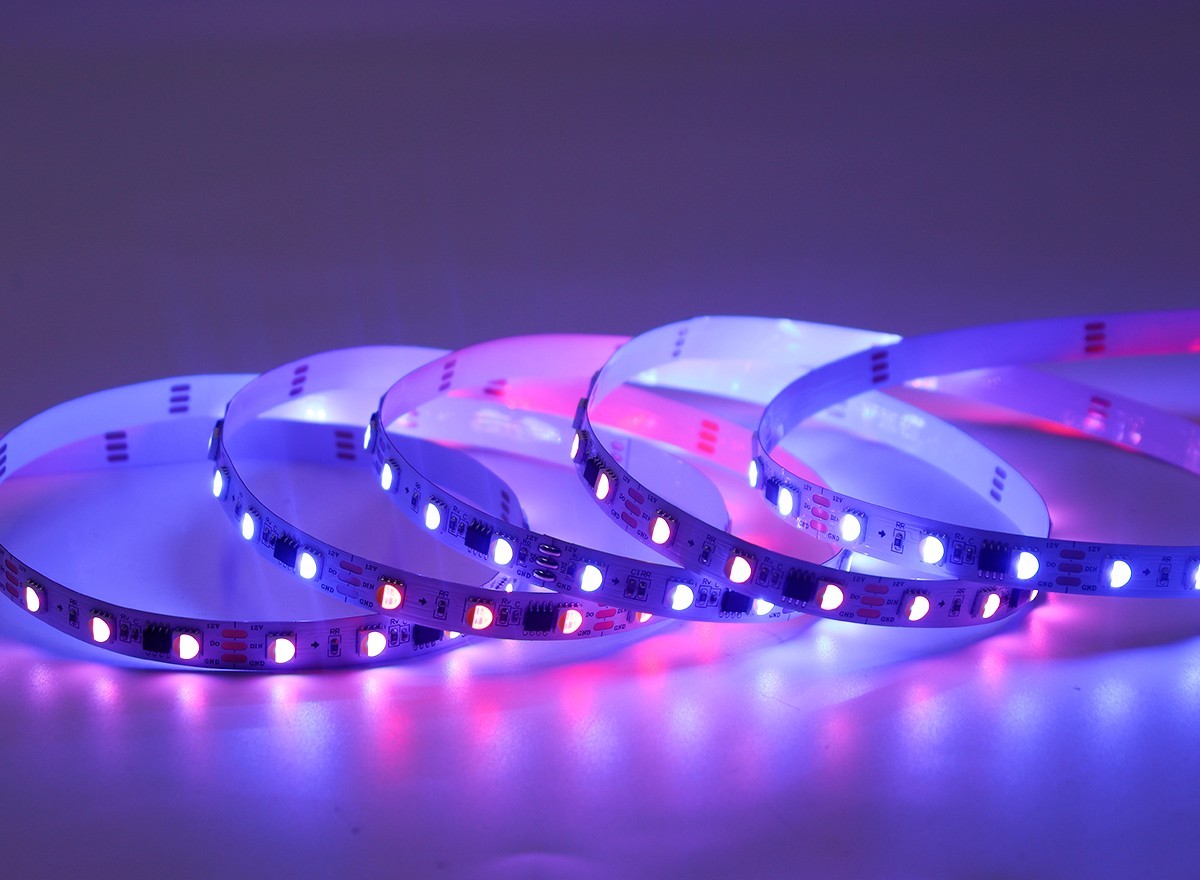

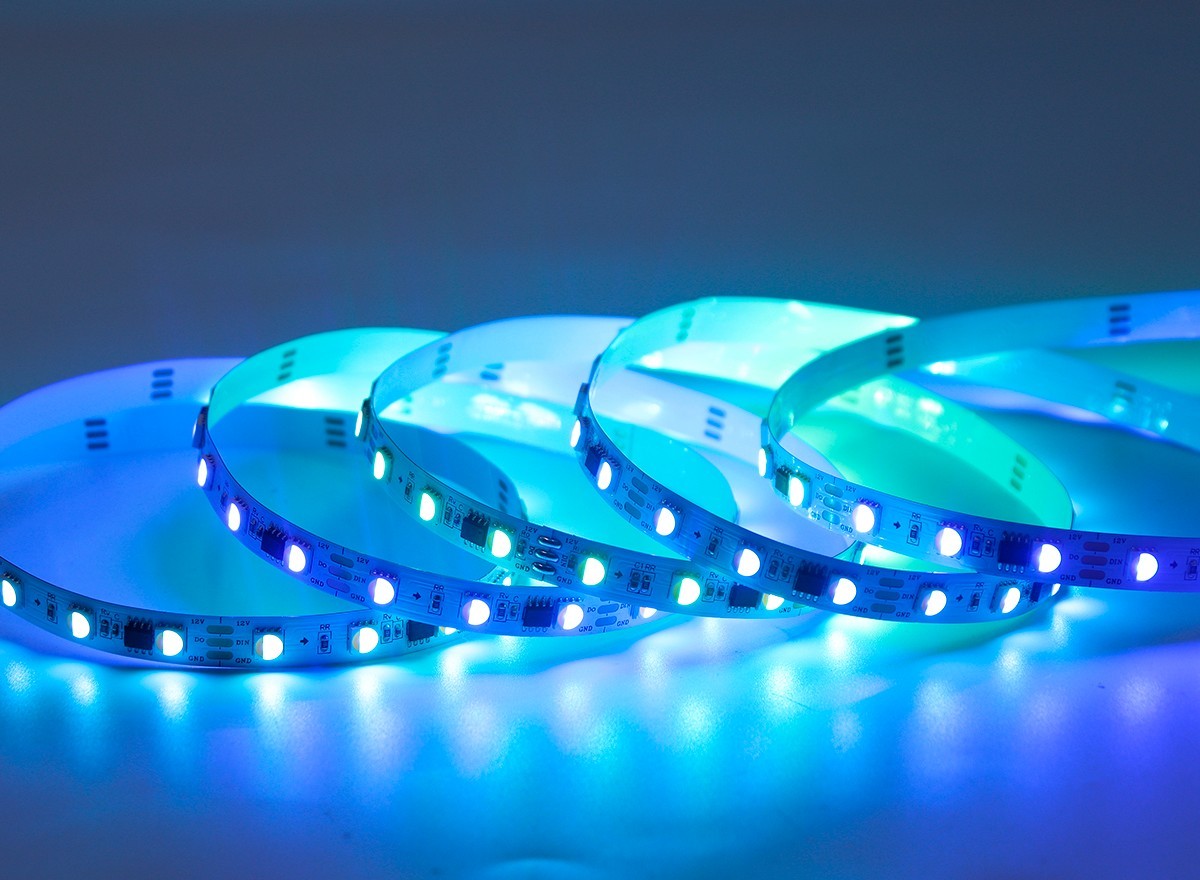

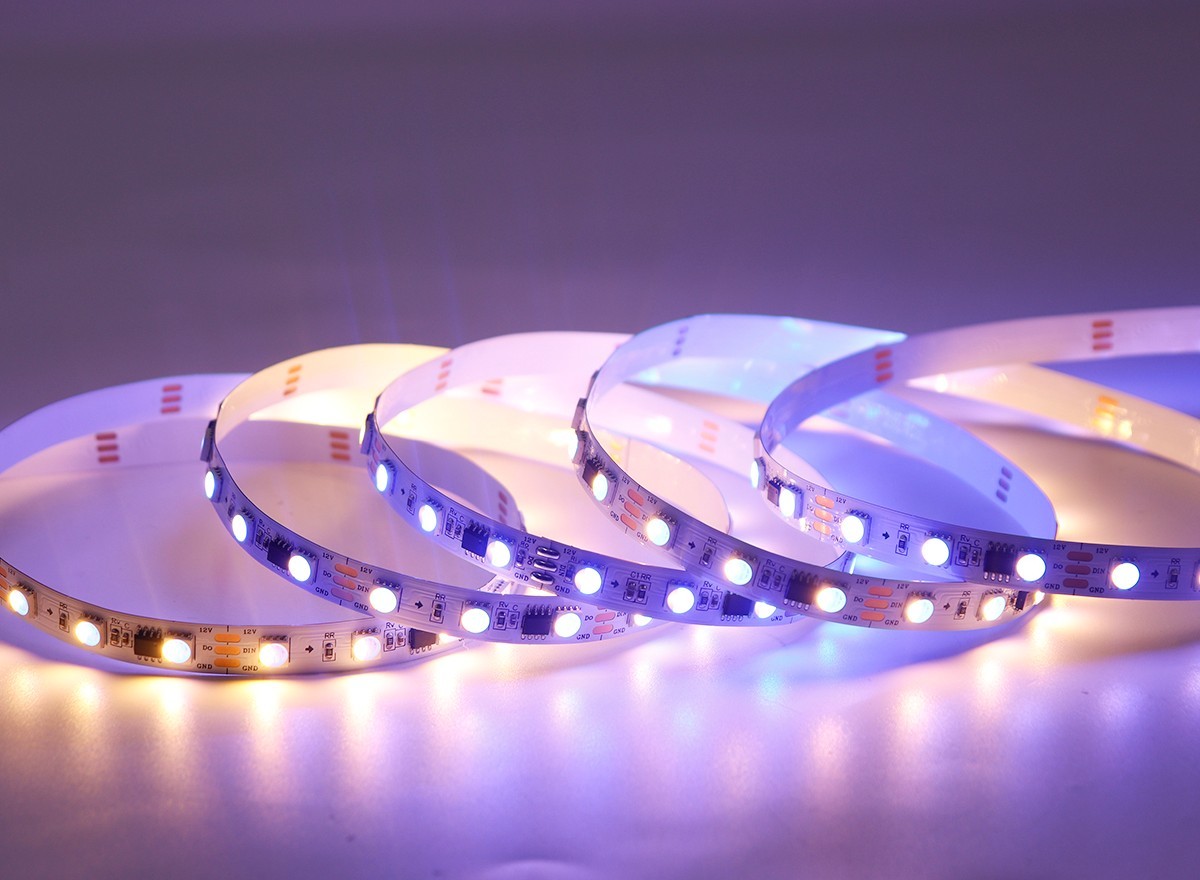

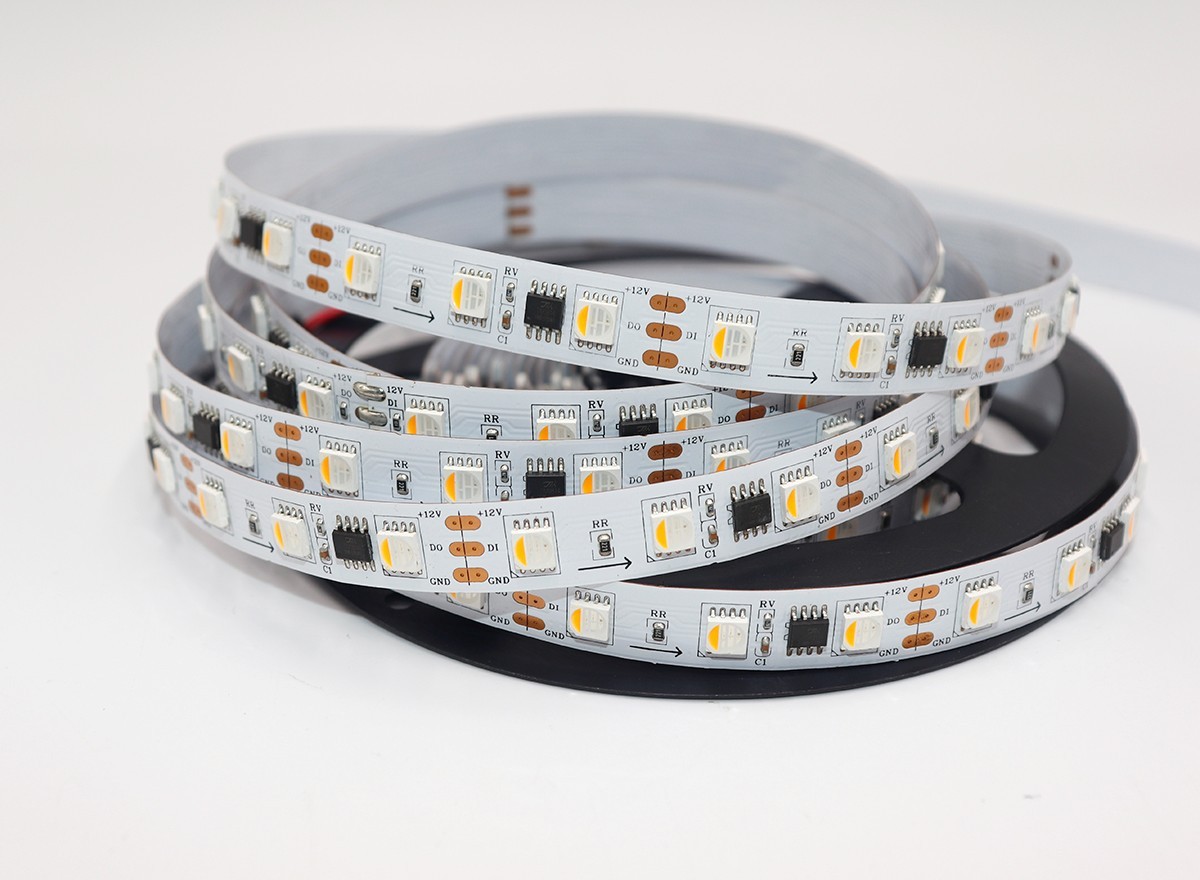

Higher Pixel Density: 20 pixels/m (1 IC / 3 LEDs) enables smoother chasing, gradient and text/logo effects vs 24V 10-pixel version.
True RGBW White: 5050 4-in-1 chip delivers pure white, not RGB-mixed white; WW/CW selectable.
TM1814 External IC: Single-data-line SPI/TTL, 256-level grayscale, 800kbps, stable cascade for mid-size pixel projects.
12V + 10mm Slim PCB: Safer low voltage, easy to power in short runs; narrow FPC fits profiles, shelves, letters and coves.
Cut Every 50mm: Fine customization without losing pixels; IP20/IP65/IP67 options, 50,000h lifespan, CE/RoHS.
|
Parameter |
Specification |
|---|---|
|
Model |
TM1814-5050RGBW-60D-12V-10mm |
|
LED Type |
SMD 5050 RGBW (4-in-1) |
|
IC Type |
TM1814 (external IC, 4-channel) |
|
Voltage |
DC 12V |
|
LEDs/m |
60 LEDs/m |
|
IC / Pixel |
20 ICs/m, 20 pixels/m |
|
Control Unit |
1 IC controls 3 LEDs |
|
Cutting Unit |
Every 3 LEDs / 50 mm |
|
Power |
14.4 W/m typical, up to 18–19.2 W/m |
|
Channels |
R / G / B / W |
|
White Option |
3000K WW / 6000K CW |
|
Grayscale |
256 levels/channel |
|
Data Rate |
800 kbps, single-line SPI/TTL |
|
PWM |
~2 kHz |
|
PCB Width |
10 mm |
|
PCB Color |
White / Black |
|
Roll Length |
5 m/reel |
|
Beam Angle |
120° |
|
CRI |
Ra ≥ 80, Ra ≥ 90 optional |
|
IP Rating |
IP20 / IP65 / IP67 / IP68 |
|
Life |
30,000–50,000 h |
|
Cert. |
CE / RoHS |
|
Wiring |
VCC / DAT / GND (3-wire) |
