The built-in 4.3-inch touch screen allows quick parameter setup without a PC. Choose from standard DMX512, extended DMX, or breakpoint resume modes to match your fixture type. With SD card auto-play, Wi-Fi/Bluetooth APP control, and multi-unit synchronization via GPS or 4G (optional), the SY-418 delivers unmatched flexibility for commercial lighting projects. Compact yet powerful, it’s the ideal brain for dream-color LED installations.
8-Channel Independent Output: Drives 8 TTL + 8 RS485 channels simultaneously; each port supports 1024 pixels (SPI) or 168–336 pixels (DMX), ideal for large-scale layouts.
Universal IC Compatibility: Works seamlessly with WS2811, WS2812B, SK6812, TM1812, UCS1903, SM series, and standard DMX512 fixtures—no need for multiple controllers.
Dual Control Modes: Run offline via SD card for auto-play effects, or switch to online mode with DMX512 console, PC software, or Wi-Fi/Bluetooth APP for real-time control.
Smart Features & Sync: Built-in 4.3" touch screen, music-triggered effects, timed scheduling, and multi-controller synchronization through GPS/4G (optional) for coordinated shows.
Robust & Scalable: AC 100–240V input, industrial-grade design, and daisy-chain capability make it perfect for KTV, stage, façade, and pixel screen applications.
|
Item |
Specification |
|---|---|
|
Model |
SY-418 |
|
Input Voltage |
AC 100–240V, 50/60Hz |
|
Output Ports |
8 × TTL (3-pin) + 8 × RS485 (3-pin) |
|
Control Protocols |
TTL SPI, RS485, Standard DMX512, Extended DMX, Breakpoint Resume |
|
Supported IC Chips |
WS2811, WS2812B, SK6812, TM1804/1812, UCS1903/2903/2904, SM series, DMX512 |
|
Pixels per Port |
SPI: 1024 pts; SW: 960 pts; DMX512: 168 pts; Extended DMX: 336 pts |
|
Control Modes |
Offline (SD card), Online (DMX IN), PC Software, Wi-Fi/Bluetooth APP, Sound Control |
|
Display |
4.3-inch Capacitive Touch Screen |
|
Synchronization |
RS485 / Network / GPS / 4G (optional) |
|

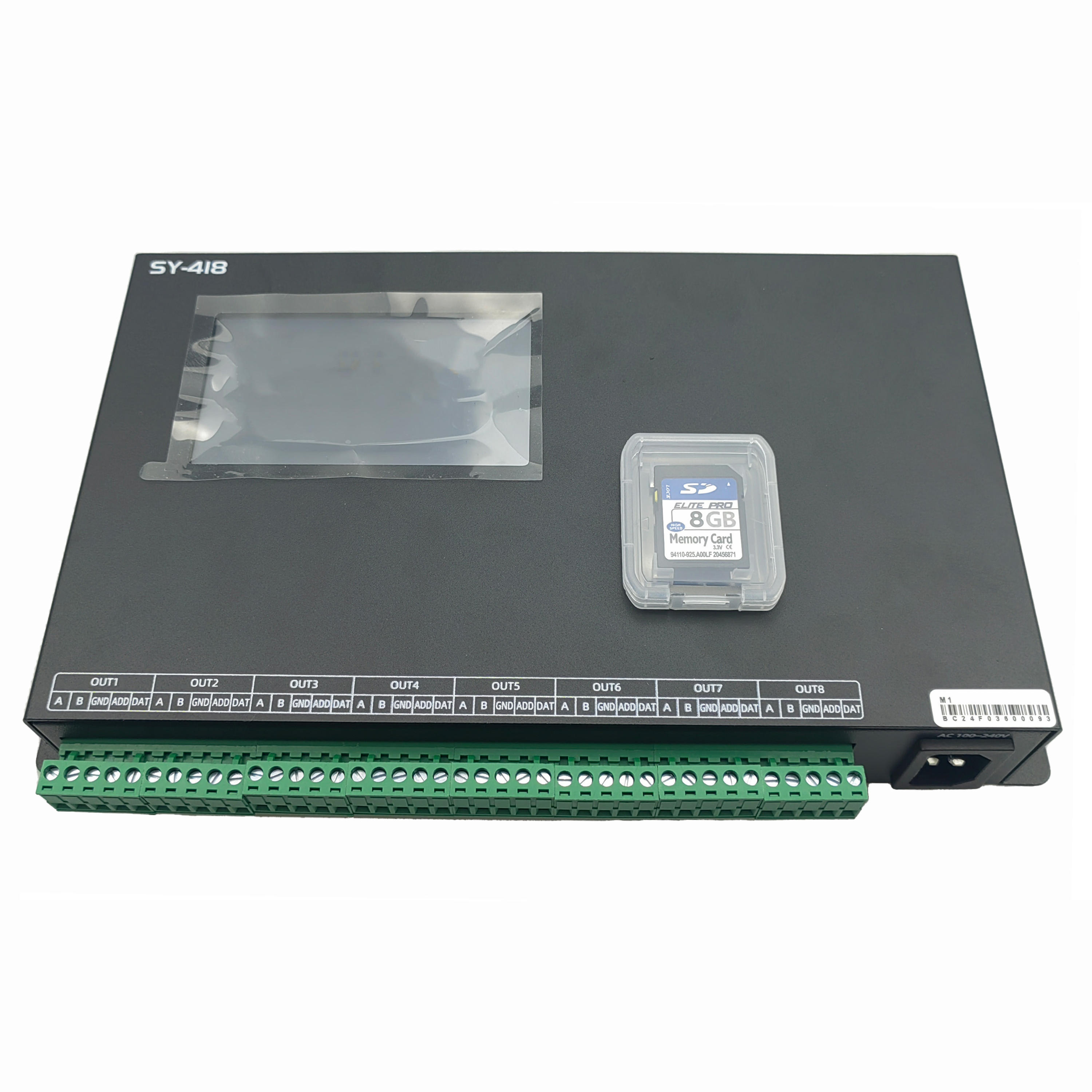

Storage |
SD Card (FAT32, max 32GB) for effect files |
|
Power Consumption |
< 3W (controller only, excluding LED load) |
|
Dimensions |
285 × 156 × 45 mm |
|
Weight |
Approx. 1.8 kg |
|
Protection Rating |
IP20 (indoor use; outdoor requires waterproof enclosure) |
|
Operating Temp. |
-20°C to 60°C |
|
Certifications |
CE / RoHS (upon request) |
|
Applications |
KTV, stage lighting, pixel LED strips, point light sources, linear lights, wall washing, digital façade, LED screens |
