A top on/off key, 8 scene buttons, page keys, and color faders adjust brightness, speed, and hue instantly. Fits a standard 86mm back box—ideal for hotels, villas, bars, and architectural spaces.

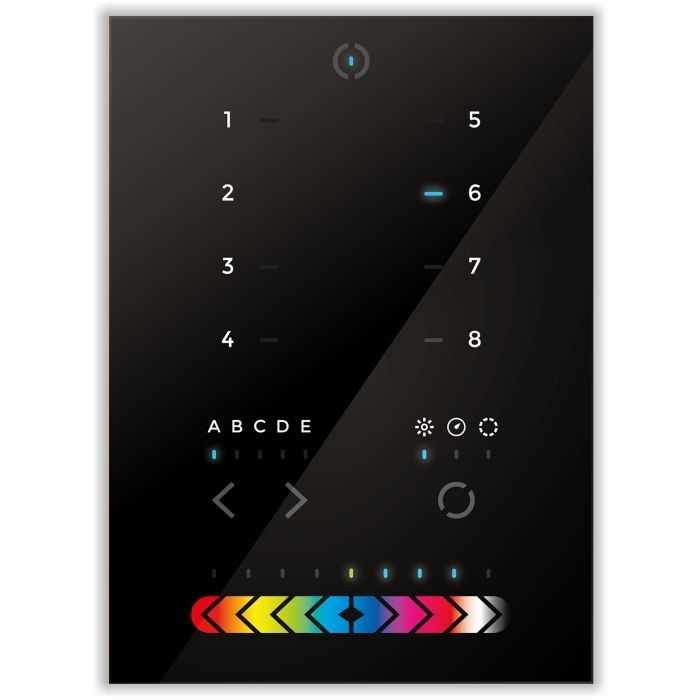

Glass Touch Panel, 86 Box Ready: Elegant tempered-glass faceplate mounts in a standard 86mm wall box—blends into high-end interiors while giving guests tactile lighting control.
200 Scenes in 25 Pages: 8 numbered keys + 2 page keys deliver 25×8 = 200 recallable scenes; color faders adjust brightness, speed, and color in real time.

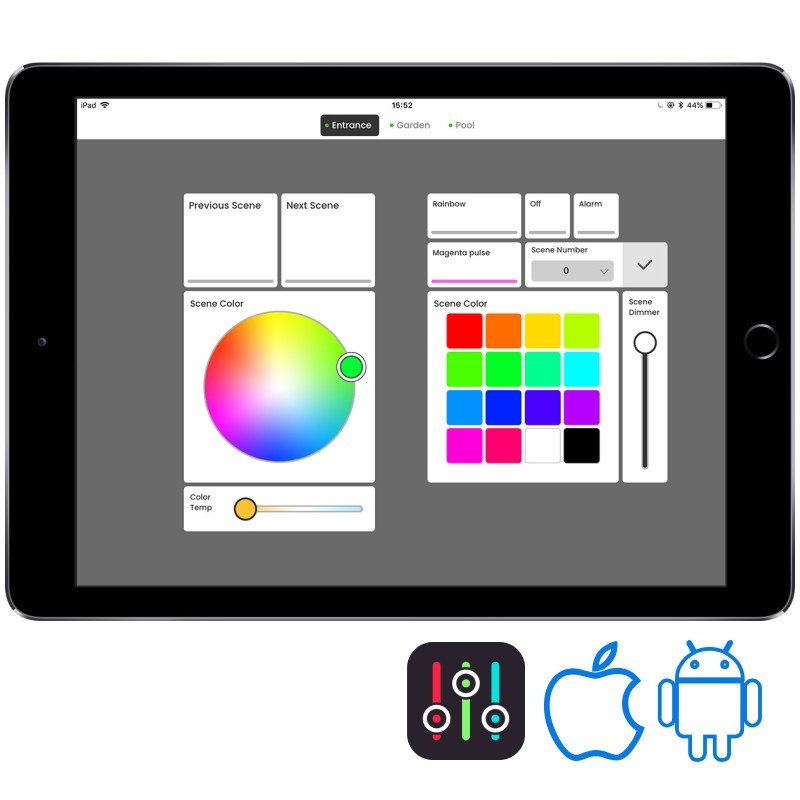

Full Network Control Stack: UDP, RS232, WiFi APP (iOS/Android), schedule/calendar, RF remote, sensors, and 8 dry contacts—integrates with BMS, AV matrices, and smart-home systems.
2×512 Standalone DMX: Controls 1024 channels offline after one-click download; no PC needed for daily operation; master-slave cascade scales to larger installs.
Universal Fixture Support: Drives single-color, CCT, RGB, RGBW, RGBWY LEDs plus beam, wash, laser, gobo, and DMX fountain/music-player devices from one wall panel.
STICK-KE2 Network / USB DMX Touch Panel
|
Category |
Specification |
|---|---|
|
Model |
STICK-KE2 |
|
Type |
Glass Touch Panel — Network / USB DMX Controller |
|
DMX Output |
2 × 512 channels |
|
Zones / Scenes |
5 Independent Zones, 200 Scenes (25 pages × 8 keys) |
|
Panel UI |
Top On/Off, 8 scene keys, 2 page keys, color faders (brightness/speed/color) |
|
Trigger Inputs |
UDP, RS232, WiFi APP, Schedule/Calendar, RF Remote, Sensors, 8 Dry Contacts |
|
Programming |

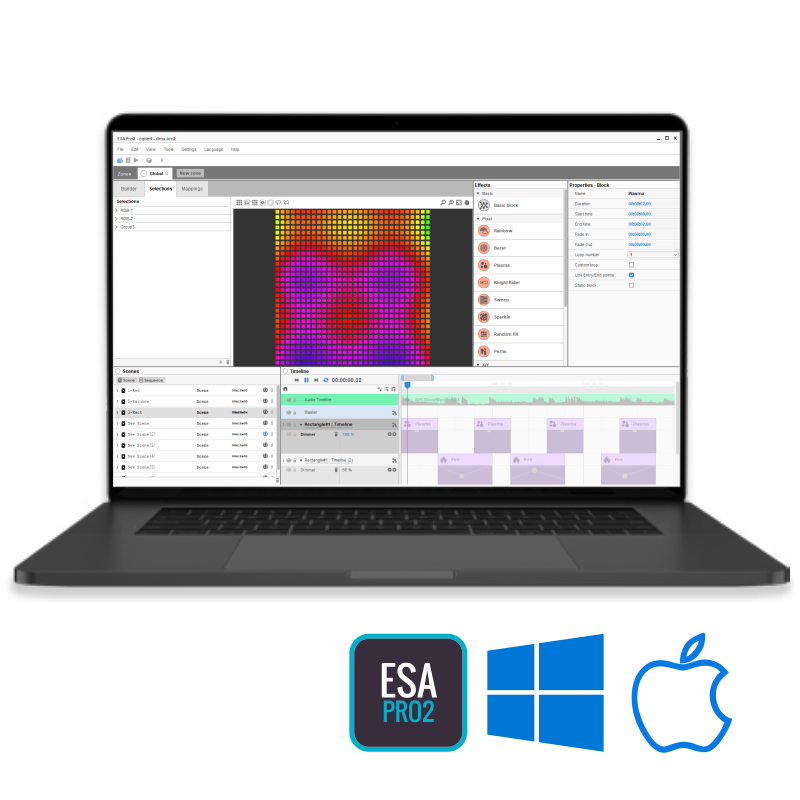

ESA Pro 2 (Win/Mac), Real-time Preview |
|
Storage |
TF Card |
|
Auto-Run |
One-click Download, Auto-Start on Power-Up |
|
Remote Control |
iPhone / iPad / Android APP |
|
Topology |
One-Master-Multiple-Slave, Multi-Unit Cascade |
|
Fixture Support |
Single Color, CCT, RGB, RGBW, RGBWY LEDs; Beam, Wash, Laser, Gobo, Music Player, Fountain |
|
Power Supply |
5–6V DC (USB / Terminal / PoE-like via RJ45 — confirm) |
|
Mounting |
Standard 86mm Wall Back Box |
|
Faceplate |
Tempered Glass Touch Surface |
