With 8 dry-contact inputs, RF remote, and sensor triggers, it integrates seamlessly into smart-home and BMS environments. Powered by 5–12V DC via USB or terminal, it fits any standard 86mm back box. Available in black or white, the STICK-GA2 combines refined aesthetics with reliable standalone DMX control.
Minimalist Glass Design: Premium tempered-glass touch panel in black or white—sits flush in a standard 86mm wall box for a clean, architectural look.
99 Scenes, Zero App Needed: 8 touch keys switch between 99 programmed scenes; adjust brightness and color directly on the panel—guests and staff need no smartphone or tablet.
8 Dry Contacts & Triggers: 8-channel dry-contact input plus RF remote and sensor support enable wall-switch, motion, or ambient-triggered automation.

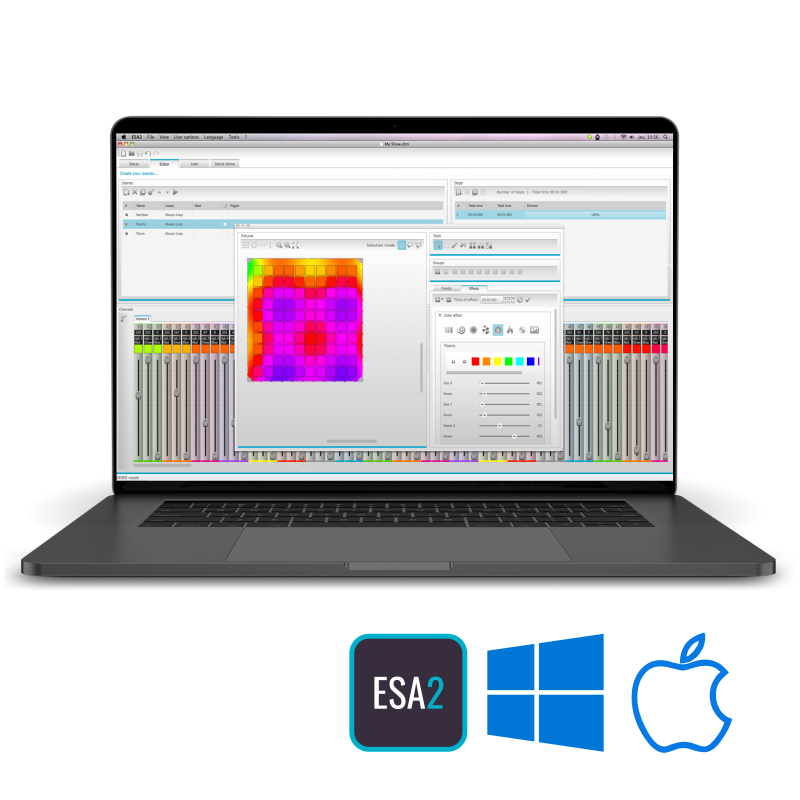

Standalone Auto-Run: Program on Win/Mac, download one click to the controller, and it plays shows automatically on power-up—no PC on site.
Full Fixture Compatibility: Drives single-color, CCT, RGB, RGBW, RGBWY LEDs and DMX fixtures including wash, laser, gobo, and fountain systems.

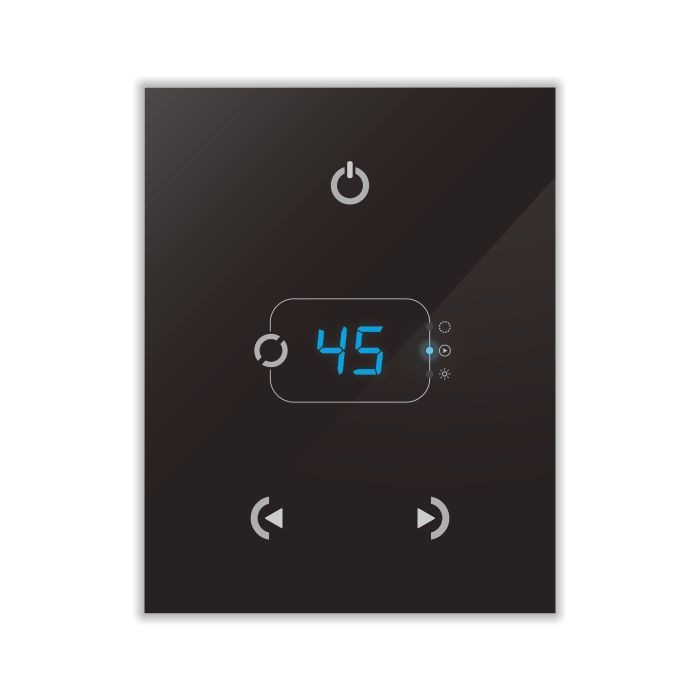

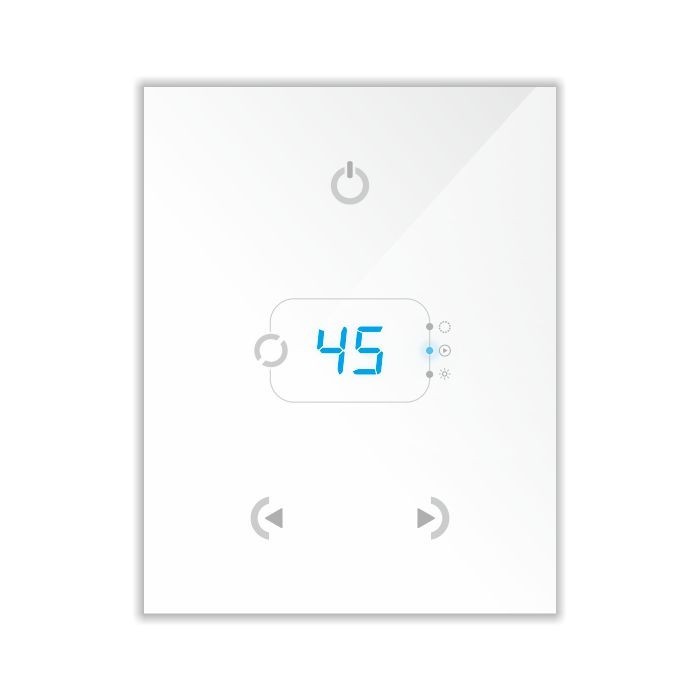

STICK-GA2 USB-DMX512 Touch Panel
|
Category |
Specification |
|---|---|
|
Model |
STICK-GA2 |
|
Type |
Glass Touch Panel — USB DMX Controller |
|
DMX Output |
1 × 512 channels |
|
Scenes |
99 Scenes |
|
Panel Keys |
8 Touch Keys (scene switch, brightness, color) |
|
Trigger Inputs |
8 Dry Contacts, RF Remote, Sensors |
|
Programming |
ESA Software (Windows / Mac), Real-time Preview |
|
Auto-Run |
One-click Download, Auto-Start on Power-Up |
|
Fixture Support |
Single Color, CCT, RGB, RGBW, RGBWY LEDs; Wash, Laser, Gobo, Fountain |
|
Power Supply |
5–12V DC (USB / Terminal) |
|
Mounting |
Standard 86mm Wall Back Box |
|
Colors |
Black, White |
