Features 8 dry-contact inputs, RF remote, and sensor triggers for flexible scene control. An expansion interface allows custom engineering integration. Powered via 5V USB or solder pad terminal, it fits tight spaces and cabinet installations. Compatible with all DMX fixtures including RGBWY LEDs, wash, laser, and gobo lights. The perfect entry-level professional controller for architectural and decorative applications.

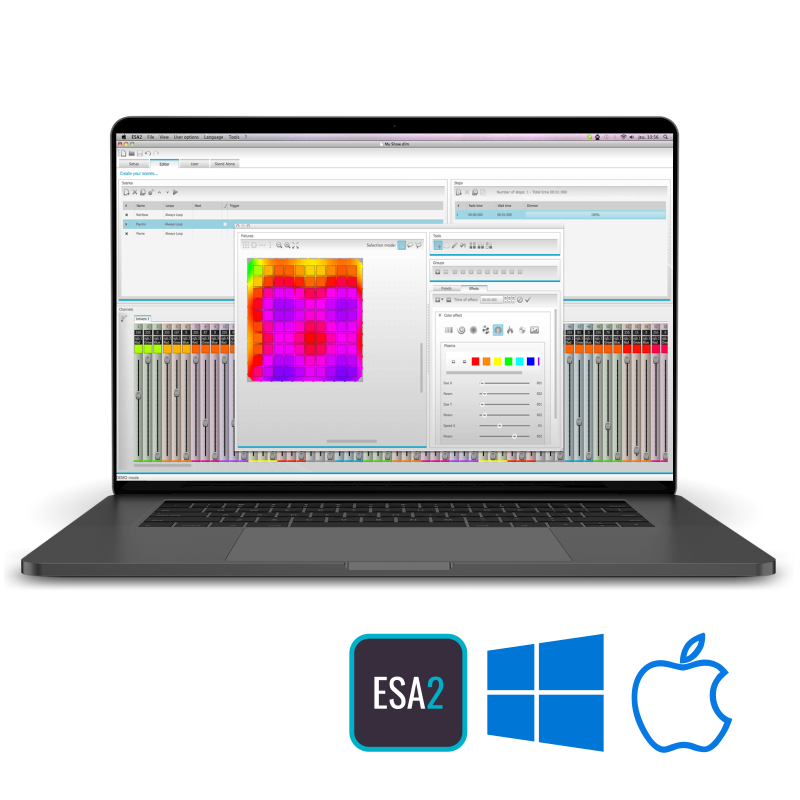

Standalone Auto-Run: Program on Win/Mac, download to controller, and it plays shows automatically on power-up—no computer needed for daily operation.
Expansion Interface: Dedicated engineering expansion port for custom integration—connect proprietary sensors, relays, or building management systems.
8 Dry Contacts & Triggers: 8-channel dry-contact input plus RF remote and sensor support for switch, motion, or ambient-triggered scene changes.
Universal Fixture Support: Drives single-color, CCT, RGB, RGBW, RGBWY LEDs and DMX fixtures including wash, laser, and gobo lights from one compact unit.
Dual Power Options: 5V via USB or solder pad terminal for flexible installation in cabinets, enclosures, or portable setups.

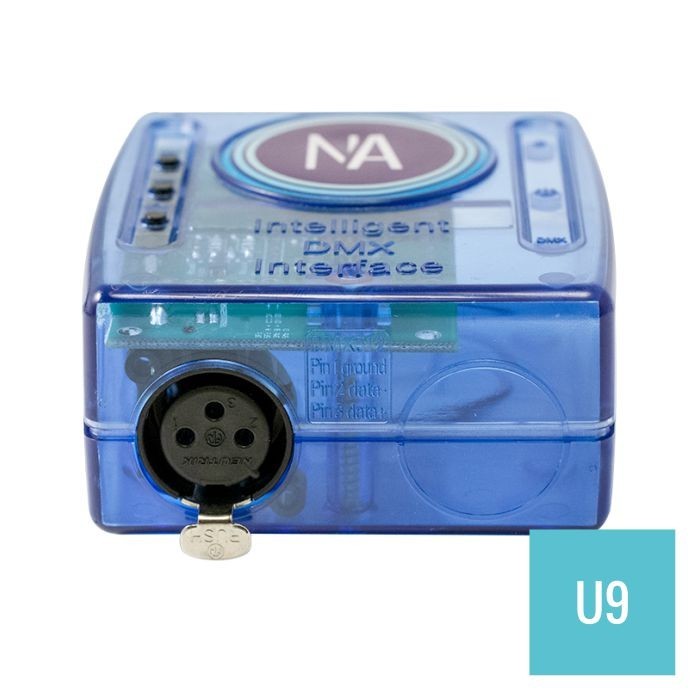

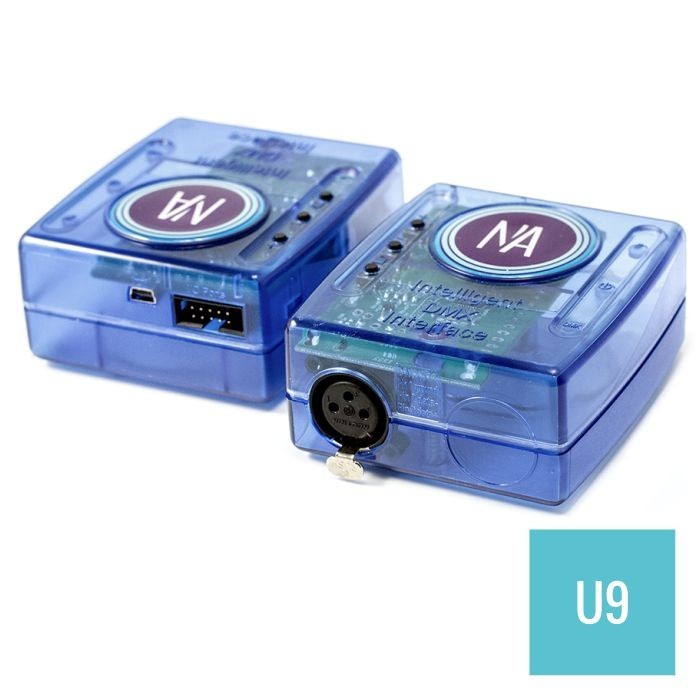

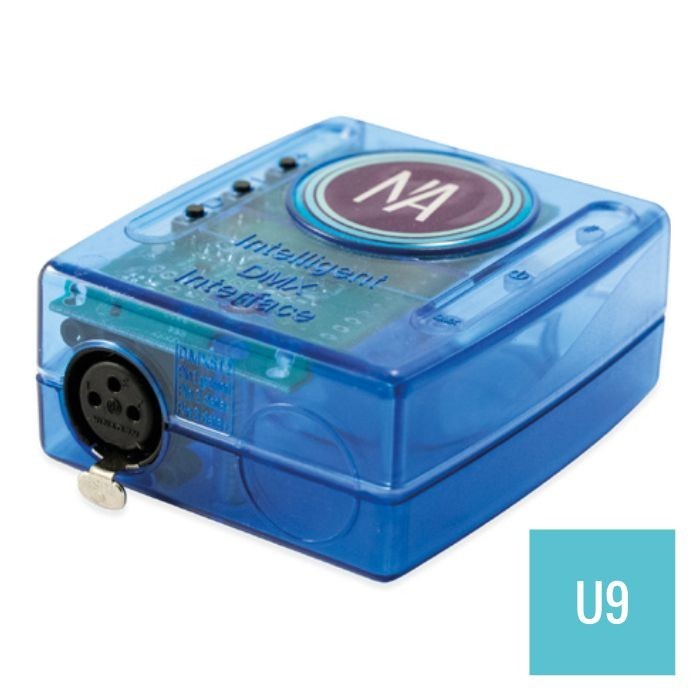

SLESA-U9 USB-DMX512 Controller
|
Category |
Specification |
|---|---|
|
Model |
SLESA-U9 |
|
DMX Output |
256 DMX Channels |
|
Scenes |
20 Scenes |
|
Trigger Inputs |
8 Dry Contacts, RF Remote, Sensors |
|
Expansion |
Engineering Expansion Interface (custom I/O) |
|
Programming |
ESA Pro 2 (Windows/Mac), Real-time Preview |
|
Auto-Run |
One-click Download, Auto-Start on Power-Up |
|
Fixture Support |
Single Color, CCT, RGB, RGBW, RGBWY LEDs; Wash, Laser, Gobo |
|
Power Supply |
5V DC (USB), Solder Pad Terminal |
|
Interface |
USB (programming/real-time), DMX XLR, Expansion Port |
|
Installation |
Compact / Cabinet / Portable |
