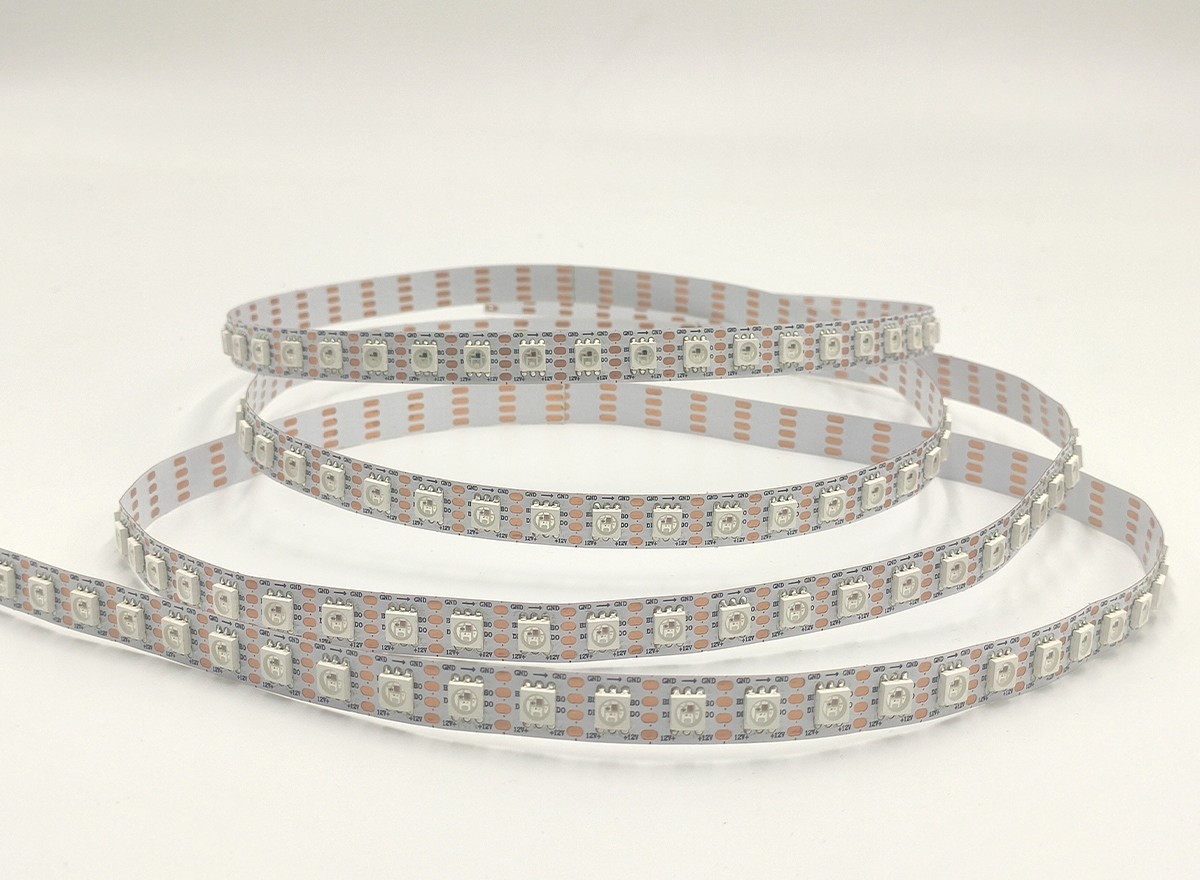

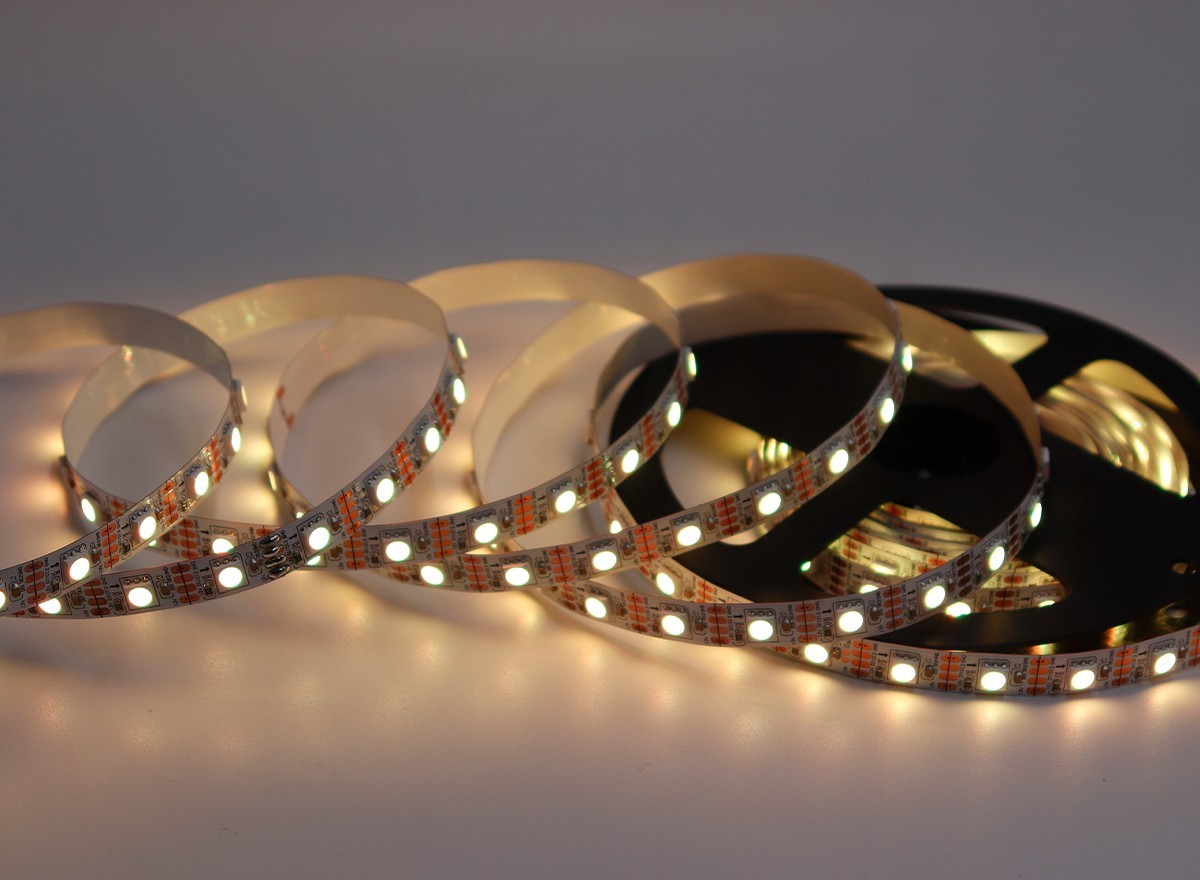

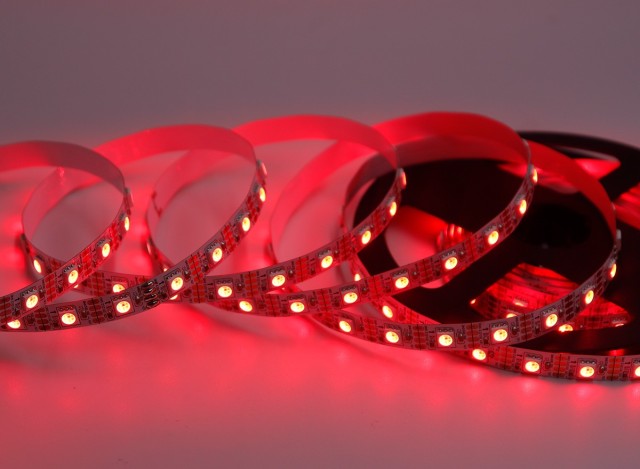

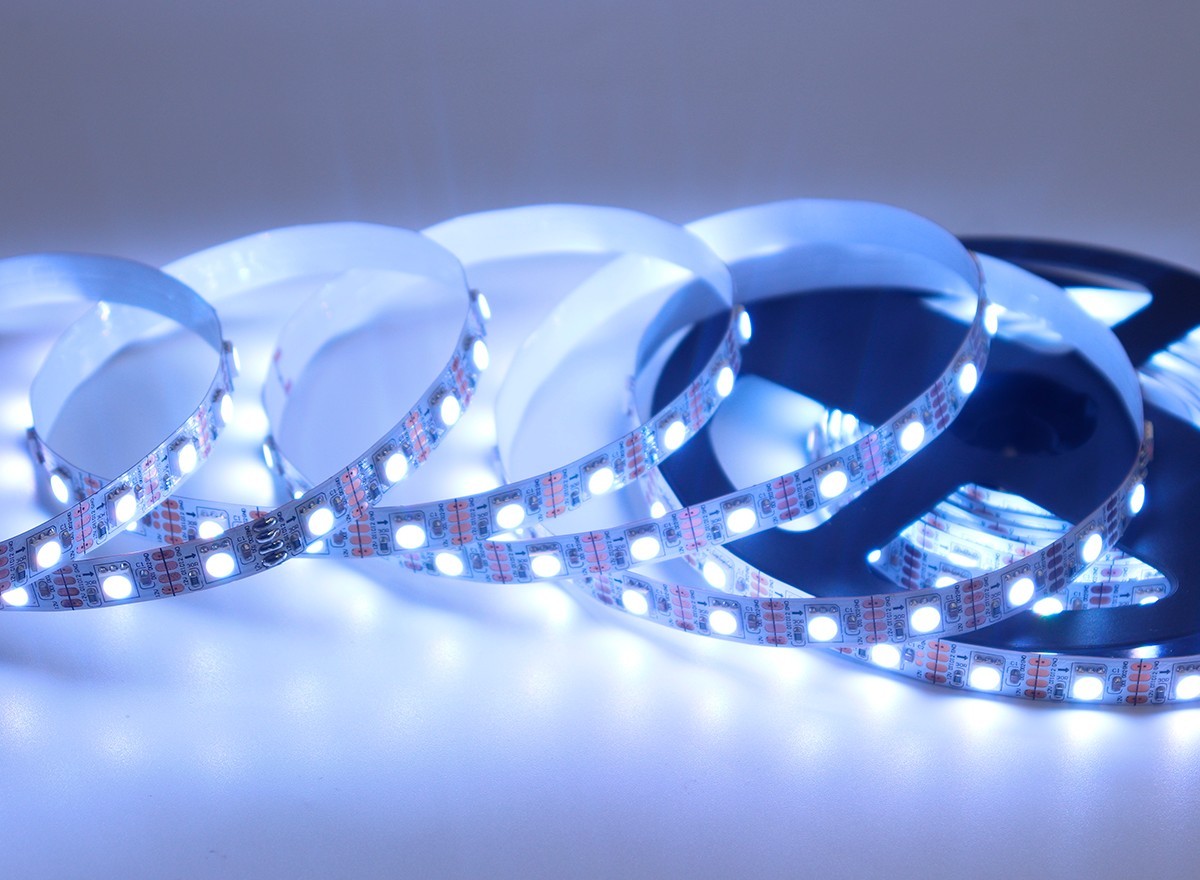

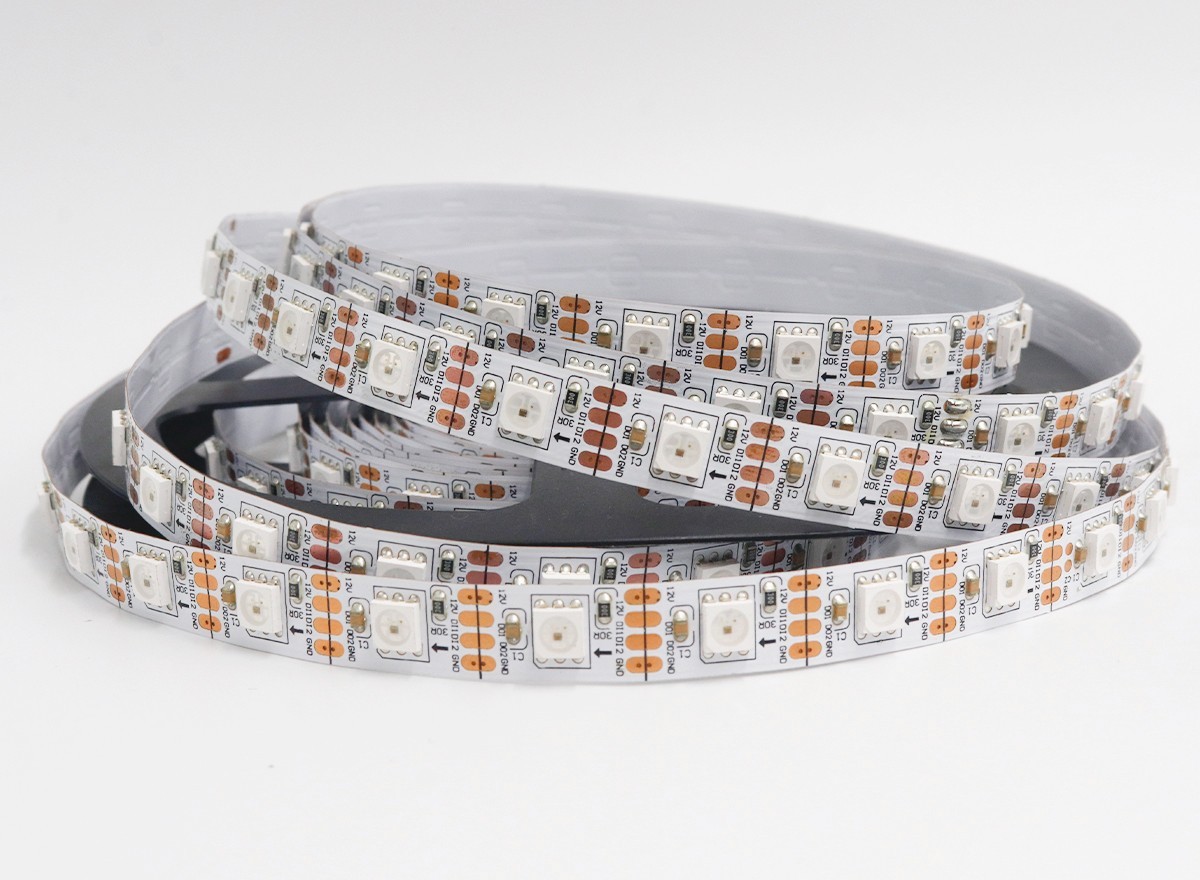

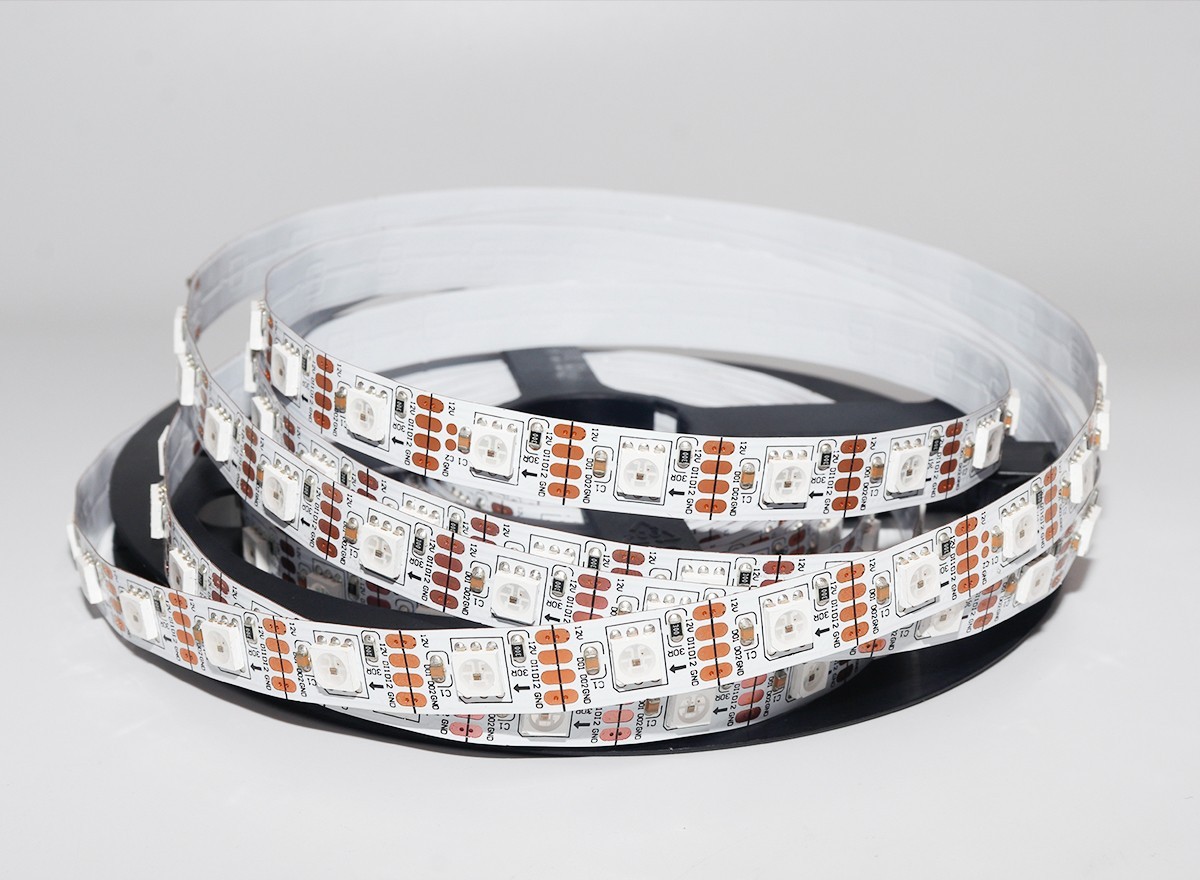

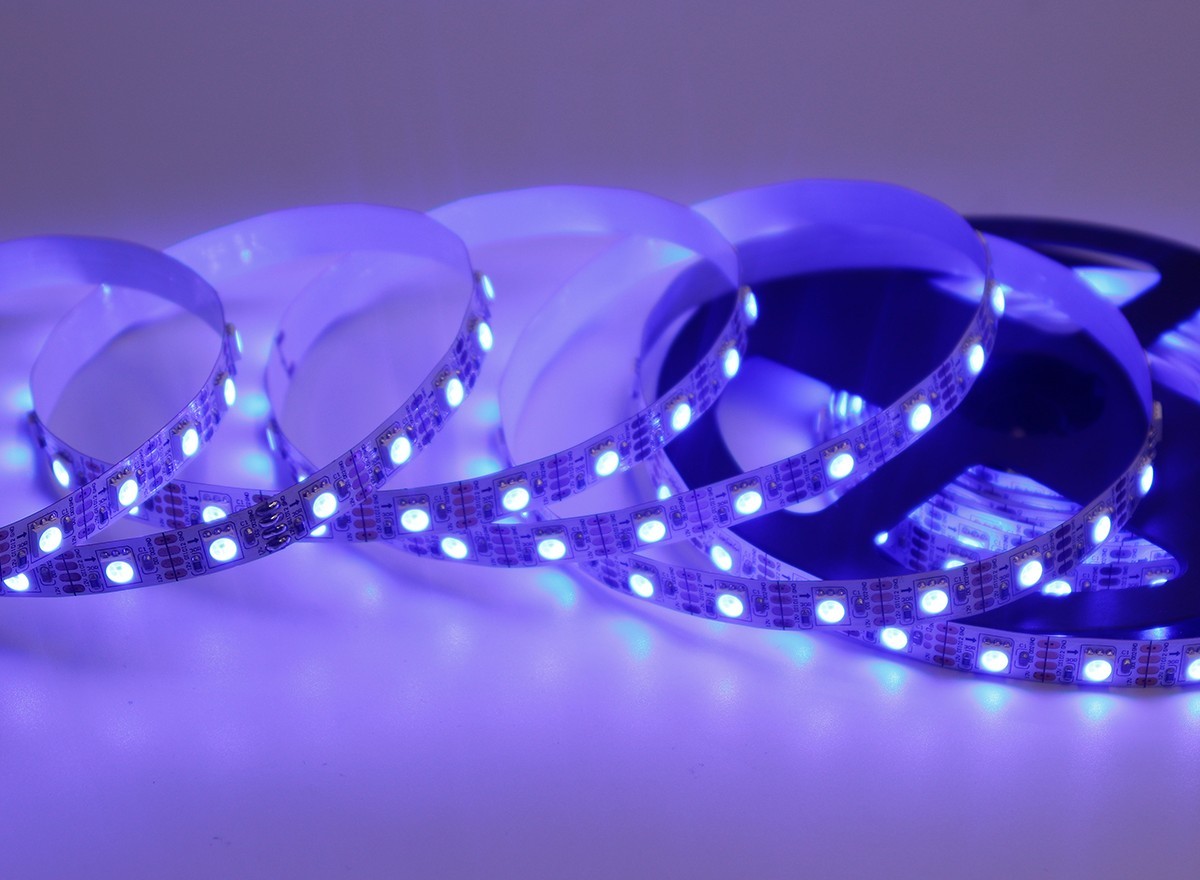

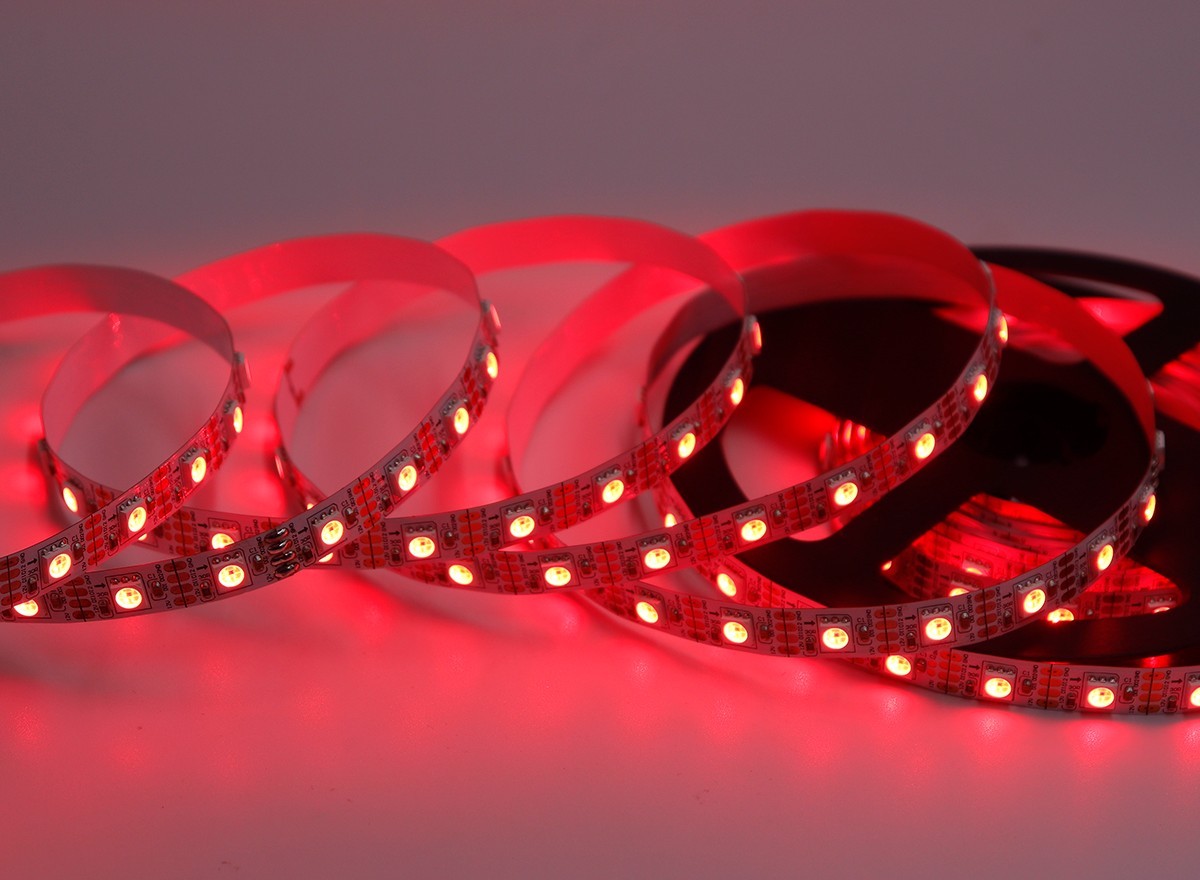

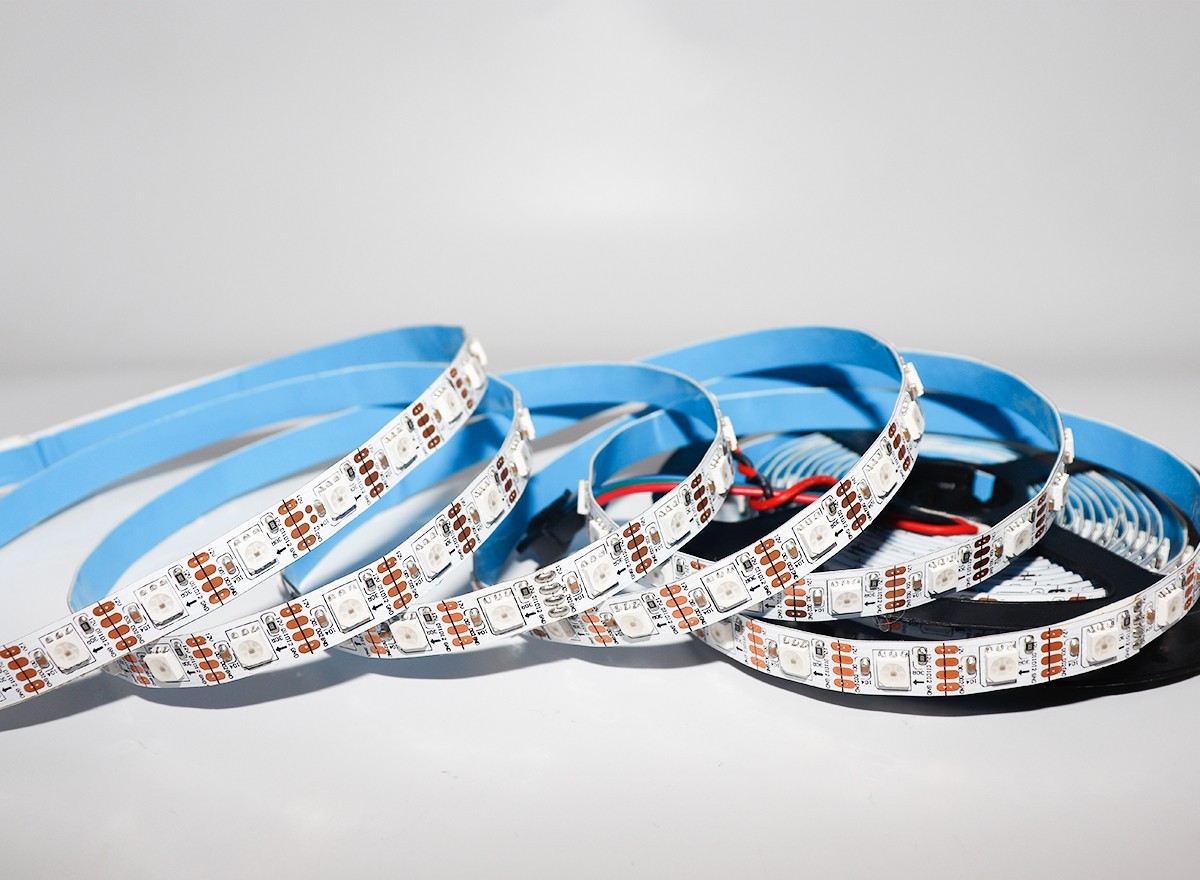

Upgrade your lighting projects with our SK6813 5050 RGB LED strip. Featuring 60 individually addressable LEDs per meter at 12V, it delivers vibrant, dream-color effects with single-pixel precision. The advanced breakpoint resume technology ensures uninterrupted performance—if one LED fails, the rest stay lit. With dual-signal transmission and high grayscale, it’s perfect for advertising signs, home decor, stage lighting, and DIY Arduino or Raspberry Pi projects. Easy to cut, install, and control via various SPI controllers. Reliable, flexible, and brilliant for any creative application.
Single-Pixel Control: Each of the 60 LEDs per meter can be individually addressed, enabling complex animations, text, and color effects.
Breakpoint Resume Technology: Dual data lines (DI/BI) allow signal to bypass a damaged LED, ensuring continuous illumination even if one pixel fails.
12V Low Voltage Operation: Reduces voltage drop over long runs, safer and more stable than 5V strips, ideal for large installations.
High Color Quality: 256-level grayscale per channel (24-bit color) produces smooth, vibrant RGB mixing with no flicker.
Wide Compatibility & Easy Use: Supports standard SPI controllers (T-1000S, K-1000C, Arduino, etc.), cuttable every LED, flexible PCB for curved surfaces.
|
Item |
Specification |
|---|---|
|
LED Type |
SMD 5050 RGB |
|
IC Model |
SK6813 (built-in) |
|
LED Density |
60 LEDs/meter (60 pixels/m) |
|
Operating Voltage |
DC 12V |
|
Power Consumption |
~14.4 W/meter (max) |
|
Cut Unit |
Every 1 LED (16.6 mm) |
|
PCB Width |
10mm or 12mm (optional) |
|
Color Resolution |
256-level grayscale per channel, 24-bit full color |
|
Signal Type |
Single-line data with dual-signal backup (DI/BI) |
|
Transmission Rate |
800 kbps |
|
Breakpoint Resume |
Yes, dual data path |
|
Beam Angle |
120° |
|
IP Rating |
IP20 (non-waterproof) / IP65 / IP67 optional |
|
Working Temp. |
-20°C to +60°C |
|
Lifespan |
>30,000 hours |
|
Controller Support |
T-1000S, K-1000C, Arduino, ESP32, Madrix, etc. |
