Operating at DC12V, it offers greater stability over longer runs compared to 5V strips. Ideal for narrow profiles, signage, cove lighting, and DIY electronics, the 8mm PCB fits where standard strips can't. Each LED is individually addressable, allowing for complex animations and chases via compatible SPI controllers. Choose from IP20 for indoor dry use or IP65 for splash resistance. Upgrade your lighting design with this powerful, flexible, and reliable LED solution.

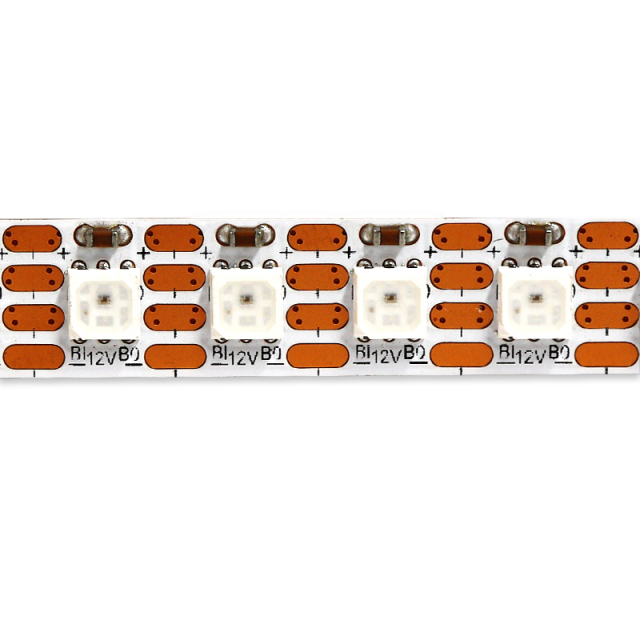

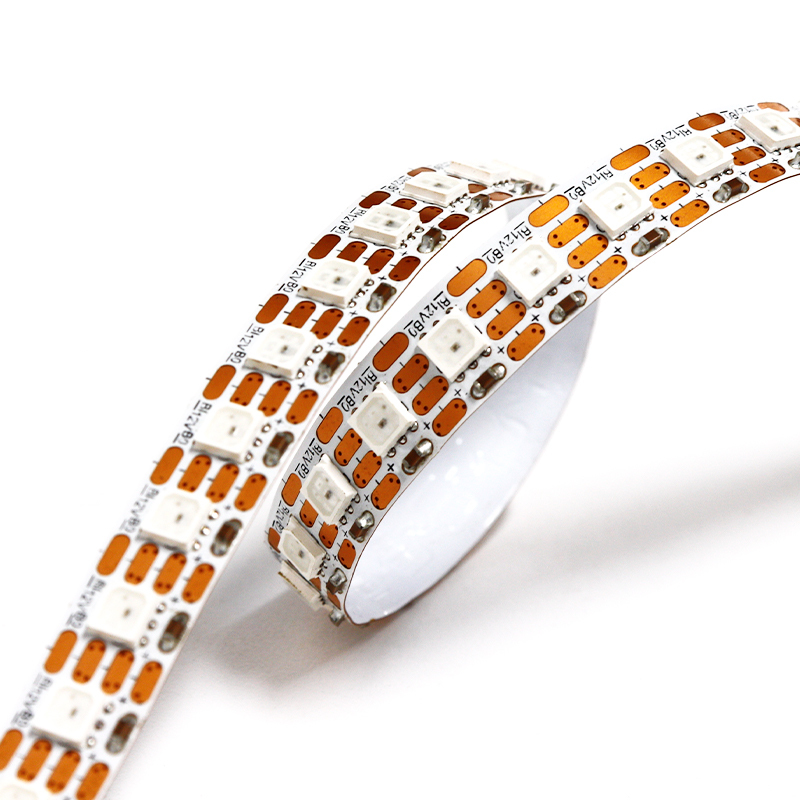

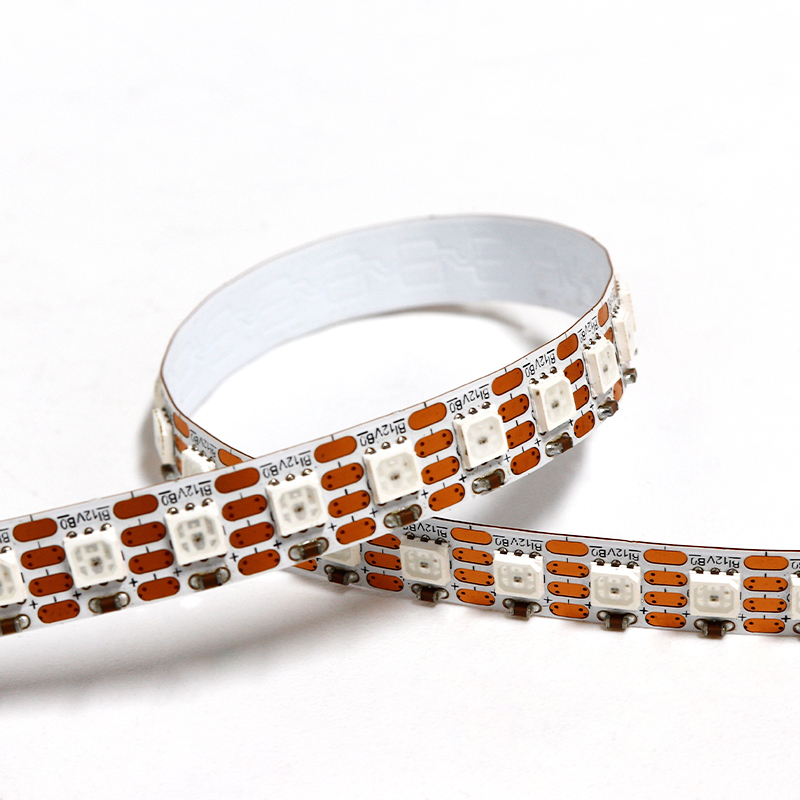

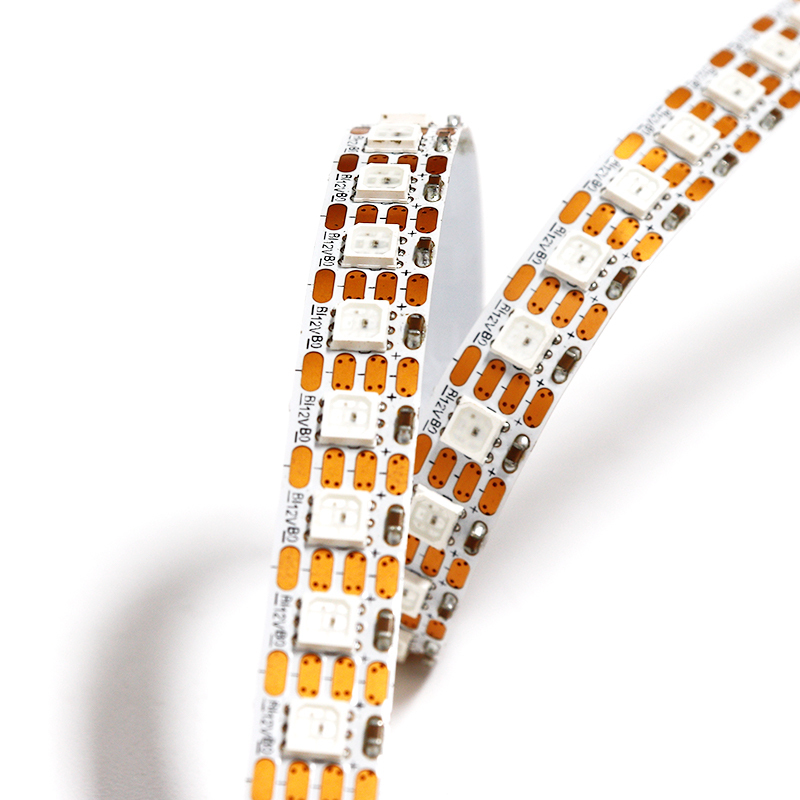

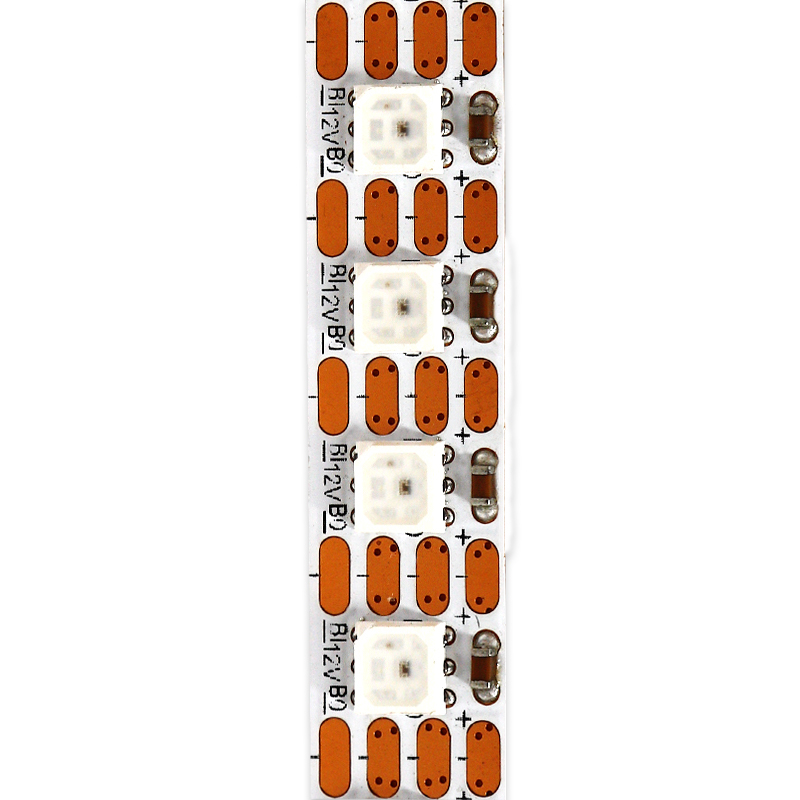

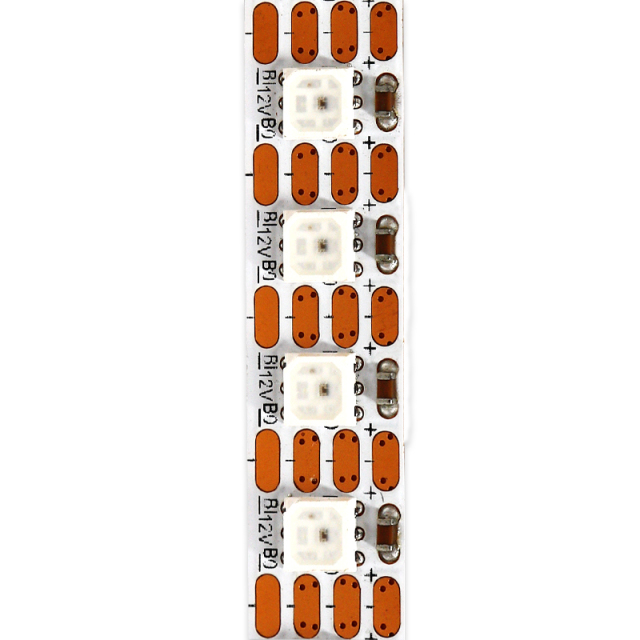

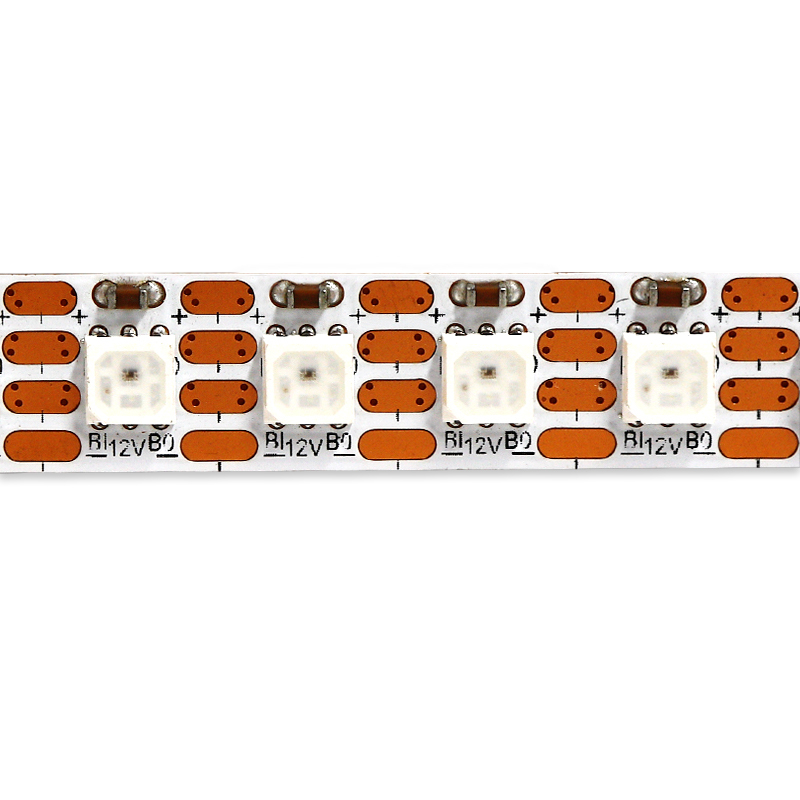

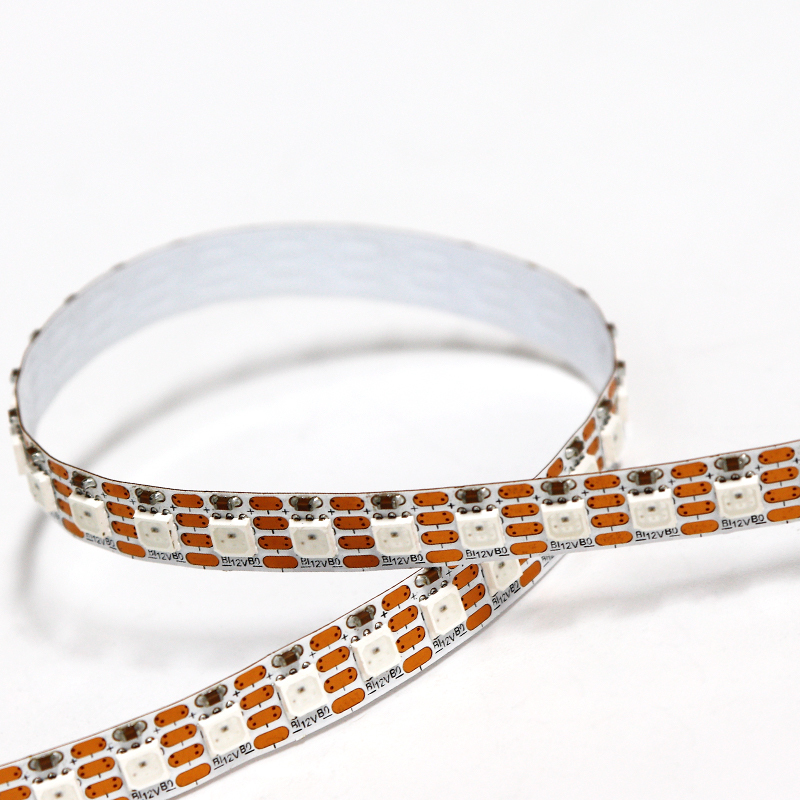

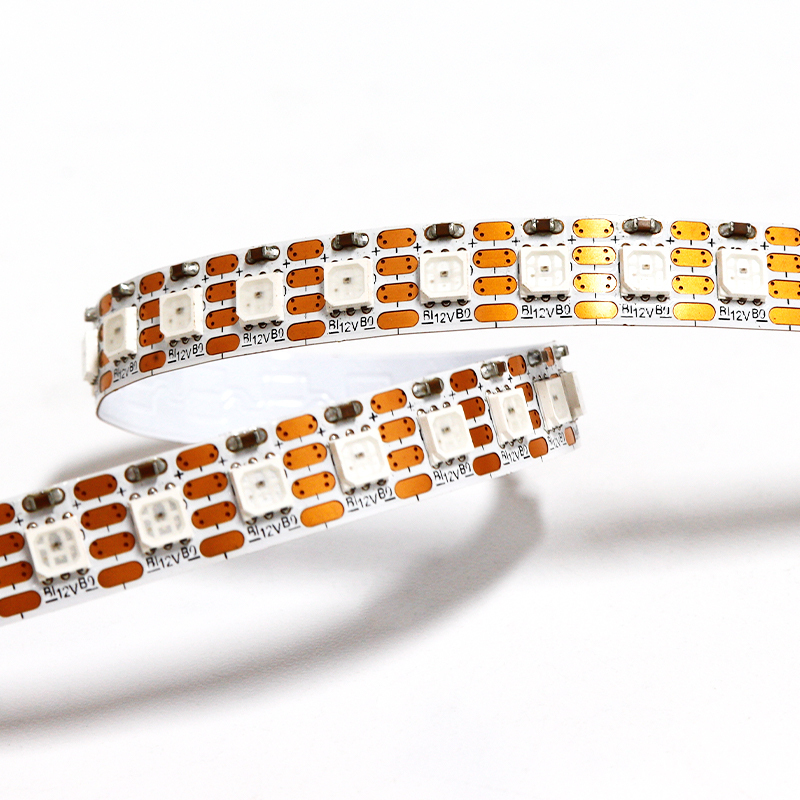

High-Density & Narrow Design: 144 LEDs per meter packed on an ultra-slim 8mm wide FPCB, perfect for tight spaces and achieving uniform, dot-free lighting effects.
Dual-Signal & Breakpoint Resume: Features SK6813 IC with dual data lines; if one LED is damaged, the rest of the strip continues to function without interruption.
Stable 12V Operation: Powered by DC12V, reducing voltage drop issues and allowing for longer runs with less power injection compared to 5V alternatives.
Individually Addressable: Each 3535 RGB LED acts as a single pixel, enabling full-color spectrum control, dynamic chasing, and custom animations via Arduino or SPI controllers.
Versatile Application: Available in IP20 (non-waterproof) and IP65 (splash-proof), suitable for architectural accents, retail displays, gaming setups, and DIY maker projects.
Product Specification: SK6813-3535-144-12V
|
Parameter |
Specification |
|---|---|
|
LED Type |
SMD 3535 RGB |
|
IC Model |
SK6813 (Built-in) |
|
Voltage |
DC 12V |
|
LED Density |
144 LEDs/m |
|
Pixel Density |
144 pixels/m (1 IC = 1 LED) |
|
Power Consumption |
28.8W/m (Max) |
|
PCB Width |
8 mm |
|
Cutting Unit |
6.94 mm (1 LED) |
|
Gray Scale |
256 levels (8-bit) |
|
Color |
Full Color RGB |
|
Beam Angle |
120° |
|
Signal |
Dual-signal (Data & Backup) |
|
Protection |
IP20 / IP65 / IP67 Optional |
|
Lifespan |
30,000+ hours |
|
Controller |
SPI / Arduino / K1000C / T1000S |
