Low heat, long lifespan, and compatible with Arduino, FastLED, and K-1000C controllers. Easy to install via JST connectors. Whether you’re building a holiday display or a permanent facade, these mini dots offer unbeatable brightness and flexibility. Plug in, code, and glow!
Individually Addressable: Built-in SK6812 IC allows each 10mm dot to display 16.7 million colors independently for stunning pixel effects.
Easy 3-Wire Connection: Standard 5V/DATA/GND interface with JST connectors; compatible with Arduino, ESP32, and mainstream SPI controllers.
Wide 160° Viewing Angle: Diffused round lens provides uniform light distribution, ideal for close-viewing applications like signage and decorations.
IP67 Weatherproof: Epoxy-filled and sealed for outdoor use; resists rain, dust, and vibration while maintaining brightness.
Low Power & Safe: Operates on 5V DC, 0.3W per pixel; cool to touch and safe for prolonged operation in commercial installations.

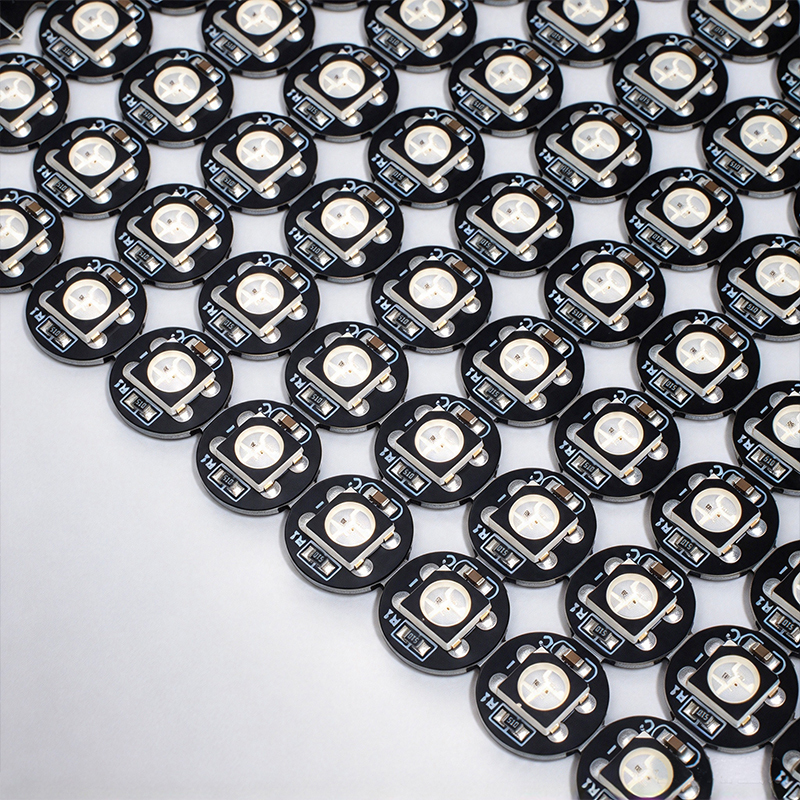

Product Specification: SK6812 10mm Pixel Dot
|
Item |
Specification |
|---|---|
|
LED Type |
SMD 5050 RGB |
|
Control IC |
SK6812 (WS2812B compatible) |
|
Color Order |
GRB |
|
Operating Voltage |
DC 5V ±0.5V |
|
Power Consumption |
0.3W/pixel (max) |
|
Current |
60mA/pixel (full white) |
|
Gray Scale |
256 levels/channel |
|
Colors |
16.7 million |
|
Beam Angle |
160° |
|
Data Rate |
800 kbps |
|
Interface |

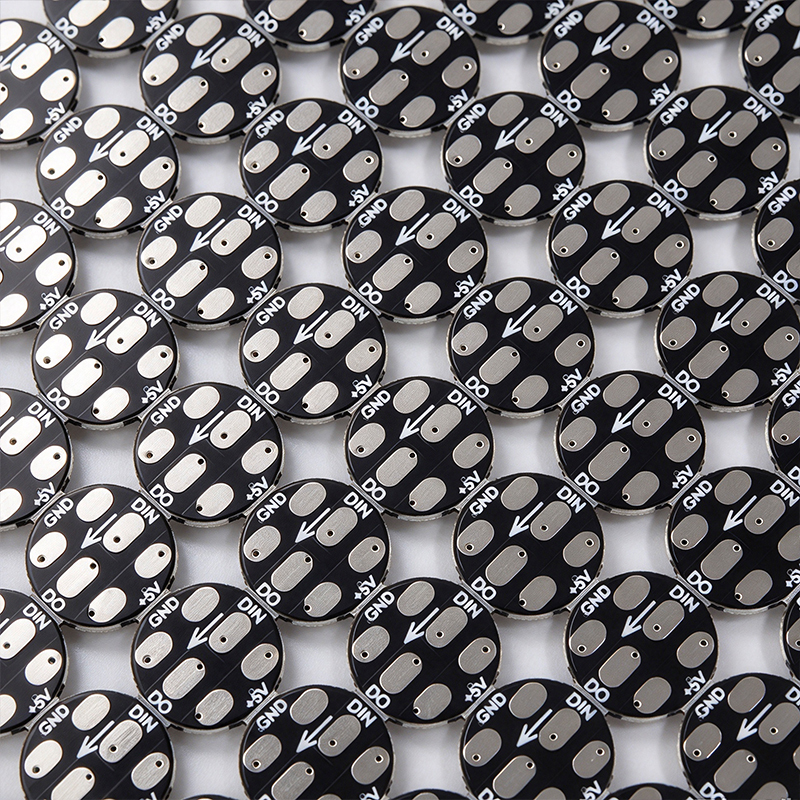

3-pin (5V, DIN, GND) |
|
Connector |
JST 3-pin male/female |
|
Diameter |
10mm |
|
Pixel Pitch |
8/10/20cm (customizable) |
|
Protection |
IP20/IP65/IP67/IP68 optional |
|
PCB Material |
FPC or aluminum substrate |
|
Operating Temp. |
-20°C to +60°C |
|
Lifespan |
30,000–50,000 hours |
|
Applications |
Pixel curtains, channel letters, outlines, stage design, holiday decor |
