True RGBW 4-Channel Color Mixing
Features high-quality Wafer RGB chips plus authentic Osram white LEDs (3535+2835), delivering vivid full-color effects with bright, pure white light for enhanced visual impact.
Soft & Uniform Diffuse Reflection
Equipped with a dedicated diffusion lens and reflective design, light is evenly distributed without harsh glare—ideal for close-range applications like light boxes and backlighting.
Smart Group Control System

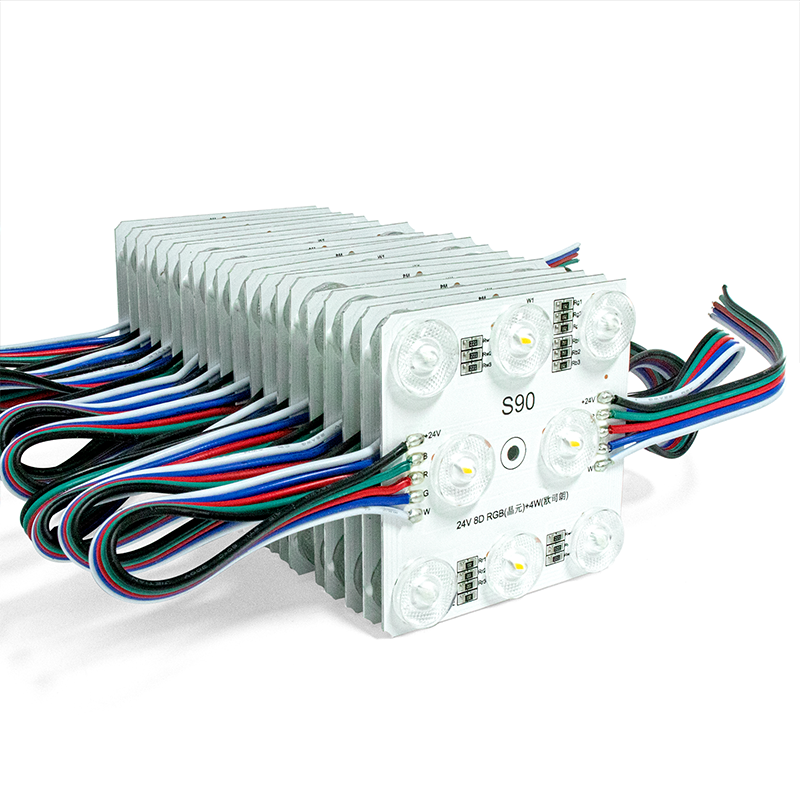

Supports multi-module daisy-chain connection with synchronized RGBW control, allowing easy zone management and dynamic lighting effects across large installations.
Reliable DC24V Low-Voltage Operation
Powered by safe 24V DC with efficient heat dissipation; white channel outputs 3.9W per module for high brightness while maintaining stable, long-lasting performance.
Versatile Indoor Application
Compact 68×68mm PCB, IP20 rated, perfect for advertising light boxes, soft film ceilings, display cabinets, and architectural accent lighting—where waterproofing is not required.

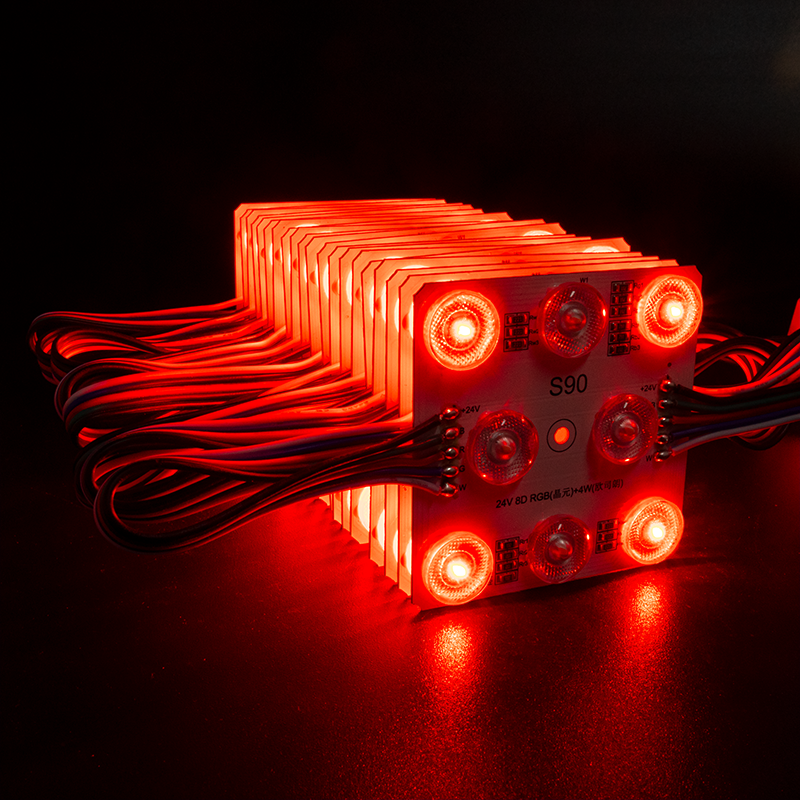

1. Product Overview

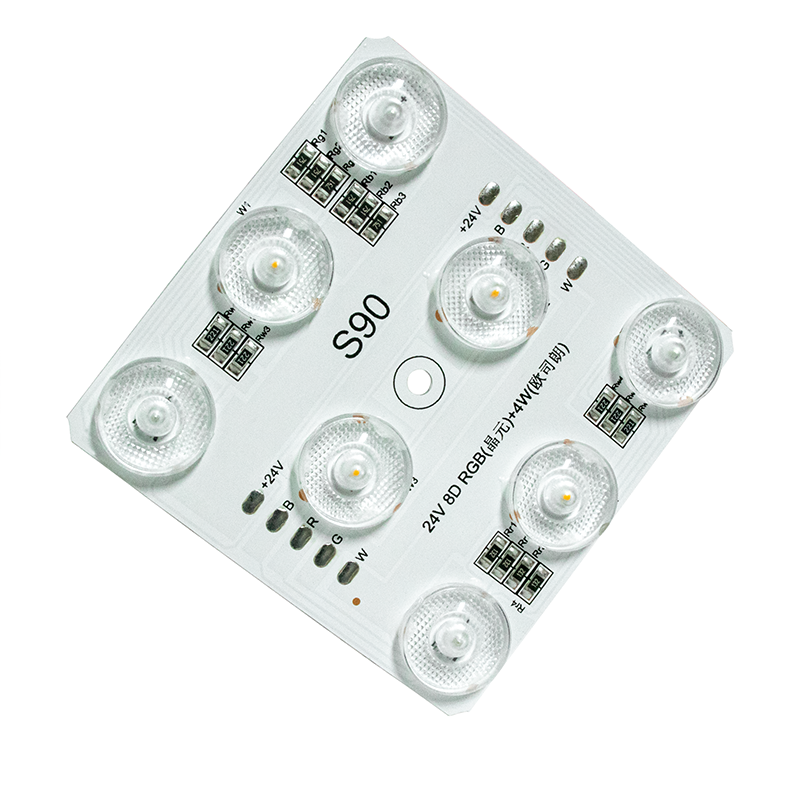

The S90 is a high-performance RGBW LED module designed for indoor diffuse lighting applications. It combines Wafer RGB chips with genuine Osram white LEDs to deliver vibrant color mixing and powerful illumination through a soft, uniform diffusion lens.
2. Key Specifications
|
Parameter |
Specification |
|---|---|
|
Model |
S90 |
|
Input Voltage |
DC24V |
|
Power Consumption |
R: 1.2W / G: 1.2W / B: 1.2W / W: 3.9W per module |
|
LED Configuration |
8 LEDs/module (3535 RGB + 2835 White) |
|

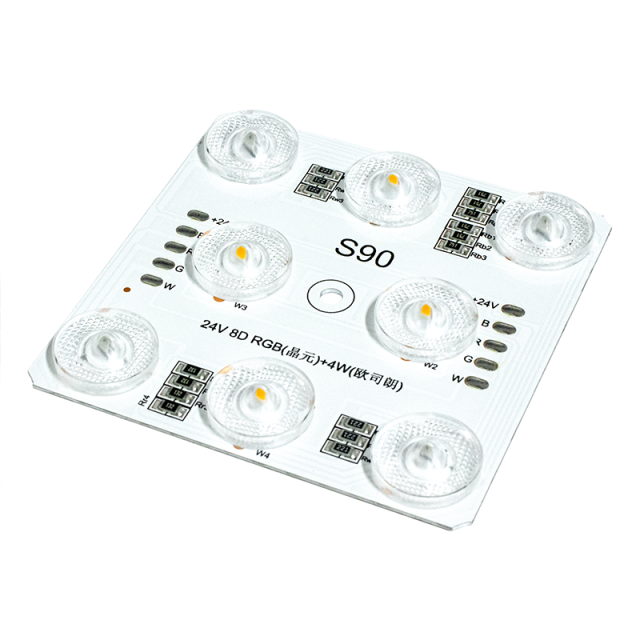

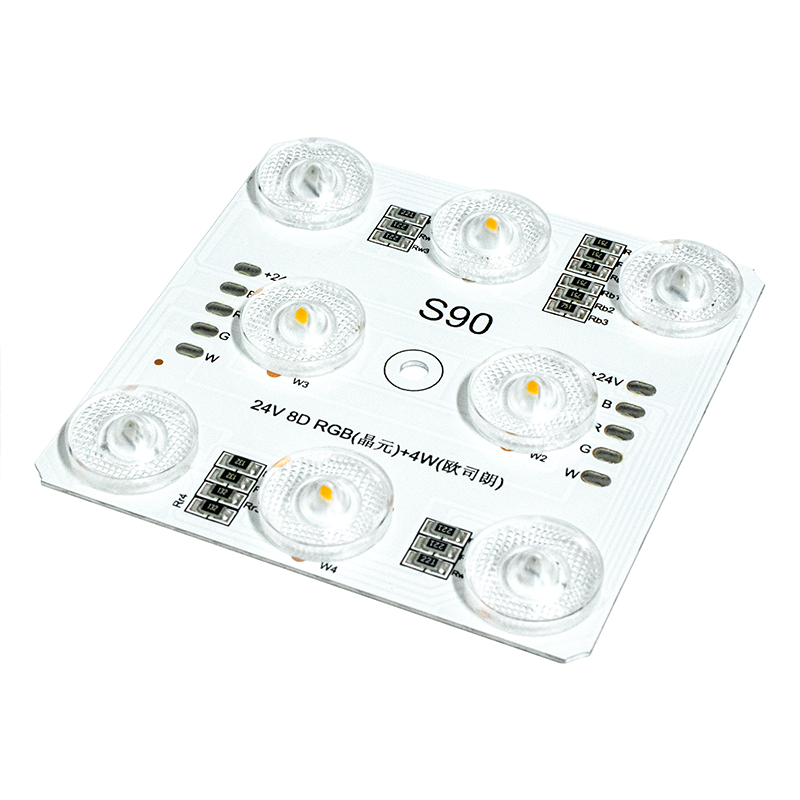

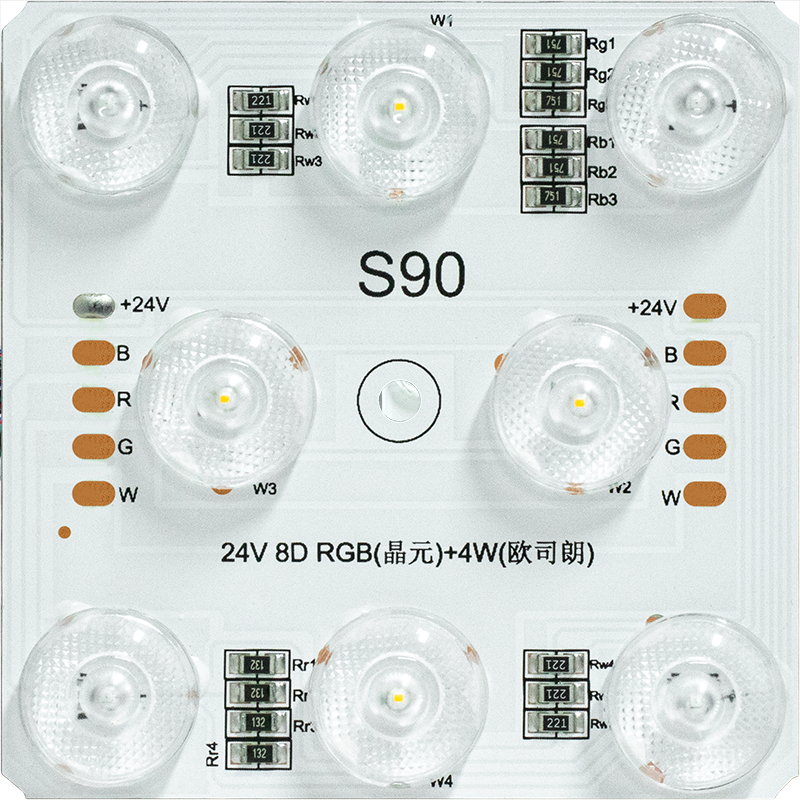

PCB Dimensions |
68 × 68 mm |
|
Channel Mode |
RGBW (4-channel) |
|
Group Configuration |
20 pcs/group |
|
Beam Characteristic |
Diffuse reflection (lens-type) |
|
Protection Rating |
IP20 (Indoor use only) |
|
Control Type |
Group control / daisy-chain |
3. Optical Performance

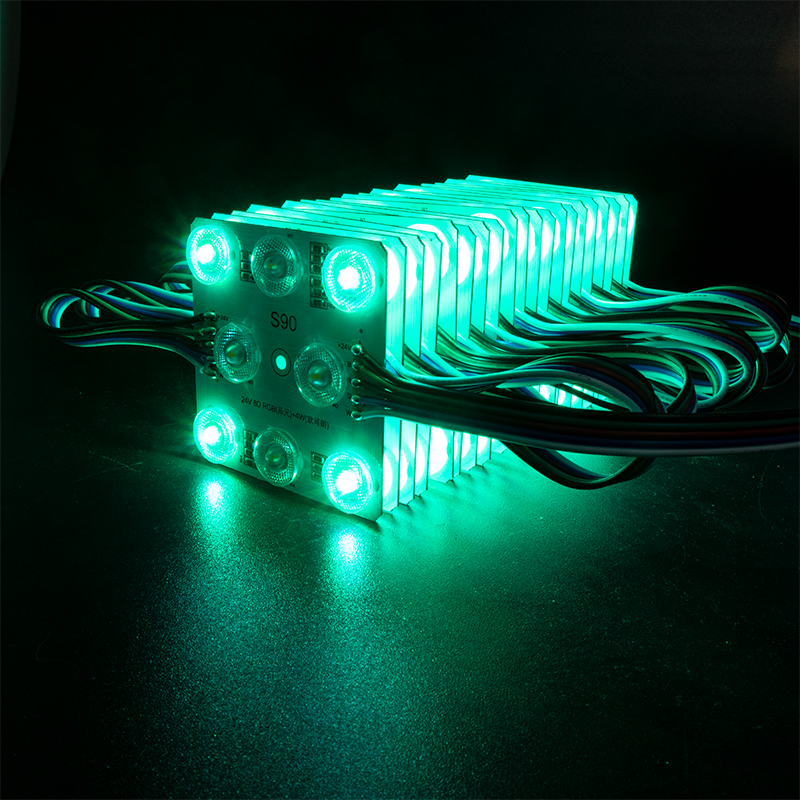

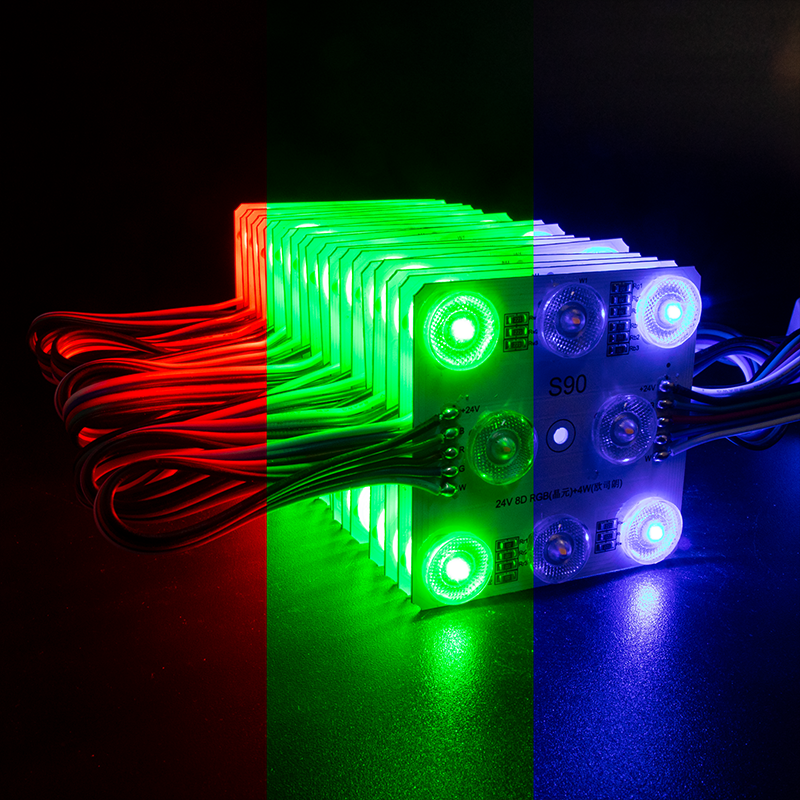

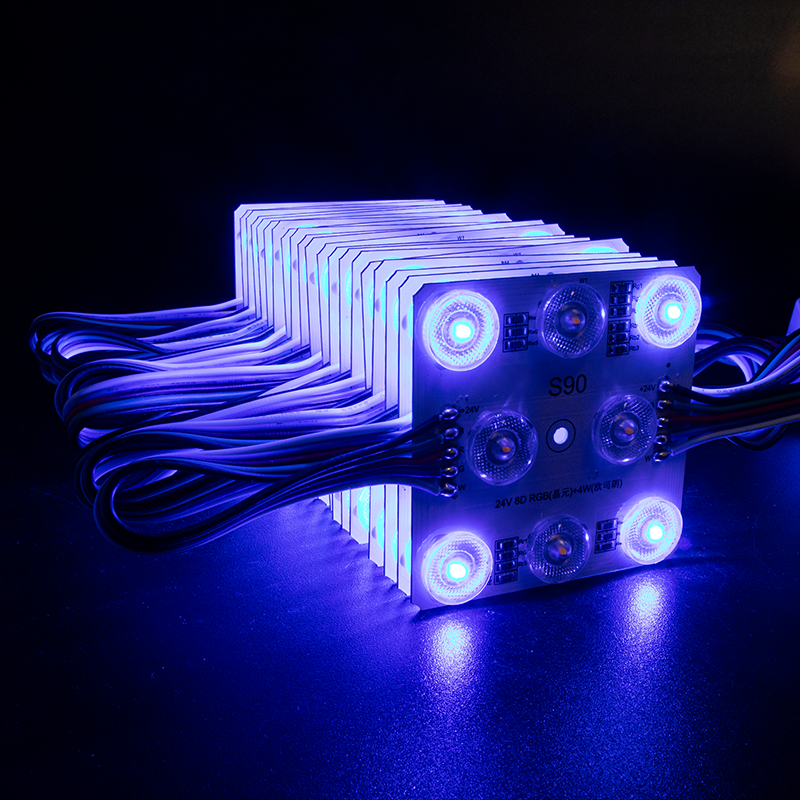

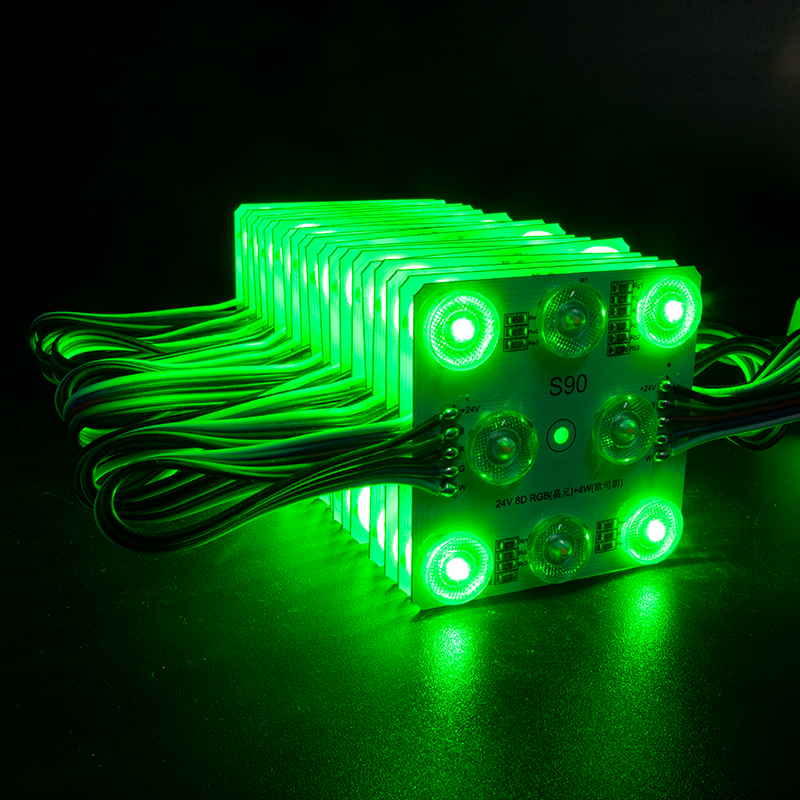

Color Options: Full RGBW color mixing with independent channel control

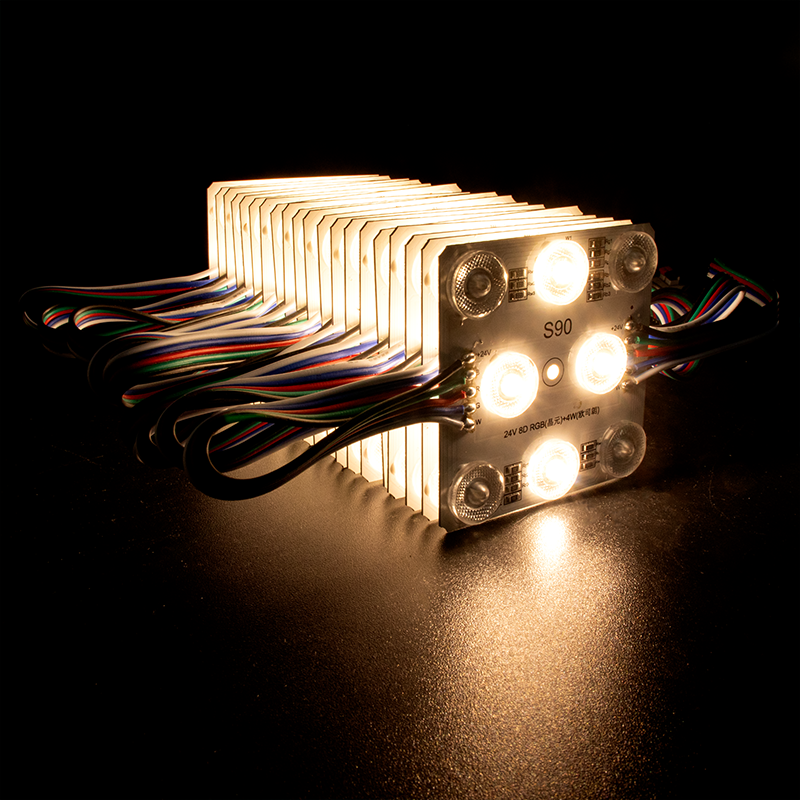

White Light Source: Osram 2835 high-CRI LED, 3.9W output
Light Distribution: Wide-angle diffuse reflection, no hotspots
Color Consistency: Uniform output across modules within ±5% tolerance
4. Electrical Characteristics
|
Parameter |
Min |
Typ |
Max |
Unit |
|---|---|---|---|---|
|
Operating Voltage |
22 |
24 |
26 |
VDC |
|
Red Channel Current |
— |
50 |
— |
mA |
|
Green Channel Current |
— |
50 |
— |
mA |
|
Blue Channel Current |
— |
50 |
— |
mA |
|
White Channel Current |
— |
163 |
— |
mA |
|
Total Power (All On) |
— |
7.5 |
— |
W |
5. Mechanical & Environmental
|
Item |
Detail |
|---|---|
|
PCB Material |
Aluminum-backed for heat dissipation |
|
Mounting |
3M adhesive backing + screw holes |
|
Operating Temp. |
-20°C to +50°C |
|
Storage Temp. |
-30°C to +70°C |
|
Humidity Range |
10%–85% RH (non-condensing) |
|
Weight (per pc) |
Approx. 35g |
6. Application Scenarios
Advertising light boxes & signage backlighting
Soft film ceiling illumination
Display cabinet & showcase lighting
Decorative wall wash & accent lighting
Commercial interior RGBW installations
7. Installation Notes
Ensure DC24V power supply with adequate wattage headroom (≥20% margin).
Modules must be connected in groups of 20 pcs maximum per chain.
IP20 rating — not waterproof; indoor dry environments only.
Avoid bending PCB or applying excessive force to lens during installation.
Use compatible RGBW controller for 4-channel independent control.
8. Packaging Information
|
Item |
Detail |
|---|---|
|
Quantity per Group |
20 pcs |
|
Carton Qty |
200 pcs (10 groups) |
|
Carton Dimensions |
380 × 280 × 220 mm |
|
Gross Weight |
Approx. 8.5 kg |
