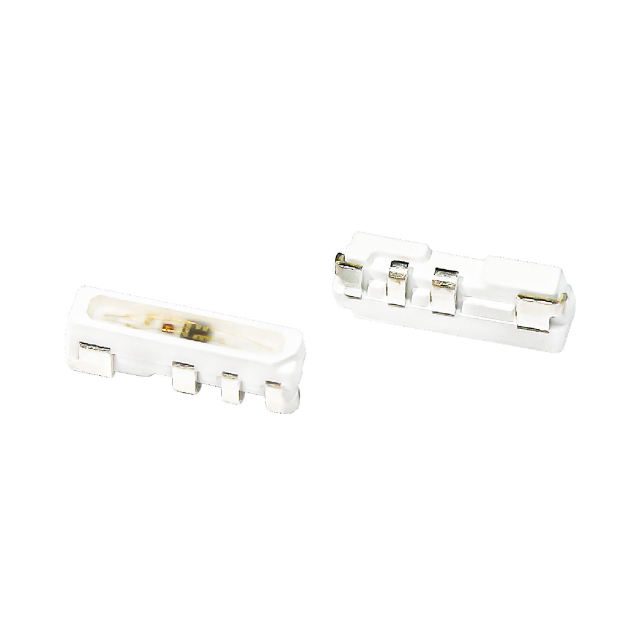

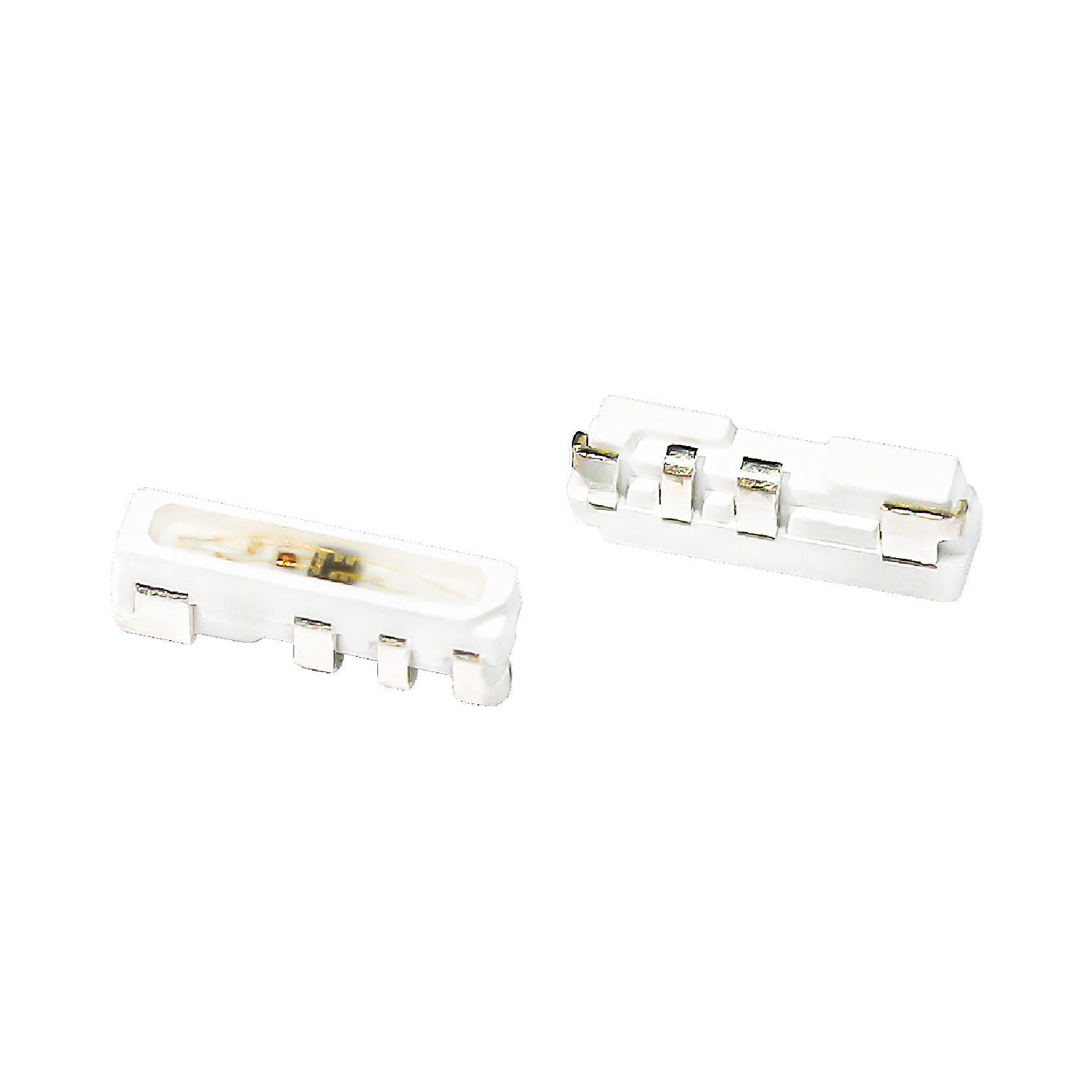

OPSCO SK6805SIDE SMD Side-View Built-in IC 4008 RGB Full Color LED Chip - Addressable Dream Color Lighting

Operating on a single-wire data protocol compatible with standard WS2812 systems, it offers 256-level grayscale per color for smooth color transitions. Despite its tiny footprint (3.5x1.25mm), it provides excellent brightness and uniformity while consuming low power. Whether you are designing architectural accents, consumer electronics, or custom signage, the SK6805SIDE combines reliability, compactness, and stunning visual performance to bring your creative lighting concepts to life.

• Integrated IC Design:​ Features a built-in control chip within the 4008 SMD package, enabling individual addressability and complex "Dream Color" chasing effects without extra components.

• Space-Saving Side Emission:​ Utilizes a unique side-view lens to project light horizontally, perfectly suited for edge-lit signs, ultra-thin lightboxes, and narrow profile channels.

• Ultra-Compact Footprint:​ Measuring only 3.5x1.25mm, it allows for high-density LED arrays in extremely confined spaces where traditional top-view LEDs cannot fit.

• High Compatibility:​ Supports single-line data transmission (compatible with WS2812 protocol), easily controlled by Arduino, ESP32, and other mainstream microcontrollers.

• Energy Efficient & Stable:​ Operates at 5V with low current consumption (5mA/channel) and includes signal reshaping for excellent cascade stability over long distances.
