With a wide operating voltage of 3.7V-5.5V and robust ESD protection, this LED ensures reliable performance in harsh environments. Perfect for ultra-thin light boxes, edge-lit signs, keyboard backlighting, and creative DIY projects, the SK6805SIDE combines high brightness, low power consumption, and seamless cascading capabilities. Elevate your lighting solutions with this versatile, easy-to-use chip that brings dynamic visual effects to life.

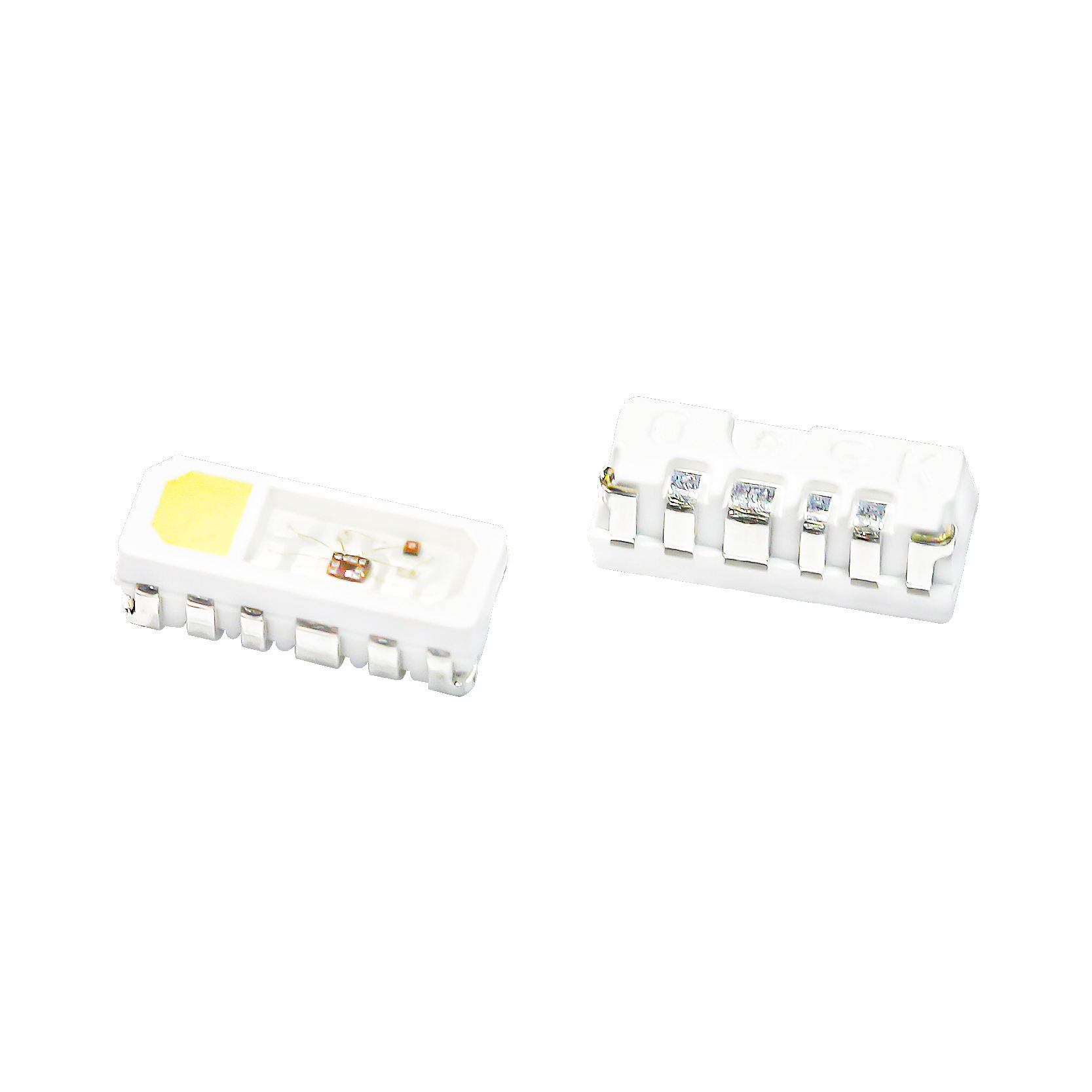

Ultra-Compact Side-Emitting Design: Features a tiny 4818 (4.8x1.8mm) SMD footprint with a 90-degree side-view beam angle, ideal for slim profiles and edge-lit applications.
Built-in IC for Individual Control: Integrates a CMOS control chip, allowing each LED to be addressed independently for complex, pixel-level RGB color effects.
Standard Single-Wire Protocol: Fully compatible with WS2812/SK6812 data protocols (800kbps), ensuring easy integration with Arduino, ESP32, and mainstream controllers.
High Reliability & Efficiency: Operates on 3.7V-5.5V with a static current of only 0.35mA and features HBM 2000V ESD protection for stable, long-term use.
Seamless Cascade Capability: Supports automatic data reshaping and forwarding via DOUT, enabling thousands of LEDs to be connected in series without signal degradation.
|
Category |
Specification |
|---|---|
|
Product Model |
OPSCO SK6805SIDE 4818 |
|
Package Size |
4.8 mm × 1.6 mm × 1.8 mm (L×W×H) |
|
LED Type |
RGB Full Color (Magic Color) |
|
Built-in IC |
Yes (Single-wire control) |
|
Input Voltage |
DC 3.7V – 5.5V |
|
Data Protocol |
Compatible with WS2812 / SK6812 (800 kbps) |
|
Gray Scale |
256 levels per channel (24-bit color) |
|
Static Current |
0.35 mA (typical) |
|
PWM Frequency |
1 kHz / 4 kHz (depending on variant) |
|
ESD Protection |
HBM 2000 V |
|
Operating Temp. |
-40 °C to +85 °C |
|
Pin Configuration |
1: VDD, 2: GND, 3: DIN, 4: DOUT |
|
Cascade Support |
Yes (DIN → DOUT, auto-reshaping) |
|
Applications |
Side-light strips, slim light boxes, edge-lit signs, keyboards, FPC strips, DIY projects |
