Its ultra-small 3.2×1.0mm footprint and EC3210 PCB bracket design make it perfect for space-constrained applications like smart wearables, mini displays, and decorative lighting. With a 4kHz PWM refresh rate and 2000V ESD protection, it ensures flicker-free, reliable operation from -40°C to +80°C. Choose SK6805-EC3210 for uncompromised color precision in the tiniest form factor.
Ultra-Compact 3210 Package: Measures just 3.2×1.0×1.48mm, ideal for miniature electronics, wearables, and high-density pixel arrays.
Built-in Smart IC: Integrates driver, oscillator, and data reshaping in one chip—no external components needed, simplifying PCB design.
Low Power 5mA Version: Optimized for energy-sensitive projects; significantly lower current draw than standard 12mA SK6812 variants.
True 24-bit Color & 4kHz PWM: Supports 256 grayscale levels per channel with a 4kHz refresh rate for smooth, flicker-free visual effects.
Wide Compatibility & Robustness: Single-wire 800kbps protocol works with Arduino/ESP32; features 2000V ESD protection and -40°C to +80°C operation.

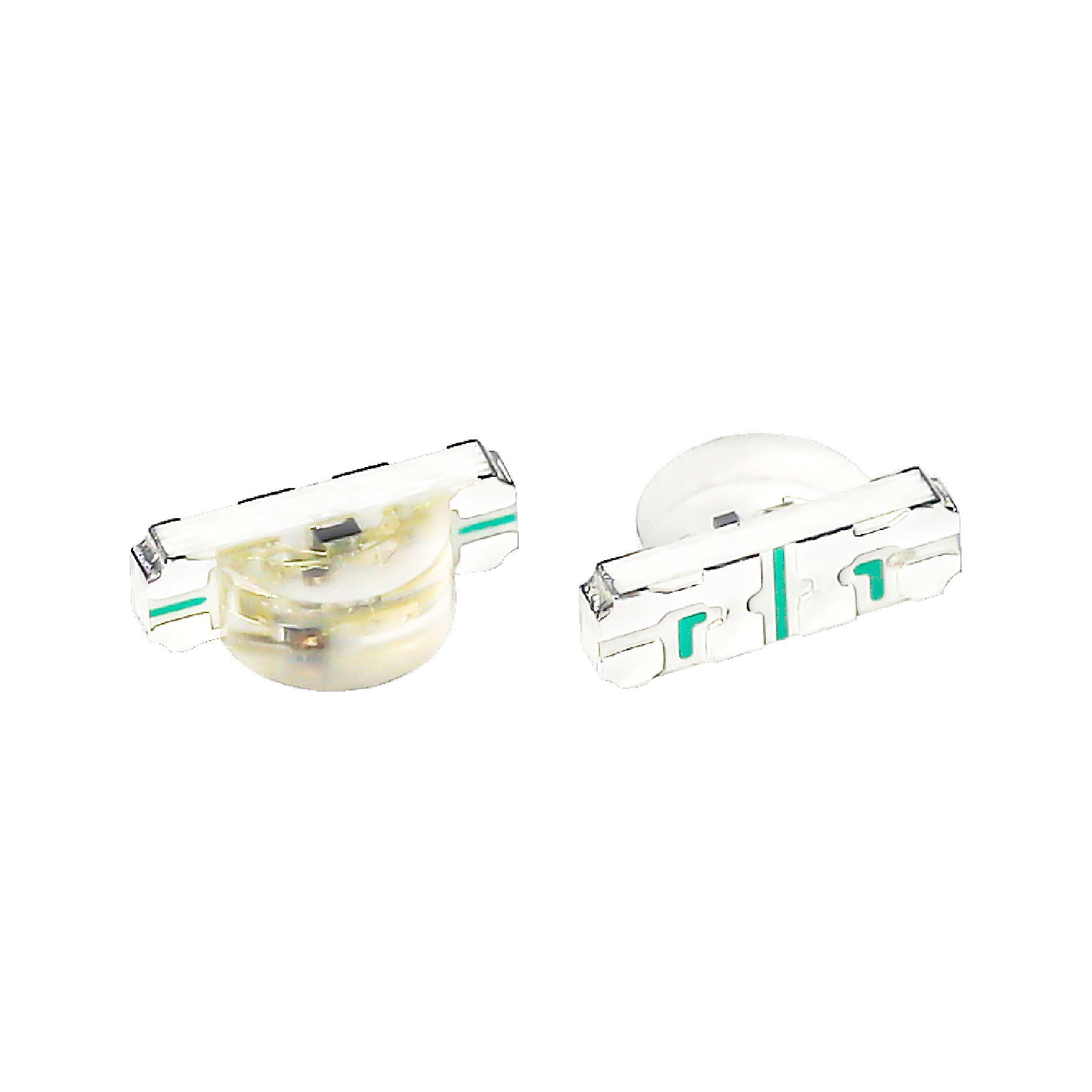

The SK6805-EC3210 is a 4-pin, 3210-sized SMD LED with an embedded control IC. It combines a precision internal oscillator, a programmable constant current output driver, and a single-wire data interface to deliver individually addressable RGB lighting. Each device acts as one pixel in a cascaded chain, automatically forwarding data to the next LED.
Communication: Single-wire return-to-zero code, 800 kbps
Color depth: 24-bit (8-bit per channel, 16.7M colors)
PWM frequency: 4 kHz
Input voltage: 3.7V – 5.5V DC (typical 5V)
Static current: ~0.25 mA
Operating temperature: -40°C to +80°C
ESD (HBM): 2000V
Package options: EC3210R (round lens), EC3210F (flat lens)
|
Pin No. |
Name |
Function |
|---|---|---|
|
1 |
GND |
Ground |
|
2 |
DOUT |
Data output to next LED |
|
3 |
DIN |
Data input from controller |
|
4 |
VDD |
Power supply (3.7–5.5V) |
|
Parameter |
Symbol |
Min |
Typ |
Max |
Unit |
|---|---|---|---|---|---|
|
Supply voltage |
VDD |
3.7 |
5.0 |
5.5 |
V |
|
Input current |
IDD |
- |
5 |
- |
mA |
|
Static current |
IQ |
- |
0.25 |
- |
mA |
|
Data rate |
- |
- |
800 |
- |
kbps |
|
Color |
Wavelength (nm) |
Luminous Intensity (mcd) |
|---|---|---|
|
Red |
620–630 |
80–160 |
|
Green |
520–535 |
240–450 |
|
Blue |
460–475 |
60–120 |
Data is transmitted as 24-bit packets (order: G7–G0, R7–R0, B7–B0). The first LED reads its 24 bits and passes the remainder to the next via DOUT. A low-level reset signal (>50µs) latches data and updates outputs.
Smart wearables and mini displays
Decorative and ambient lighting
LED strips, matrices, and signage
Consumer electronics and toys
Size: 3.2 × 1.0 × 1.48 mm (L×W×H)
PCB bracket type (EC3210)
