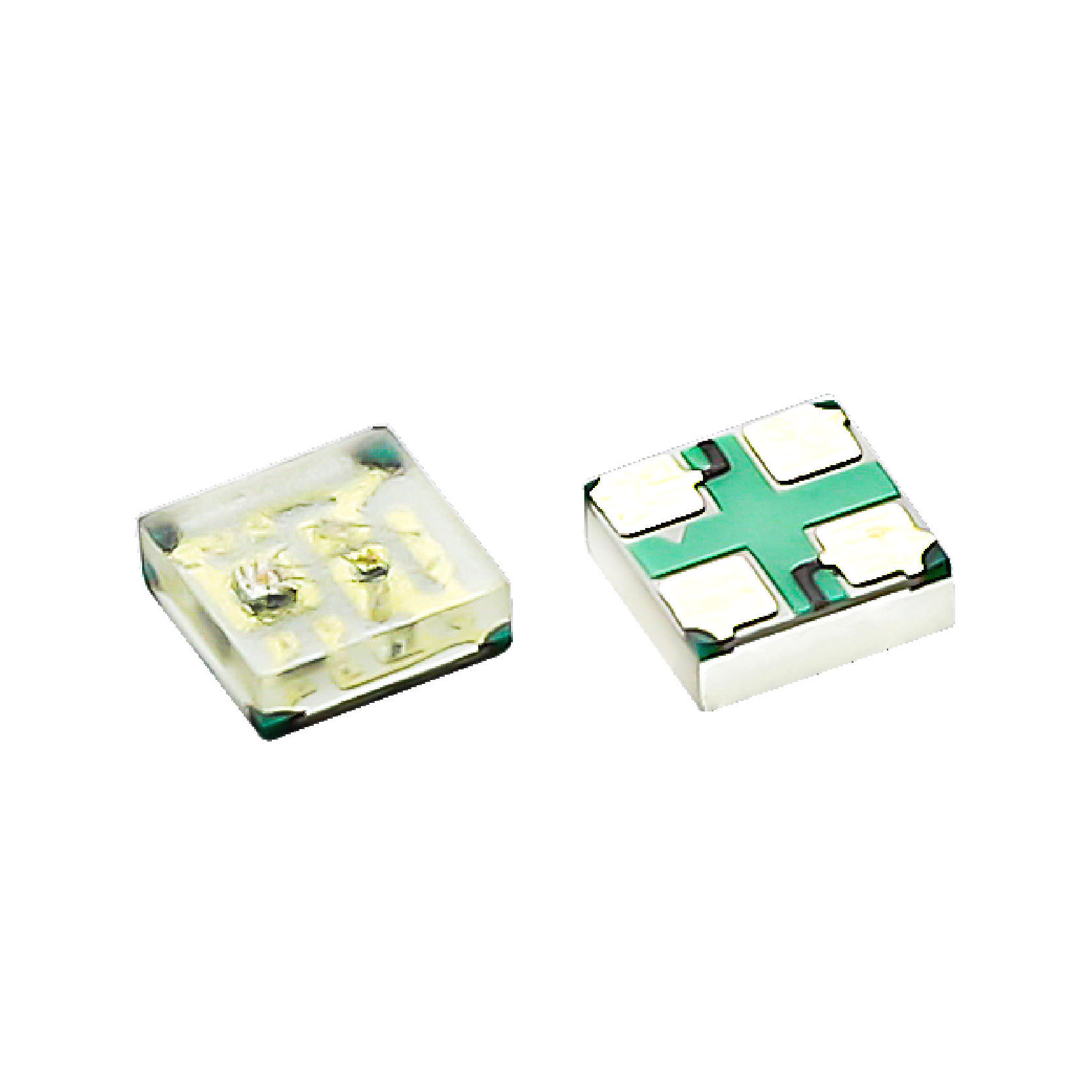

Its ultra-small 2.0x2.0x0.65mm footprint makes it ideal for narrow pixel pitch displays, smart home appliances, and intricate PCB backlighting. With a wide 160° viewing angle and robust ESD protection, the SK6805-EC20 combines reliability with vibrant color accuracy. Upgrade your lighting design with this energy-efficient, easy-to-drive solution that brings dynamic, addressable brilliance to any project.
Ultra-Compact 2020 Package: Measures just 2.0x2.0x0.65mm, perfect for space-constrained and high-density pixel layouts.
Integrated Control IC: Built-in smart IC eliminates the need for external drivers, simplifying circuit design and reducing BOM costs.
True 24-bit Full Color: Offers 256-level grayscale per channel (R/G/B) for over 16 million vibrant color combinations.
Single-Wire Data Cascade: Utilizes a single-line serial protocol for easy MCU connection and supports long-distance, distortion-free signal transmission.
High Reliability & Performance: Features 160° wide viewing angle, 2000V HBM ESD protection, and stable 1kHz PWM output for consistent brightness.
OPSCO SK6805-EC20 Datasheet
|
Parameter |
Symbol |
Min |
Typ |
Max |
Unit |
|---|---|---|---|---|---|
|
Electrical Characteristics |
|||||
|
Supply Voltage |
VDD |
3.5 |
5.0 |
5.5 |
V |
|
Input Current |
IDD |
- |
5.0 |
- |
mA |
|
Static Current |
IQ |
- |
0.5 |
- |
mA |
|
Optical Characteristics |
|||||
|
Wavelength - Red |
λD(R) |
620 |
- |
630 |
nm |
|
Wavelength - Green |
λD(G) |
520 |
- |
535 |
nm |
|
Wavelength - Blue |
λD(B) |
460 |
- |
475 |
nm |
|
Luminous Intensity - Red |
IV(R) |
50 |
- |
100 |
mcd |
|
Luminous Intensity - Green |
IV(G) |
140 |
- |
280 |
mcd |
|
Luminous Intensity - Blue |
IV(B) |
30 |
- |
60 |
mcd |
|
Viewing Angle |
2θ1/2 |
- |
160 |
- |
deg |
|
Data Transmission |
|||||
|
Data Rate |
DR |
- |
800 |
- |
kbit/s |
|
PWM Frequency |
FPWM |
- |
1.0 |
- |
kHz |
|
Gray Scale Level |
- |
- |
256 |
- |
bit |
|
Environmental |
|||||
|
Operating Temp |
Topr |
-40 |
- |
+80 |
°C |
|
Storage Temp |
Tstg |
-40 |
- |
+80 |
°C |
|
ESD Protection (HBM) |
ESD |
- |
2000 |
- |
V |
Pin Configuration:
VDD (Power Supply)
DOUT (Data Output)
GND (Ground)
DIN (Data Input)
Features:
Built-in IC with data reshaping and forwarding.
Single-wire control interface.
Reverse connection protection (check specific model).
Compatible with WS2812/SK6812 protocols (verify with OPSCO specs).
