Designed for seamless integration, it simplifies complex wiring and reduces BOM costs. Perfect for architectural outlines, stage lighting, and creative DIY displays, the S3535RGBWP8 delivers stunning visual effects with low power consumption and high reliability. Experience the future of addressable lighting with OPSCO’s precision engineering.
Integrated Smart Control: Built-in IC eliminates the need for external drivers, enabling individual pixel addressing and complex animations with a single data line.
True RGBW Color Mixing: Features dedicated Red, Green, Blue, and White chips for richer color palettes and pure, high-CRI white light output.
Cascadable & Stable: Supports continuous cascading with a built-in signal reshaping circuit to prevent distortion over long distances (up to 1024 pixels at 30fps).
Compact 3535 Footprint: Ultra-small 3.5x3.5mm package ideal for high-density pixel screens, narrow light strips, and space-constrained applications.
Wide Compatibility: Fully compatible with mainstream 5V/12V systems and popular controllers (Arduino, ESP32, Raspberry Pi) using standard single-line protocols.

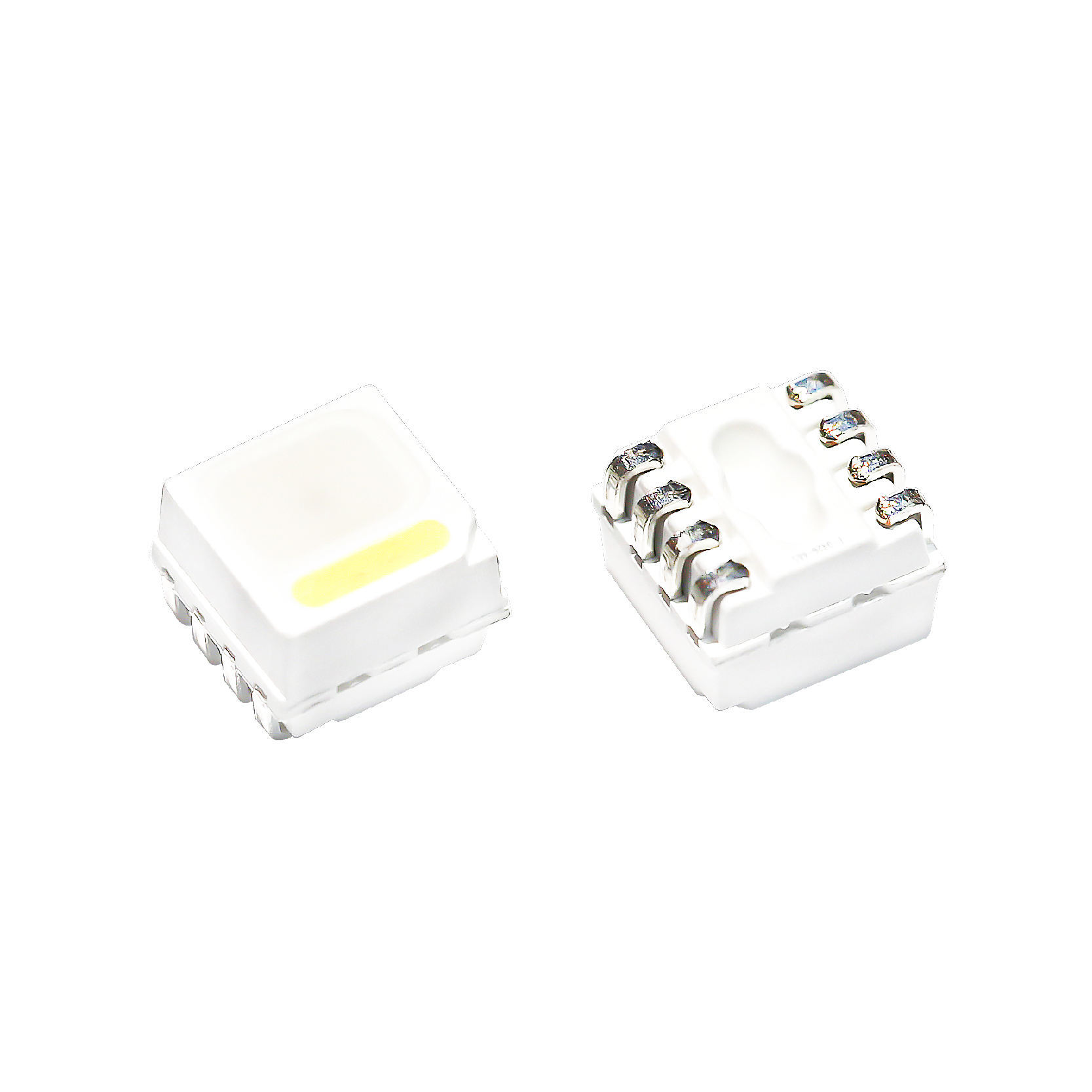

OPSCO S3535RGBWP8 Datasheet
|
Parameter |
Symbol |
Specifications |
Unit |
|---|---|---|---|
|
Electrical Characteristics |
|||
|
Operating Voltage |
VDD |
5.0 (Typical) |
V |
|
Input Current |
IDD |
6.5 |
mA |
|
Data Input Voltage (High) |
VIH |
0.7 * VDD |
V |
|
Data Input Voltage (Low) |
VIL |
0.3 * VDD |
V |
|
Optical Characteristics |
|||
|
Wavelength (Red) |
λD |
620 - 630 |
nm |
|
Wavelength (Green) |
λD |
515 - 530 |
nm |
|
Wavelength (Blue) |
λD |
465 - 475 |
nm |
|
Luminous Intensity (White) |
IV |
1000 - 1500 (Typical) |
mcd |
|
Viewing Angle |
2θ1/2 |
120 |
deg |
|
Control Protocol |
|||
|
Data Transfer Rate |
DTR |
800 |
Kbps |
|
Data Sequence |
- |
GRB, 32-bit (8-bit/color) |
- |
|
Physical Characteristics |
|||
|
Package Dimensions |
- |
3.5 x 3.5 x 1.5 |
mm |
|
Pin Count |
- |
4 (VCC, GND, DIN, DOUT) |
- |
|
Operating Temperature |
Topr |
-40 to +85 |
°C |
|
Storage Temperature |
Tstg |
-40 to +105 |
°C |
|
Soldering Temp (Reflow) |
Tsol |
260 (Max) |
°C |
