Unlike traditional RGB LEDs, the L4010 requires no external controller wiring; its built-in IC enables independent pixel control via a single data line, drastically simplifying installation and reducing PCB space. Engineered for high efficiency and longevity, it is perfectly suited for space-constrained applications such as narrow pixel pitch light strips, backlighting, architectural accents, and custom DIY electronics. Whether you are creating immersive gaming setups or commercial displays, the OPSCO L4010 provides unmatched color uniformity and reliability. Transform your vision into reality with this cutting-edge, all-in-one smart LED solution.
🎨 Individual Addressable "Dream Color": Features a built-in high-speed IC that allows each LED to be controlled independently, producing stunning rainbow wave, chasing, and gradient effects.
📏 Ultra-Compact 4010 Package: The tiny 4.0x1.0mm footprint is ideal for high-density pixel arrays and applications where space is strictly limited.
🔌 Simplified Wiring & Installation: Single-wire data transmission (compatible with standard 2812/SK6812 protocols) reduces complex wiring to just Power (5V), Ground, and Data.
💡 High Brightness & Uniformity: Equipped with high-quality Epistar chips to ensure consistent, vivid RGB color output with excellent viewing angles.
🔧 Versatile & Easy to Drive: Fully compatible with popular microcontrollers (Arduino, Raspberry Pi, ESP32) and mainstream programming libraries (FastLED, Adafruit NeoPixel).

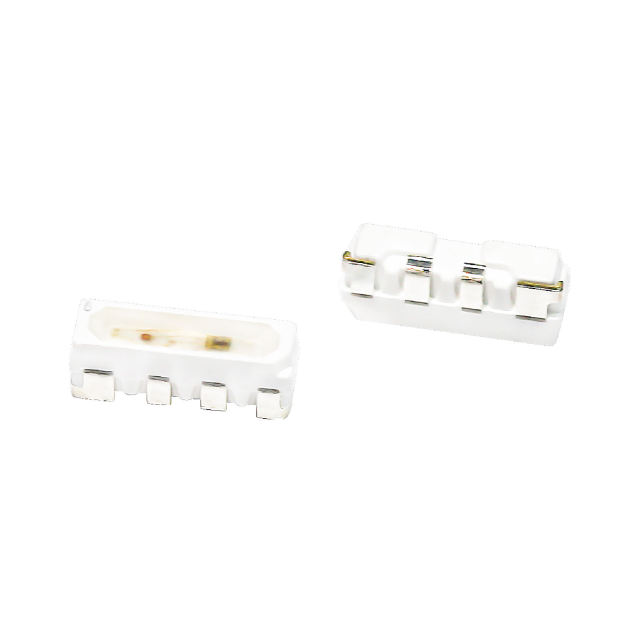

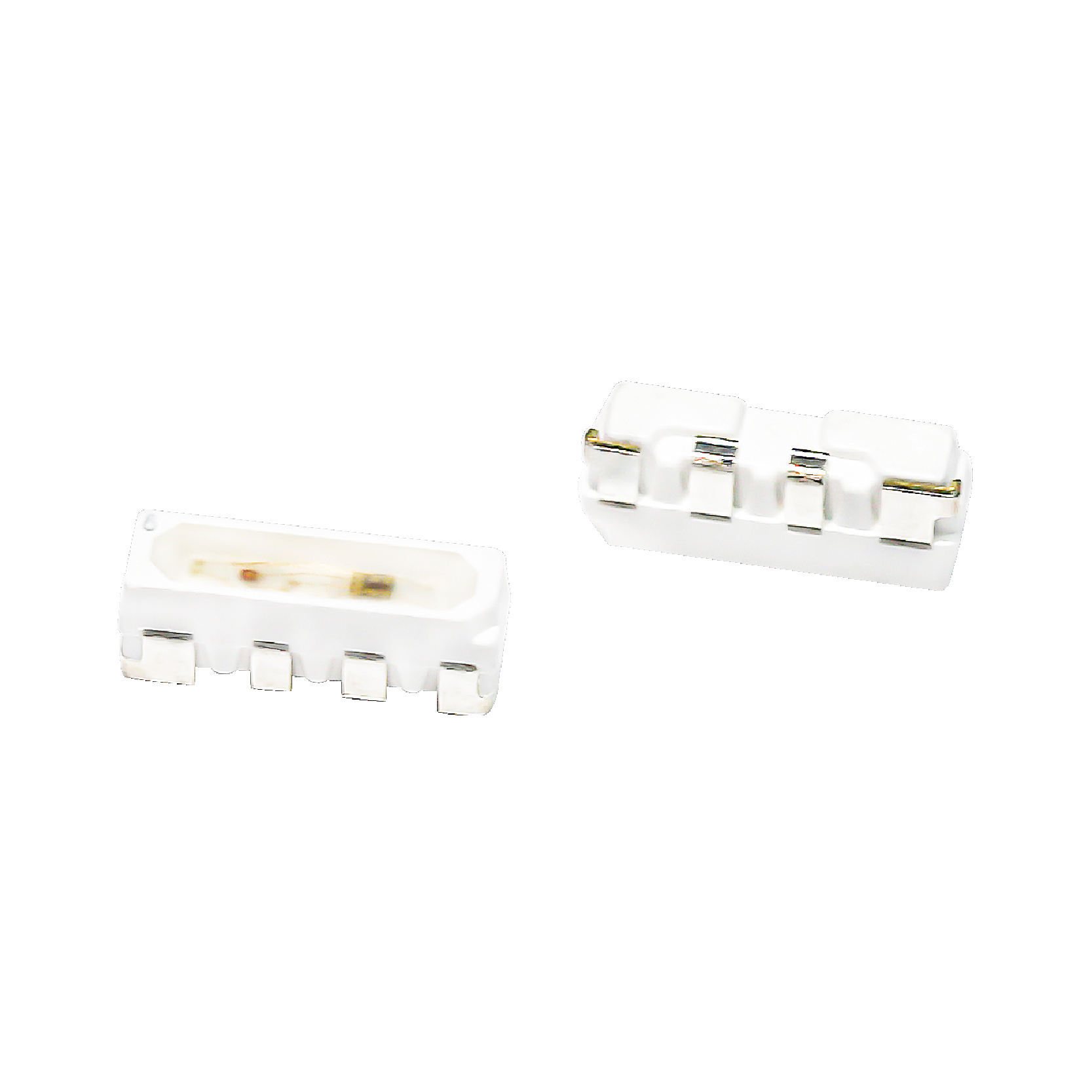

OPSCO L4010 SMD Built-in IC RGB LED Specification
|
Parameter |
Symbol |
Specification |
Unit |
|---|---|---|---|
|
Electrical Characteristics |
|||
|
Operating Voltage |
VDD |
DC 5.0 (Typ) |
V |
|
Input Current |
Ii |
15 - 20 (Typ) |
mA |
|
Standby Current |
Isb |
< 1 |
mA |
|
Optical Characteristics |
|||
|
Color Type |
- |
Full Color RGB (256 Gray Scale) |
- |
|
IC Control Protocol |
- |
Single-wire Return-to-Zero Code |
- |
|
Data Transfer Rate |
Dtr |
800 (Max) |
Kbps |
|
Viewing Angle |
2θ 1/2 |
120 |
Deg |
|
Physical Characteristics |
|||
|
Package Dimensions |
- |
4.0 x 1.0 x 0.6 (LxWxH) |
mm |
|
Soldering Method |
- |
Reflow Soldering (Lead-free) |
- |
|
Operating Temp. |
Topr |
-25 ~ +85 |
°C |
|
Storage Temp. |
Tstg |
-40 ~ +105 |
°C |
|
Reliability |
|||
|
Lifespan |
- |
> 50,000 |
Hours |
