Cooling is by a built-in ball-bearing DC fan with forced-air convection inside a 247 × 127 × 63.5 mm metal case. Protection covers short circuit, overload (105–125% → shut down output, re-power to recover), over voltage (27.6–32.4V), and over temperature (85°C ±5°C on power-transistor heatsink, auto-recover after cooldown). It includes remote sense for line-drop compensation, LED power indicator, and 4.9W/in³ power density. With IEC/UL 62368-1(12V/24V), UL60950-1legacy approvals, 2G vibration, and a 2-year warranty, SE-600-24 was Mean Well’s cost-effective mid-power industrial supply before the LRS/RSP era.
600W / 24V 25A: Solid mid-power 24V rail for automation panels, LED systems, CNC/I/O, test rigs.
Switch-Selectable Input: 90–132 / 180–264V AC and 254–370V DC; 300V AC surge 5s.
Remote Sense Built-In: Compensates for cable/terminal voltage drop on long 24V runs.
Forced-Air DC Fan: Ball-bearing fan, 4.9W/in³ density, 247×127×63.5mm enclosed chassis.
Legacy Economy Platform: SCP / OLP / OVP / OTP, UL/IEC/EN 62368-1(12V/24V), 2-year warranty — cheaper than LRS-600-24 but EOL.

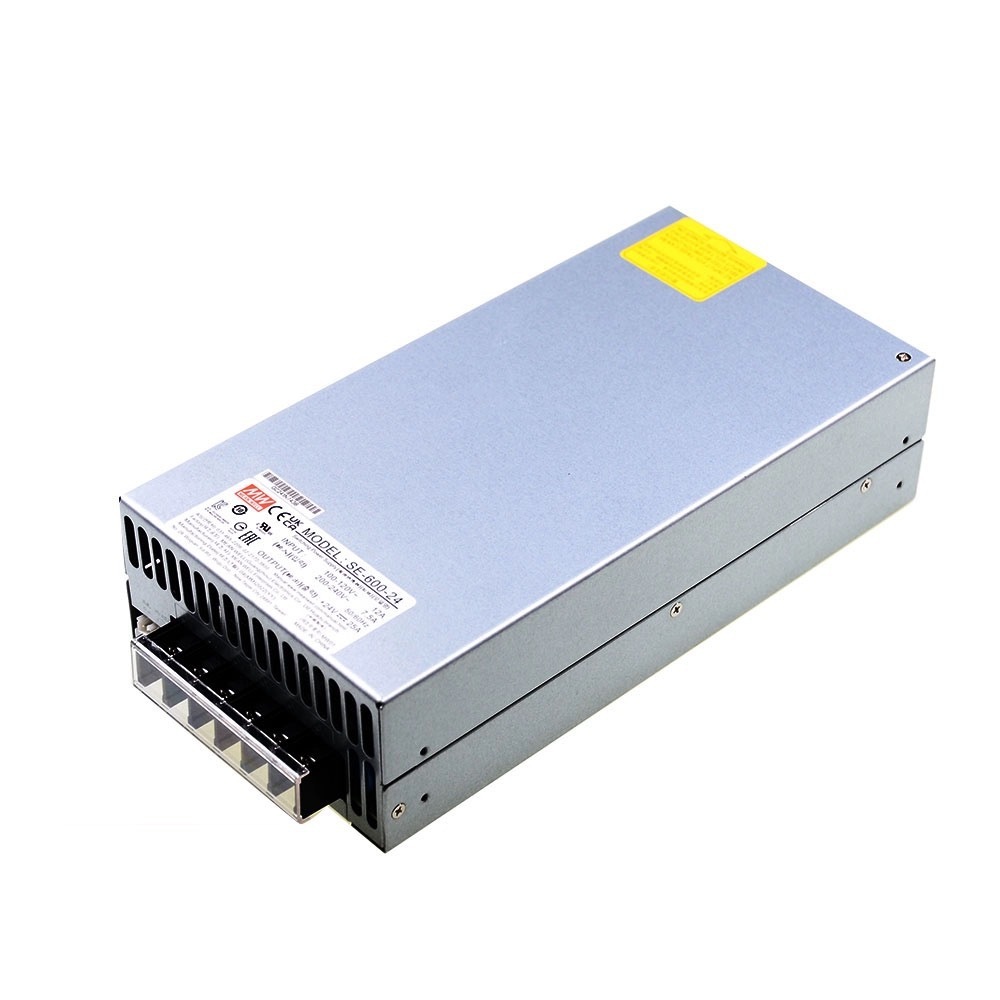

MODEL: SE-600-24
BRAND: Mean Well
TYPE: 600W Enclosed AC/DC Single-Output Switching Power Supply (legacy/economy)
Status: Discontinued — consider LRS-600-24 / RSP-750-24 / NSP-1600-24
|
Category |
Specification |
|---|---|
|
DC Output Voltage |
24V |
|
Rated Current |
25A |
|
Current Range |
0 – 25A |
|
Rated Power |
600W |
|
Voltage Adjust Range |
22 – 26.4V |
|
Ripple & Noise (max.) |
150mVp-p |
|
Voltage Tolerance |
±1.0% |
|
Line Regulation |
±0.5% |
|
Load Regulation |
±0.5% |
|
Setup / Rise Time |
1000ms / 50ms (full load) |
|
Hold-up Time (Typ.) |
20ms @230V AC, 16ms @115V AC |
|
Input Voltage Range |
90–132V AC / 180–264V AC (switch); 254–370V DC |
|
Frequency |
47–63Hz |
|
Efficiency (Typ.) |
87% |
|
AC Current (Typ.) |
12A @115V AC, 7.5A @230V AC |
|
Inrush Current (Typ.) |
30A @115V AC, 60A @230V AC |
|
Leakage Current |
<2.0mA @240V AC |
|
Overload Protection |
105–125% rated power → shut down output, re-power to recover |
|
Over Voltage Protection |
27.6–32.4V → shut down output, re-power to recover |
|
Over Temperature Protection |
85°C ±5°C (heatsink) → shut down, auto-recover after cooldown |
|
Short Circuit Protection |
Shut down output, re-power to recover |
|
Cooling |
Built-in DC ball-bearing fan, forced air |
|
Remote Sense |
Yes (+S / -S connector) |
|
Operating Temp. |
-20°C ~ +60°C (refer to derating curve) |
|
Operating Humidity |
20–90% RH, non-condensing |
|
Storage Temp. |
-40°C ~ +85°C |
|
Vibration |
10–500Hz, 2G |
|
Isolation |
I/P-O/P: 3kV AC; I/P-FG: 1.5kV AC; O/P-FG: 0.5kV AC |
|
Dimensions (L×W×H) |
247 × 127 × 63.5 mm |
|
Weight |
Approx. 2.1 kg |
|
MTBF |
521.7k hrs Telcordia SR-332; 197k hrs MIL-HDBK-217F (25°C) |
|
Certifications |
UL60950-1, UL/IEC/EN 62368-1 (12V/24V), CB, CE, EAC, UKCA, KC K60950-1, BSMI, RoHS |
|
Warranty |
2 years |
