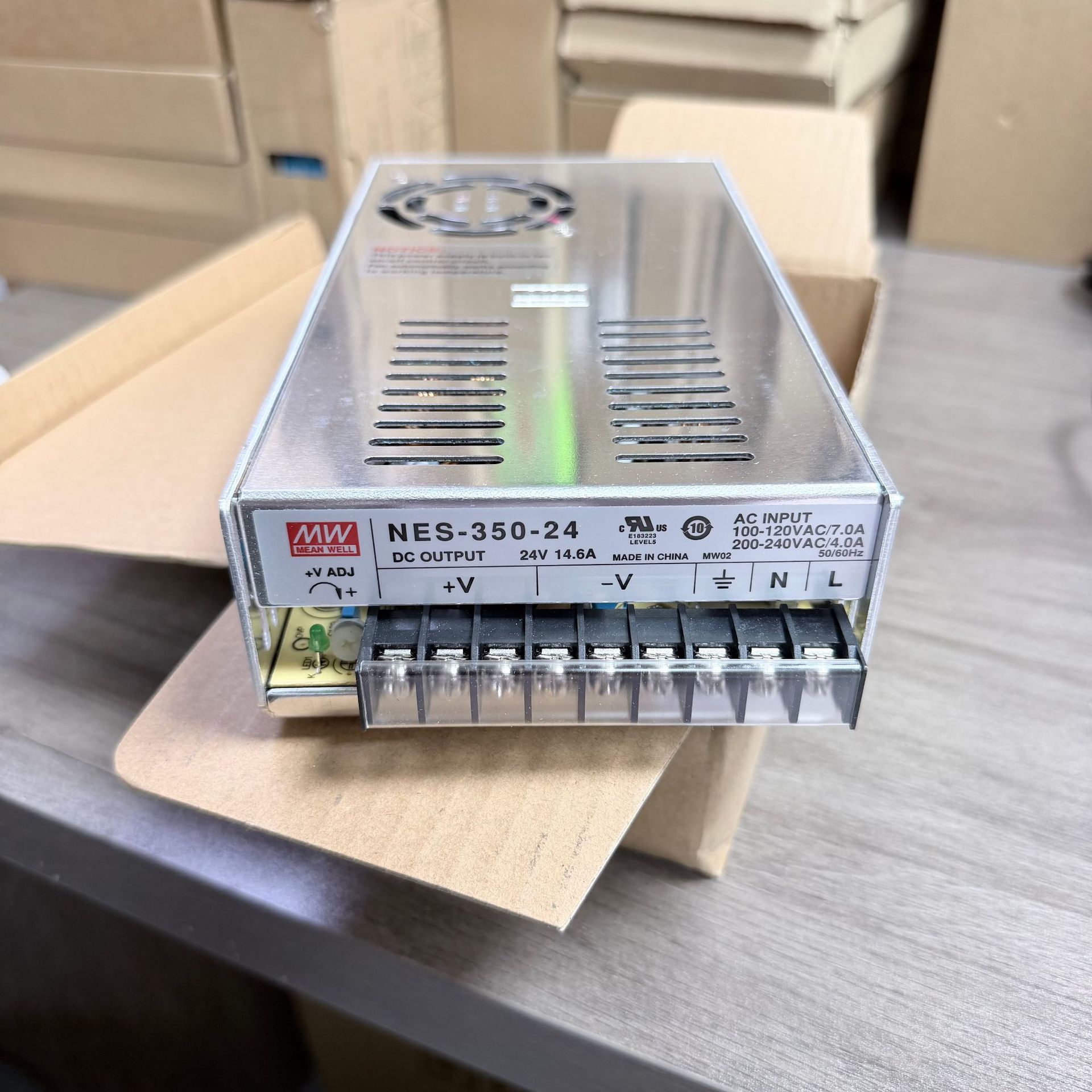

Its robust metal enclosure provides excellent heat dissipation, while the built-in DC cooling fan with smart temperature control optimizes performance and lifespan. Equipped with comprehensive protections against short circuits, overload, over voltage, and over temperature, the NES-350-24 guarantees operational safety. With 87% high efficiency and a compact design, it is the ideal choice for powering industrial control systems, LED displays, and telecommunications equipment.
High Efficiency & Stable Output: Delivers a continuous 350.4W output (24V/14.6A) with up to 87% efficiency, ensuring stable performance for industrial loads.
Universal Input Voltage: Supports a wide range AC input (90-132V/180-264VAC) with a manual switch, making it suitable for global applications.
Comprehensive Protection: Features full safeguards including Short Circuit, Overload, Over Voltage, and Over Temperature protection to secure your devices.
Smart Cooling System: Equipped with a built-in DC fan featuring automatic temperature control, balancing effective heat dissipation with low acoustic noise.
Durable & Compact Design: Housed in a high-quality metal enclosure (215x115x50mm) that resists electromagnetic interference and ensures long-term durability.
|
Model Number |
NES-350-24 |
|---|---|
|
Output Voltage |
24V DC |
|
Rated Current |
14.6A |
|
Power Rating |
350.4 Watts |
|
Input Voltage Range |
90~132VAC / 180~264VAC (Selectable) or 255~370VDC |
|
Frequency Range |
47 ~ 63 Hz |
|
Efficiency |
87% (Typ.) |
|
AC Current |
7A / 4A @ 115VAC / 230VAC |
|
Inrush Current |
Cold start: 40A / 230VAC |
|
Adjustable Voltage Range |
20 ~ 26.4V DC (Potentiometer) |
|
Overload Protection |
105~150% rated output power, Constant Current Limiting, Auto-recovery |
|
Over Voltage Protection |
27.6~32.4V (Hiccup mode, Auto-recovery) |
|
Over Temperature Protection |
>85°C (Protector temperature), Shut down output, Auto-recovery |
|
Cooling Method |
Forced air cooling by built-in DC fan (Temperature controlled) |
|
Operating Temp. |
-10°C ~ +60°C (Derating applies above 50°C) |
|
Safety Standards |
UL60950-1, TUV EN60950-1 approved |
|
EMC Standards |
Compliance to EN55022 (Class B), EN61000-3-2,-3 |
|
Connection Type |
Terminal Block |
|
Dimensions (LxWxH) |
215 x 115 x 50 mm |
|
Weight |
0.95 kg (Approx.) |
|
Status |
Discontinued (Check for compatible replacements) |
