The unit is medically approved to IEC/EN 60601-1(MOOP level) with low leakage current—earth leakage <450µA, touch leakage <100µA at 264V AC—making it suitable for non-patient-contact / operator-protection equipment. A built-in long-life DC fan with ON/OFF control, 5V/0.3A standby aux, remote ON/OFF, remote sense, and DC-OK signal give it OEM-grade controllability. Protections cover short circuit, overload (105–135% constant-current, auto-recover), over voltage (30–34.8V), and over temperature. With 1U 41mm profile, no-load consumption <0.5W, 105°C long-life capacitors, and a 5-year warranty, MSP-300-24 is the right choice when “24V 14A” must meet medical/low-leakage specs.
336W / 24V 14A: Medical/industrial hybrid output for instruments, analyzers, clinical IT, cleanroom control.
Medical Safety + Low Leakage: IEC/EN 60601-1MOOP; earth <450µA, touch <100µA @264V AC.
Universal Input + Active PFC: 85–264V AC / 120–370V DC, PF >0.95, 87% efficiency, 300V AC surge 5s.
OEM Control Functions: Remote ON/OFF, remote sense, DC-OK, 5V/0.3A standby, fan ON/OFF control.
1U Medical Reliability: 199×105×41mm, <0.5W no-load loss, 105°C caps, SCP/OLP/OVP/OTP, 5-year warranty.

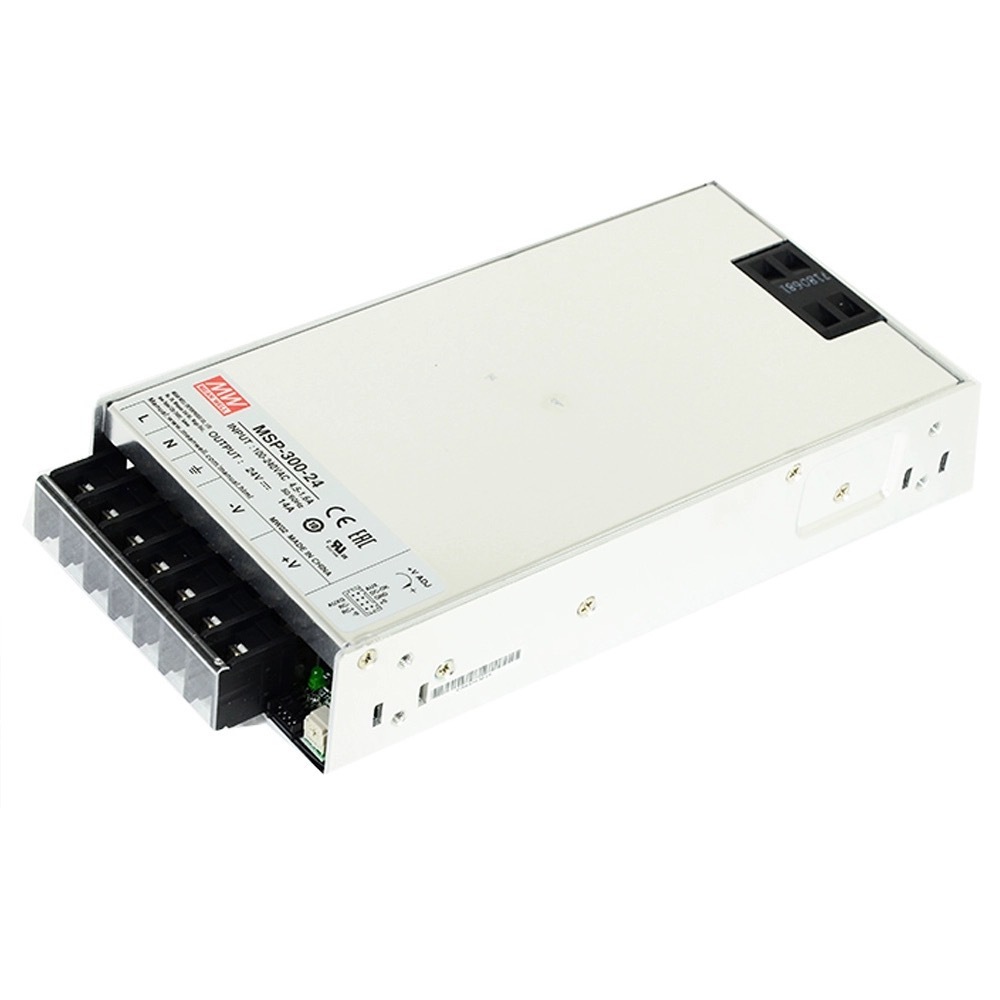

MODEL: MSP-300-24
BRAND: Mean Well
TYPE: 300W-Class Medical Enclosed AC/DC Single-Output Power Supply (24V)
|
Category |
Specification |
|---|---|
|
DC Output Voltage |
24V |
|
Rated Current |
14A |
|
Current Range |
0 – 14A |
|
Rated Power |
336W |
|
Voltage Adjust Range |
21.6 – 28.8V |
|
Ripple & Noise (max.) |
150mVp-p |
|
Voltage Tolerance |
±1.0% |
|
Line / Load Regulation |
±0.2% / ±0.5% |
|
Setup / Rise Time |
1000ms / 50ms @230V AC; 2500ms / 50ms @115V AC |
|
Hold-up Time (Typ.) |
16ms @230V AC and @115V AC full load |
|
Input Voltage Range |
85–264V AC / 120–370V DC |
|
Frequency |
47–63Hz |
|
Power Factor (Typ.) |
>0.99 @115V AC, >0.95 @230V AC (full load) |
|
Efficiency (Typ.) |
87% |
|
AC Current (Typ.) |
4.5A @115V AC, 2.25A @230V AC |
|
Inrush Current (Typ.) |
35A @115V AC, 70A @230V AC |
|
Leakage Current |
Earth <450µA / 264V AC; Touch <100µA / 264V AC |
|
Overload Protection |
105–135% rated power → constant-current limiting, auto-recover |
|
Over Voltage Protection |
30–34.8V → shut down output, re-power to recover |
|
Over Temperature Protection |
Shut down output, auto-recover after cooldown |
|
Short Circuit Protection |
Constant-current / auto-recover |
|
Cooling |
Built-in long-life DC fan, ON/OFF control |
|
Aux / Signals |
5V/0.3A standby, DC-OK, remote ON/OFF, remote sense |
|
Medical Standard |
IEC/EN 60601-1, MOOP level |
|
Operating Temp. |
-40°C ~ +70°C (derate above 50°C) |
|
No-load Power |
<0.5W |
|
Dimensions (L×W×H) |
199 × 105 × 41 mm |
|
Weight |
Approx. 0.95 kg |
|
Certifications |
UL/CUL, TÜV EN60601-1 / EN62368-1, CB, CE, EAC, BSMI, CCC, AS/NZS 62368.1 |
|
Warranty |
5 years |
