Efficiency is 86% typical (series up to 92%). Because 100A generates major heat, it uses a built-in long-life DC fan with thermostatic control (≥50°C ON, ≤40°C OFF) inside a 225 × 124 × 41 mm 1U metal case. Protection covers short circuit, overload (105–150% → constant-current limit for 3s → shutdown, re-power to recover), over voltage (5.75–6.75V), and over temperature. It runs -20°C to +65°C, passes 5G vibration, operates up to 5000m altitude, MTBF >1M hrs, and carries a 3-year warranty—making it the definitive heavy 5V industrial power platform.
500W / 5V 100A: Extreme 5V current for LED walls, dense logic boards, automation panels, and embedded compute farms.
Switch-Selectable Input: 90–132 / 180–264V AC and 255–370V DC; 300V AC surge for 5 seconds.
1U 41mm + Smart Fan: 225×124×41mm, built-in DC fan ≥50°C ON / ≤40°C OFF—keeps noise and fan wear low at light load.
Industrial Protection Logic: Short circuit; overload = constant-current limit → shutdown after 3s → re-power recover; OVP 5.75–6.75V; OTP shutdown.
Rugged & Certified: -20°C ~ +65°C, 5G vibration, 5000m altitude, MTBF >1M hrs, IEC/UL 62368-1, 3-year warranty.

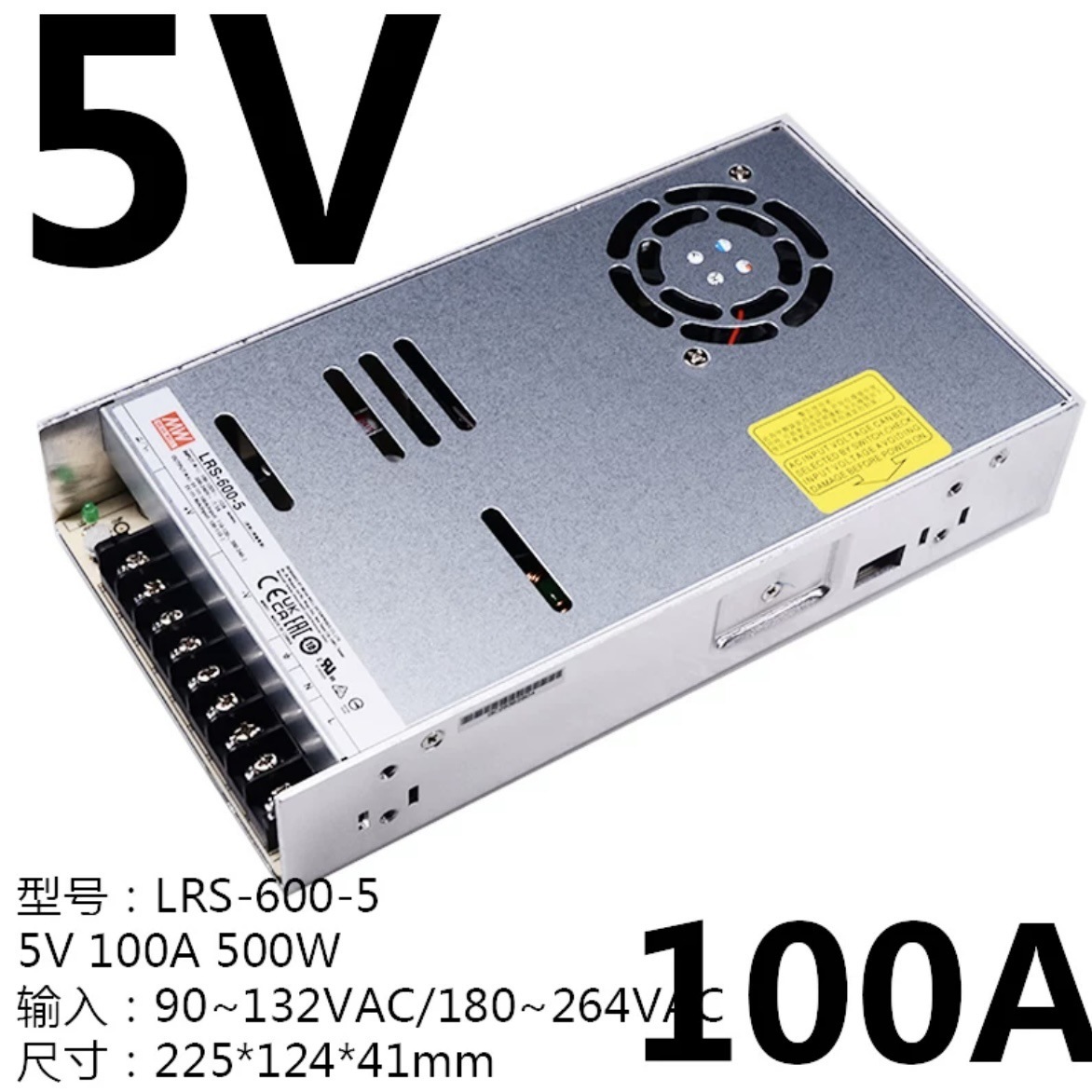

MODEL: LRS-600-5
BRAND: Mean Well
TYPE: 600W-class Enclosed AC/DC Single-Output Switching Power Supply (5V / 500W variant)
|
Category |
Specification |
|---|---|
|
DC Output Voltage |
5V |
|
Rated Current |
100A (label shows 90A when input <110V AC) |
|
Current Range |
0 – 100A |
|
Rated Power |
500W |
|
Voltage Adjust Range |
4.75 – 5.5V |
|
Ripple & Noise (max.) |
200mVp-p |
|
Voltage Tolerance |
±2.0% |
|
Line Regulation |
±0.5% |
|
Load Regulation |
±2.0% |
|
Setup / Rise Time |
1300ms / 50ms (full load) |
|
Hold-up Time (Typ.) |
20ms @230V AC, 16ms @115V AC |
|
Input Voltage Range |
90–132V AC / 180–264V AC (switch); 255–370V DC |
|
Input Frequency |
47–63Hz |
|
Efficiency (Typ.) |
86% |
|
AC Current (Typ.) |
12A @115V AC, 7.5A @230V AC |
|
Inrush Current (Typ.) |
35A @115V AC, 60A @230V AC |
|
Leakage Current |
<2mA @240V AC |
|
Overload Protection |
105–150% rated power; constant-current limit, shutdown after 3s, re-power to recover |
|
Over Voltage Protection |
5.75–6.75V; shut down output, re-power to recover |
|
Over Temperature Protection |
Shut down output, re-power to recover |
|
Short Circuit Protection |
Constant-current limiting within overload behavior |
|
Cooling |
Built-in DC fan, thermostatic (≥50°C ON, ≤40°C OFF) |
|
Operating Temp. |
-20°C ~ +65°C (refer to derating curve; 5V model derated vs 12V/24V) |
|
Operating Humidity |
20–90% RH, non-condensing |
|
Storage Temp. |
-40°C ~ +85°C |
|
Vibration |
10–500Hz, 5G |
|
Isolation |
I/P-O/P: 3kV AC; I/P-FG: 2kV AC; O/P-FG: 0.5kV AC |
|
Dimensions (L×W×H) |
225 × 124 × 41 mm |
|
Weight |
Approx. 0.95 kg |
|
Altitude |
Up to 5000m (derated) |
|
MTBF |
>1,000,000 hrs |
|
Certifications |
IEC/BS/UL 62368-1, EN61558-1/-2-16, BSMI, EAC TP TC 004, BIS/IEC 60950-1, AS/NZS 62368.1, CCC (model-dependent) |
|
Warranty |
3 years |
