A built-in long-life DC fan with temperature on/off control (≥50°C ON, ≤40°C OFF) holds full load from -20°C to +70°C; efficiency reaches up to 91–92% with <0.75W no-load consumption. Protections cover short circuit, overload (constant-current limit 3s then shutdown + re-power), over voltage and over temperature. It feeds multiple 5m rolls of 14.4W/m tape, ~15m of 18W/m RGBW, or 10–15m of 30W/m COB with injection. Ideal for commercial LED installs, DMX/PWM controllers, CCTV, PLCs and industrial automation. For 24/7 use de-rate to 85% load (≈383W / 16A). Not waterproof—mount indoors or in a ventilated enclosure.

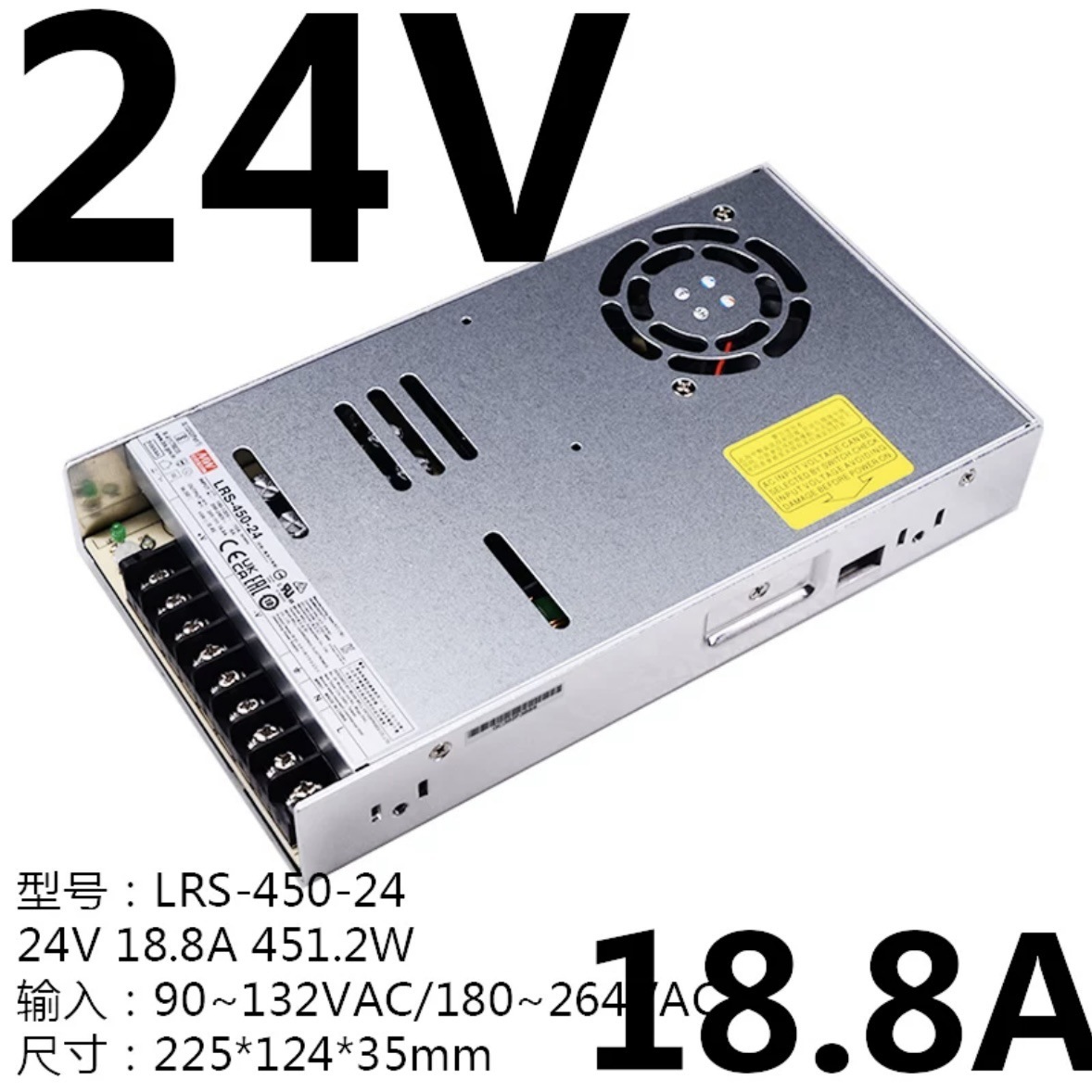

451W 24V Heavy Output: 24V DC, 18.8A, 451.2W; output trims 22.8–26.4V (±10%) to compensate cable drop on long 24V runs.
Switchable AC Input: 90–132VAC / 180–264VAC physical selector; 255–370VDC; withstands 300VAC surge for 5s.
1U Case + Smart Fan: 225×124×35mm, built-in DC fan with thermal on/off control, up to 91–92% efficiency, power-on LED, 5G vibration resistant, 3-year warranty.
Industrial Protection Logic: Short circuit / overload 105–150% (constant-current limit 3s → shutdown, re-power to recover) / over voltage 27.6–32.4V (shutdown + re-power) / over temp; IEC/UL 62368-1, EN60335-1, EN61558-1/-2-16, CCC/CE/CB/EAC.
Multi-Zone LED Ready: Several 5m 14.4W/m rolls, ~15m 18W/m RGBW, 10–15m 30W/m COB (with injection); controllers, CCTV, PLCs, signage, sensors on one supply.
|
Item |
Specification |
|---|---|
|
Model |
LRS-450-24 |
|
Manufacturer |
MEAN WELL |
|
Series |
LRS-450 (Enclosed, single output) |
|
Output Voltage |
24V DC |
|
Voltage Adjust Range |
22.8–26.4V（±10%） |
|
Rated Current |
18.8A |
|
Rated Power |
451.2W |
|
Input Voltage |
90–132VAC / 180–264VAC（physical switch）, 255–370VDC |
|
Frequency |
47–63Hz |
|
Efficiency |
91% typ @ 230VAC（series up to 92%） |
|
Ripple & Noise |
240mVp-p max |
|
Inrush Current |
Cold start 35A/115VAC, 60A/230VAC |
|
No-Load Power |
<0.75W |
|
Protections |
Short circuit, Overload 105–150%（constant-current limit 3s → shutdown, re-power）, Over voltage 27.6–32.4V（shutdown + re-power）, Over temp（shutdown + re-power） |
|
Cooling |
Forced air, built-in DC fan, ≥50°C ON / ≤40°C OFF |
|
Operating Temp |
-20°C ~ +70°C（derating above 50°C） |
|
Safety |
IEC/UL 62368-1, EN60335-1, EN61558-1/-2-16, GB4943, AS/NZS62368.1, EAC, CE, CB, BIS, BSMI, RoHS |
|
EMC |
EN55032 Class B, EN61000-3-2/-3, EN61000-4-x |
|
Terminals |
Screw terminal block（AC L/N/FG, DC +/- multi-pin） |
|
Housing / IP |
Metal mesh case, IP20 indoor |
|
Dimensions |
225 × 124 × 35 mm (L×W×H) |
|
Weight |
~0.85–0.9 kg |
|
Continuous Load Rule |
De-rate to 85% → ≈383W / 16A for 24/7 |
|
Typical Use |
Multiple 24V LED rolls, RGBW/CCT/COB strips, DMX/PWM controllers, signage, CCTV, PLC, industrial automation, LED display aux power |
|
Not For |
Outdoor exposed use, 12V strips, non-dimmable AC lamps, very long 40W/m COB without injection/amplifier |
|
Warranty |
3 years |
